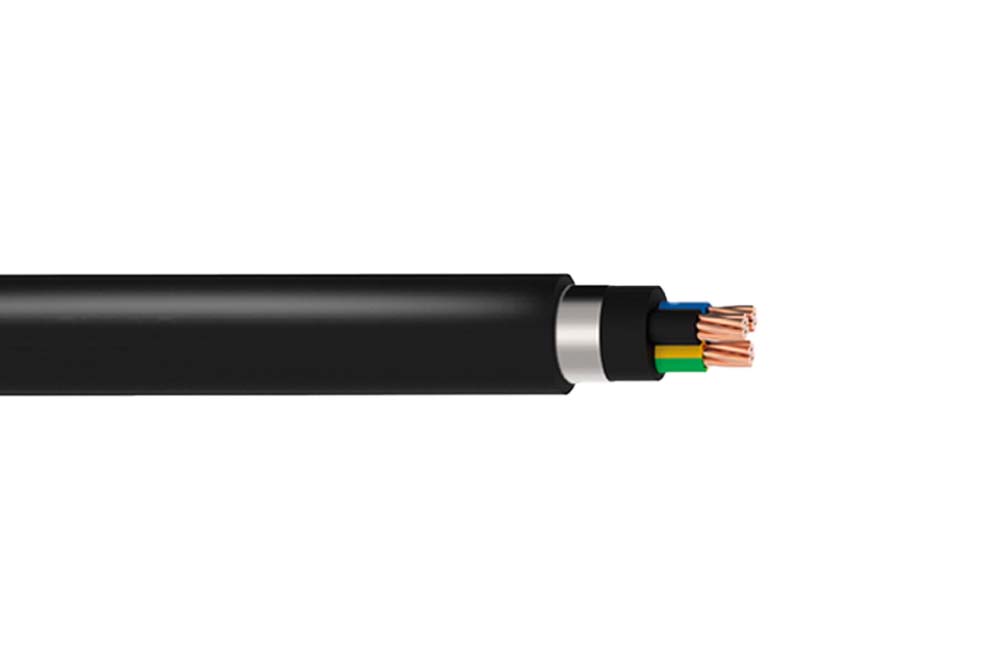

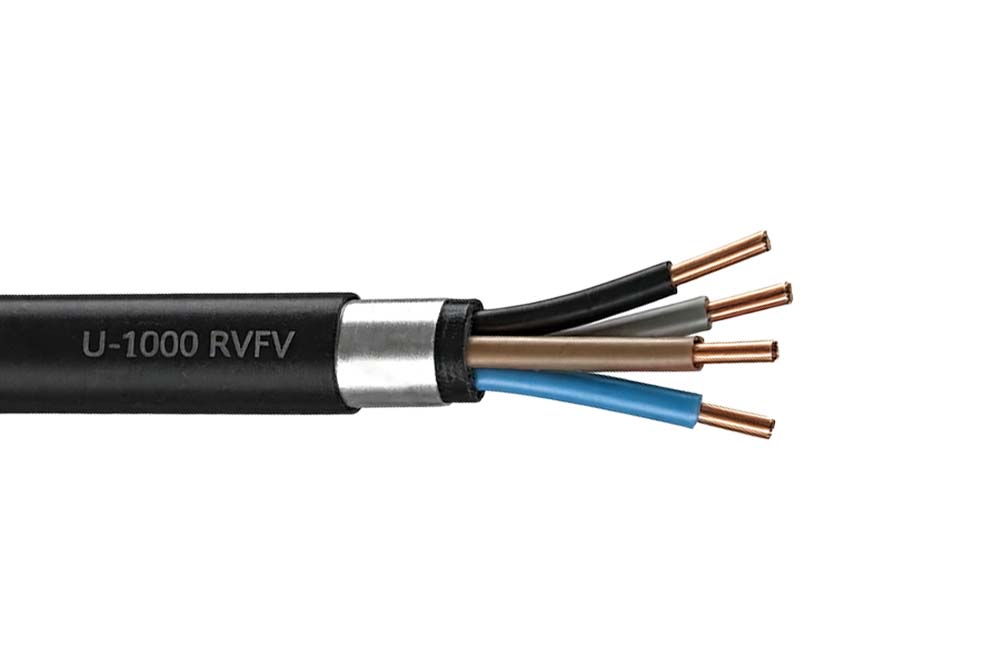

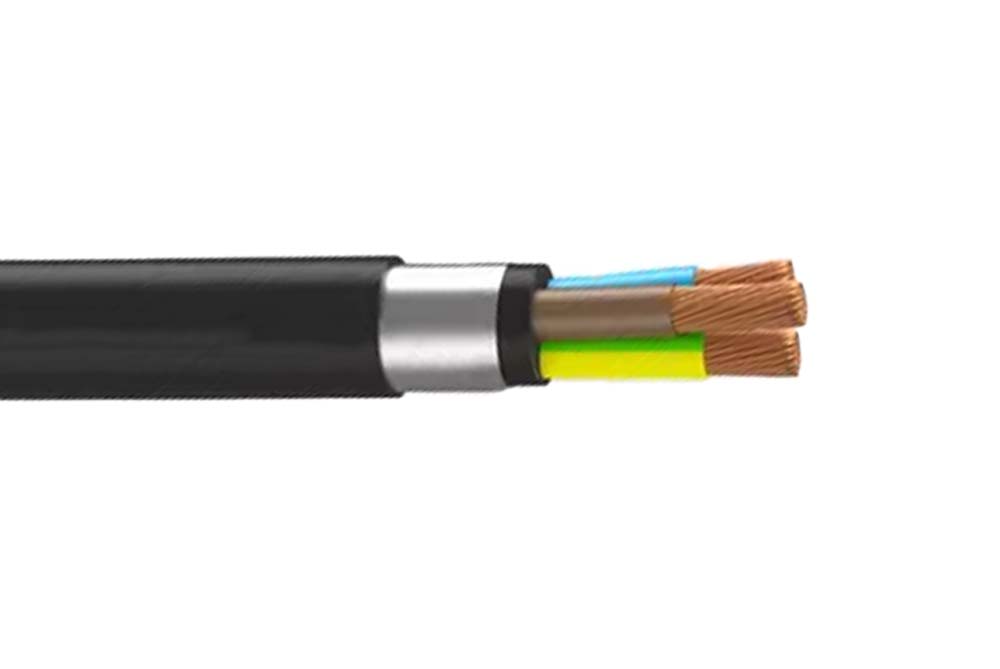

U-1000 RVFV – XAV XLPE PVC 0.6/1kV Cable
Voltage:	0.6/1kV
Structure:	Conductor	1.5mm² to 4mm²: Class 1 solid copper conductor 6mm² and above: Class 2 stranded copper conductor Class 2 stranded conductor available for these sizes on request
	Insulation	XLPE (Cross-Linked Polyethylene)
	Inner Sheath	PVC (Polyvinyl Chloride)
	Armour	Two steel tapes
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

These U-1000 RVFV cables are suitable for direct burial without additional protection or for installation on cable trays or in ducts where mechanical protection is necessary.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-10°C to +90°C

STANDARDS

NF C 32-322

Flame Retardant according to NF C 32-070 C2,

IEC 60332-1-2

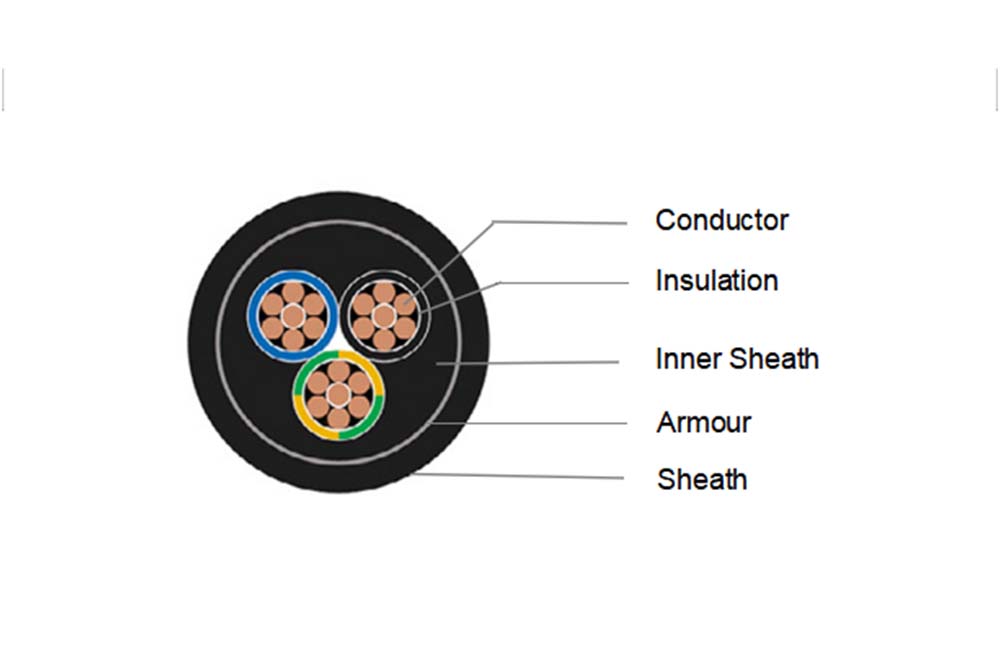

CONSTRUCTION

Conductor

1.5mm² to 4mm²: Class 1 solid copper conductor

6mm² and above: Class 2 stranded copper conductor

Class 2 stranded conductor available for these sizes on request

Insulation

XLPE (Cross-Linked Polyethylene)

Inner Sheath

PVC (Polyvinyl Chloride)

Armour

Two steel tapes

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black, Other colours available on request

Core Identification

2 core: Blue Brown

3 core: Black Brown Grey

3 core including earth: Blue Brown Green/Yellow

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES	mm²	mm	kg/km
2	1.5	13	215
2	2.5	14	249
2	4	15.5	309
2	6	16.5	386
2	10	18.5	515
2	16	20.5	709
2	25	23.5	1063
3	2.5	14.5	274
3	4	16	352
3	6	17.5	447
3	10	19	624
3	16	22	849
3	25	25	1273
3	35	32.5	1644
3	50	37.5	2107
3	70	35	2862
3	95	40	4190
3	120	45	5176
3	150	50	6303
3	185	54	7698
3	240	63	9814
3	50	34.5	2560
3	70	40	3492
3	95	45	4790
3	120	50	5951
3	150	54	7090
5	1.5	15.5	301
5	2.5	17	373
5	4	18.5	480
5	6	20.5	638
5	10	22.5	900
5	16	26	1250
5	25	31	1903
5	35	32	2455

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
