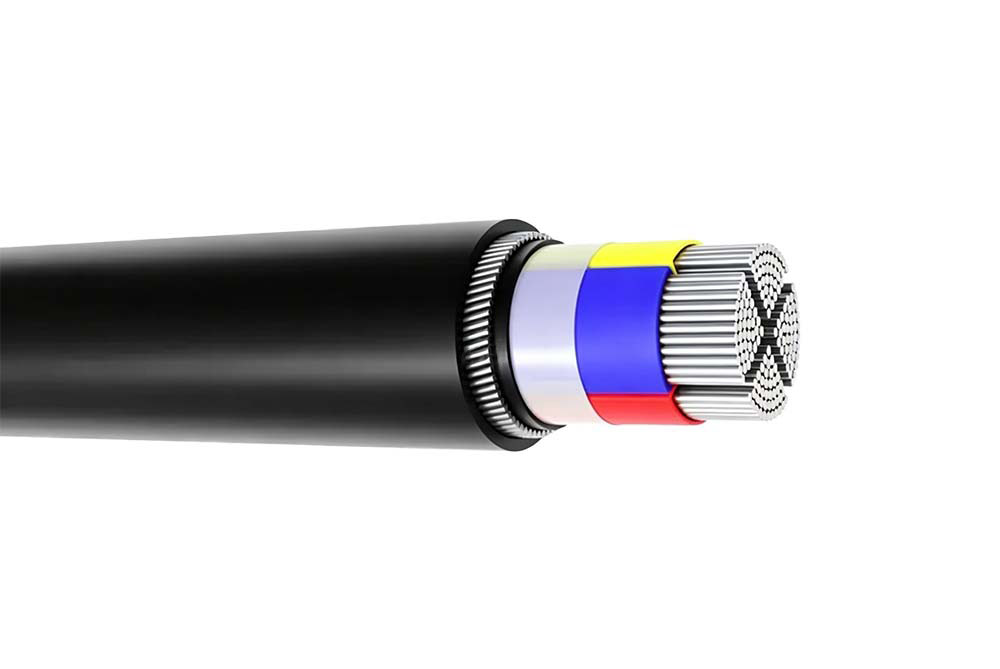

SANS 1507 Steel Wired Armoured XLPE-PVC Aluminum Cable
Voltage:	0.6/1kV
Structure:	Conductor	Aluminum
	Insulation	XLPE (Cross-Linked Polyethylene)
	Bedding	PVC (Polyvinyl Chloride)
	Armour	SWA (Galvanized Steel Wire Armour)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black with Red Stripe

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Direct burial in free-draining soil conditions for fixed indoor and outdoor installations.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-20°C to +90°C

Minimum Bend Radius

1.5mm² to 16mm2 - Fixed: 6 x overall diameter

25mm2 and above - Fixed: 8 x overall diameter

STANDARDS

SANS 1507-4

Flame Retardant according to IEC 60332-1-2

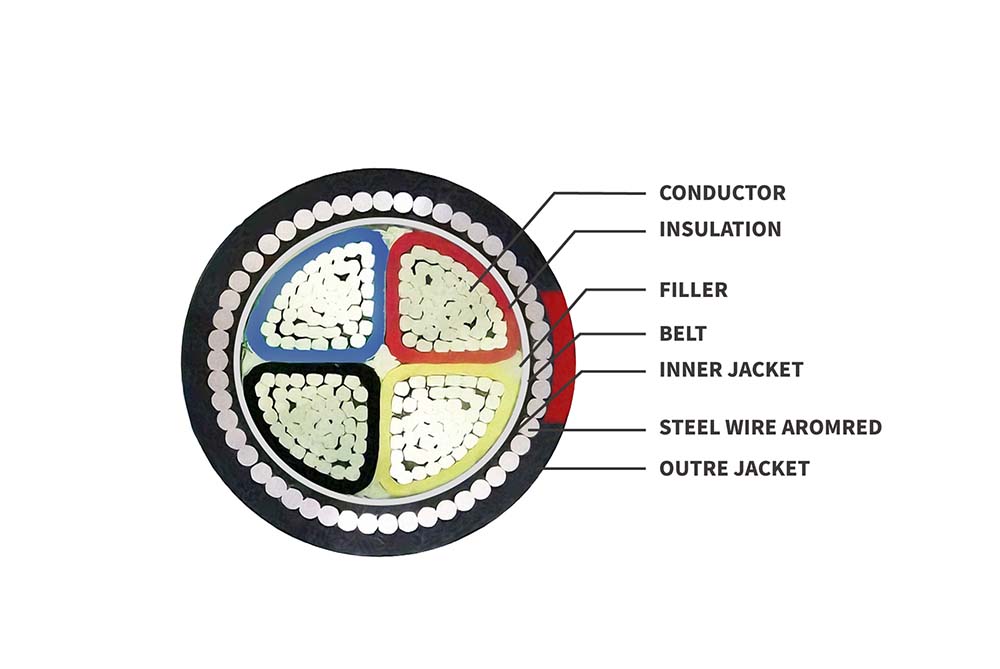

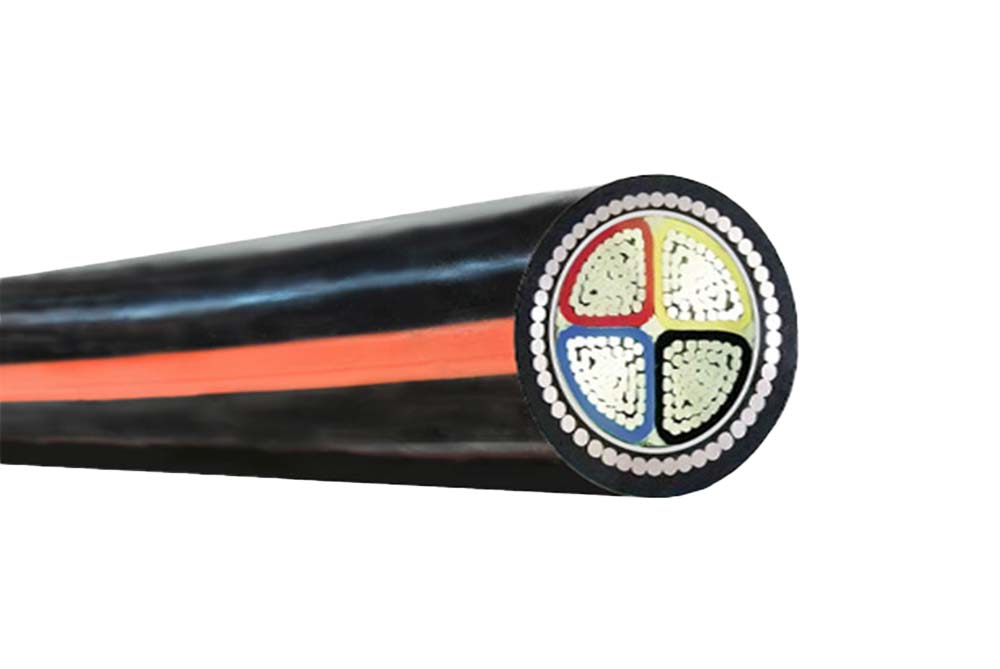

CONSTRUCTION

Conductor

Aluminum

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

PVC (Polyvinyl Chloride)

Armour

SWA (Galvanized Steel Wire Armour)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black with Red Stripe

Core Identification

2 core: Red Yellow

3 core: Red Yellow Blue

4 core: Red Yellow Blue Black

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	Insulation Thickness mm	Sheath Thickness mm	Overall Diameter mm	NOMINAL WEIGHT kg/km		MAXIMUM CONDUCTOR DC RESISTANCE AT 20 ºC ohm/km
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	Insulation Thickness mm	Sheath Thickness mm	Overall Diameter mm	Cu	AL	Cu	AL
2	4	0.7	1.8	16.8	447	397	4.61	7.41
2	6	0.7	1.8	17.8	520	444	3.08	4.61
2	10	0.7	1.8	21.3	835	708	1.83	3.08
2	16	0.7	1.8	23.3	1024	823	1.15	1.91
2	25	0.9	1.8	27.4	1512	1195	0.727	1.2
2	35	0.9	1.8	28.6	1740	1307	0.524	0.868
2	50	1	1.8	31.6	2136	1550	0.387	0.641
2	70	1.1	2	35.4	2735	1886	0.268	0.443
2	95	1.1	2.1	39.8	3697	2518	0.193	0.32
2	120	1.2	2.2	43.4	4396	2909	0.153	0.253
2	150	1.4	2.3	47.4	5208	3374	0.124	0.206
2	185	1.6	2.5	53.2	6747	4451	0.0991	0.164
2	240	1.7	2.7	58.6	8278	5261	0.0754	0.125
2	300	1.8	2.8	64	9912	6127	0.0601	0.1
2	400	2	3.1	71.2	12168	7328	0.047	0.0778
2	500	2.2	3.3	80.1	15893	9678	0.0366	0.0605
3	4	0.7	1.8	17.4	505	430	4.61	7.41
3	6	0.7	1.8	18.5	598	485	3.08	4.61
3	10	0.7	1.8	22.2	966	776	1.83	3.08
3	16	0.7	1.8	24.3	1220	918	1.15	1.91
3	25	0.9	1.8	28.7	1803	1328	0.727	1.2
3	35	0.9	1.8	30	2133	1483	0.524	0.868
3	50	1	1.9	33.4	2658	1779	0.387	0.641
3	70	1.1	2	38.1	3716	2442	0.268	0.443
3	95	1.1	2.2	42.2	4692	2924	0.193	0.32
3	120	1.2	2.3	46.1	5649	3418	0.153	0.253
3	150	1.4	2.5	52	7239	4487	0.124	0.206
3	185	1.6	2.6	56.5	8634	5191	0.0991	0.164
3	240	1.7	2.8	62.7	10790	6265	0.0754	0.125
3	300	1.8	3	68.3	13016	7338	0.0601	0.1
3	400	2	3.2	75.8	16028	8768	0.047	0.0778
3	500	2.2	3.5	85.4	20926	11603	0.0366	0.0605
4	4	0.7	1.8	18.4	580	480	4.61	7.41
4	6	0.7	1.8	20.5	839	688	3.08	4.61
4	10	0.7	1.8	23.6	1119	866	1.83	3.08
4	16	0.7	1.8	26.7	1599	1196	1.15	1.91
4	25	0.9	1.8	30.8	2151	1518	0.727	1.2
4	35	0.9	1.9	32.5	2584	1718	0.524	0.868
4	50	1	2	36.3	3254	2081	0.387	0.641
4	70	1.1	2.2	41.6	4558	2860	0.268	0.443
4	95	1.1	2.3	46	5827	3469	0.193	0.32
4	120	1.2	2.5	51.9	7540	4566	0.153	0.253
4	150	1.4	2.6	56.7	8993	5324	0.124	0.206
4	185	1.6	2.8	62.3	10871	6281	0.0991	0.164
4	240	1.7	3	68.8	13552	7519	0.0754	0.125
4	300	1.8	3.2	75	16379	8809	0.0601	0.1
4	400	2	3.5	85.3	21416	11736	0.047	0.0778
4	500	2.2	3.8	94.1	26417	13986	0.0366	0.0605
