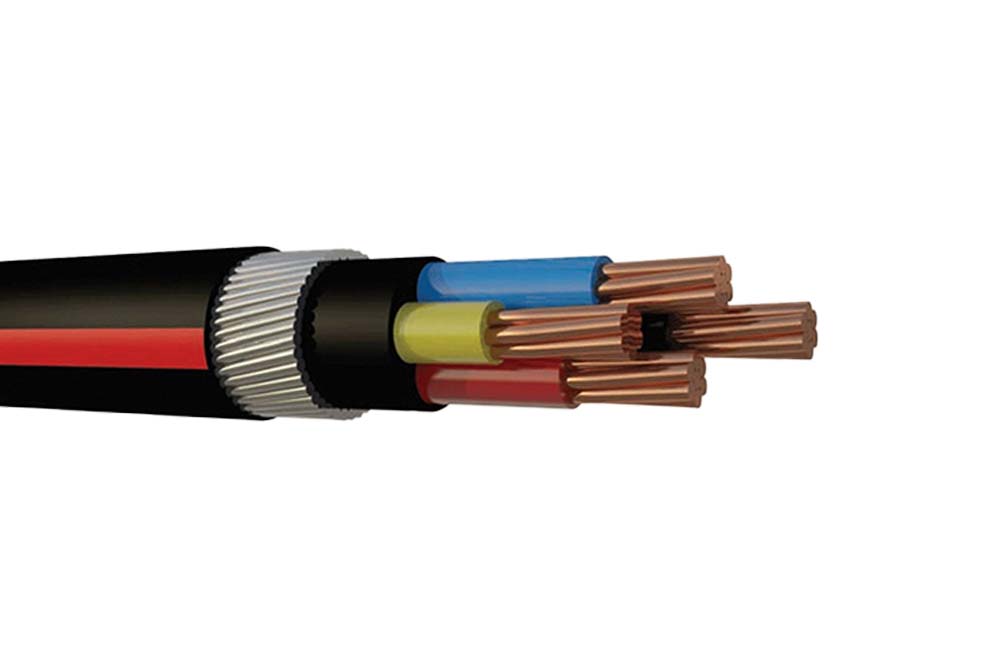

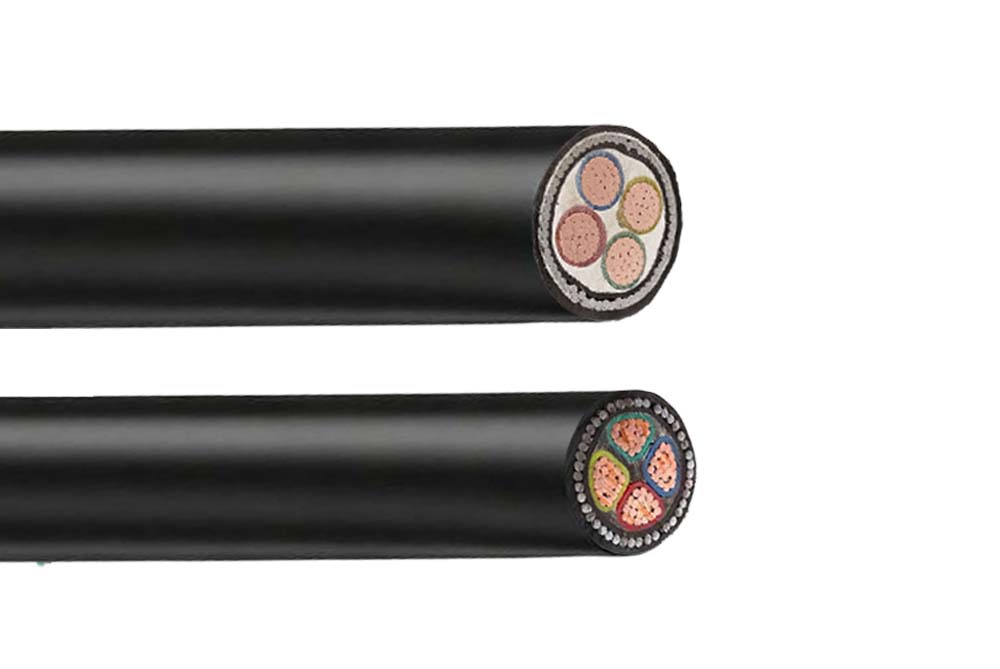

SANS 1507 Steel Wired Armoured XLPE-PVC Copper Cable
Voltage:	0.6/1kV
Structure:	Conductor	Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Bedding	PVC (Polyvinyl Chloride)
	Armour	SWA (Galvanized Steel Wire Armour)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black with Red Stripe

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Direct burial in free-draining soil conditions for fixed indoor and outdoor installations.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-20°C to +90°C

Minimum Bend Radius

1.5mm² to 16mm2 - Fixed: 6 x overall diameter

25mm2 and above - Fixed: 8 x overall diameter

STANDARDS

SANS 1507-4

Flame Retardant according to IEC 60332-1-2

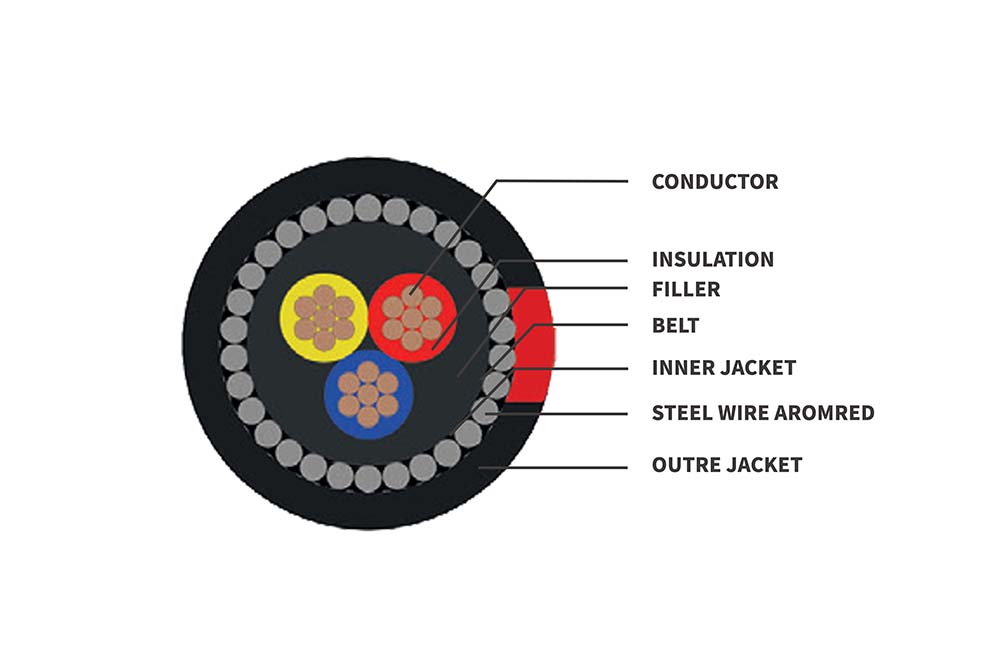

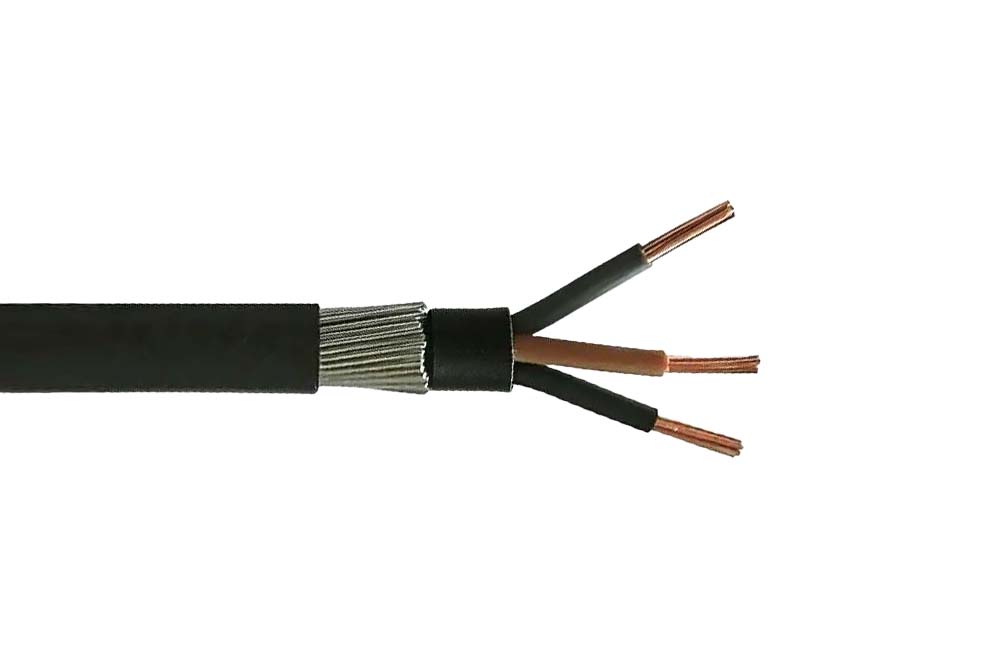

CONSTRUCTION

Conductor

Copper

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

PVC (Polyvinyl Chloride)

Armour

SWA (Galvanized Steel Wire Armour)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black with Red Stripe

Core Identification

2 core: Red Yellow

3 core: Red Yellow Blue

4 core: Red Yellow Blue Black

SANS 1507-4 Steel Wired Armoured XLPE-PVC 0.6/1kV Cable
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	NOMINAL DIAMETER mm		NOMINAL WEIGHT kg/km
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	Under Armour	Over all	NOMINAL WEIGHT kg/km
2	1.5	0.7	9.35	12.2	289
2	2.5	0.7	10.19	13.2	343
2	4	0.7	11.21	14.2	408
2	6	0.7	12.35	15.4	489
2	10	0.7	13.67	16.7	612
2	16	0.7	16.26	19.5	903
2	25	0.9	20.83	24.2	1420
2	35	0.9	22.83	26.2	1716
2	50	1	23.72	27.1	1753
2	70	1.1	26.81	30.4	2267
2	95	1.1	29.65	33.3	2842
2	120	1.2	33.84	37.8	3700
2	150	1.4	36.68	41.1	4410
2	185	1.6	40.12	44.9	5267
2	240	1.7	46.57	51.4	6973
3	1.5	0.7	9.83	12.6	315
3	2.5	0.7	10.74	13.7	379
3	4	0.7	11.84	14.8	458
3	6	0.7	13.07	16.1	557
3	10	0.7	15.18	18.4	814
3	16	0.7	17.24	20.4	1064
3	25	0.9	22.05	25.5	1670
3	35	0.9	24.21	27.6	2052
3	50	1	26.30	29.9	2315
3	70	1.1	29.80	33.4	3013
3	95	1.1	34.48	38.5	4167
3	120	1.2	37.78	42.2	5036
3	150	1.4	41.48	46.3	6065
3	185	1.6	46.76	51.6	7681
3	240	1.7	51.76	57.0	9598
4	1.5	0.7	10.61	13.6	359
4	2.5	0.7	11.62	14.6	428
4	4	0.7	12.86	15.9	525
4	6	0.7	14.93	17.9	733
4	10	0.7	16.52	19.7	950
4	16	0.7	18.82	22.0	1261
4	25	0.9	24.04	27.4	1977
4	35	0.9	26.46	30.1	2468
4	50	1	29.60	33.2	2890
4	70	1.1	34.88	38.9	4101
4	95	1.1	38.88	43.3	5284
4	120	1.2	44.06	48.9	6832
4	150	1.4	48.36	53.2	8136
4	185	1.6	52.86	58.1	9795
4	240	1.7	58.66	64.3	12308

SANS 1507-3 Steel Wired Armoured PVC-PVC 0.6/1kV Cable
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	NOMINAL DIAMETER mm		NOMINAL WEIGHT kg/km
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	Under Armour	Over all	NOMINAL WEIGHT kg/km
2	1.5	0.8	9.75	12.6	313
2	2.5	0.8	10.59	13.6	370
2	4	1	12.41	15.4	478
2	6	1	13.55	16.6	564
2	10	1	15.56	18.8	794
2	16	1	17.46	20.7	1001
2	25	1.2	22.03	25.4	1546
2	35	1.2	24.03	27.4	1852
2	50	1.4	24.92	28.3	1863
2	70	1.4	27.67	31.3	2377
2	95	1.6	31.60	35.6	3080
2	120	1.6	35.04	39.0	3869
2	150	1.8	37.88	42.3	4610
2	185	2	41.32	46.1	5506
2	240	2.2	48.12	52.9	7289
3	1.5	0.8	10.26	13.3	351
3	2.5	0.8	11.17	14.2	411
3	4	1	13.13	16.1	539
3	6	1	15.05	18.3	743
3	10	1	16.48	19.7	919
3	16	1	18.53	21.7	1181
3	25	1.2	23.35	26.8	1820
3	35	1.2	25.51	29.1	2229
3	50	1.4	27.10	30.7	2485
3	70	1.4	30.40	34.4	3226
3	95	1.6	35.48	39.9	4477
3	120	1.6	38.58	43.0	5314
3	150	1.8	42.68	47.5	6444
3	185	2	47.56	52.4	8051
3	240	2.2	52.76	58.0	10114
4	1.5	0.8	11.09	14.1	395
4	2.5	0.8	12.11	15.1	468
4	4	1	15.00	18.0	709
4	6	1	16.38	19.6	857
4	10	1	17.98	21.2	1075
4	16	1	21.74	25.1	1599
4	25	1.2	25.50	29.1	2172
4	35	1.2	27.92	31.5	2666
4	50	1.4	30.60	34.6	3167
4	70	1.4	35.58	40.0	4388
4	95	1.6	40.08	44.9	5711
4	120	1.6	45.06	49.9	7217
4	150	1.8	49.36	54.2	8595
4	185	2	53.86	59.1	10337
4	240	2.2	59.96	65.6	12999

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
