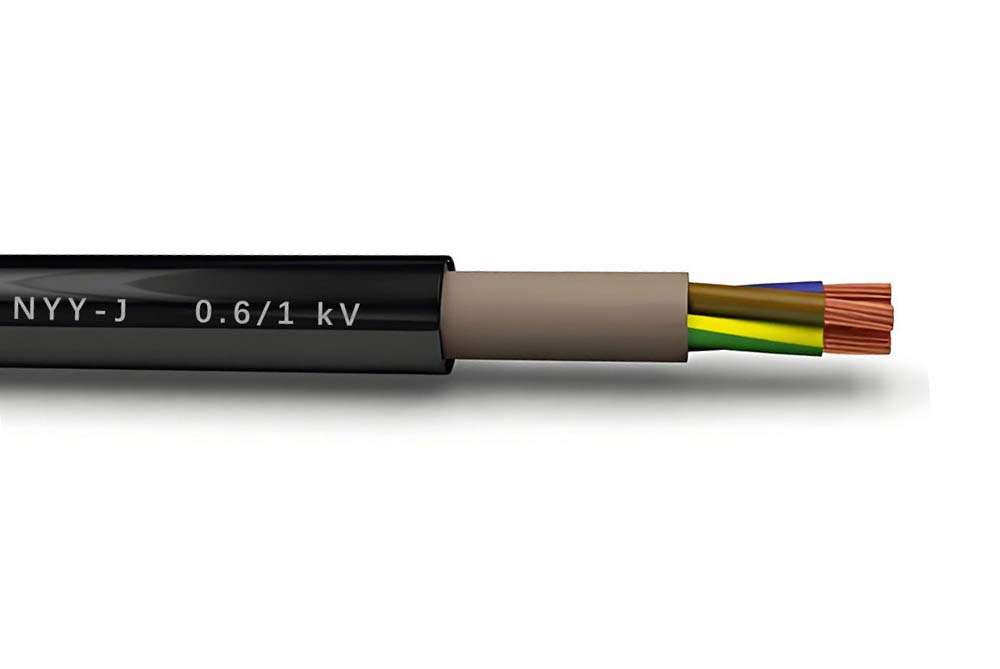

NYY / NYY-J / NYY-O PVC 0.6/1kV Power Cable
Voltage:	0.6/1kV
Structure:	Conductor	RE: Class 1 solid copper conductor RM: Class 2 stranded copper conductor
	Insulation	PVC (Polyvinyl Chloride)
	Filler	PVC (Polyvinyl Chloride)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -15ºC to +70ºC

Flexed: -5ºC to +50ºC

Minimum Bending Radius

Fixed: 12 x overall diameter

STANDARDS

IEC 60502-1, VDE 0276-603, HD 603, IEC 60228

Flame retardant according to IEC/EN 60332-1-2

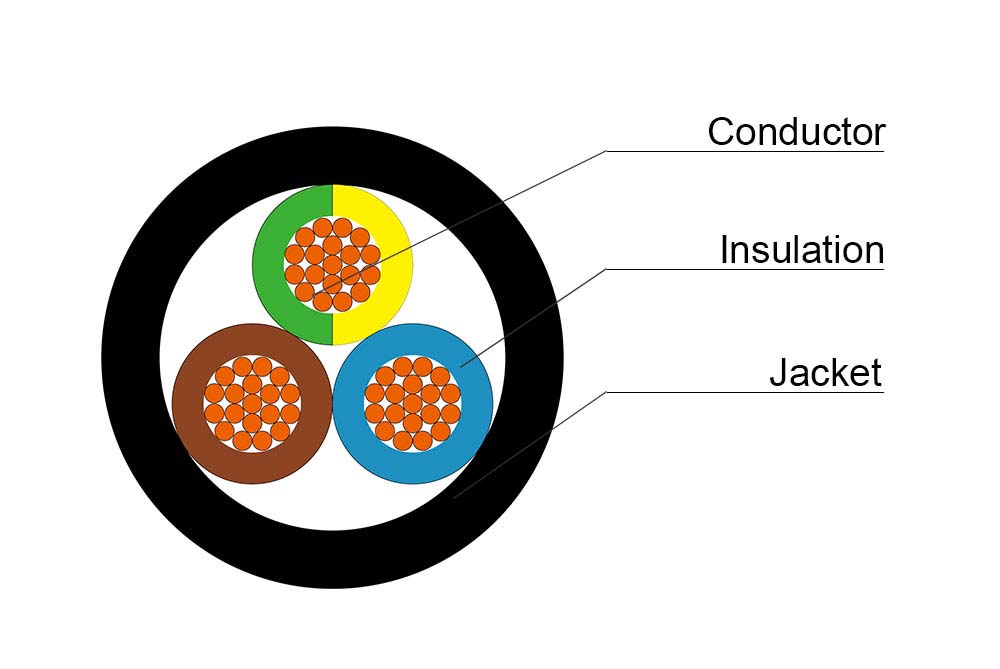

CONSTRUCTION

Conductor

RE: Class 1 solid copper conductor

RM: Class 2 stranded copper conductor

Insulation

PVC (Polyvinyl Chloride)

Filler

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black, Other colours available on request

Core Identification

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Brown Black Grey Blue

7 core and above: Green/Yellow Black with White numbers

Note

NYY-O (without Green/Yellow earth conductor) also available

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CONDUCTOR TYPE	NOMINAL THICKNESS OF INSULATION	NOMINAL THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2		mm	mm	mm	kg/km
1	2.5	RE	0.8	1.4	6.15	62
1	4	RE	1	1.4	7.5	85
1	6	RE	1	1.4	7.5	108
1	10	RM	1	1.4	8.6	155
1	16	RM	1	1.4	9.6	218
1	25	RM	1.2	1.4	11.1	318
1	35	RM	1.2	1.4	12.1	414
1	50	RM	1.4	1.4	13.7	552
1	70	RM	1.4	1.4	15.5	750
1	95	RM	1.6	1.5	17.6	1020
1	120	RM	1.6	1.6	19.3	1259
1	150	RM	1.8	1.6	21	1546
1	185	RM	2	1.7	23.2	1913
1	240	RM	2.2	1.8	26.2	2471
1	300	RM	2.4	2	29.2	3097
1	400	RMv	2.6	2	33.8	4100
1	500	RMv	2.8	2.1	38	5200
2	1.5	RE	0.8	1.8	10	147
2	2.5	RE	0.8	1.8	10.7	179
2	4	RM	1	1.8	13	268
2	6	RM	1	1.8	14.2	337
2	10	RM	1	1.8	16.2	472
2	16	RM	1	1.8	18.2	644
3	1.5	RE	0.8	1.8	10.4	166
3	2.5	RE	0.8	1.8	11.3	212
3	4	RE	1	1.8	13.1	299
3	6	RE	1	1.8	15	402
3	10	RM	1	1.8	17.1	570
3	16	RM	1	1.8	19.2	789
3	25	RM	1.2	1.8	22.1	1141
3	35	RM	1.2	1.8	24.1	1462
3	50	RM	1.4	1.8	27.6	1964
3	70	RM	1.6	2.1	36.3	3635
3	95	RM	1.6	2.2	40	4488
4	1.5	RE	0.8	1.8	11.6	198
4	2.5	RE	0.8	1.8	12.1	252
4	4	RM	1	1.8	15.1	391
4	6	RM	1	1.8	16.5	465
4	10	RM	1	1.8	18.6	702
4	16	RM	1	1.8	21.1	992
4	25	RM	1.2	1.8	24.2	1431
4	35	RM	1.2	1.8	26.6	1861
4	50	RM	1.4	1.9	30.9	2535
4	70	RM	1.4	2.1	35.1	3441
4	95	RM	1.6	2.2	40.4	4691
4	120	RM	1.6	2.4	44.2	5757
4	150	RM	1.8	2.5	48.5	7095
4	185	RM	2	2.7	53.9	8810
4	240	RM	2.2	2.9	61.1	11400
5	1.5	RE	10.8	1.8	12	232
5	2.5	RE	0.8	1.8	13.1	302
5	4	RM	1	1.8	16.6	477
5	6	RM	1	1.8	18.2	618
5	10	RM	1	1.8	20.3	853
5	16	RM	1	1.8	23.1	1212
5	25	RM	0.8	1.8	26.6	280
7	1.5	RE	1	1.8	16.6	477
7	2.5	RE	0.8	1.8	14.1	368
12	1.5	RE	0.8	1.8	16.6	475
12	2.5	RE	0.8	1.8	18.2	628
14	1.5	RE	0.8	1.8	17.1	515
19	1.5	RE	0.8	1.8	18.9	648
19	2.5	RE	0.8	1.8	20.3	843
27	1.5	RE	0.8	1.8	22.6	895

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
