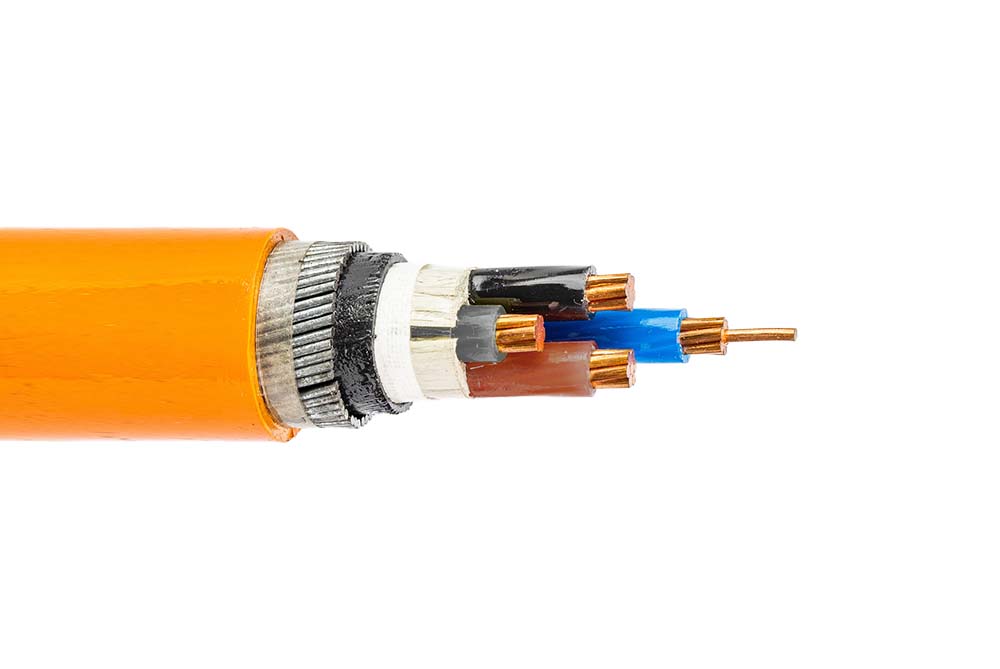

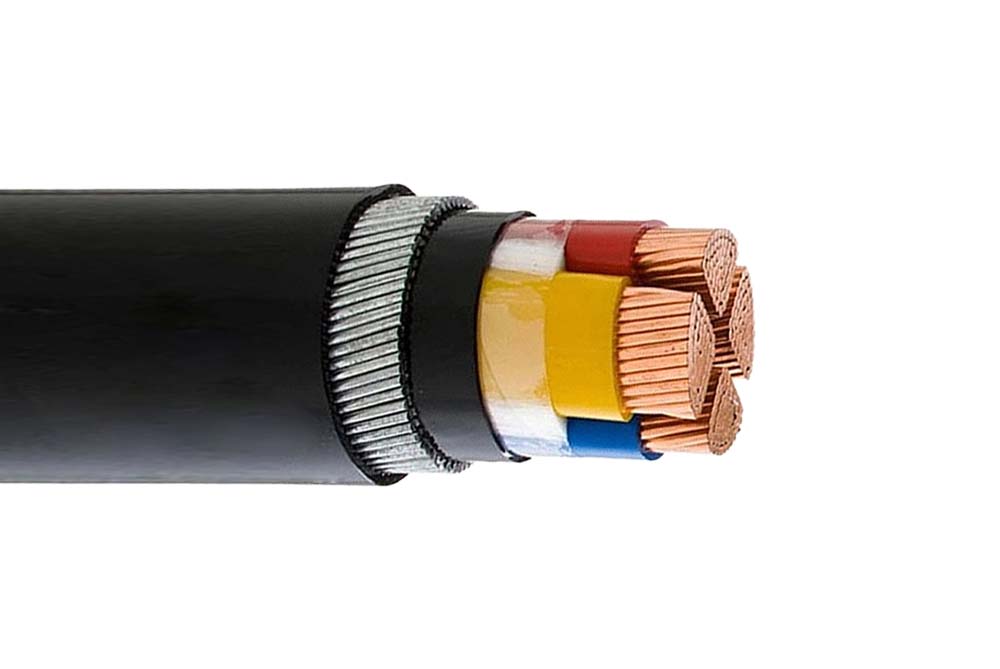

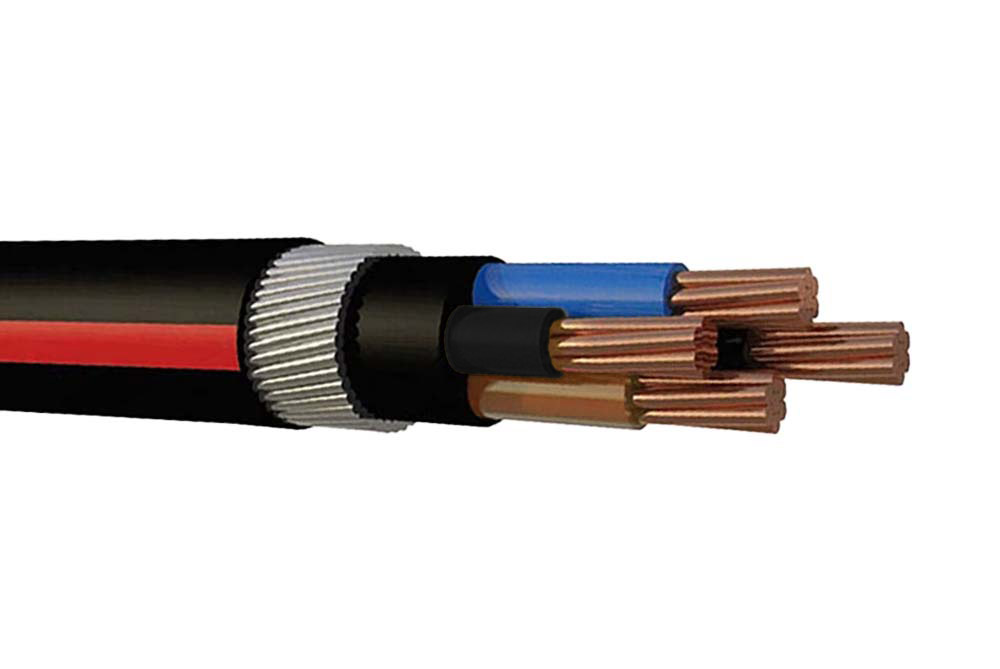

N2XRH Cu/XLPE/LSZH/SWA/LSZH 0.6/1kV Cable
Voltage:	0.6/1kV
Structure:	Conductor	Class 2 stranded copper conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Bedding	LSZH (Low Smoke Zero Halogen)
	Armour	SWA (Steel Wire Armour)
	Sheath	LSZH (Low Smoke Zero Halogen)
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

European reference for a low voltage multi-core LSZH power cable with steel wire armour (SWA). Same construction as the British Standard BS6724 cable. Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxicfumes create a potential threat to life and equipment.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed Installation: -20°C to +90°C

Minimum Bend Radius

1.5mm² to 16mm2 - Fixed: 6 x overall diameter

25mm2 and above - Fixed: 8 x overall diameter

STANDARDS

BS 6724, IEC/EN 60228, EN 50267-2-1, IEC/EN 60502-1

Flame Retardant according to IEC/EN 60332-1-2, IEC/EN 60332-3-24 Cat C

Low Smoke Zero Halogen according to IEC/EN 60754-1/2, IEC/EN 61034-1/2

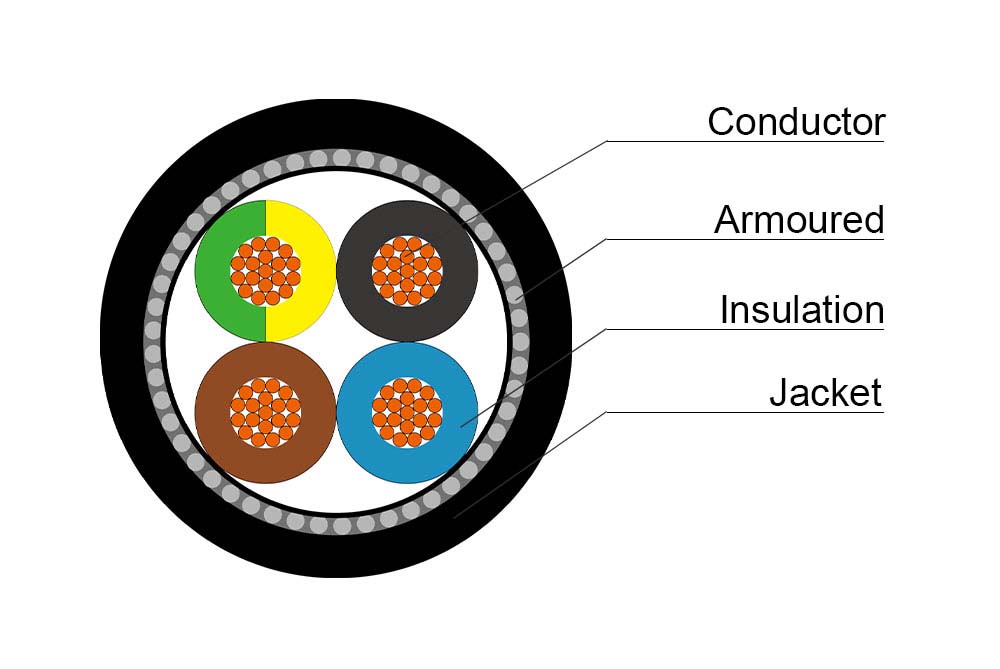

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

LSZH (Low Smoke Zero Halogen)

Armour

SWA (Steel Wire Armour)

Sheath

LSZH (Low Smoke Zero Halogen)

Sheath Colour

Black, Other colours available on request

Core Identification

2 core: Brown Blue

3 core: Brown Black Grey

4 core: Brown Blue Black Grey

5 core: Green/Yellow Brown Blue Black Grey

Alternative Core Identification

White cores with Black numbers

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL THICKNESS OF INSULATION (mm)	NOMINAL OVERALL DIAMETER		NOMINAL WEIGHT (kg/km)	BW/CW GLAND	WRAPAROUND CLEATS
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL THICKNESS OF INSULATION (mm)	UNDER ARMOUR (mm)	OVERALL (mm)	NOMINAL WEIGHT (kg/km)	BW/CW GLAND	WRAPAROUND CLEATS
2	1.5	0.6	7.3	12.1	302	20S	CC5
2	2.5	0.7	8.5	13.6	346	20S	CC6
2	4	0.7	9.4	14.7	410	20S	CC6
2	6	0.7	10.5	15.9	499	20	CC7
2	10	0.7	12.3	18	648	20	CC8
2	16	0.7	14.3	20.4	978	20	CC9
2	25	0.9	14.7	20.4	1290	25	CC9
2	35	0.9	16.8	23.3	1500	32	CC10
2	50	1	19	25.8	1890	32	CC12
2	70	1.1	22	29	2450	32	CC12
2	95	1.1	25.1	33.1	3300	32	CC14
2	120	1.2	31.1	39.3	4020	40	CC16
2	150	1.4	30.9	39.3	4750	40	CC18
3	1.5	0.6	7.8	12.6	330	20S	CC5
3	2.5	0.7	9.2	14.1	390	20S	CC6
3	4	0.7	10	15.3	464	20	CC7
3	6	0.7	11.2	16.6	568	20	CC7
3	10	0.7	13.1	19.5	866	20	CC8
3	16	0.7	15.3	21.6	1152	25	CC9
3	25	0.9	18.9	23.6	1800	25	CC11
3	35	0.9	21.3	25.7	2230	32	CC12
3	50	1	21.7	28.5	2490	32	CC12
3	70	1.1	25.2	32.2	3290	32	CC14
3	95	1.1	28.8	37	4440	40	CC16
3	120	1.2	32	40.4	5470	40	CC16
3	150	1.4	35.9	45.5	6930	50S	CC18
4	1.5	0.6	8.5	13.5	365	20S	CC6
4	2.5	0.7	9.9	15	438	20	CC6
4	4	0.7	11	16.4	532	20	CC7
4	6	0.7	12.3	18.7	764	20	CC8
4	10	0.7	14.5	21.1	1013	25	CC9
4	16	0.7	17	23.4	1360	25	CC10
4	25	0.9	21	26.1	2160	32	CC11
4	35	0.9	23.6	28.6	2690	32	CC12
4	50	1	25	32	3130	32	CC14
4	70	1.1	29.5	37.7	4500	40	CC16
4	95	1.1	33.3	41.7	5600	50S	CC18
4	120	1.2	37.5	47.1	7400	50	CC20
4	150	1.4	41.6	51.4	8780	50	-
4	185	1.6	46.4	56.6	10630	63S	-
4	240	1.7	52.6	63	13390	63	-
4	300	1.8	56.3	63.6	14998	75S	-
5	1.5	0.6	9.7	14.3	410	20S	CC6
5	2.5	0.7	11.7	16.3	470	20	CC7
5	4	0.7	13	17.8	710	20	CC7
5	6	0.7	14.5	20	876	25	CC8
5	10	0.7	17.2	22.9	1165	25	CC10
5	16	0.7	20	26.6	1742	32	CC11
5	25	0.9	24.7	31.5	2323	32	CC14
5	35	0.9	27.8	34.8	2932	40	CC14
5	50	1	32.4	40.4	4192	50S	CC16
5	70	1.1	35.8	43	5500	50S	CC18
5	95	1.1	42.1	49	7145	50S	CC20
7	1.5	0.6	10.2	15.2	470	20S	CC6
7	2.5	0.7	12.3	17.1	600	20	CC7
12	1.5	0.6	13.7	19.4	780	20	CC8
12	2.5	0.7	16.3	22.4	1000	25	CC9
19	1.5	0.6	16.2	22.2	1000	25	CC9
19	2.5	0.7	19.9	26.6	1540	25	CC11
27	1.5	0.6	20	26.7	1500	32	CC11
27	2.5	0.7	24	30.7	1950	32	CC14
37	1.5	0.6	22.3	29	1800	32	CC12
37	2.5	0.7	26.9	33.8	2350	40	CC14

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
