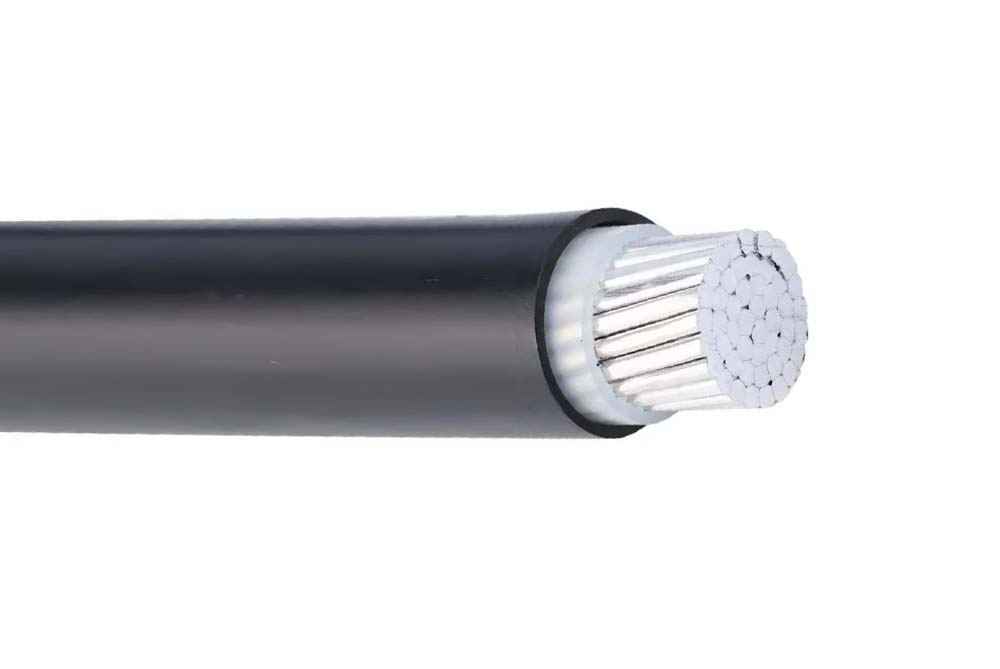

1.8/3 (3.6)kV IEC 60502-1 NA2XY Aluminium XLPE PVC Cable
Voltage:	AC: 1.8/3 (3.6)kV DC. 2.7/5.4 kV
Structure:	Conductor	Class 2 Stranded Plain Aluminium Circular Compact Conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

For fixed installation in buildings, in free air, in ground and in water.

Voltage Rating Uo/U

AC: 1.8/3 (3.6)kV

DC. 2.7/5.4 kV

Temperature Rating

Maximum Conductor Operating Temperature: +90ºC

Maximum Conductor Temperature During S.C: +250°C

Minimum Bend Radius

15 x overall diameter

STANDARDS

IEC 60502-1, IEC 60228, UV resistant ISO 4892

Flame retardant according to IEC/EN 60332-1-2

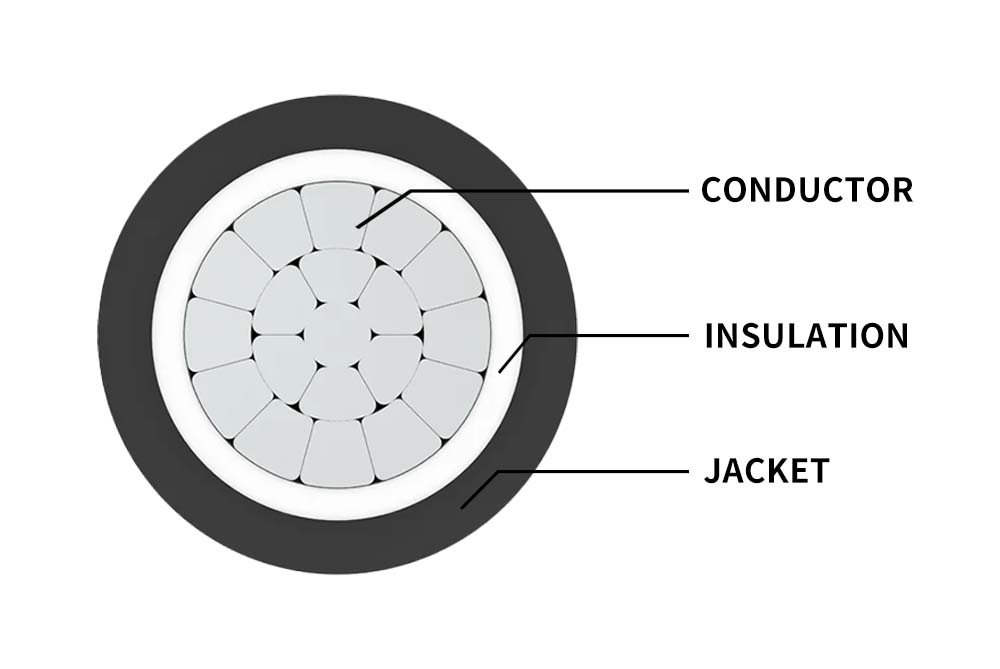

CONSTRUCTION

Conductor

Class 2 Stranded Plain Aluminium Circular Compact Conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black, Other colours available on request

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL OUTER DIAMETER (mm)	NOMINAL WEIGHT (kg/km)
1	16	10.9	140
1	25	12	180
1	35	13.1	215
1	50	14.4	265
1	70	16.2	350
1	95	17.7	430
1	120	19.3	530
1	150	21.5	635
1	185	22.6	750
1	240	25.2	935
1	300	27.5	1125
1	400	30.4	1410
1	500	34.3	1775
1	630	38.4	2280
1	800	43.8	2945
1	1000	50.7	3710

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
