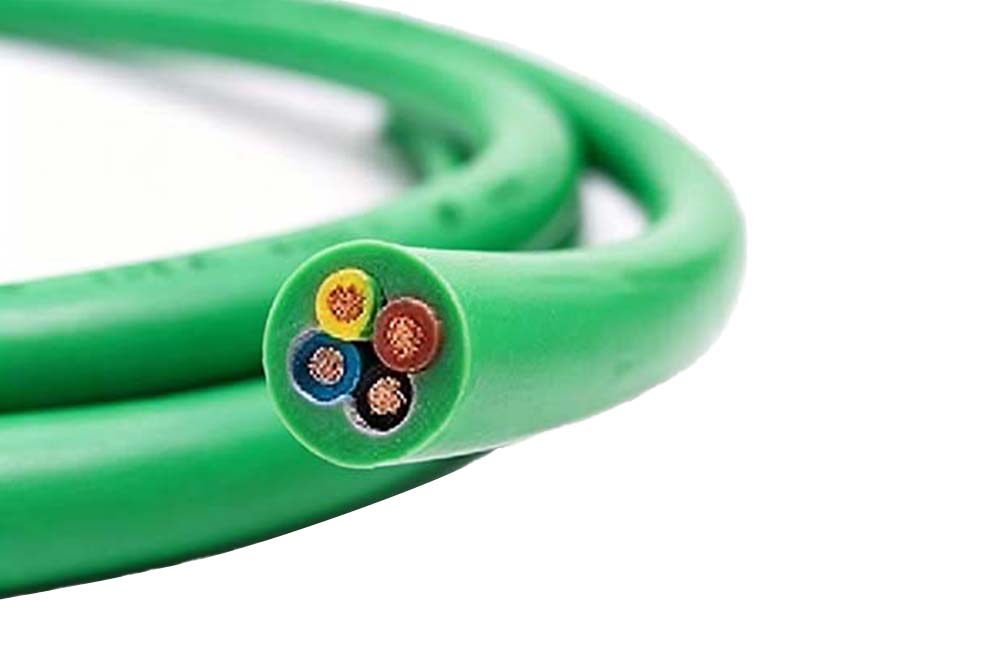

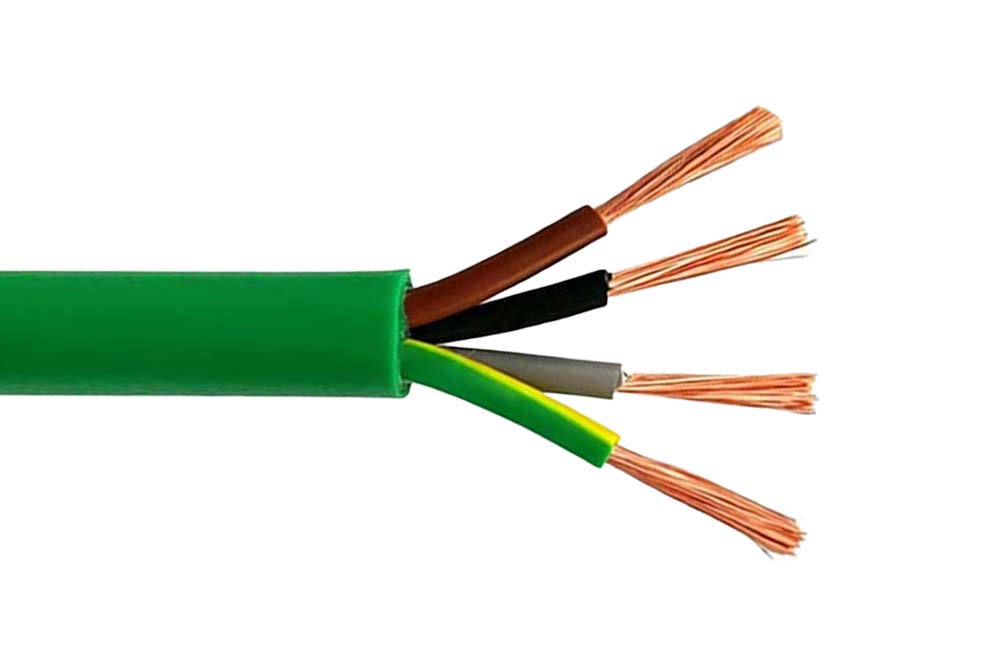

0.6/1kV RZ1-K XLPE LSZH Flexible Power Cable
Voltage:	0.6/1kV
Structure:	Conductor	Class 5 flexible copper conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Sheath	LSZH (Low Smoke Zero Halogen)
	Sheath Colour	Green, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. A flexible power and control cable designed for fixed applications. Manufactured with flexible conductors in order to facilitate installations with sinuous courses.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-15°C to +90°C

Minimum Bend Radius

5 x overall diameter

STANDARDS

IEC 60502-1, EN 60228

Flame Retardant according to IEC/EN 60332-1-2, IEC/EN 60332-3-24

Low Smoke Zero Halogen according to IEC/EN 60754-1/2, IEC/EN 61034-1/2

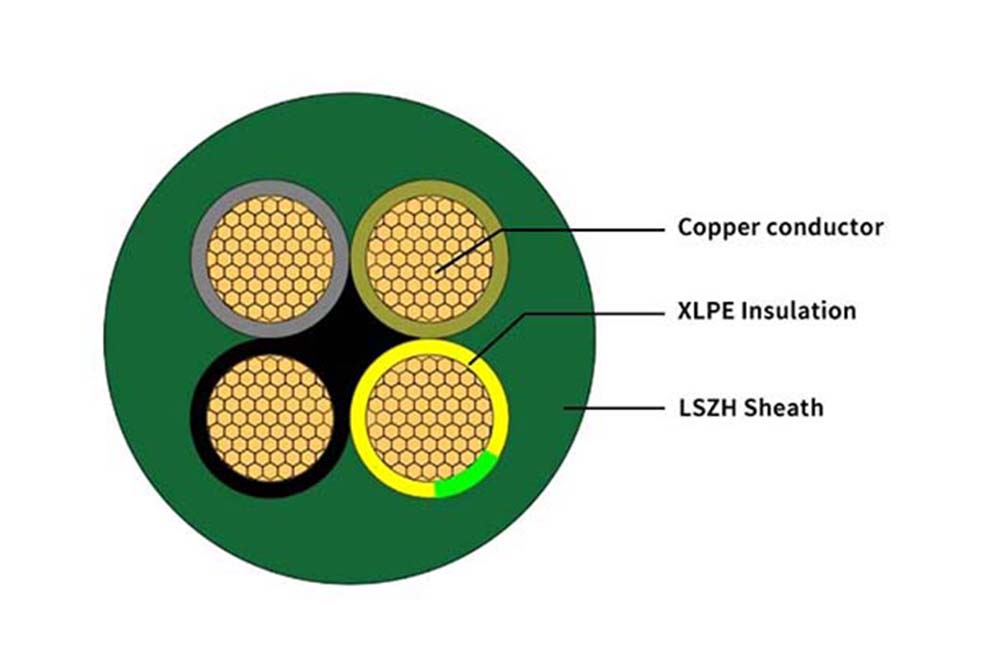

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Sheath

LSZH (Low Smoke Zero Halogen)

Sheath Colour

Green, Other colours available on request

Core Identification

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Blue Brown Black Grey

7 core: Black with White numbers

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORE	mm²	mm	mm	kg/km
1	2.5	0.7	5.2	45
1	4	0.7	5.8	61
1	6	0.7	6.23	80
1	10	0.7	7.25	120
1	16	0.7	8.3	174
1	25	0.9	9.95	258
1	35	0.9	11.15	349
1	50	1	12.75	484
1	70	1.1	14.8	676
1	95	1.1	16.9	885
1	120	1.2	18.9	1124
1	150	1.4	20.95	1393
1	185	1.6	23.9	1655
1	240	1.7	26.2	2214
1	300	1.8	28.3	2697
1	400	2	31.4	3389
1	500	2.2	37.4	4776
1	630	2.4	42.7	6276
2	1.5	0.7	8.2	94
2	2.5	0.7	9.2	122
2	4	0.7	10.3	165
2	6	0.7	11.3	216
2	10	0.7	13.2	319
2	16	0.7	16.4	503
3+E	1.5	0.7	8.6	108
3+E	2.5	0.7	9.5	144
3+E	4	0.7	10.7	198
3+E	6	0.7	12	263
3+E	10	0.7	13.8	405
3	16	0.7	17.3	638
3	25	0.9	20.9	938
3	35	0.9	23.5	1255
3	50	1	31.5	1730
3	70	1.1	35.7	2422
4+E	1.5	0.7	9.3	129
4+E	2.5	0.7	10.3	175
4+E	4	0.7	11.7	243
4+E	6	0.7	13	328
4+E	10	0.7	15.2	498
4	16	0.7	19.7	783
4	25	0.9	23.2	1168
4	35	0.9	26.2	1573
4	50	1	31.2	2178
4	70	1.1	34.8	3055
4	95	1.1	39.7	3985
4	120	1.2	44.6	5086
4	150	1.4	49.8	6294
4	185	1.6	54.9	7534
4	240	1.7	62.3	10034
5	1.5	0.7	12	150
5	2.5	0.7	13.15	204
5	4	0.7	14.5	286
5	6	0.7	16.1	387
5	10	0.7	18.1	598
5	16	0.7	21.3	931
5	25	0.9	25.4	1407
5	35	0.9	28.4	1091
5	50	1	34.3	2654
8	1.5	0.7	13.1	282.1
10	1.5	0.7	15.3	366.1
12	1.5	0.7	16	406.7
16	1.5	0.7	17.2	508.1

Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables
NOMINAL CROSS SECTIONAL AREA	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR	MAXIMUM RESISTANCE OF CONDUCTOR AT 20℃- Plain Wires
mm²	mm	ohms/km
2.5	0.26	7.98
4	0.31	4.95
6	0.31	3.3
10	0.41	1.91
16	0.41	1.21
25	0.41	0.78
35	0.41	0.554
50	0.41	0.386
70	0.51	0.272
95	0.51	0.206
120	0.51	0.161
150	0.51	0.129
185	0.51	0.1
240	0.51	0.0801
300	0.51	0.064
400	0.51	0.0486
500	0.61	0.038
630	0.61	0.0287

RZ1‑K LSZH Cable - 1 Core
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
1	2.5	29	36	17.624
1	4	38	46	10.932
1	6	49	58	7.288
1	10	68	77	4.218
1	16	91	100	2.672
1	25	116	128	1.723
1	35	144	154	1.224
1	50	175	183	0.852
1	70	224	224	0.601
1	95	271	256	0.455
1	120	314	302	0.356
1	150	363	342	0.285
1	185	415	383	0.234
1	240	490	442	0.177
1	300	563	500	0.142
1	400	823	464	0.108
1	500	946	525	0.085
1	630	1088	596	0.064
RZ1‑K LSZH Cable - 2 Core
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
2	1.5	24	27	29.374
2	2.5	33	36	17.624
2	4	45	46	10.932
2	6	57	58	7.288
2	10	79	77	4.218
2	16	105	100	2.672
RZ1‑K LSZH Cable - 3 Core Including Earth
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
3	2.5	33	36	17.624
3	4	45	46	10.932
3	6	57	58	7.288
3	10	79	77	4.218
3	16	105	100	2.622
RZ1‑K LSZH Cable - 3 Core
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
3	16	87	82	2.672
3	25	110	106	1.723
3	35	137	129	1.224
3	50	167	152	0.852
3	70	246	178	0.603
RZ1‑K LSZH Cable - 4 Core Including Earth
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
4	1.5	20	23	29.374
4	2.5	26	30	17.624
4	4	36	38	10.932
4	6	46	48	7.288
4	10	65	64	4.218
RZ1‑K LSZH Cable - 4 Core
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
4	16	87	82	2.672
4	25	110	106	1.723
4	35	137	129	1.224
4	50	167	152	0.852
4	70	246	178	0.603
4	95	298	211	0.457
4	120	346	240	0.357
4	150	399	271	0.286
4	185	456	304	0.235
4	240	538	351	0.178
RZ1‑K Cable - 5 Core Including Earth
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
5	1.5	20	23	29.374
5	2.5	26	30	17.624
5	4	36	38	10.932
5	6	46	48	7.288
5	10	65	64	4.218
5	16	87	82	2.672
5	25	110	106	1.723
5	35	137	129	1.224
5	50	167	152	0.852
RZ1‑K Cable - 8 Core
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
8	1.5	14	16	12.1
RZ1‑K Cable - 10 Core
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
10	1.5	14	16	12.1
RZ1‑K Cable - 12 Core
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
12	1.5	14	16	12.1
RZ1‑K Cable - 16 Core
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CURRENT CARRYING CAPACITY - In Air at 40℃	CURRENT CARRYING CAPACITY - In Earth at 35℃	MAXIMUM DC RESISTANCE AT 20℃
NO. OF CORES	mm²	Amps	Amps	Amps
16	1.5	14	16	12.1

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
