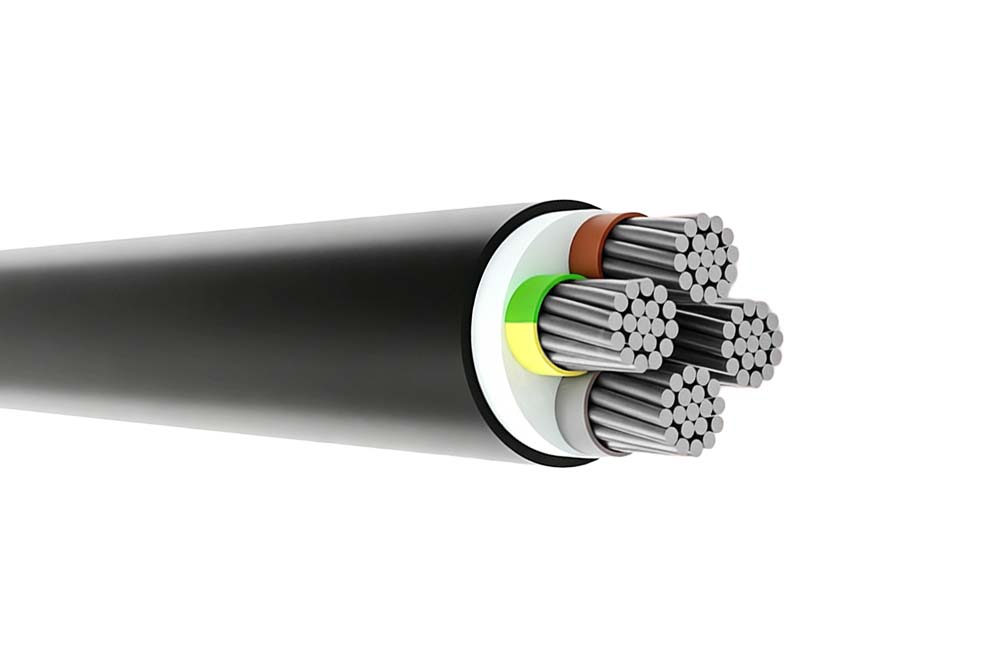

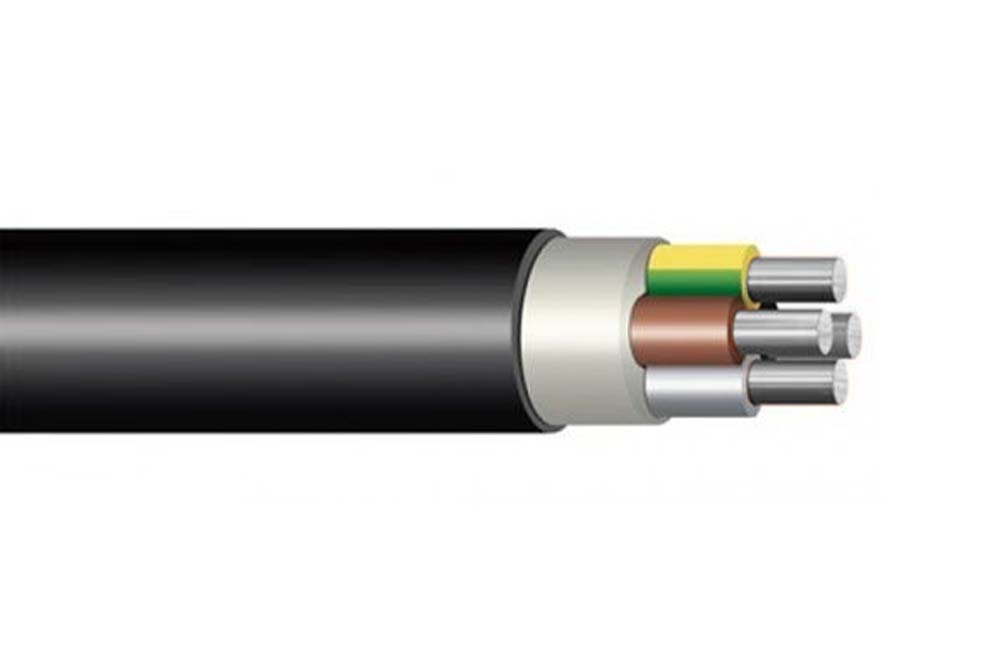

NA2XY Cable Aluminium XLPE PVC – 0.6/1kV
Voltage:	AC: 0.6/1 (1.2)kV DC 0.9/1.8kV
Structure:	Conductor	Class 2 stranded Aluminium conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

For fixed installation in buildings, in free air, in ground and in water.

Voltage Rating Uo/U

AC: 0.6/1 (1.2)kV

DC 0.9/1.8kV

Test Voltage

4kV

Temperature Rating

Flexed: 5°C to +90°C

Fixed: -35°C to +90°C

Maximum Short Circuit Temperature

+250°C (max 5 seconds)

Minimum Bend Radius

Single core: 15 x overall diameter

Multi core: 12 x overall diameter

STANDARDS

IEC 60502-1, Gen.toVDE 0276-603

Flame retardant according to IEC/EN 60332-1-2

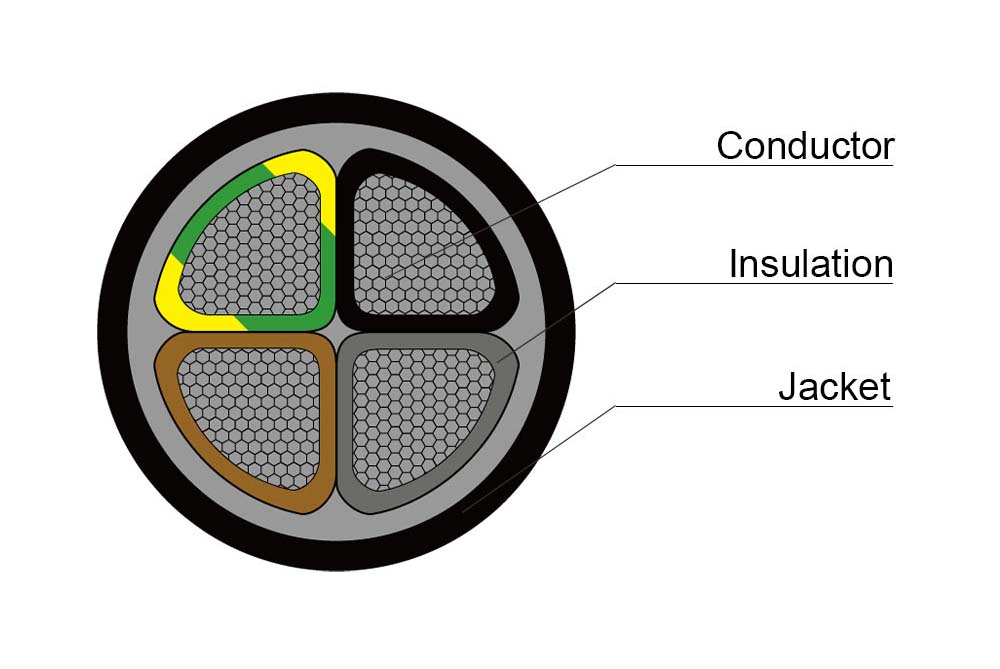

CONSTRUCTION

Conductor

Class 2 stranded Aluminium conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black, Other colours available on request

Core Identification

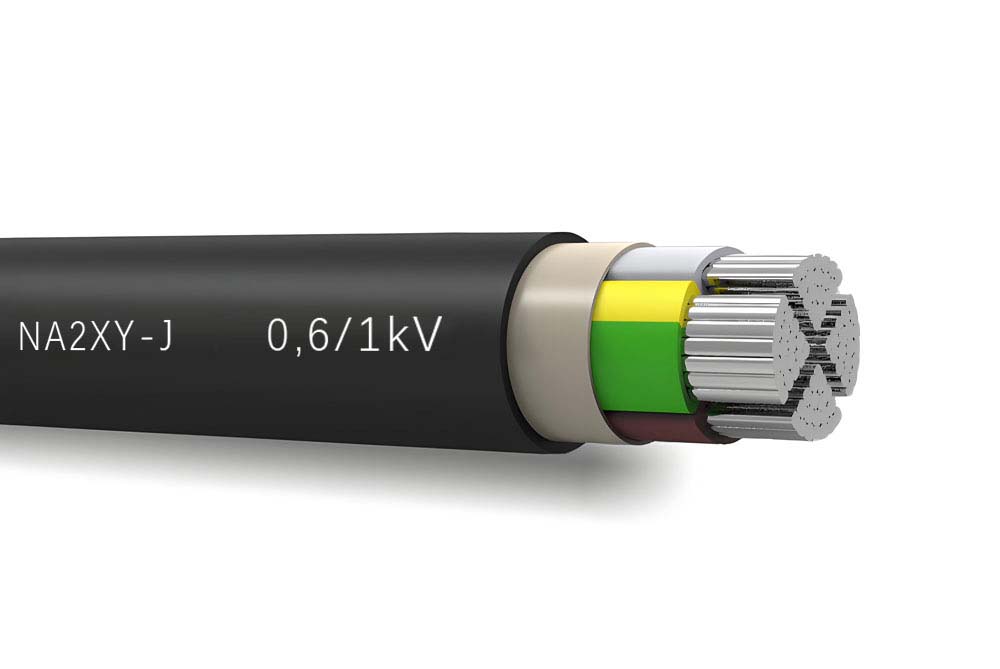

NA2XY-J

3 core: Blue Brown Green/Yellow

4 core: Brown Black Grey Green/Yellow

NA2XY-O

2 core: Blue Brown

3 core: Brown Black Grey

4 core: Brown Black Grey Blue

Note

Class 1 solid conductors available on request

NO. OF CONDUCTOR	NOMINAL CROSS SECTIONAL AREA (mm²)	CONDUCTOR TYPE	NOMINAL OVERALL DIAMETER (mm)	NOMINAL WEIGHT (kg/km)
1	25	RM	9.9	132
1	35	RM	11	166
1	50	RM	12.5	211
1	70	RM	14.1	283
1	95	RM	16.1	376
1	120	RM	17.5	456
1	150	RM	19.6	560
1	185	RM	21.8	697
1	240	RM	24	878
1	300	RM	26.7	1073
1	400	RM	29.7	1347
1	500	RM	33.1	1705
1	630	RM	42.8	2705
1	800	RM	47.9	3420
3	16	RM	16.3	364
3	25	RM	19.6	530
3	35	RM	22.1	684
3	35	SE	19	486
3	50	SM	22.4	655
3	50	SE	21.2	622
3	70	SM	26.1	903
3	70	SE	25.2	859
3	95	SM	29.1	1174
3	95	SE	27.8	1115
3	120	SM	32.2	1446
3	120	SE	30.8	1379
3	150	SM	36.2	1780
3	150	SE	33.9	1685
3	185	SM	40.1	2197
3	185	SE	37.6	2089
3	240	SM	44.9	2782
3	240	SE	41.8	2634
3	70 + 35	SM+SM	28.3	1044
3	120 + 70	SM+SM	35.1	1704
3	150 + 70	SM+SM	39.7	2065
3	185 + 95	SM+SM	43.7	2563
3	240 + 120	SM+SM	49.1	3237
4	25	RM	21.7	636
4	35	SM	22.4	649
4	35	SE	21.6	623
4	50	SM	25.4	845
4	50	SE	24.6	810
4	70	SM	29.7	1178
4	70	SE	28.8	1126
4	95	SM	33.3	1538
4	95	SE	32.1	1467
4	120	SM	37.2	1903
4	120	SE	35.5	1817
4	150	SM	41.3	2328
4	150	SE	39.4	2223
4	185	SM	45.7	2874
4	185	SE	43.4	2750
4	240	SM	51.2	3646
4	240	SE	48	3465
5	25	RM	23.9	763
5	35	RM	27	986
5	50	RM	31.3	1309
5	70	RM	35.8	1771
5	95	SM	36.5	1891
5	120	SM	39.2	2306
5	150	SM	45.4	2865
5	185	SM	50.1	3534
5	240	SM	55.2	4482

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
