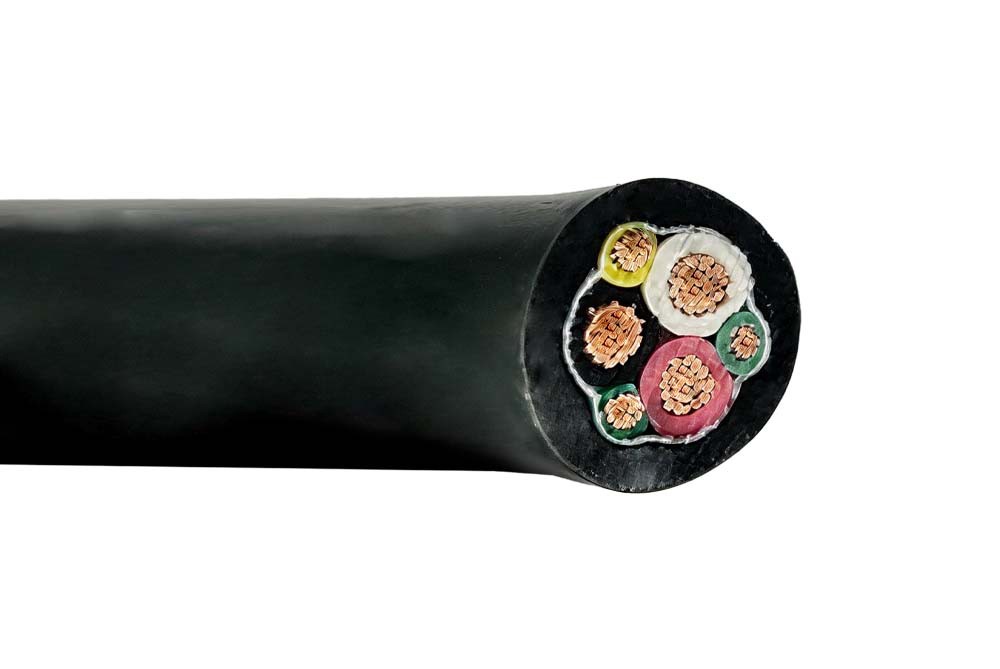

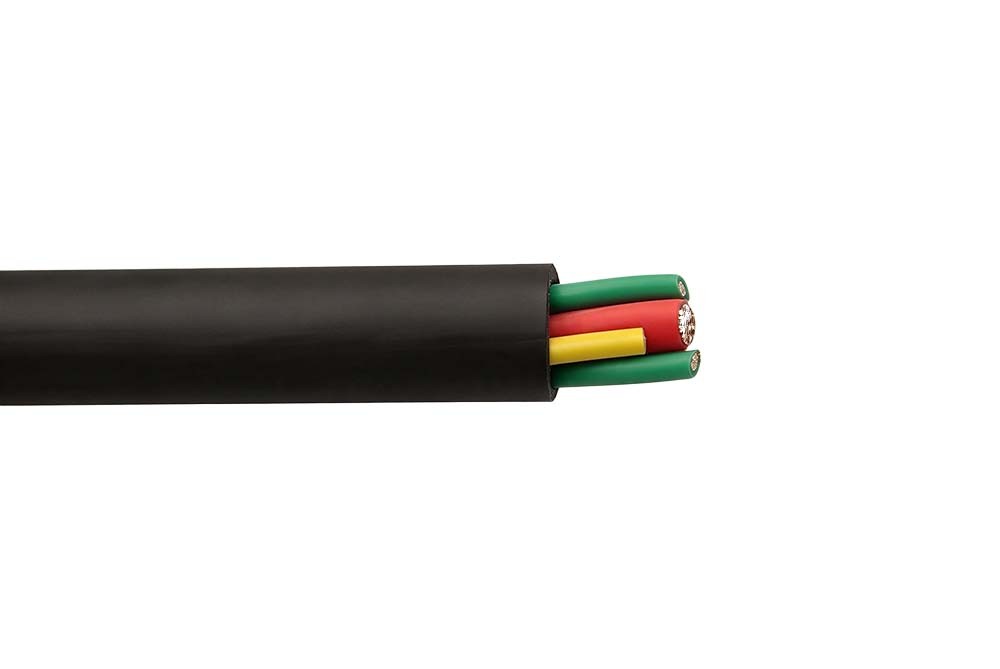

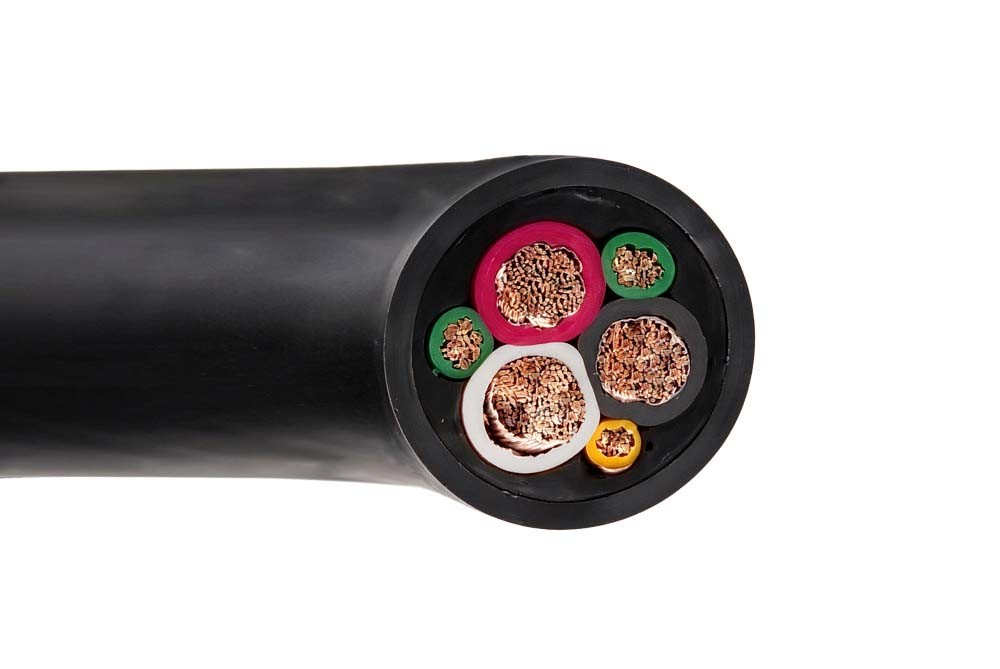

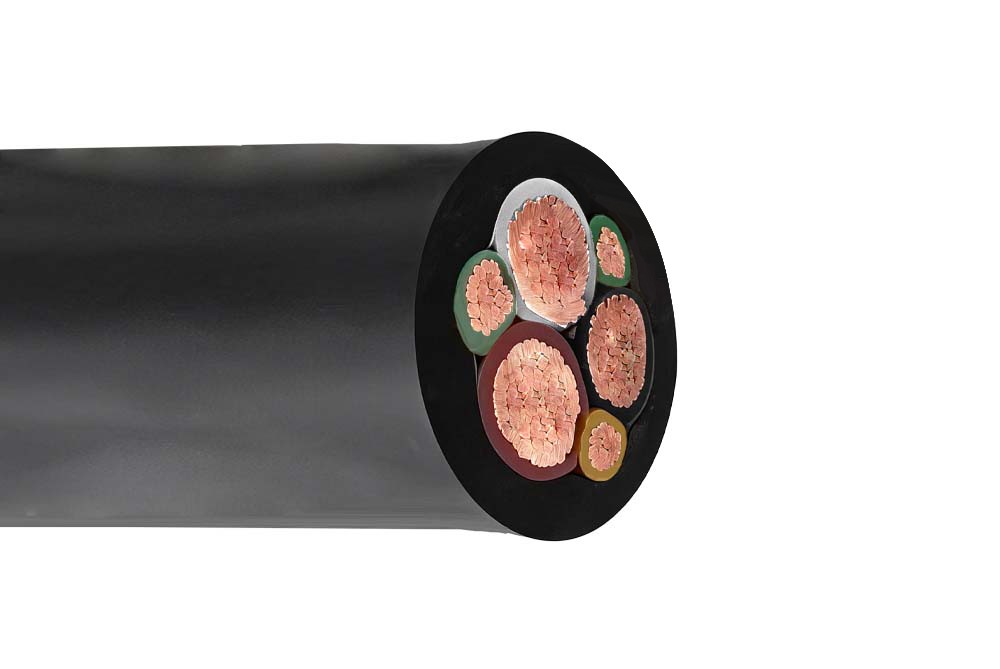

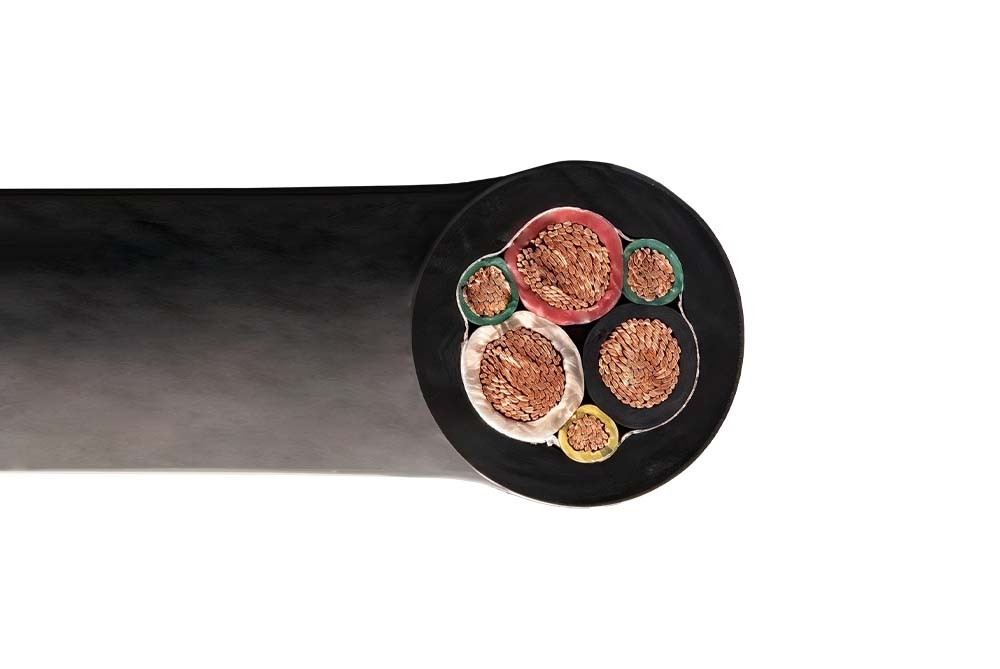

Type G-GC Mining Cable
Voltage:	2kV
Structure:	Conductor	Flexible strand soft drawn bare copper conductor, per ICEA S-75-381
	Insulation	Ethylene propylene diene monomer EPDM insulation
	Jacket	Black chlorinated polyethylene CPE jacket
	Color code	Black White Red Yellow with Green Grounds

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Type G-GC is for use in heavy duty service as a power supply cable for: mobile and portable mining equipment, loaders, conveyors, pumps, drills and cutters, where flex life is required and for systems that require an internal ground check conductor, for added safety. Type G-GC is for applications up to 2000 volts and temperatures from -40°C to +90°C.

Voltage Rating Uo/U

2kV

Temperature Rating

-40°C to +90°C

STANDARDS

UL 44, 1581

NEMA WC58

ICEA S-95-658

C(UL) FT1 & FT5 flame tests

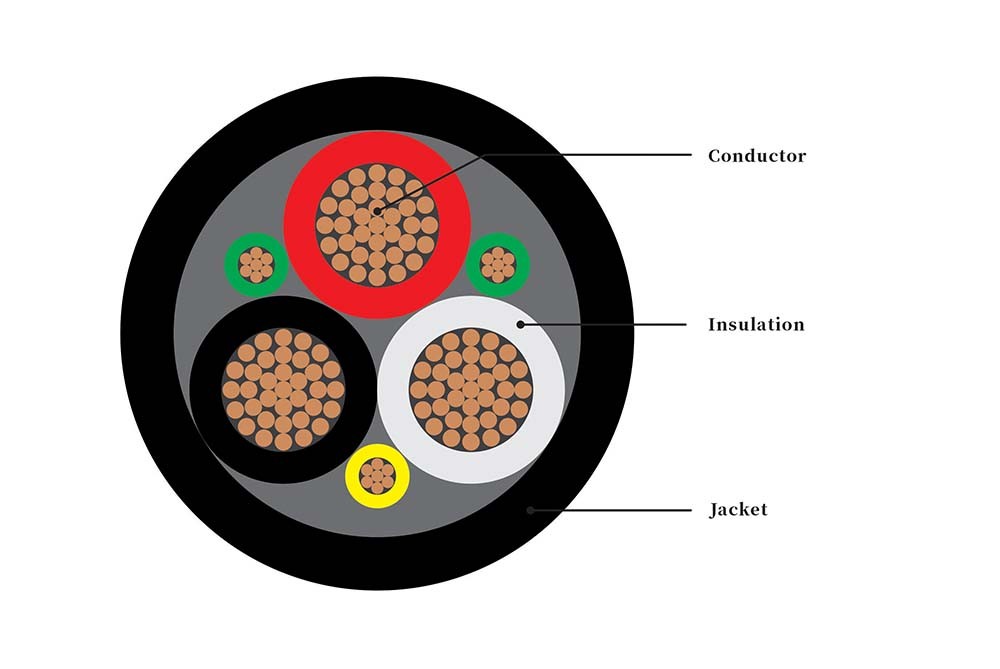

CONSTRUCTION

Conductor

Type G-GC has a flexible strand soft drawn bare copper conductor, per ICEA S-75-381

Insulation

Type G-GC has ethylene propylene diene monomer EPDM insulation

Jacket

Type G-GC has a black chlorinated polyethylene CPE jacket, which is water, chemical, sunlight and abrasion resistant

Color code

Black White Red Yellow with Green Grounds

Size AWG	No. of Cond.	Conductor Strand	Ground Conductor Size	Ground Check Size	Nominal Insulation Thickness	Nominal Insulation Thickness	Nominal Overall Diameter	Nominal Overall Diameter	Net Weight	Current Amps*
Size AWG	No. of Cond.	Conductor Strand	AWG	AWG	Inches	mm	Inches	mm	lbs./M	Current Amps*
8	3	133	2#10	10	0.060	1.52	0.965	24.51	665	59
6	3	259	2#10	10	0.060	1.52	1.050	26.67	830	79
4	3	259	2#8	10	0.060	1.52	1.190	29.59	1145	114
2	3	259	2#7	10	0.060	1.52	1.340	34.04	1485	138
1	3	259	2#6	8	0.080	2.03	1.510	38.35	2100	161
1/0	3	259	2#5	8	0.080	2.03	1.650	41.91	2550	186
2/0	3	259	2#4	8	0.080	2.03	1.750	44.45	3020	215
3/0	3	259	2#3	8	0.080	2.03	1.890	48.01	3660	249
4/0	3	259	2#2	8	0.080	2.03	2.040	51.82	4410	287
250	3	627	2#1	8	0.095	2.41	2.390	60.71	6060	320
350	3	855	2#1/0	8	0.095	2.41	2.680	68.07	7400	394
500	3	1235	2#2/0	8	0.095	2.41	3.030	76.96	10100	487

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
