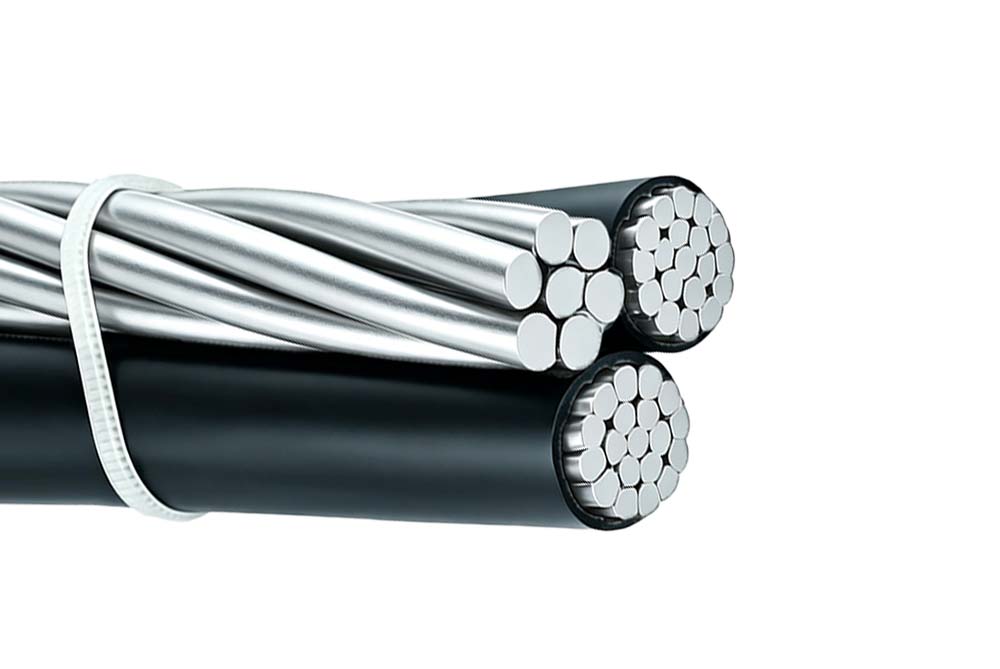

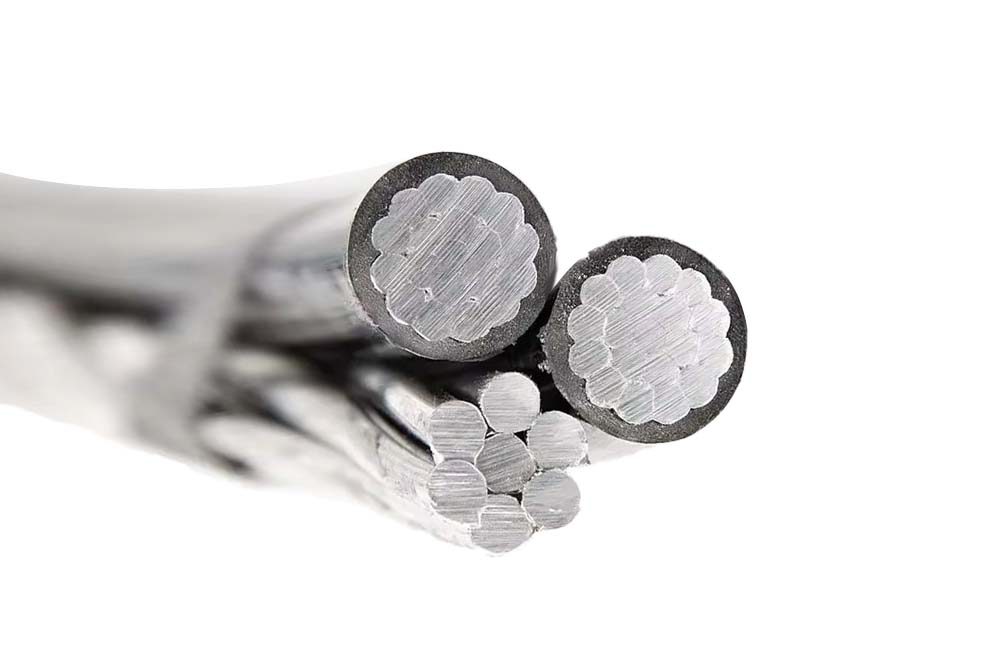

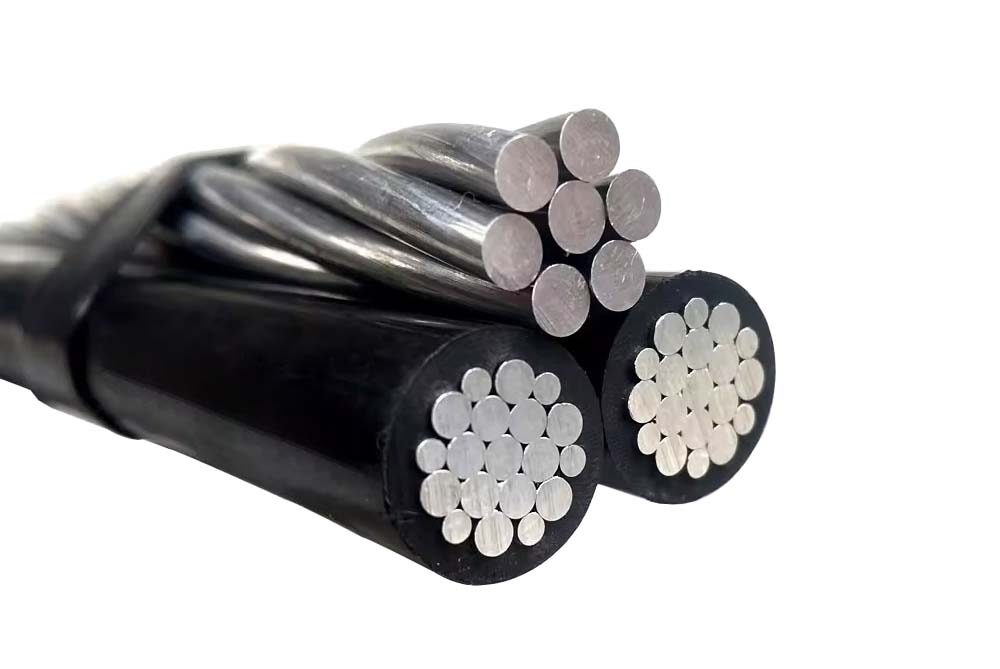

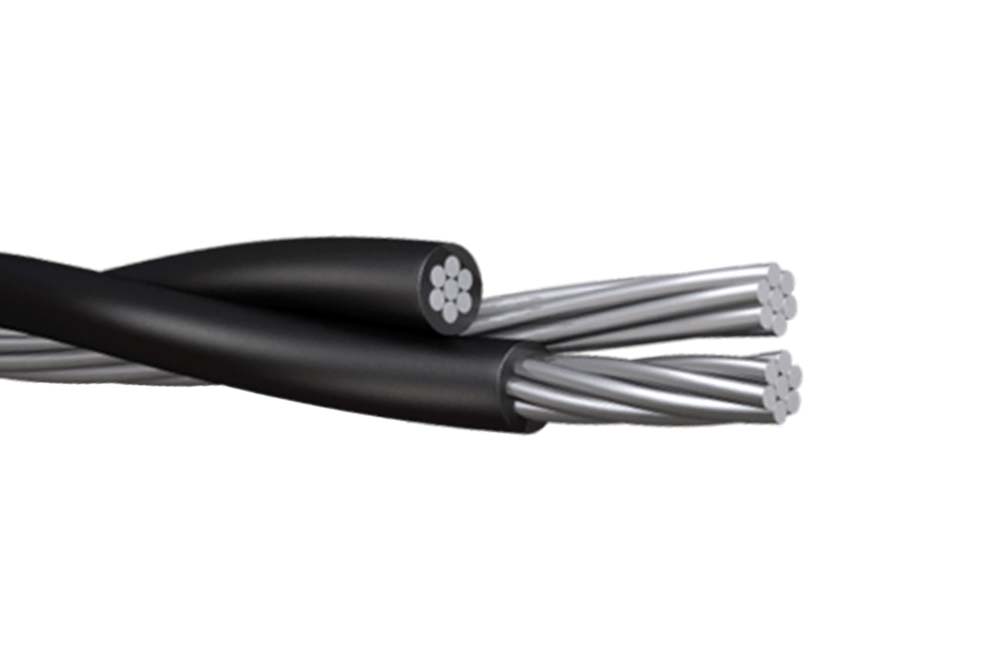

Triplex Service Drop ABC aerial bundled cable
Voltage:	0.6/1kV
Structure:	Conductor	Aluminium conductor, round stranded compressed (RM)
	Insulation	XLPE compound, UV-resistant
	Insulation Colour	Black, customization is available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Triplex Service Drop ABC Cable is a very innovative concept for overhead powerdistribution as compared to the conventional bare conductor overhead cable.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-40°C to +90°C

STANDARDS

IEC61089

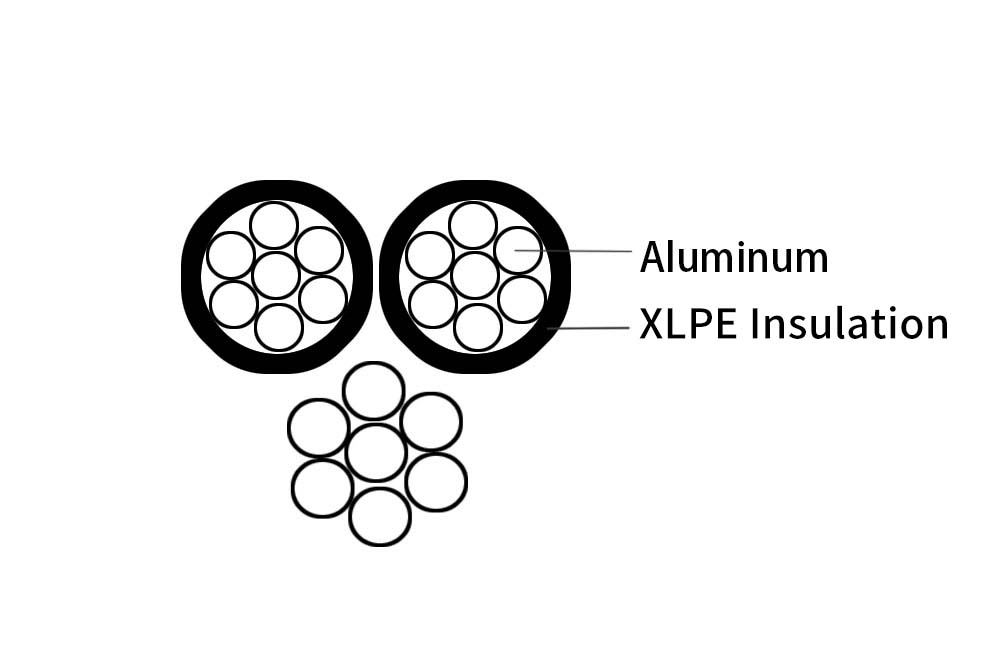

CONSTRUCTION

Conductor

Aluminium conductor, round stranded compressed (RM)

Insulation

XLPE compound, UV-resistant

Insulation Colour

Black, customization is available

Number Of Cores X Nominal Cross Section	Overall Diameter	Weight	Maxinum Conductor Resistance	Minimun Breaking Load	Current Rating
No.x mm2	mm	kg/km	Ω/Km	KN	A
1x16+1x25 RM	15.3	160	1910	2.5	72
3x16+1x25 RM	19	290	1200	4	107
3x25+1x25 RM	23.2	400	0.868	5.5	132
3x35+1x25 RM	25.6	500	0.641	8	165
3x50+1x35 RM	30	680	0.443	10.7	205
3x70+1x50 RM	34.9	920	0.32	13.7	240
3x95+1x70 RM	40.6	1270	0.253	18.6	290
3x120+1x70 RM	44.1	1510	0.206	23.2	334
3x150+1x95 RM	49.2	1870	0.164	28.7	389
3x185+1x120 RM	54.9	2340	0.125	37.2	467
3x25+1x25+1x16 RM	23.2	470	1910	2.5	72
3x35+1x25+1x16 RM	25.6	560	1200	4.0	107
3x50+1x35+1x16 RM	30	740	0.868	5.5	132
3x70+1x50+1x16 RM	34.9	980	0.641	8.0	165
3x95+1x70+1x16 RM	40.6	1330	0.443	10.7	205
3x120+1x70+1x16 RM	44.1	1580	0.32	13.7	240
3x150+1x95+1x16 RM	49.2	1940	0.206	23.2	334
3x185+1x120+1x16 RM	54.9	2410	1910	2.5	72

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
