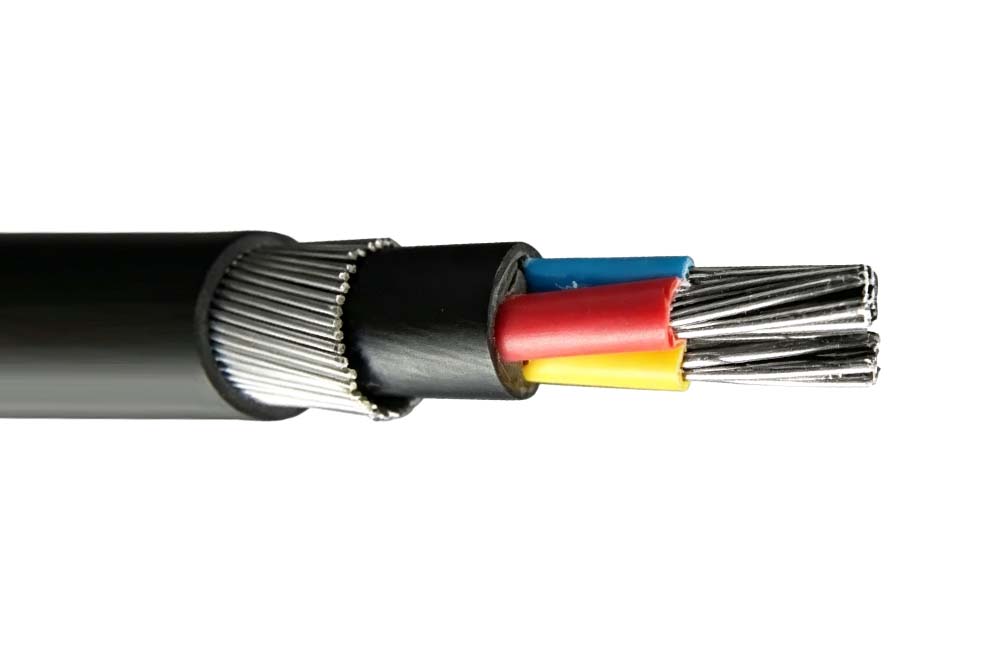

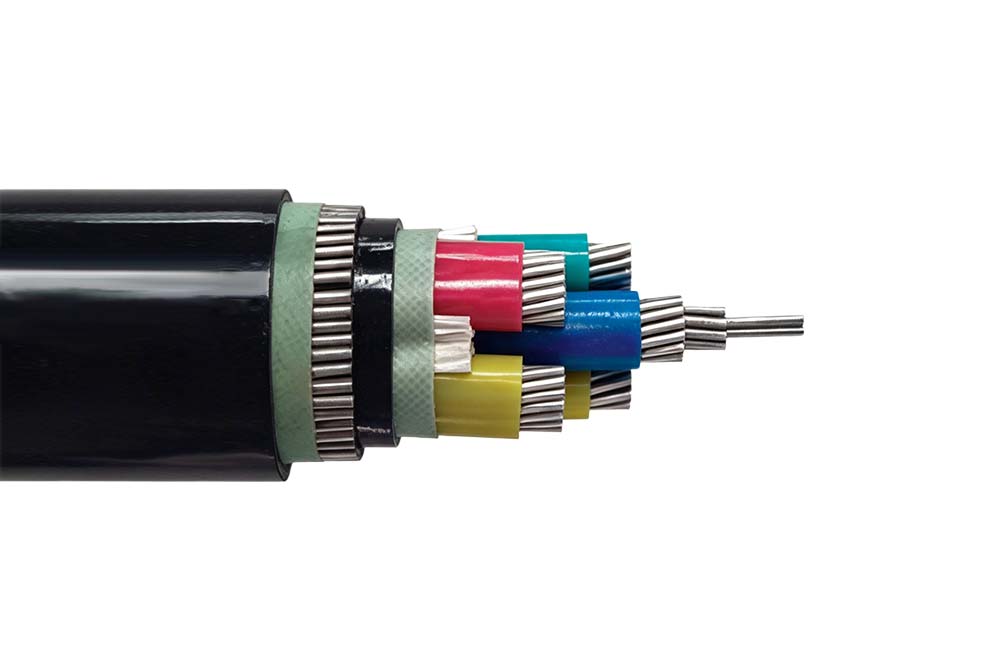

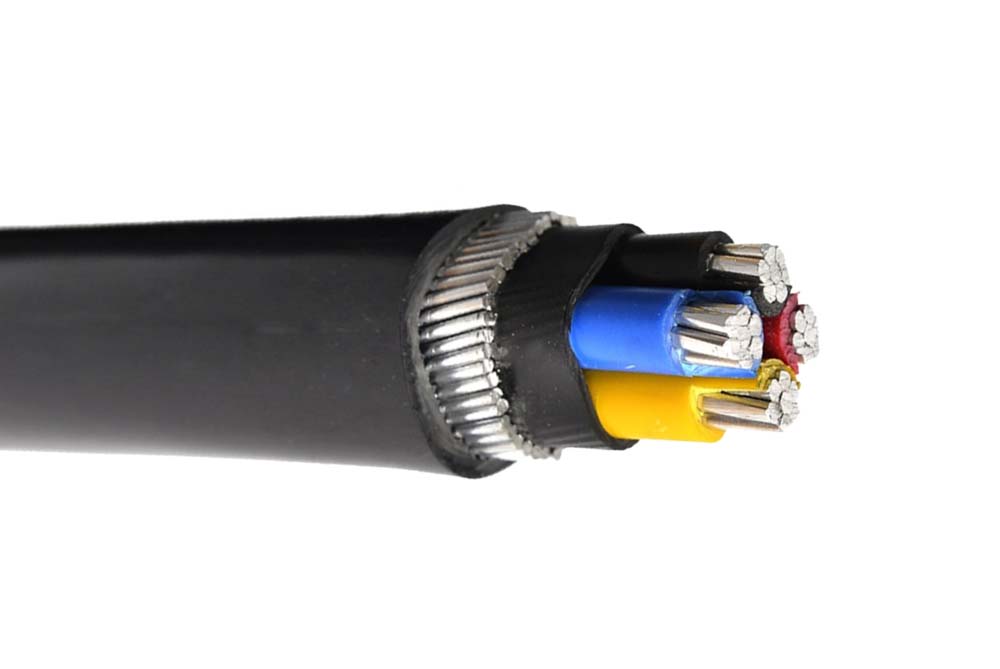

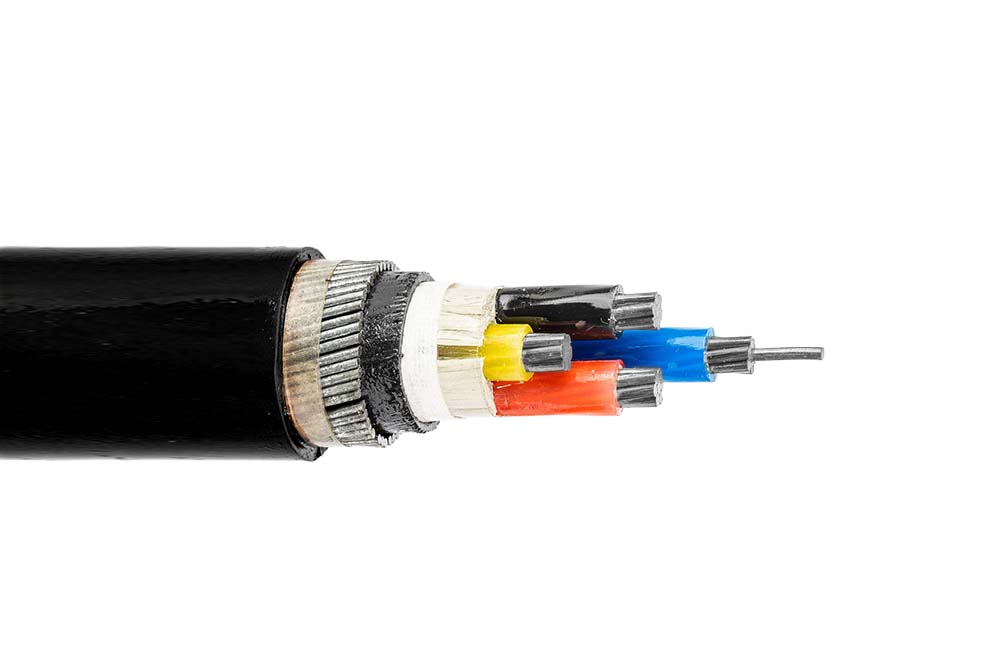

0.6/1kV Aluminum Core SWA Armor Power Cable
Voltage:	0.6/1kV
Structure:	Conductor	Aluminum
	Insulation	XLPE (Cross-Linked Polyethylene)
	Armour	SWA (Galvanized Steel Wire Armour)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, customization is available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

This product is suitable for transmitting electric energy in power lines with AC 50Hz and rated voltage 0.6/1kV (system maximum voltage 1.2kV). Fixed laying in metallurgy, electric power, construction and other industries indoors, cable trenches, pipelines, direct burial and other places that do not need to withstand mechanical external force.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-15°C to +90°C

STANDARDS

IEC 60502-1

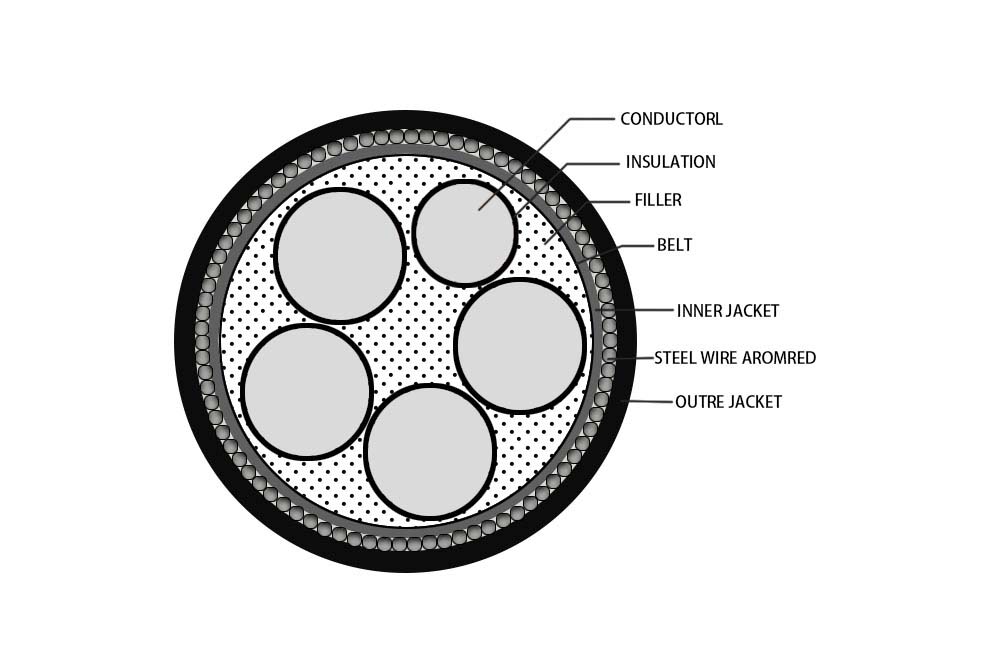

CONSTRUCTION

Conductor

Aluminum

Insulation

XLPE (Cross-Linked Polyethylene)

Armour

SWA (Galvanized Steel Wire Armour)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black, customization is available

Core Identification

2 core: red blue

3 core: yellow green red

4 core: yellow green red blue

5 core: yellow green red blue black (or determined by negotiation between the supplier and the buyer)

The colors red, yellow and green are used for the main wire core

Blue is used for the neutral core

NO. OF CORES	CORE×CROSS SECTIONG	CONDUCTOR	CORE DIANETER	INSULATION THCKNESS	BELT	INNER SHEATH THCKNESS	ARMOR	OUTER SHEATH THCKNESS	REFERENCE OUTER DIAMETER	REFERENCE WEIGHT	DC RESISTANCE
	（MM）		(MM2)	(MM)	(MM)	(MM)	(MM)	（MM)	（MM)	（kg/km）	(Ω/KM)
2	2×10	7/1.35	4.05	0.7	20×0.20	1	35×1.25	1.8	20.2	697.5	3.08
2	2×16	7/1.66	4.98	0.7	20×0.20	1	40×1.25	1.8	22.2	822.4	1.91
2	2×25	7/2.14	6.42	0.9	25×0.20	1	39×1.6	1.8	26.5	1222.8	1.2
2	2×35	7/2.52	7.56	0.9	25×0.20	1	43×1.6	1.8	28.9	1406.8	0.868
2	2×50	10/2.52	5.7×13.5	1	40×0.20	1	36×1.6	1.8	24.8	1206.1	0.641
2	2×70	14/2.52	7.0×15.6	1.1	45×0.20	1	41×1.6	2	28.2	1479.8	0.443
2	2×95	19/2.52	8.3×18.0	1.1	55×0.20	1.2	38×2.0	2.1	32.2	2022.2	0.32
2	2×120	24/2.52	8.9×20.8	1.2	60×0.20	1.2	40×2.0	2.2	34	2269.6	0.253
2	2×150	30/2.52	10.0×23.1	1.4	60×0.20	1.2	45×2.0	2.3	37.2	2656.5	0.206
2	2×185	37/2.52	11.1×25.7	1.6	60×0.20	1.4	40×2.5	2.5	42	3472.6	0.164
2	2×240	48/2.52	12.5×29.1	1.7	60×0.20	1.4	44×2.5	2.7	45.6	4067.6	0.125
2	2×300	61/2.52	15.0×32.2	1.8	60×0.20	1.6	51×2.5	2.8	51.6	4910.9	0.1
3	3×10	7/1.35	4.05	0.7	20×0.20	1	38×1.25	1.8	21.1	774.7	3.08
3	3×16	7/1.66	4.98	0.7	20×0.20	1	43×1.25	1.8	23.3	917.5	1.91
3	3×25	7/2.14	6.42	0.9	25×0.20	1	41×1.6	1.8	27.8	1353.9	1.2
3	3×35	7/2.52	7.56	0.9	25×0.20	1	46×1.6	1.8	30.4	1584.3	0.868
3	3×50	10/2.52	7.0×11.5	1	50×0.20	1	42×1.6	1.9	28.6	1531	0.641
3	3×70	14/2.52	8.0×13.7	1.1	55×0.20	1.2	39×2.0	2	32.5	2114.8	0.443
3	3×95	19/2.52	9.5×15.8	1.1	60×0.20	1.2	44×2.0	2.2	36.1	2553.5	0.32
3	3×120	24/2.52	10.8×18.6	1.2	60×0.20	1.2	48×2.0	2.3	39.5	2959.4	0.253
3	3×150	30/2.52	12.5×20.5	1.4	60×0.20	1.4	45×2.5	2.5	45.7	3990.4	0.206
3	3×185	37/2.52	14.3×23.3	1.6	60×0.20	1.4	50×2.5	2.6	50.5	4642.8	0.164
3	3×240	48/2.52	16.3×26.2	1.7	60×0.20	1.6	56×2.5	2.8	56	5571.6	0.125
3	3×300	61/2.52	18.0×29.8	1.8	60×0.20	1.6	61×2.5	3	60.4	6492.9	0.1
4	4×10	7/1.35	4.05	0.7	20×0.20	1	41×1.25	1.8	22.6	869.6	3.08
4	4×16	7/1.66	4.98	0.7	25×0.20	1	37×1.6	1.8	25.7	1186.7	1.91
4	4×25	7/2.14	6.42	0.9	25×0.20	1	45×1.6	1.8	30	1551.1	1.2
4	4×35	7/2.52	7.56	0.9	25×0.20	1	50×1.6	1.9	33.1	1834.5	0.868
4	4×50	10/2.52	7.5×10.5	1	55×0.20	1	46×1.6	2	30.7	1801.3	0.641
4	4×70	14/2.52	9.1×12.5	1.1	60×0.20	1.2	44×2.0	2.2	36.3	2555.7	0.443
4	4×95	19/2.52	11.0×13.3	1.1	60×0.20	1.2	50×2.0	2.3	40.6	3098.5	0.32
4	4×120	24/2.52	12.0×17.0	1.2	60×0.20	1.4	44×2.5	2.5	45.1	4029.3	0.253
4	4×150	30/2.52	13.9×19.7	1.4	60×0.20	1.4	50×2.5	2.6	50.3	4771	0.206
4	4×185	37/2.52	15.2×21.2	1.6	60×0.20	1.4	55×2.5	2.8	54.5	5550.6	0.164
4	4×240	48/2.52	17.3×24.3	1.7	60×0.20	1.6	61×2.5	3	60.3	6662.9	0.125
4	4×300	61/2.52	19.5×27.9	1.8	60×0.20	1.6	67×2.5	3.2	66	7854.8	0.1
5	5×10	7/1.35	4.05	0.7	25×0.20	1	45×1.25	1.8	24.1	976.9	3.08
5	5×16	7/1.66	4.98	0.7	25×0.20	1	40×1.6	1.8	27.5	1327	1.91
5	5×25	7/2.14	6.42	0.9	25×0.20	1	50×1.6	1.8	32.4	1777.3	1.2
5	5×35	7/2.52	7.56	0.9	30×0.20	1	55×1.6	1.9	35.8	2100.8	0.868
5	5×50	10/2.52	4.8×14.2	1	60×0.20	1.2	41×2.0	2.1	34.2	2343.7	0.641
			8.4	1
5	5×70	14/2.52	5.7×16.8	1.1	60×0.20	1.2	47×2.0	2.3	38.5	2905.4	0.443
			10	1.1
5	5×95	19/2.52	6.7×19.6	1.1	60×0.20	1.4	43×2.5	2.4	43.7	3933	0.32
			11.6	1.1
5	5×120	24/2.52	7.9×21.9	1.2	60×0.20	1.4	48×2.5	2.6	48.4	4643.7	0.253
			13	1.2
5	5×150	30/2.52	8.5×24.6	1.4	60×0.20	1.4	52×2.5	2.8	52.6	5403.4	0.206
			14.6	1.4
5	5×185	37/2.52	9.4×27.2	1.6	60×0.20	1.6	58×2.5	3	57.8	6402.8	0.164
			16.2	1.6
5	5×240	48/2.52	10.8×31.0	1.7	60×0.20	1.6	65×2.5	3.2	63.8	7693.4	0.125
			18.5	1.7
5	5×300	61/2.52	12.2×34.4	1.8	60×0.20	1.8	57×3.15	3.4	71.3	9959	0.1
			20.6	1.8
4	3×16+1×10	7/1.66	4.98	0.7	25×0.20	1	45×1.25	1.8	24.4	966.4	1.91
		7/1.35	4.05	0.7
5	3×16+2×10	7/1.66	4.98	0.7	25×0.20	1	38×1.6	1.8	26.4	1183.3	1.91
		7/1.35	4.05	0.7
		7/1.35	4.05	0.7
4	3×25+1×16	7/2.14	6.42	0.9	25×0.20	1	43×1.6	1.8	28.9	1416.5	1.2
		7/1.66	4.98	0.7
5	3×25+2×16	7/2.14	6.42	0.9	25×0.20	1	46×1.6	1.8	30.4	1510.1	1.2
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×35+1×16	7/2.52	7.56	0.9	25×0.20	1	47×1.6	1.8	31.1	1618.9	0.868
		7/1.66	4.98	0.7
5	3×35+2×16	7/2.52	7.56	0.9	25×0.20	1	50×1.6	1.8	32.4	1708.4	0.868
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×50+1×25	10/2.52	7.2×10.8	1	55×0.20	1	47×1.6	1.9	30.9	1733	0.641
		7/2.16	6	0.9
5	3×50+2×25	10/2.52	5.0×14.3	1	55×0.20	1	46×1.6	2	30.7	1811.6	0.641
		7/2.16	6	0.9
		7/2.16	6	0.9
4	3×70+1×35	14/2.52	9.0×13.0	1.1	60×0.20	1.2	45×2.0	2.1	37.1	2470	0.443
		7/2.52	7	0.9
5	3×70+2×35	14/2.52	6.0×16.8	1.1	60×0.20	1.2	43×2.0	2.1	35.5	2505.9	0.443
		7/2.52	7	0.9
		7/2.52	7	0.9
4	3×95+1×50	19/2.52	10.7×14.5	1.1	60×0.20	1.2	51×2.0	2.2	41.2	2979.2	0.32
		10/2.52	8.4	1
5	3×95+2×50	19/2.52	7.2×19.7	1.1	60×0.20	1.2	49×2.0	2.3	39.8	3079.3	0.32
		10/2.52	8.4	1
		10/2.52	7.1×11.5	1
4	3×120+1×70	24/2.52	11.5×17.3	1.2	60×0.20	1.2	54×2.0	2.4	43.9	3427.9	0.253
		14/2.52	10	1.1
5	3×120+2×70	24/2.52	8.0×22.1	1.2	60×0.20	1.4	44×2.5	2.5	45.3	4098.5	0.253
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×150+1×70	30/2.52	13.2×19.4	1.4	60×0.20	1.4	50×2.5	2.5	50.4	4502.6	0.206
		14/2.52	10	1.1
5	3×150+2×70	30/2.52	9.1×24.3	1.4	60×0.20	1.4	48×2.5	2.6	48.5	4625.4	0.206
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×185+1×95	37/2.52	15.0×22.3	1.6	60×0.20	1.4	56×2.5	2.7	55.8	5306.2	0.164
		19/2.52	11.6	1.1
5	3×185+2×95	37/2.52	10.2×27.2	1.6	60×0.20	1.4	53×2.5	2.8	53.5	5455.2	0.164
		19/2.52	11.6	1.1
		19/2.52	9.2×14.7	1.1
4	3×240+1×120	48/2.52	17.7×23.7	1.7	60×0.20	1.6	65×2.5	2.9	63.3	6488.1	0.125
		24/2.52	13	1.2
5	3×240+2×120	48/2.52	11.5×29.2	1.7	60×0.20	1.6	59×2.5	3	58.8	6541.3	0.125
		24/2.52	13	1.2
		24/2.52	9.9×16.4	1.2
4	3×300+1×150	61/2.52	19.2×28.3	1.8	60×0.20	1.6	69×2.5	3	67.5	7439.9	0.1
		30/2.52	14.6	1.4
5	3×300+2×150	61/2.52	13.0×33.2	1.8	60×0.20	1.6	65×2.5	3.2	64.4	7725.7	0.1
		30/2.52	14.6	1.4
		30/2.52	10.6×17.9	1.4
5	4×16+1×10	7/1.66	4.98	0.7	25×0.20	1	40×1.6	1.8	27	1273.6	1.91
		7/1.35	4.05	0.7
5	4×25+1×16	7/2.14	6.42	0.9	25×0.20	1	48×1.6	1.8	31.4	1643.9	1.2
		7/1.66	4.98	0.7
5	4×35+1×16	7/2.52	7.56	0.9	25×0.20	1	52×1.6	1.9	34.2	1904	0.868
		7/1.66	4.98	0.7
5	4×50+1×25	10/2.52	5.5×13.4	1	55×0.20	1.2	39×2.0	2.1	33.1	2200.8	0.641
		7/2.16	6	0.9
5	4×70+1×35	14/2.52	6.7×15.8	1.1	60×0.20	1.2	45×2.0	2.2	37.1	2708.3	0.443
		7/2.52	7	0.9
5	4×95+1×50	19/2.52	7.7×18.3	1.1	60×0.20	1.2	50×2.0	2.4	41	3280.9	0.32
		10/2.52	8.4	1
5	4×120+1×70	24/2.52	9.5×20.8	1.2	60×0.20	1.4	48×2.5	2.5	48.3	4472.7	0.253
		14/2.52	10	1.1
5	4×150+1×70	30/2.52	10.0×22.9	1.4	60×0.20	1.4	50×2.5	2.7	50.5	5015.5	0.206
		14/2.52	10	1.1
5	4×185+1×95	37/2.52	10.8×25.6	1.6	60×0.20	1.6	55×2.5	2.9	55.5	5927.2	0.164
		19/2.52	11.6	1.1
5	4×240+1×120	48/2.52	12.6×28.9	1.7	60×0.20	1.6	62×2.5	3.1	61.2	7118.7	0.125
		24/2.52	13	1.2
5	4×300+1×150	61/2.52	13.8×32.2	1.8	60×0.20	1.6	54×3.15	3.3	67.5	9131.5	0.1
		30/2.52	14.6	1.4

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
