0.6/1kV Copper STA Armour Low Voltage Power Cable-Copper Core STA Armor Low Voltage Power Cable-Medium Voltage Cable Manufacturers

0.6/1kV Copper STA Armour Low Voltage Power Cable
Voltage:	0.6/1kV
Structure:	Conductor	Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Armour	STA (Steel Tape Armour)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, customization is available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

This product is suitable for transmitting electric energy in power lines with AC 50Hz and rated voltage 0.6/1kV (system maximum voltage 1.2kV). Fixed laying in metallurgy, electric power, construction and other industries indoors, cable trenches, pipelines, direct burial and other places that do not need to withstand mechanical external force.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-15°C to +90°C

STANDARDS

IEC 60502-1

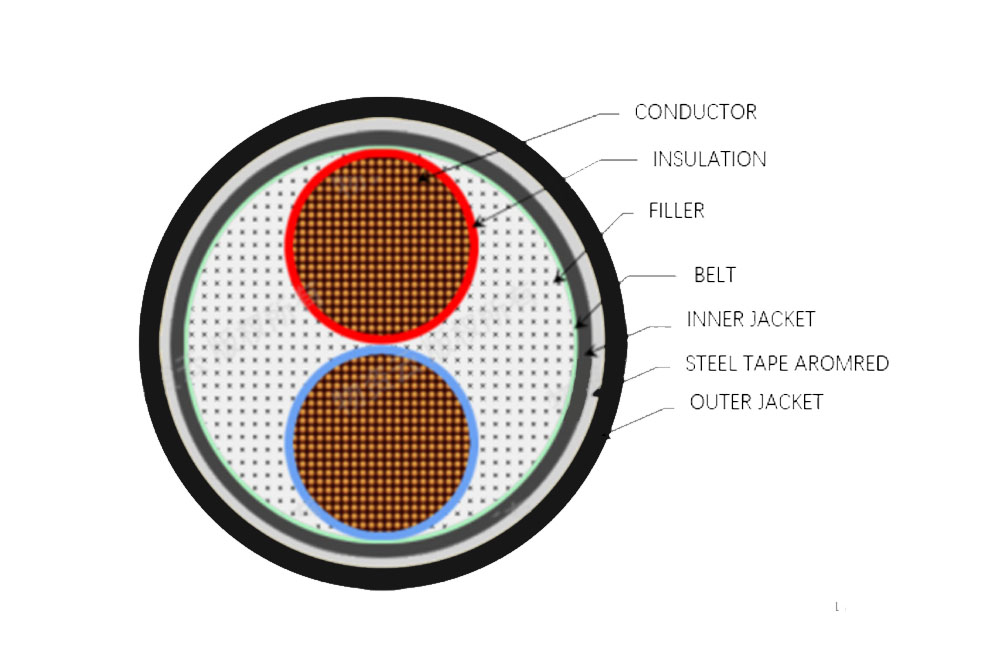

CONSTRUCTION

Conductor

Copper

Insulation

XLPE (Cross-Linked Polyethylene)

Armour

STA (Steel Tape Armour)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black, customization is available

Core Identification

2 core: red blue

3 core: yellow green red

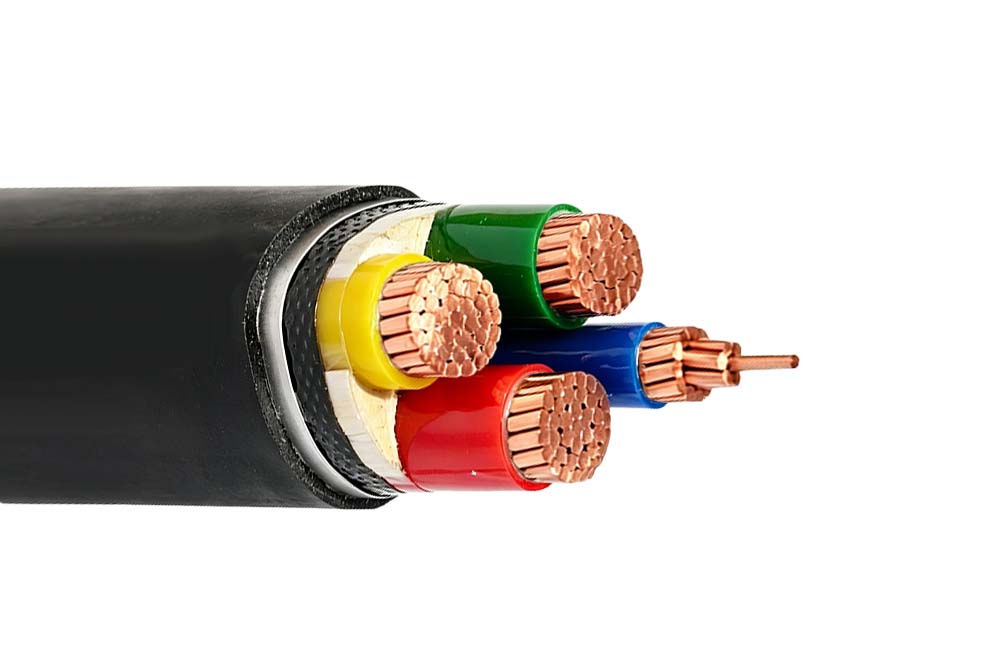

4 core: yellow green red blue

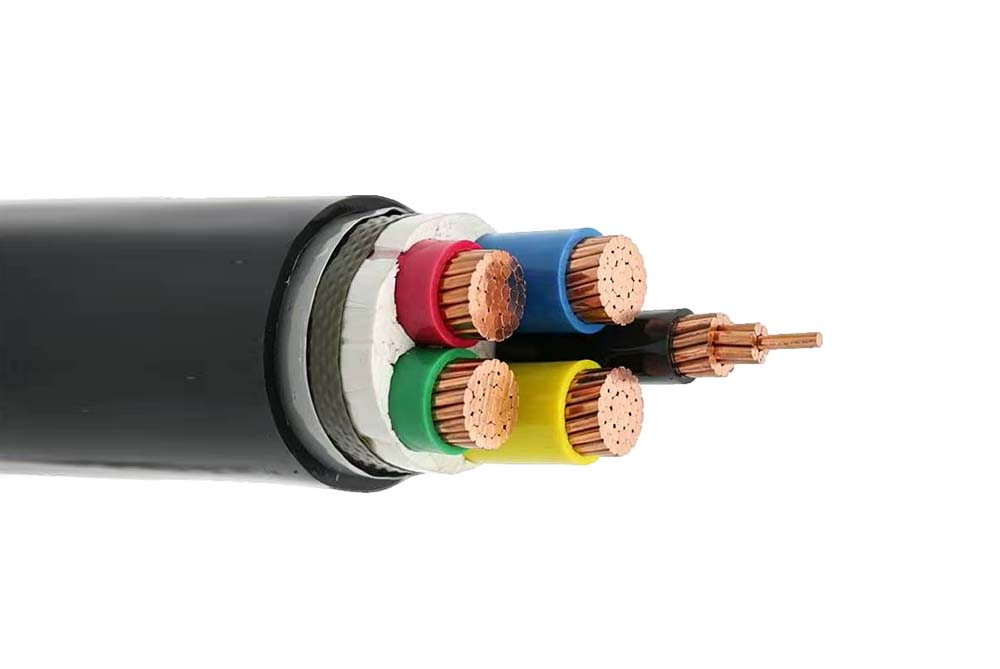

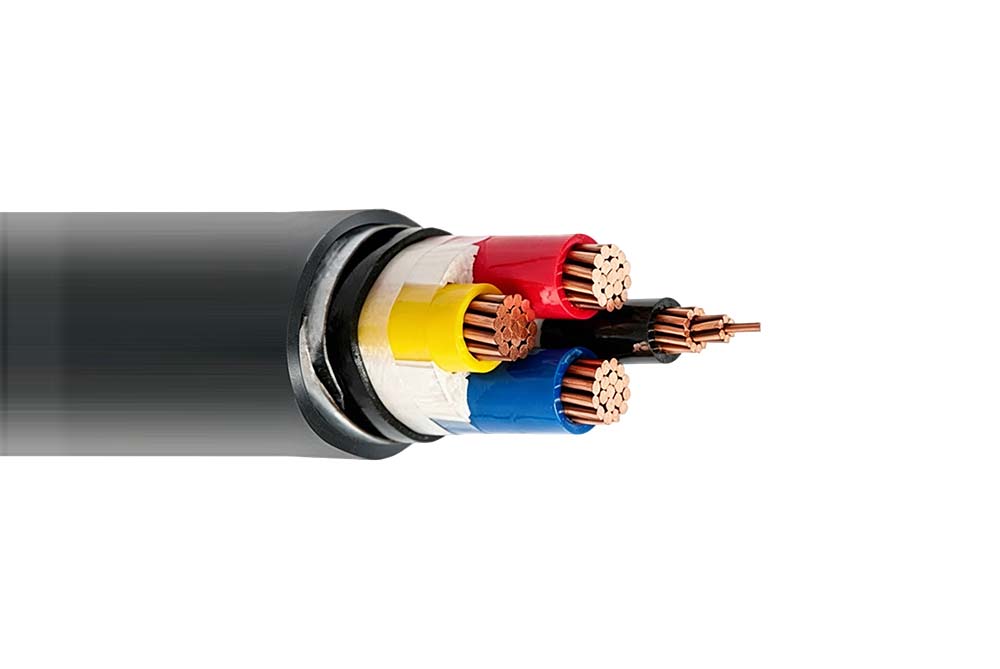

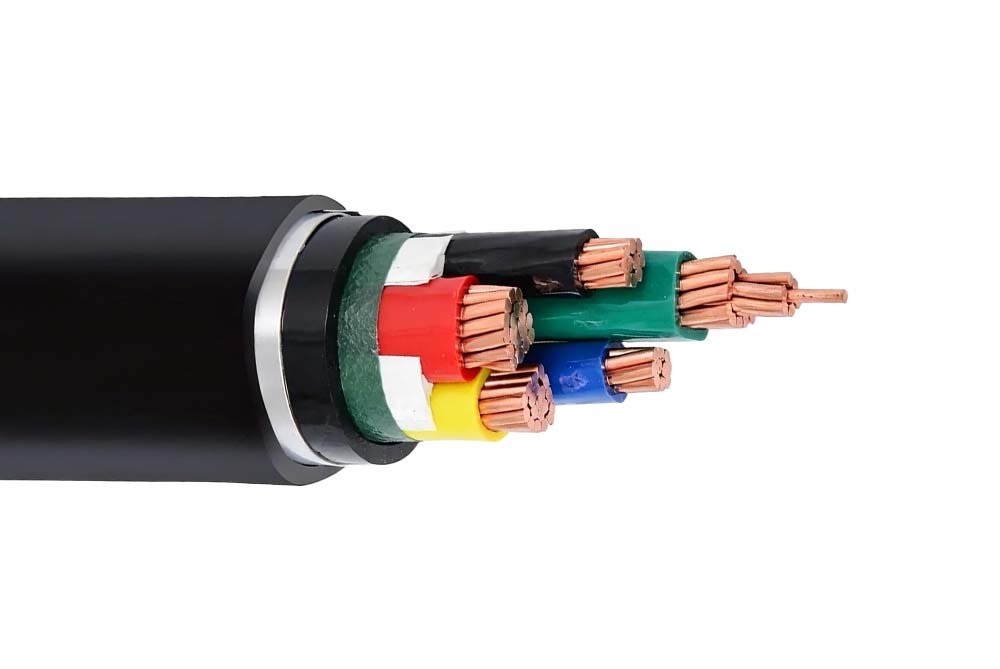

5 core: yellow green red blue black (or determined by negotiation between the supplier and the buyer)

The colors red, yellow and green are used for the main wire core

Blue is used for the neutral core

NO.OF CORES	CORE×CROSS SECTION	CONDUCTOR	CORE DIANETER	INSULATION THCKNESS	BELT	ARMOR	JACKET THICKNESS	REFERENCE OUTER DIAMETER	REFERENCE WEIGHT	DC RESISTANCE
NO.OF CORES	（MM）	CONDUCTOR	(MM2)	(MM)	(MM)	(MM)	(MM)	（MM)	（kg/km）	(Ω/KM)
2	2×1.5	1/1.38	1.38	0.7	2×20×0.20	20×0.2	1.8	11.2	196.8	12.1
2	2×2.5	1/1.78	1.78	0.7	2×20×0.20	20×0.2	1.8	12	233.5	7.41
2	2×4	1/2.25	2.25	0.7	2×20×0.20	20×0.2	1.8	13	284.3	4.61
2	2×6	1/2.76	2.76	0.7	2×20×0.20	20×0.2	1.8	14	344.9	3.08
2	2×10	7/1.35	4.05	0.7	2×20×0.20	20×0.2	1.8	17	532	1.83
2	2×16	7/1.66	4.98	0.7	2×20×0.20	20×0.2	1.8	19	696.5	1.15
2	2×25	7/2.14	6.42	0.9	2×25×0.20	25×0.2	1.8	22.6	1028.5	0.727
2	2×35	7/2.52	7.56	0.9	2×25×0.20	25×0.2	1.8	25	1309.9	0.524
2	2×50	10/2.52	5.7×13.5	1.0	2×40×0.20	25×0.2	1.8	21	1248.8	0.387
2	2×70	14/2.52	7.0×15.6	1.1	2×50×0.20	25×0.2	1.9	24.2	1677.7	0.268
2	2×95	19/2.52	8.3×18.0	1.1	2×55×0.20	25×0.2	2.0	27	2205.5	0.193
2	2×120	24/2.52	8.9×20.8	1.2	2×60×0.20	25×0.5	2.1	30	2994.1	0.153
2	2×150	30/2.52	10.0×23.1	1.4	2×60×0.20	30×0.5	2.3	33.4	3663.3	0.124
2	2×185	37/2.52	11.1×25.7	1.6	2×60×0.20	30×0.5	2.4	36.6	4424.8	0.0991
2	2×240	48/2.52	12.5×29.1	1.7	2×60×0.30	30×0.5	2.6	40.8	5617.4	0.0754
2	2×300	61/2.52	15.0×32.2	1.8	2×60×0.30	35×0.5	2.7	46.4	6994.8	0.0601
3	3×1.5	1/1.38	1.38	0.7	2×20×0.20	20×0.2	1.8	11.6	223.3	12.1
3	3×2.5	1/1.78	1.78	0.7	2×20×0.20	20×0.2	1.8	12.5	269	7.41
3	3×4	1/2.25	2.25	0.7	2×20×0.20	20×0.2	1.8	13.6	335.7	4.61
3	3×6	1/2.76	2.76	0.7	2×20×0.20	20×0.2	1.8	14.7	416.8	3.08
3	3×10	7/1.35	4.05	0.7	2×20×0.20	20×0.2	1.8	17.9	637.6	1.83
3	3×16	7/1.66	4.98	0.7	2×20×0.20	25×0.2	1.8	20.1	851	1.15
3	3×25	7/2.14	6.42	0.9	2×25×0.20	25×0.2	1.8	23.9	1271.2	0.727
3	3×35	7/2.52	7.56	0.9	2×25×0.20	25×0.2	1.8	26.5	1639.3	0.524
3	3×50	10/2.52	7.0×11.5	1.0	2×50×0.20	25×0.2	1.8	24.6	1776.6	0.387
3	3×70	14/2.52	8.0×13.7	1.1	2×55×0.20	25×0.2	1.9	27.3	2379.6	0.268
3	3×95	19/2.52	9.5×15.8	1.1	2×60×0.20	30×0.2	2.1	30.9	3168.1	0.193
3	3×120	24/2.52	10.8×18.6	1.2	2×60×0.20	30×0.5	2.2	35.5	4278.7	0.153
3	3×150	30/2.52	12.5×20.5	1.4	2×60×0.20	30×0.5	2.4	40.3	5272.4	0.124
3	3×185	37/2.52	14.3×23.3	1.6	2×60×0.20	35×0.5	2.5	45.1	6415.4	0.0991
3	3×240	48/2.52	16.3×26.2	1.7	2×60×0.30	35×0.5	2.7	50.8	8177.3	0.0754
3	3×300	61/2.52	18.0×29.8	1.8	2×60×0.30	35×0.5	2.9	55.2	10125.2	0.0601
4	4×1.5	1/1.38	1.38	0.7	2×20×0.20	20×0.2	1.8	12.4	255	12.1
4	4×2.5	1/1.78	1.78	0.7	2×20×0.20	20×0.2	1.8	13.3	315.1	7.41
4	4×4	1/2.25	2.25	0.7	2×20×0.20	20×0.2	1.8	14.6	398.3	4.61
4	4×6	1/2.76	2.76	0.7	2×20×0.20	20×0.2	1.8	15.8	500.6	3.08
4	4×10	7/1.35	4.05	0.7	2×20×0.20	20×0.2	1.8	19.4	776.2	1.83
4	4×16	7/1.66	4.98	0.7	2×25×0.20	25×0.2	1.8	21.8	1043	1.15
4	4×25	7/2.14	6.42	0.9	2×25×0.20	25×0.2	1.8	26.1	1579.3	0.727
4	4×35	7/2.52	7.56	0.9	2×25×0.20	25×0.2	1.8	29	2049.4	0.524
4	4×50	10/2.52	7.5×10.5	1.0	2×55×0.20	25×0.2	1.9	26.7	2286.2	0.387
4	4×70	14/2.52	9.1×12.5	1.1	2×60×0.20	30×0.2	2.0	30.9	3101.5	0.268
4	4×95	19/2.52	11.0×13.3	1.1	2×60×0.20	30×0.5	2.2	36.6	4502.9	0.193
4	4×120	24/2.52	12.0×17.0	1.2	2×60×0.20	30×0.5	2.4	39.7	5540	0.153
4	4×150	30/2.52	13.9×19.7	1.4	2×60×0.30	35×0.5	2.5	45.5	6876.1	0.124
4	4×185	37/2.52	15.2×21.2	1.6	2×60×0.30	35×0.5	2.7	49.7	8350.4	0.0991
4	4×240	48/2.52	17.3×24.3	1.7	2×60×0.30	35×0.5	2.9	55.1	10566.6	0.0754
4	4×300	61/2.52	19.5×27.9	1.8	2×60×0.30	45×0.5	3.1	60.8	13155.7	0.0601
5	5×1.5	1/1.38	1.38	0.7	2×20×0.20	20×0.2	1.8	13.2	289.8	12.1
5	5×2.5	1/1.78	1.78	0.7	2×20×0.20	20×0.2	1.8	14.2	362.1	7.41
5	5×4	1/2.25	2.25	0.7	2×20×0.20	20×0.2	1.8	15.6	464.8	4.61
5	5×6	1/2.76	2.76	0.7	2×20×0.20	20×0.2	1.8	16.9	588.6	3.08
5	5×10	7/1.35	4.05	0.7	2×25×0.20	25×0.2	1.8	20.9	920.4	1.83
5	5×16	7/1.66	4.98	0.7	2×25×0.20	25×0.2	1.8	23.6	1248.5	1.15
5	5×25	7/2.14	6.42	0.9	2×25×0.20	25×0.2	1.8	28.5	1914.5	0.727
5	5×35	7/2.52	7.56	0.9	2×30×0.20	30×0.2	1.9	31.9	2507.5	0.524
5	5×50	10/2.52	4.8×14.2	1.0	2×60×0.20	25×0.2	2.0	29	2798.7	0.387
5	5×50	10/2.52	8.4	1.0	2×60×0.20	25×0.2	2.0	29	2798.7	0.387
5	5×70	14/2.52	5.7×16.8	1.1	2×60×0.20	30×0.5	2.2	34.5	4145.4	0.268
5	5×70	14/2.52	10	1.1	2×60×0.20	30×0.5	2.2	34.5	4145.4	0.268
5	5×95	19/2.52	6.7×19.6	1.1	2×60×0.20	30×0.5	2.3	38.3	5440.8	0.193
5	5×95	19/2.52	11.6	1.1	2×60×0.20	30×0.5	2.3	38.3	5440.8	0.193
5	5×120	24/2.52	7.9×21.9	1.2	2×60×0.20	35×0.5	2.5	43	6760.5	0.153
5	5×120	24/2.52	13	1.2	2×60×0.20	35×0.5	2.5	43	6760.5	0.153
5	5×150	30/2.52	8.5×24.6	1.4	2×60×0.30	35×0.5	2.7	47.8	8358.6	0.124
5	5×150	30/2.52	14.6	1.4	2×60×0.30	35×0.5	2.7	47.8	8358.6	0.124
5	5×185	37/2.52	9.4×27.2	1.6	2×60×0.30	35×0.5	2.9	52.6	10183.2	0.0991
5	5×185	37/2.52	16.2	1.6	2×60×0.30	35×0.5	2.9	52.6	10183.2	0.0991
5	5×240	48/2.52	10.8×31.0	1.7	2×60×0.30	45×0.5	3.1	58.6	12925.2	0.0754
5	5×240	48/2.52	18.5	1.7	2×60×0.30	45×0.5	3.1	58.6	12925.2	0.0754
5	5×300	61/2.52	12.2×34.4	1.8	2×60×0.30	45×0.5	3.3	64.4	16110.3	0.0601
5	5×300	61/2.52	20.6	1.8	2×60×0.30	45×0.5	3.3	64.4	16110.3	0.0601
4	3×4+1×2.5	1/2.25	2.25	0.7	2×20×0.20	20×0.2	1.8	14.3	355	4.61
4	3×4+1×2.5	1/1.78	1.78	0.7	2×20×0.20	20×0.2	1.8	14.3	355	4.61
5	3×4+2×2.5	1/2.25	2.25	0.7	2×20×0.20	20×0.2	1.8	15.1	377.6	4.61
		1/1.78	1.78	0.7
		1/1.78	1.78	0.7
4	3×6+1×4	1/2.76	2.76	0.7	2×20×0.20	20×0.2	1.8	15.5	439.2	3.08
4	3×6+1×4	1/2.25	2.25	0.7	2×20×0.20	20×0.2	1.8	15.5	439.2	3.08
5	3×6+2×4	1/2.76	2.76	0.7	2×20×0.20	20×0.2	1.8	16.4	468	3.08
		1/2.25	2.25	0.7
		1/2.25	2.25	0.7
4	3×10+1×6	7/1.35	4.05	0.7	2×20×0.20	20×0.2	1.8	18.7	659.8	1.83
4	3×10+1×6	7/1.04	3.12	0.7	2×20×0.20	20×0.2	1.8	18.7	659.8	1.83
5	3×10+2×6	7/1.35	4.05	0.7	2×20×0.20	25×0.2	1.8	19.8	699.5	1.83
		7/1.04	3.12	0.7
		7/1.04	3.12	0.7
4	3×16+1×10	7/1.66	4.98	0.7	2×25×0.20	25×0.2	1.8	21.2	884.1	1.15
4	3×16+1×10	7/1.35	4.05	0.7	2×25×0.20	25×0.2	1.8	21.2	884.1	1.15
5	3×16+2×10	7/1.66	4.98	0.7	2×25×0.20	25×0.2	1.8	22.5	932.1	1.15
		7/1.35	4.05	0.7
		7/1.35	4.05	0.7
4	3×25+1×16	7/2.14	6.42	0.9	2×25×0.20	25×0.2	1.8	25	1301.8	0.727
4	3×25+1×16	7/1.66	4.98	0.7	2×25×0.20	25×0.2	1.8	25	1301.8	0.727
5	3×25+2×16	7/2.14	6.42	0.9	2×25×0.20	25×0.2	1.8	26.5	1363.3	0.727
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×35+1×16	7/2.52	7.56	0.9	2×25×0.20	25×0.2	1.8	27.2	1648.2	0.524
4	3×35+1×16	7/1.66	4.98	0.7	2×25×0.20	25×0.2	1.8	27.2	1648.2	0.524
5	3×35+2×16	7/2.52	7.56	0.9	2×25×0.20	25×0.2	1.8	28.5	1702.9	0.524
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×50+1×25	10/2.52	7.2×10.8	1.0	2×55×0.20	25×0.2	1.8	26.9	2059	0.387
4	3×50+1×25	7/2.16	6	0.9	2×55×0.20	25×0.2	1.8	26.9	2059	0.387
5	3×50+2×25	10/2.52	5.0×14.3	1.0	2×55×0.20	25×0.2	1.9	26.7	2305.1	0.387
		7/2.16	6	0.9
		7/2.16	6	0.9
4	3×70+1×35	14/2.52	9.0×13.0	1.1	2×60×0.20	30×0.2	2.0	31.9	2799.8	0.268
4	3×70+1×35	7/2.52	7	0.9	2×60×0.20	30×0.2	2.0	31.9	2799.8	0.268
5	3×70+2×35	14/2.52	6.0×16.8	1.1	2×60×0.20	30×0.2	2.0	30.3	3092.9	0.268
		7/2.52	7	0.9
		7/2.52	7	0.9
4	3×95+1×50	19/2.52	10.7×14.5	1.1	2×60×0.20	30×0.5	2.1	37.2	4092.3	0.193
4	3×95+1×50	10/2.52	8.4	1.0	2×60×0.20	30×0.5	2.1	37.2	4092.3	0.193
5	3×95+2×50	19/2.52	7.2×19.7	1.1	2×60×0.20	30×0.5	2.2	35.8	4520.3	0.193
		10/2.52	8.4	1.0
		10/2.52	7.1×11.5	1.0
4	3×120+1×70	24/2.52	11.5×17.3	1.2	2×60×0.20	30×0.5	2.3	39.9	5068	0.153
4	3×120+1×70	14/2.52	10	1.1	2×60×0.20	30×0.5	2.3	39.9	5068	0.153
5	3×120+2×70	24/2.52	8.0×22.1	1.2	2×60×0.20	30×0.5	2.4	39.9	5721.4	0.153
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×150+1×70	30/2.52	13.2×19.4	1.4	2×60×0.20	35×0.5	2.4	45	6062.9	0.124
4	3×150+1×70	14/2.52	10	1.1	2×60×0.20	35×0.5	2.4	45	6062.9	0.124
5	3×150+2×70	30/2.52	9.1×24.3	1.4	2×60×0.20	35×0.5	2.5	43.1	6657.2	0.124
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×185+1×95	37/2.52	15.0×22.3	1.6	2×60×0.30	35×0.5	2.6	51	7546.2	0.0991
4	3×185+1×95	19/2.52	11.6	1.1	2×60×0.30	35×0.5	2.6	51	7546.2	0.0991
5	3×185+2×95	37/2.52	10.2×27.2	1.6	2×60×0.30	35×0.5	2.7	48.7	8357.9	0.0991
		19/2.52	11.6	1.1
		19/2.52	9.2×14.7	1.1
4	3×240+1×120	48/2.52	17.7×23.7	1.7	2×60×0.30	45×0.5	2.8	58.1	9550.5	0.0754
4	3×240+1×120	24/2.52	13	1.2	2×60×0.30	45×0.5	2.8	58.1	9550.5	0.0754
5	3×240+2×120	48/2.52	11.5×29.2	1.7	2×60×0.30	35×0.5	2.9	53.6	10513.4	0.0754
		24/2.52	13	1.2
		24/2.52	9.9×16.4	1.2
4	3×300+1×150	61/2.52	19.2×28.3	1.8	2×60×0.30	45×0.5	2.9	62.3	11750.3	0.0601
4	3×300+1×150	30/2.52	14.6	1.4	2×60×0.30	45×0.5	2.9	62.3	11750.3	0.0601
5	3×300+2×150	61/2.52	13.0×33.2	1.8	2×60×0.30	45×0.5	3.1	59.2	13056.3	0.0601
		30/2.52	14.6	1.4
		30/2.52	10.6×17.9	1.4
5	4×4+1×2.5	1/2.25	2.25	0.7	2×20×0.20	20×0.2	1.8	15.3	421.1	4.61
5	4×4+1×2.5	1/1.78	1.78	0.7	2×20×0.20	20×0.2	1.8	15.3	421.1	4.61
5	4×6+1×4	1/2.76	2.76	0.7	2×20×0.20	20×0.2	1.8	16.7	526.8	3.08
5	4×6+1×4	1/2.25	2.25	0.7	2×20×0.20	20×0.2	1.8	16.7	526.8	3.08
5	4×10+1×6	7/1.35	4.05	0.7	2×20×0.20	25×0.2	1.8	20.4	812.3	1.83
5	4×10+1×6	7/1.04	3.12	0.7	2×20×0.20	25×0.2	1.8	20.4	812.3	1.83
5	4×16+1×10	7/1.66	4.98	0.7	2×25×0.20	25×0.2	1.8	23.1	1093	1.15
5	4×16+1×10	7/1.35	4.05	0.7	2×25×0.20	25×0.2	1.8	23.1	1093	1.15
5	4×25+1×16	7/2.14	6.42	0.9	2×25×0.20	25×0.2	1.8	27.5	1637.7	0.727
5	4×25+1×16	7/1.66	4.98	0.7	2×25×0.20	25×0.2	1.8	27.5	1637.7	0.727
5	4×35+1×16	7/2.52	7.56	0.9	2×25×0.20	30×0.2	1.8	30.1	2094.1	0.524
5	4×35+1×16	7/1.66	4.98	0.7	2×25×0.20	30×0.2	1.8	30.1	2094.1	0.524
5	4×50+1×25	10/2.52	5.5×13.4	1.0	2×55×0.20	25×0.2	2.0	27.9	2558.6	0.387
5	4×50+1×25	7/2.16	6	0.9	2×55×0.20	25×0.2	2.0	27.9	2558.6	0.387
5	4×70+1×35	14/2.52	6.7×15.8	1.1	2×60×0.20	30×0.5	2.1	33.1	3775.4	0.268
5	4×70+1×35	7/2.52	7	0.9	2×60×0.20	30×0.5	2.1	33.1	3775.4	0.268
5	4×95+1×50	19/2.52	7.7×18.3	1.1	2×60×0.20	30×0.5	2.3	37	4986.4	0.193
5	4×95+1×50	10/2.52	8.4	1.0	2×60×0.20	30×0.5	2.3	37	4986.4	0.193
5	4×120+1×70	24/2.52	9.5×20.8	1.2	2×60×0.20	35×0.5	2.4	42.9	6282.7	0.153
5	4×120+1×70	14/2.52	10	1.1	2×60×0.20	35×0.5	2.4	42.9	6282.7	0.153
5	4×150+1×70	30/2.52	10.0×22.9	1.4	2×60×0.30	35×0.5	2.6	45.7	7538.5	0.124
5	4×150+1×70	14/2.52	10	1.1	2×60×0.30	35×0.5	2.6	45.7	7538.5	0.124
5	4×185+1×95	37/2.52	10.8×25.6	1.6	2×60×0.30	35×0.5	2.8	50.3	9261.4	0.0991
5	4×185+1×95	19/2.52	11.6	1.1	2×60×0.30	35×0.5	2.8	50.3	9261.4	0.0991
5	4×240+1×120	48/2.52	12.6×28.9	1.7	2×60×0.30	35×0.5	3.0	56	11719.3	0.0754
5	4×240+1×120	24/2.52	13	1.2	2×60×0.30	35×0.5	3.0	56	11719.3	0.0754
5	4×300+1×150	61/2.52	13.8×32.2	1.8	2×60×0.30	45×0.5	3.2	61	14558.5	0.0601
5	4×300+1×150	30/2.52	14.6	1.4	2×60×0.30	45×0.5	3.2	61	14558.5	0.0601

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
