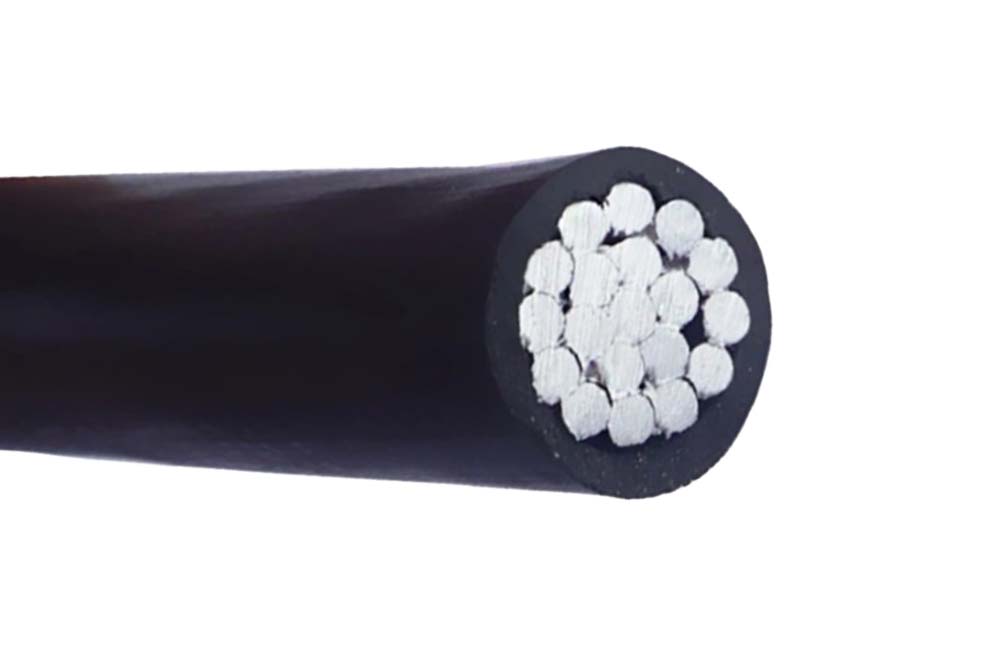

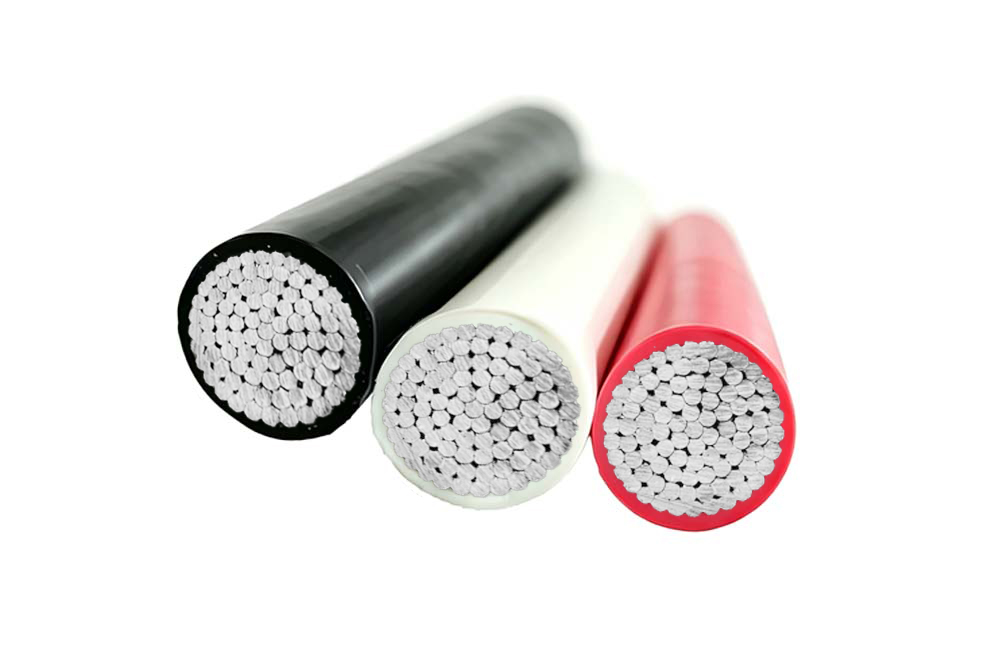

CUL RW90 Aluminum Wire 600V Electrical Cable
Voltage:	600V
Structure:	Conductor	Stranded AA-8000 Series Aluminum Alloy (ACM)
	Insulation	Cross-linked Polyethylene (XLPE)
	Insulation Colour	Standard colours are available in black,red, blue, white and green

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Aluminum RW90 is for open wiring used in raceways (except cabletroughs and ventilated flexible cableways) in dry or wet locations. For open wiring exposed to the weather. Minimum recommended installation temperature minus 40°C (with suitable handing procedures). Maximum conductor temperature 90°C.

Voltage Rating Uo/U

600V

Temperature Rating

-40°C to 90°C

STANDARDS

CSA C22.2 No. 38

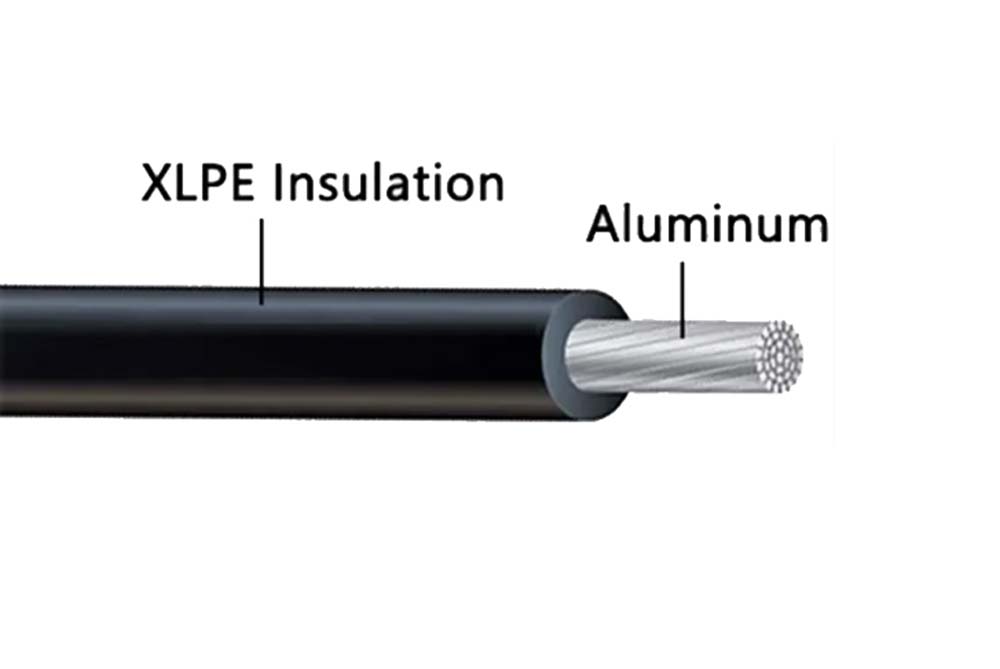

CONSTRUCTION

Conductor

Stranded AA-8000 Series Aluminum Alloy (ACM)

Insulation

Cross-linked Polyethylene (XLPE)

Insulation Colour

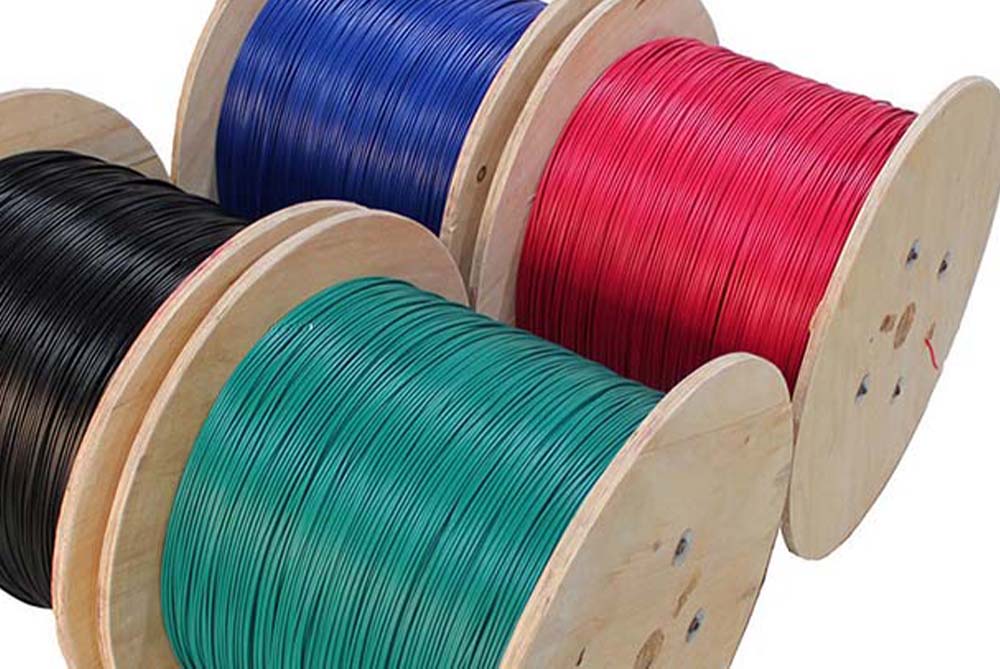

Standard colours are available in black,red, blue, white and green

Conductor		Insulation Thickness		Nominal O.D.		Approx. Weight		ALLOWABLE AMPACITY (AMPS) 30℃ AMBIENT - OPEN AIR*			ALLOWABLE AMPACITY (AMPS) 30℃ AMBIENT - CABLE IN CONDUIT*
Size (AWG or kcmil)	# of Strands	inches	mm	inches	mm	lbs/Mft	kg/km	60℃	75℃	90℃	60℃	75℃	90℃
6	7	0.045	1.14	0.259	6.58	37	55	65	75	85	40	50	55
4	7	0.045	1.14	0.303	7.7	55	82	85	100	115	55	65	75
2	7	0.045	1.14	0.358	9.09	82	122	115	135	150	75	90	100
1	8	0.055	1.4	0.409	10.39	104	155	130	155	175	85	100	115
1/0	10	0.055	1.4	0.446	11.33	128	190	150	180	205	100	120	135
2/0	12	0.055	1.4	0.486	12.34	157	234	175	210	235	115	135	150
3/0	16	0.055	1.4	0.533	13.54	193	287	200	240	270	130	155	175
4/0	19	0.055	1.4	0.585	14.86	239	356	235	280	315	150	180	205
250	22	0.065	1.65	0.65	16.51	286	426	265	315	355	170	205	230
300	35	0.065	1.65	0.703	17.86	339	504	295	350	395	195	230	260
350	35	0.065	1.65	0.749	19.03	397	582	330	395	445	210	250	280
400	35	0.065	1.65	0.792	20.12	442	658	355	425	480	225	270	305
500	35	0.065	1.65	0.869	22.07	544	809	405	485	545	260	310	350
600	58	0.08	2.03	0.976	24.79	663	987	455	545	615	285	340	385
750	58	0.08	2.03	1.071	27.2	816	1214	520	620	700	320	385	435
1000	58	0.08	2.03	1.223	31.06	1070	1592	630	750	845	375	445	500

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
