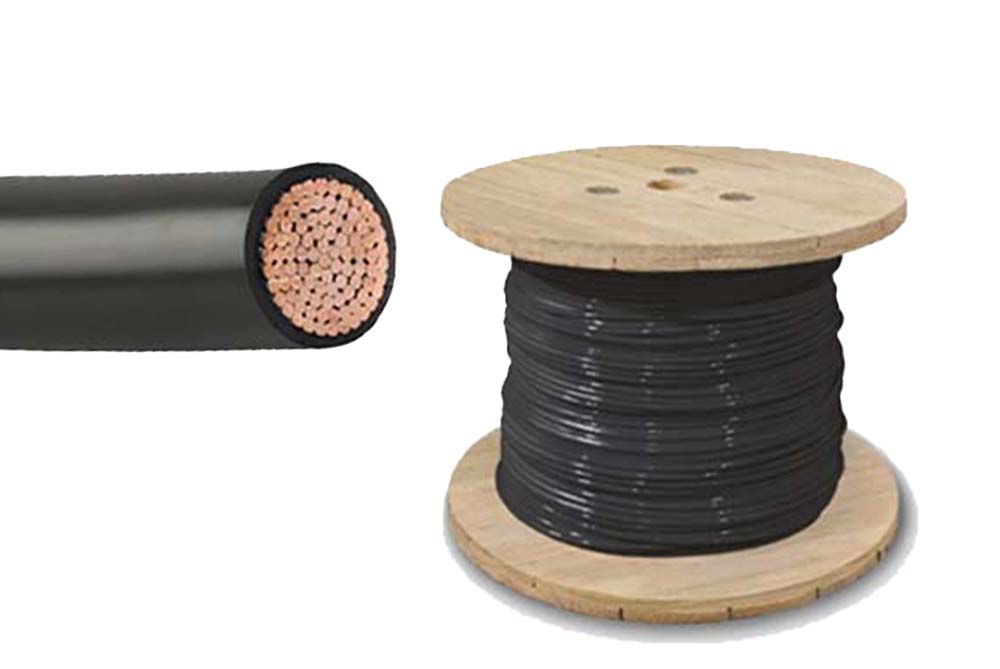

RW90 Copper Wire 600V XLPE Insulation Cable
Voltage:	600V
Structure:	Conductor	Annealed Class B compressed solid or stranded soft drawn plain copper
	Insulation	Cross-linked Polyethylene (XLPE)
	Insulation Colour	Standard colours are available in black,red, blue, white and green

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Copper RW90 is for open wiring and use in raceways (except cabletroughs and ventilated flexiblecableways) in dry or wet locations. For open wiring exposed to the weather. Minimum recommended installation temperature minus 40°C (with suitable handling procedures). Maximum conductor temperature 90°C.

Voltage Rating Uo/U

600V

Temperature Rating

-40°C to 90°C

STANDARDS

CSA C22.2 No. 38

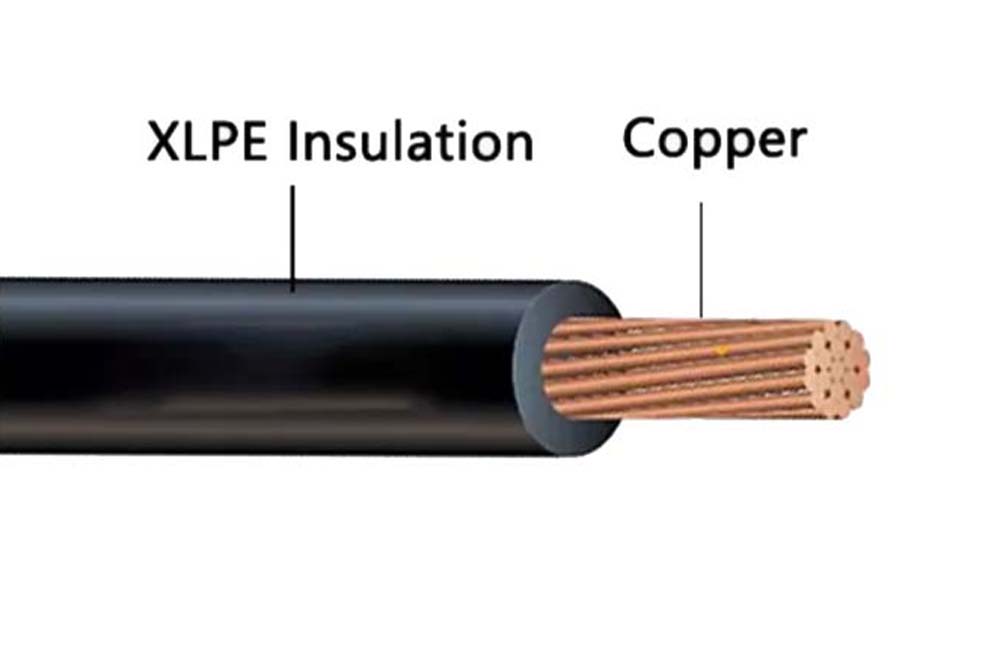

CONSTRUCTION

Conductor

Annealed Class B compressed solid or stranded soft drawn plain copper

Insulation

Cross-linked Polyethylene (XLPE)

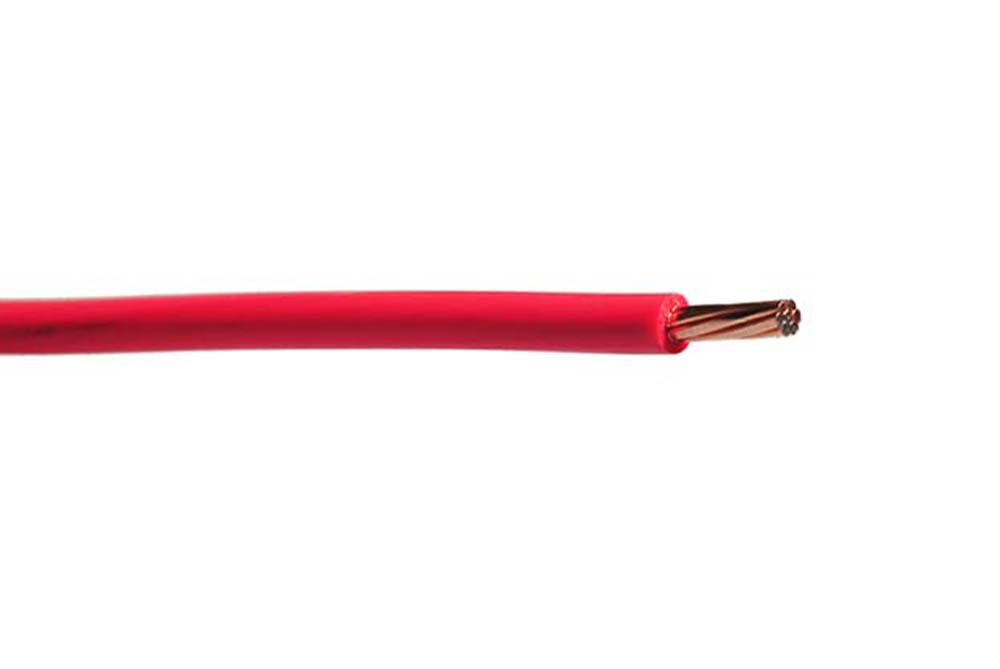

Insulation Colour

Standard colours are available in black,red, blue, white and green

Conductor		Insulation Thickness		Nominal O.D.		Approx. Weight		Allowable Ampacity (Amps) - Open Air		Allowable Ampacity (Amps) - Cable in Conduit
Size (AWG or kcmil)	# of Strands	inches	mm	inches	mm	lbs/Mft	kg/km	Cond. Temp. 75℃	Cond. Temp. 90℃	Cond. Temp. 75℃	Cond. Temp. 90℃
14*	1	0.03	0.76	0.124	3.15	17	25	30	35	20	25
14*	7	0.03	0.76	0.131	3.33	17	25	30	35	20	25
12*	1	0.03	0.76	0.141	3.58	25	37	35	40	25	30
12*	7	0.03	0.76	0.148	3.76	25	37	35	40	25	30
10*	1	0.03	0.76	0.162	4.11	37	56	50	55	35	40
10*	7	0.03	0.76	0.173	4.39	38	57	50	55	35	40
8	7	0.045	1.14	0.235	5.97	63	94	70	80	50	55
6	7	0.045	1.14	0.271	6.88	96	143	95	105	65	75
4	7	0.045	1.14	0.318	8.08	147	219	125	140	85	95
3	7	0.045	1.14	0.345	8.76	183	272	145	165	100	115
2	7	0.045	1.14	0.376	9.55	228	339	170	190	115	130
1	19	0.055	1.4	0.435	11.05	288	429	195	220	130	145
1/0	19	0.055	1.4	0.475	12.07	359	534	230	260	150	170
2/0	19	0.055	1.4	0.518	13.16	447	665	265	300	175	195
3/0	19	0.055	1.4	0.567	14.4	558	830	310	350	200	225
4/0	19	0.055	1.4	0.623	15.82	698	1039	360	405	230	260
250	37	0.065	1.65	0.691	17.55	827	1231	405	455	255	290
300	37	0.065	1.65	0.744	18.9	986	1467	445	500	285	320
350	37	0.065	1.65	0.794	20.17	1145	1704	505	570	310	350
400	37	0.065	1.65	0.839	21.31	1303	1939	545	615	335	380
500	37	0.065	1.65	0.943	23.95	1621	2412	620	700	380	430
600	61	0.08	2.03	1.053	26.75	1950	2901	690	780	420	475
750	61	0.08	2.03	1.158	29.4	2424	3607	785	885	475	535
1000	61	0.08	2.03	1.312	33.32	3211	4778	935	1055	545	615

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
