APPLICATION

CHARACTERISTICS

RG16H1R12 Cables are suitable for the transport of energy between the substations and largeusers.For electrical power system in constructions alnd other civil engineeringbulginngs,in order to limit fire and smoke production and spread,in accordance with the CPR For free hanging, pipe or channel. Laying underground also not protected.

Voltage Rating Uo/U

3.6/6kV

Temperature Rating

Maximun operating temperature:+90°C
Maximun short circuit temperature:+250°C
Min. operating temperature (without mechanical shocks):-15°C

Minimum Bending Radius

12 D

STANDARDS

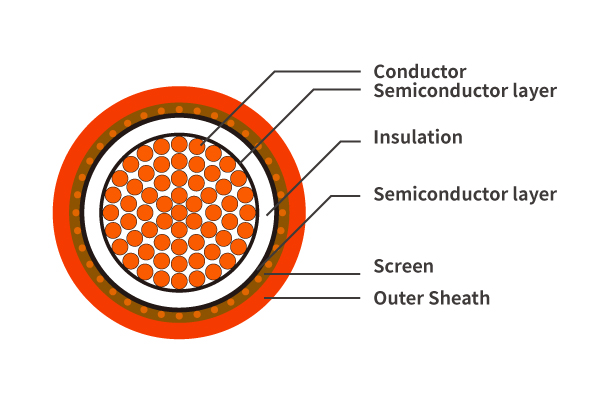

Conductor

class2, compact stranded wire, plain copper

Semiconductor layer

extruded (only cables Uo/U ≥ 6/10 kV)

Insulation

HEPR rubber, G16 quality, Pb free

Semiconductor layer

extruded, cold stripping (only cables Uo/U ≥ 6/10 kV)

Screen

plain copper tapes wrapped

Outer Sheath

PVC based compound, R12 quality

Sheath Colour

red
