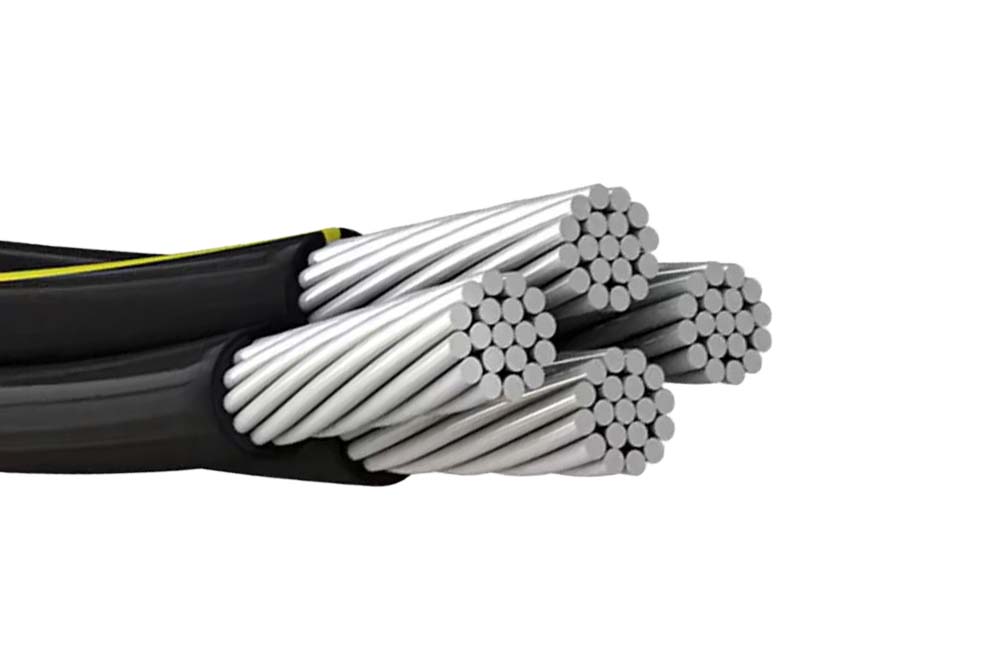

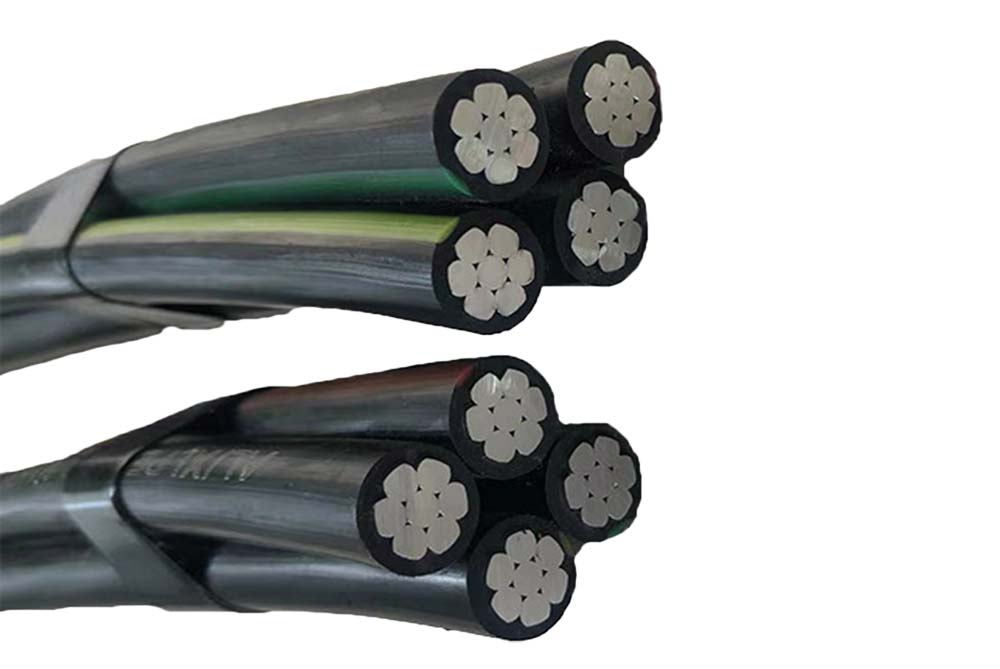

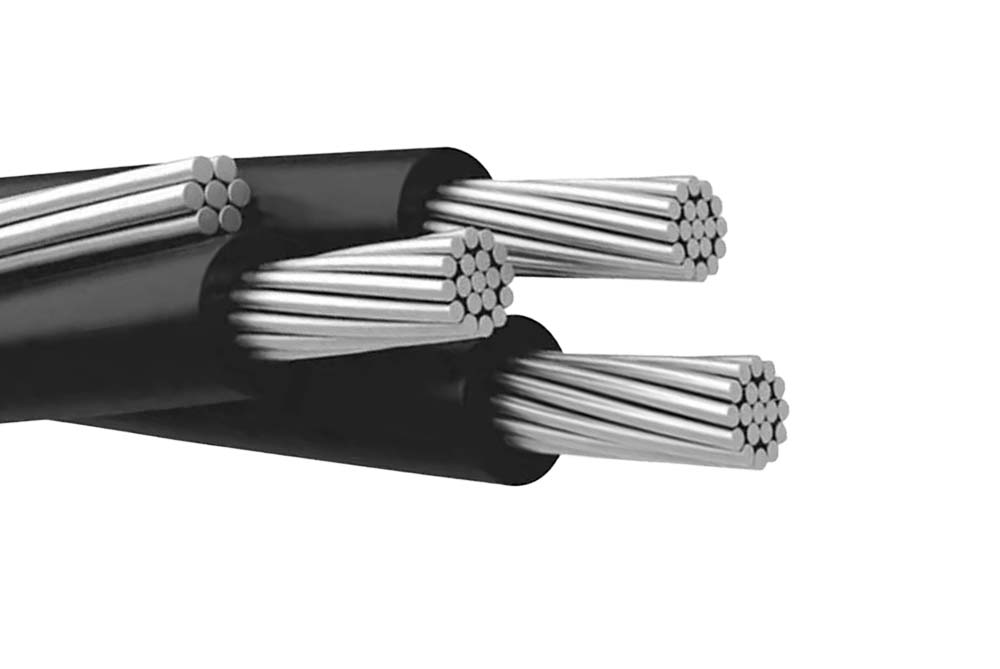

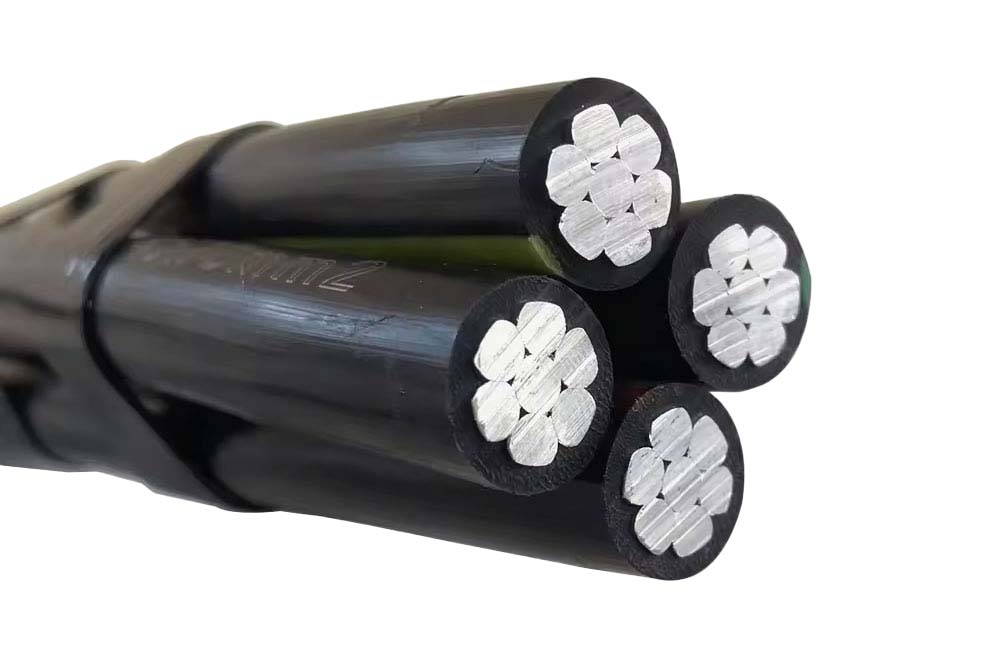

Quadruplex Service Drop overhead ABC wire
Voltage:	0.6/1kV
Structure:	Conductor	Phase conductors: Round stranded or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR Neutral or messenger conductor: Round stranded or compacted 6201 aluminium alloy or AAC ,ACSR Street lighting conductor: Round stranded or compacted Aluminium conductor
	Insulation	XLPE, UV-resistant
	Insulation Colour	Black, customization is available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Primarily used for overhead service drop applications,such as: street lighting, outdoor lighting and temporary service for construction. To be used at voltages of 600v phase-to-phase or less and conductor temperatures not to exceed 90℃ for cross-linked polyethylene(XLPE) insulated conductors.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-40°C to +90°C

STANDARDS

IEC60502, NFC 33-209, BS 7870, ANSI/ICEA S-76-474 AS/NZS 3560.1

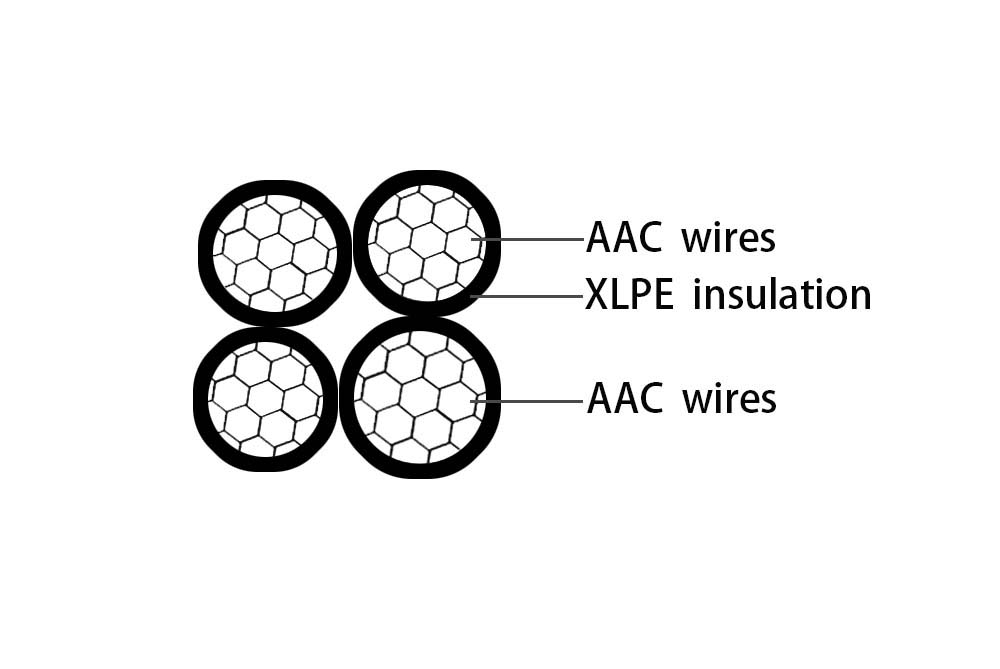

CONSTRUCTION

Conductor

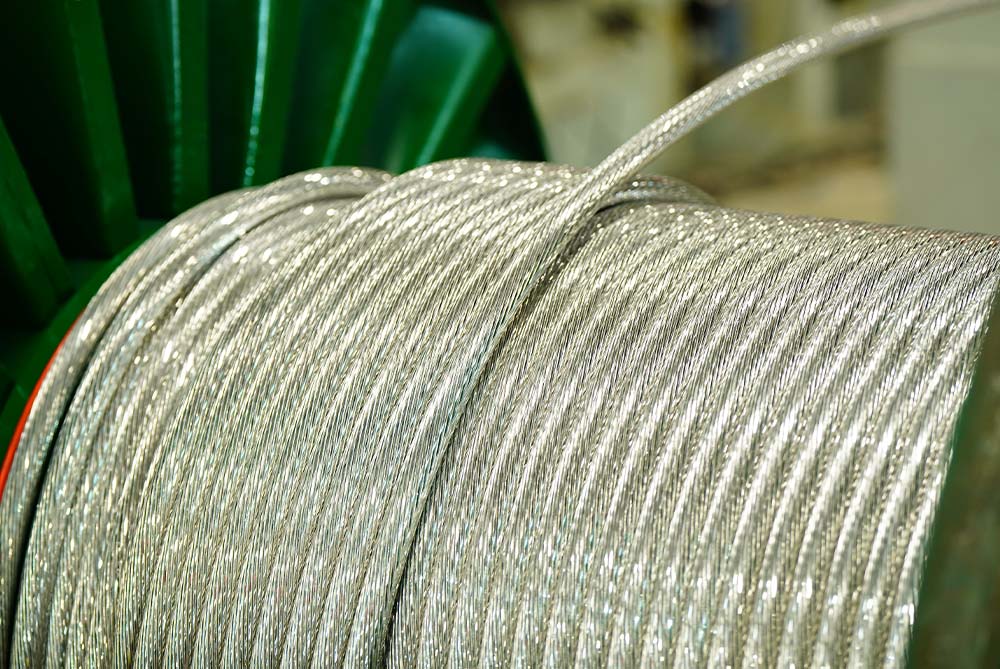

Phase conductors: Round stranded or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR

Neutral or messenger conductor: Round stranded or compacted 6201 aluminium alloy or AAC ,ACSR

Street lighting conductor: Round stranded or compacted Aluminium conductor

Insulation

XLPE, UV-resistant

Insulation Colour

Black, customization is available

Table 1 : Technology requirements of copper core ABC insulated cable
Nominal cross section area of conductor	Single wire Min. No of conductor	Conductor O.D.(reference value)	Nominal thickness of insulation	The Max. Resistance of conductor at 20℃(Ω/km)		The Min, resistance of insulation at rated temperature		Breaking load of single core
mm²	——	mm	mm	Hard copper	Soft copper	70℃	90℃	Hard copper
10	6	3.8	1	1.906	1.83	0.0067	0.67	3471
16	6	4.8	1.2	1.198	1.15	0.0065	0.65	5486
25	6	6	1.2	0.749	0.727	0.0054	0.54	8465
35	6	7	1.4	0.54	0.524	0.0054	0.54	11731
50	6	8.4	1.4	0.399	0.387	0.0046	0.46	16502
70	12	10	1.4	0.276	0.268	0.004	0.4	23461
95	15	11.6	1.6	0.199	0.193	0.0039	0.39	31759
120	18	13	1.6	0.158	0.153	0.0035	0.35	39911
150	18	14.6	1.8	0.128	0.124	0.0035	0.35	49505
185	30	16.2	2	0.1021	0.0991	0.0035	0.35	61846
240	34	18.4	2.2	0.0777	0.0754	0.0034	0.34	79823

Table 2: Technology requirements of aluminum core,aluminum alloy core ABC insulated cable
No.section area of conductor	Single wire Min. No Of conductor	Conductor O.D. (reference value)	Cable Max. Average outer diameter	The Max. Resistance of conductor at 20℃(Ω/km)		The Min. resistance of insulation at rated temperature		Breaking load of single core
mm²	——	mm	mm	Alumiunm	Aluminum alloy	70℃	90℃	Alumiunm	Aluminum alloy
10	6	3.8	6.5	3.08	3.574	0.0067	0.67	1650	2514
16	6	4.8	8	1.91	2.217	0.0065	0.65	2517	4022
25	6	6	9.4	1.2	1.393	0.0054	0.54	3762	6284
35	6	7	11	0.868	1.007	0.0054	0.54	5177	8800
50	6	8.4	12.3	0.641	0.744	0.0046	0.46	7011	12569
70	12	10	14.1	0.443	0.514	0.004	0.4	10354	17596
95	15	11.6	16.5	0.32	0.371	0.0039	0.39	13727	23880
120	15	13	18.1	0.253	0.294	0.0035	0.35	17339	30164
150	15	14.6	20.2	0.206	0.239	0.0035	0.35	21033	37706
185	30	16.2	22.5	0.164	0.19	0.0035	0.35	26732	46503
240	30	18.4	25.6	0.125	0.145	0.0034	0.34	34679	60329
300	30	20.8	27.2	0.1	0.116	0.0033	0.33	43349	75411
400	53	23.2	30.7	0.0778	0.0904	0.0032	0.32	55707	100548

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
