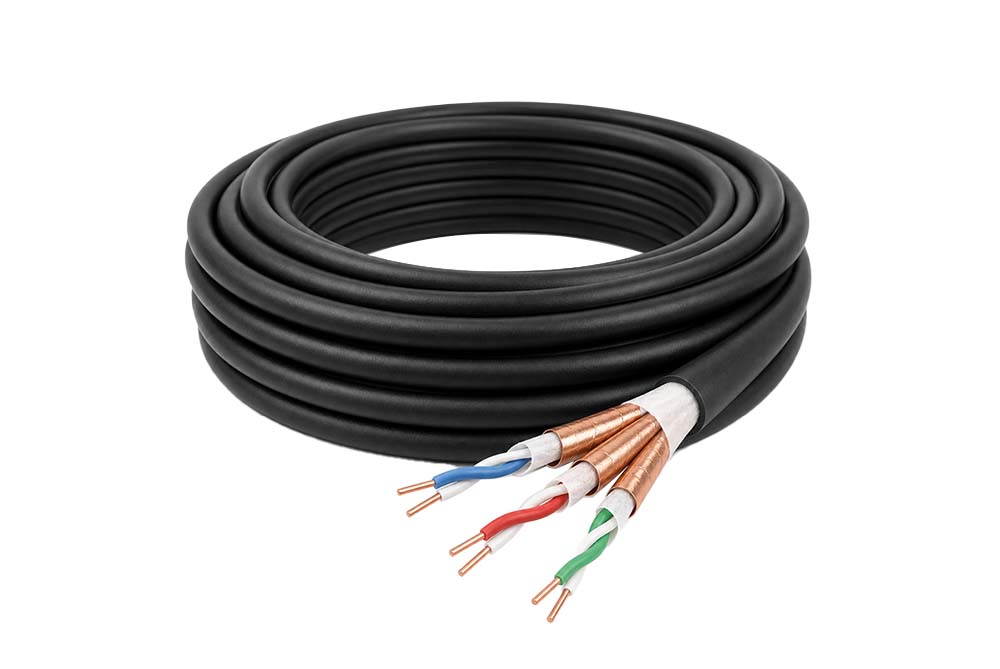

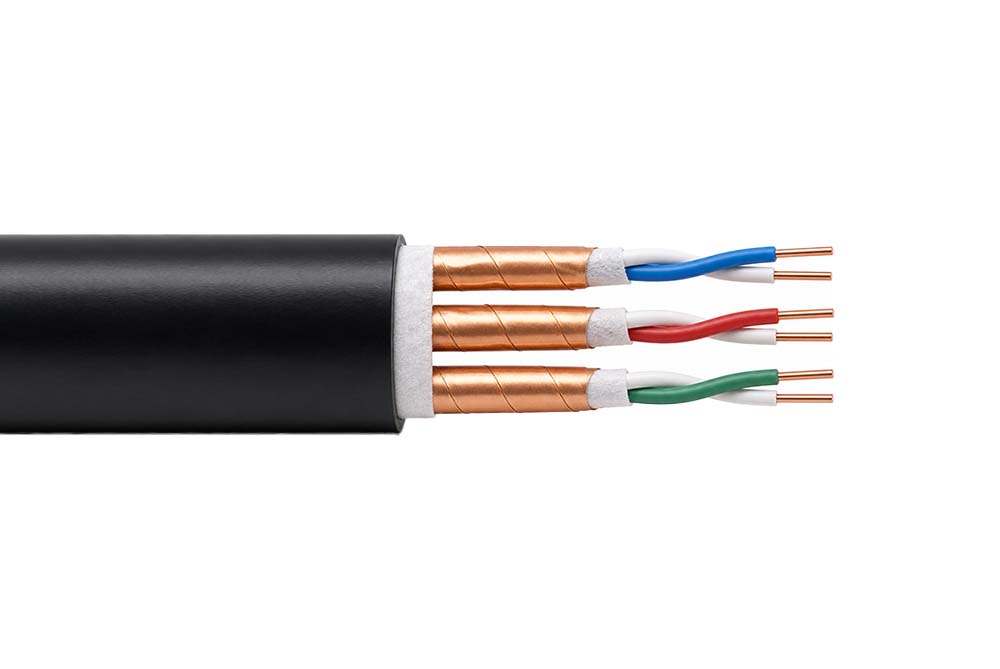

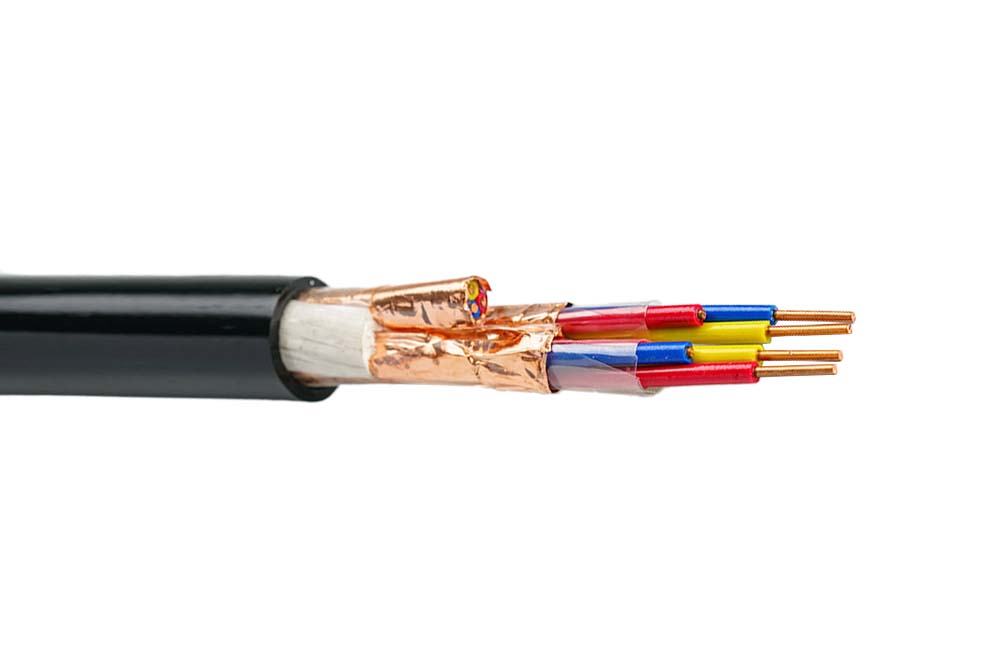

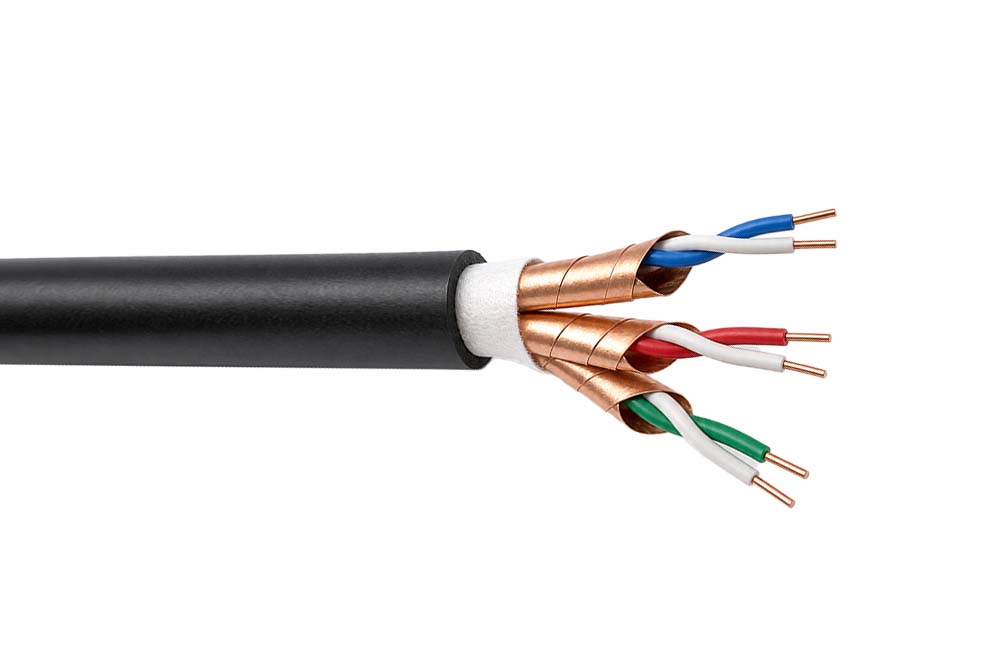

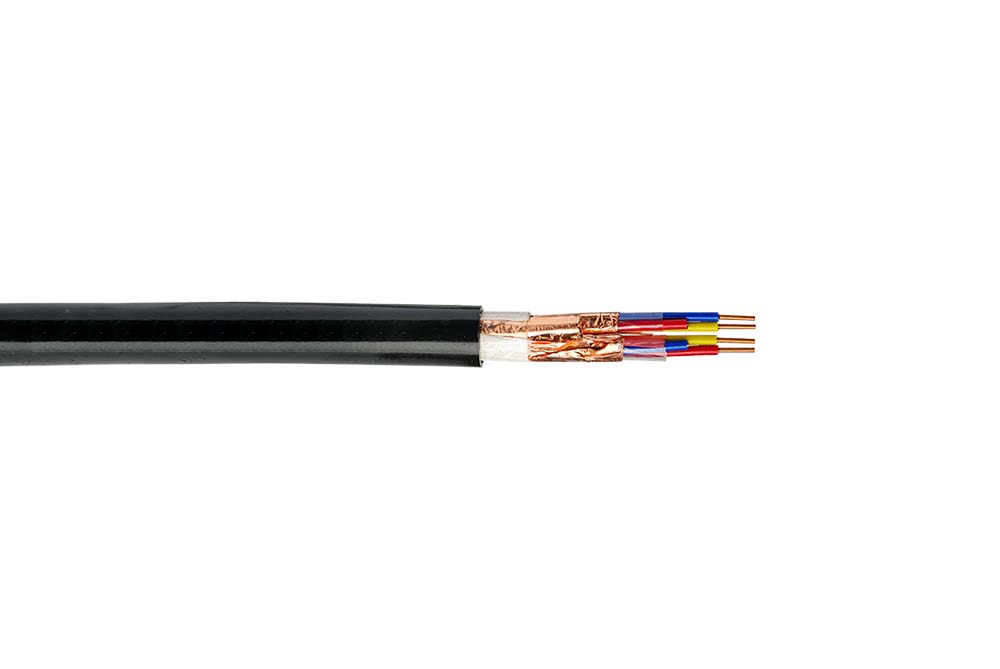

CU PVC ICTS PVC Instrument Cable
Voltage:	300/500V
Structure:	Conductor	Copper conductor
	Insulation	PVC (Polyvinyl Chloride)
	Individual Shied	Copper Tape Shied
	Outer Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, Customization available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

This product is suitable for signal transmission of electronic computer systems, monitoring loops, and automated control systems in lines with AC 50Hz and rated voltage 0.3/0.5kV, as well as connecting wires for testing instruments and meters.It can be widely used in computer systems or automation devices for detection and control in power generation, metallurgy, petroleum, chemical industry, textile and other departments, as well as general industrial computers.

Voltage Rating Uo/U

300/500V

Temperature Rating

-10°C to +70°C

STANDARDS

IEC 60227, IEC 60228, IEC 60811, IEC 60332-1-2

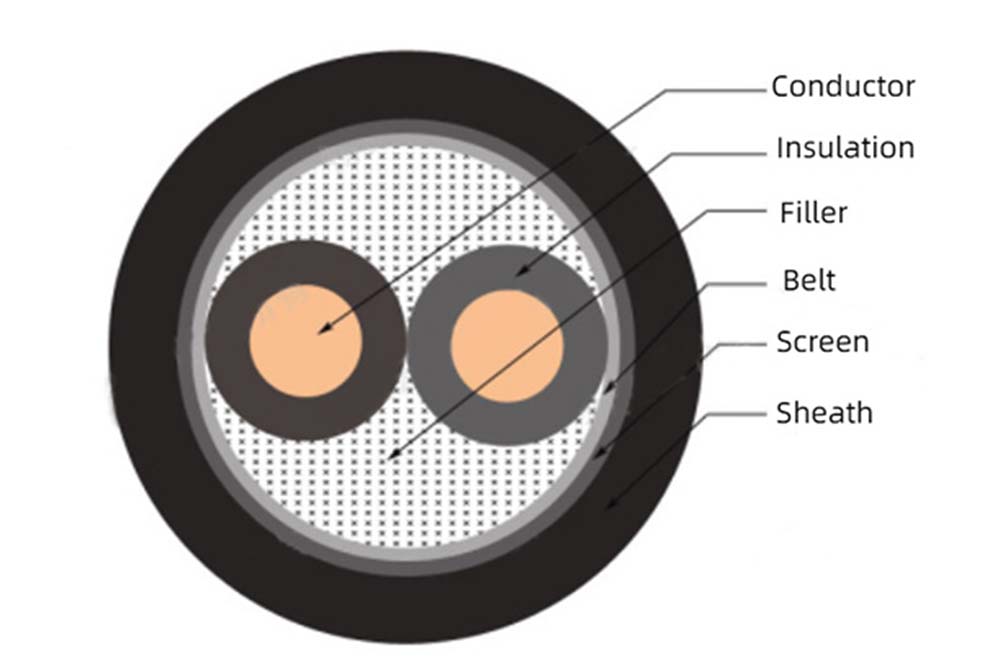

CONSTRUCTION

Conductor

Copper conductor

Insulation

PVC (Polyvinyl Chloride)

Individual Shied

Copper Tape Shied

Outer Sheath

PVC (Polyvinyl Chloride)

Core Identification

2 core cabling components: blue white

3 core cabling components: blue white red

4 core cabling components: Blue white green red

Sheath Colour

Black, Customization available

CORSS SECTIONAL AREA	CONDUCTOR	CORE DIAMETER	INSULATION THICKNESS	GROUP TAPE	SPLIT SCREEN	BELT	SHEATH	OVERALL DIAMATER	WEIGHT	DC RESISTANCE
mm2	CONDUCTOR	mm2	mm	mm	mm	mm	mm	mm	kg/km	ohm/km
1×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×10×0.05	1	6.5	58.5	36
1×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×10×0.05	1	6.9	67.3	24.5
1×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×10×0.05	1	7.1	74.8	18.1
1×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×10×0.05	1	8.1	97	12.1
1×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×15×0.05	1.1	9.1	129.7	7.41
2×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×15×0.05	1.1	10.4	131.1	36
2×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×20×0.05	1.1	11.1	151	24.5
2×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×20×0.05	1.1	11.5	167.6	18.1
2×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×25×0.05	1.2	13.5	225.2	12.1
2×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×25×0.05	1.2	14.9	288.8	7.41
3×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×20×0.05	1.1	11	164.2	36
3×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×20×0.05	1.1	11.8	190.8	24.5
3×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×20×0.05	1.1	12.2	213.5	18.1
3×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×25×0.05	1.2	14.3	286.6	12.1
3×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×30×0.05	1.2	15.8	372.7	7.41
4×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×20×0.05	1.1	12.1	204	36
4×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×20×0.05	1.2	13.1	243.6	24.5
4×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×25×0.05	1.2	13.6	273.6	18.1
4×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×30×0.05	1.2	15.7	359	12.1
4×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×30×0.05	1.3	17.6	478.7	7.41
5×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×25×0.05	1.2	13.4	252	36
5×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×25×0.05	1.2	14.4	294.2	24.5
5×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×25×0.05	1.2	14.9	331	18.1
5×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×30×0.05	1.3	17.5	444.6	12.1
5×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×35×0.05	1.3	19.4	583.5	7.41
6×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×25×0.05	1.2	14.6	296.4	36
6×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×30×0.05	1.2	15.7	346.9	24.5
6×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×30×0.05	1.2	16.2	390.5	18.1
6×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×35×0.05	1.3	19.1	525.9	12.1
6×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×40×0.05	1.3	21.2	692.3	7.41
7×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×25×0.05	1.2	14.6	319.7	36
7×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×30×0.05	1.2	15.7	374.8	24.5
7×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×30×0.05	1.2	16.2	423.8	18.1
7×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×35×0.05	1.3	19.1	569.7	12.1
7×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×40×0.05	1.3	21.2	754.1	7.41
8×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×30×0.05	1.2	15.8	359.9	36
8×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×30×0.05	1.3	17.2	430.4	24.5
8×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×30×0.05	1.3	17.8	486.7	18.1
8×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×40×0.05	1.4	20.9	652.5	12.1
8×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×45×0.05	1.4	23.3	863.7	7.41
9×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×30×0.05	1.3	17.6	412.9	36
9×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×35×0.05	1.3	18.9	483.5	24.5
9×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×35×0.05	1.3	19.6	547.2	18.1
9×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×40×0.05	1.4	23.1	734.4	12.1
9×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×50×0.05	1.5	25.9	984.1	7.41
10×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×35×0.05	1.3	18.8	458.3	36
10×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×35×0.05	1.3	20.2	537.3	24.5
10×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×40×0.05	1.3	21	608.5	18.1
10×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×45×0.05	1.4	24.7	817.2	12.1
10×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×50×0.05	1.5	27.8	1096.4	7.41
12×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×35×0.05	1.3	19.4	506.9	36
12×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×40×0.05	1.3	20.9	595.5	24.5
12×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×40×0.05	1.4	21.9	687.6	18.1
12×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×45×0.05	1.4	25.6	907.4	12.1
12×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×55×0.05	1.5	28.7	1221.9	7.41
14×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×35×0.05	1.3	20.5	578.6	36
14×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×40×0.05	1.4	22.2	690.8	24.5
14×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×40×0.05	1.4	23	785.7	18.1
14×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×50×0.05	1.5	27.2	1052.6	12.1
14×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×55×0.05	1.6	30.5	1417.5	7.41
16×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×40×0.05	1.4	21.8	660.6	36
16×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×45×0.05	1.4	23.5	777.5	24.5
16×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×45×0.05	1.4	24.3	885.2	18.1
16×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×55×0.05	1.5	28.7	1186.4	12.1
16×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.6	32.3	1601.2	7.41
18×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×40×0.05	1.4	23	733.5	36
18×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×45×0.05	1.4	24.8	864.3	24.5
18×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×50×0.05	1.4	25.7	985.4	18.1
18×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×55×0.05	1.6	30.5	1335.3	12.1
18×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.6	34.1	1784.8	7.41
19×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×40×0.05	1.4	23	765.7	36
19×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×45×0.05	1.4	24.8	903	24.5
19×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×50×0.05	1.4	25.7	1030.5	18.1
19×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×55×0.05	1.6	30.5	1396.5	12.1
19×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.6	34.1	1869.3	7.41
20×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×45×0.05	1.4	23.6	802.2	36
20×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×45×0.05	1.5	25.7	958.8	24.5
20×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×50×0.05	1.5	26.6	1093.1	18.1
20×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.6	31.4	1465	12.1
20×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.7	35.3	1978.6	7.41
22×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×50×0.05	1.4	25.8	882.3	36
22×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×50×0.05	1.5	28.1	1054.6	24.5
22×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×55×0.05	1.5	29.1	1202.4	18.1
22×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.6	34.3	1611	12.1
22×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.7	38.6	2176	7.41
24×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×50×0.05	1.5	27.2	968.1	36
24×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×55×0.05	1.5	29.4	1142	24.5
24×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×55×0.05	1.6	30.6	1316.9	18.1
24×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.7	36.2	1764.2	12.1
24×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.8	40.6	2379.6	7.41
26×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×50×0.05	1.5	27.8	1037	36
26×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×55×0.05	1.5	30	1224	24.5
26×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.6	31.3	1412.7	18.1
26×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.7	37	1893.4	12.1
26×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.8	41.6	2557.7	7.41
28×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×55×0.05	1.5	28.9	1109.7	36
28×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.6	31.4	1325.4	24.5
28×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.6	32.5	1512.6	18.1
28×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.7	38.4	2027.8	12.1
28×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.9	43.4	2761.7	7.41
32×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×55×0.05	1.5	30	1246.8	36
32×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.6	32.6	1490	24.5
32×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.6	33.8	1703.5	18.1
32×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.8	40.2	2305.1	12.1
32×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.9	45.1	3115.9	7.41
34×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×60×0.05	1.6	31.4	1335.1	36
34×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.6	33.9	1578	24.5
34×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.7	35.4	1821.7	18.1
34×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.8	41.8	2442	12.1
34×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.9	47	3303.1	7.41
36×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×60×0.05	1.6	31.4	1399.4	36
36×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.6	33.9	1655.4	24.5
36×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.7	35.4	1911.8	18.1
36×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.8	41.8	2564.3	12.1
36×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.9	47	3472.1	7.41
38×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×60×0.05	1.6	32.6	1473.5	36
38×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.7	35.4	1760	24.5
38×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.7	36.7	2013.2	18.1
38×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.9	43.6	2721.7	12.1
38×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	2	49	3681.4	7.41
40×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×60×0.05	1.6	35.4	1560.6	36
40×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.7	38.5	1864.1	24.5
40×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.7	39.9	2130.9	18.1
40×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.9	47.4	2880.3	12.1
40×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	2	53.3	3893.5	7.41
42×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×60×0.05	1.6	35.4	1624.9	36
42×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.7	38.5	1941.5	24.5
42×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.7	39.9	2221	18.1
42×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	1.9	47.4	3002.7	12.1
42×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	2	53.3	4062.5	7.41
44×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×60×0.05	1.7	35.6	1706	36
44×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.7	38.5	2018.9	24.5
44×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.8	40.1	2330	18.1
44×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	2	47.6	3147.4	12.1
44×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	2.1	53.5	4256.7	7.41
46×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×60×0.05	1.7	36.3	1776.3	36
46×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.7	39.2	2102.3	24.5
46×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.8	40.8	2426.5	18.1
46×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	2	48.5	3278.7	12.1
46×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	2.1	54.5	4436.2	7.41
48×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×60×0.05	1.7	36.3	1840.6	36
48×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.8	39.4	2198.3	24.5
48×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.8	40.8	2516.6	18.1
48×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	2	48.5	3401	12.1
48×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	2.1	54.5	4605.2	7.41
50×2×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×60×0.05	1.7	37.3	1913.6	36
50×2×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.8	40.5	2285.7	24.5
50×2×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.8	42	2617.7	18.1
50×2×1.5	1/1.38	1.38	0.7	10×0.05	10×0.05	2×60×0.05	2	49.9	3537.4	12.1
50×2×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	2.2	56.3	4817.5	7.41
1×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×10×0.05	1	6.8	68.5	36
1×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×10×0.05	1	7.2	79.8	24.5
1×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×10×0.05	1	7.5	90.8	18.1
1×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×15×0.05	1.1	8.7	123.1	12.1
1×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×15×0.05	1.1	9.6	162.6	7.41
2×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×20×0.05	1.1	11.4	157.9	36
2×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×20×0.05	1.1	12.2	184	24.5
2×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×20×0.05	1.2	12.9	214.5	18.1
2×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×25×0.05	1.2	14.8	280.9	12.1
2×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×30×0.05	1.2	16.5	369.6	7.41
3×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×20×0.05	1.1	12.1	200.8	36
3×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×20×0.05	1.2	13.1	241.6	24.5
3×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×25×0.05	1.2	13.7	276.1	18.1
3×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×30×0.05	1.2	15.8	364.6	12.1
3×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×30×0.05	1.3	17.8	494.5	7.41
4×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×25×0.05	1.2	13.5	257.2	36
4×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×25×0.05	1.2	14.4	302.4	24.5
4×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×25×0.05	1.2	15.1	347.2	18.1
4×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×30×0.05	1.3	17.5	468	12.1
4×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×35×0.05	1.3	19.6	627.5	7.41
5×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×25×0.05	1.2	14.8	310.6	36
5×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×30×0.05	1.2	15.8	366.4	24.5
5×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×30×0.05	1.2	16.6	422	18.1
5×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×35×0.05	1.3	19.3	570.3	12.1
5×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×40×0.05	1.4	21.8	777.6	7.41
6×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×30×0.05	1.2	16.1	366	36
6×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×30×0.05	1.3	17.5	441.4	24.5
6×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×35×0.05	1.3	18.3	507.8	18.1
6×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×40×0.05	1.3	21.1	676.1	12.1
6×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×45×0.05	1.4	23.9	924	7.41
7×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×30×0.05	1.2	16.1	397.3	36
7×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×30×0.05	1.3	17.5	480	24.5
7×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×35×0.05	1.3	18.3	554.3	18.1
7×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×40×0.05	1.3	21.1	739.1	12.1
7×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×45×0.05	1.4	23.9	1014.7	7.41
8×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×30×0.05	1.3	17.7	456.7	36
8×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×35×0.05	1.3	18.9	541	24.5
8×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×35×0.05	1.3	19.9	626.3	18.1
8×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×40×0.05	1.4	23.2	846.9	12.1
8×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×50×0.05	1.5	26.2	1160.7	7.41
9×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×35×0.05	1.3	19.5	513.3	36
9×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×40×0.05	1.4	21.1	618.6	24.5
9×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×40×0.05	1.4	22.1	714.4	18.1
9×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×45×0.05	1.5	25.8	964.9	12.1
9×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×55×0.05	1.5	28.9	1305.9	7.41
10×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×40×0.05	1.3	20.8	569.7	36
10×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×40×0.05	1.4	22.6	687.4	24.5
10×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×45×0.05	1.4	23.7	794.4	18.1
10×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×50×0.05	1.5	27.6	1073.3	12.1
10×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.6	31.2	1469.1	7.41
12×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×40×0.05	1.4	21.7	645.1	36
12×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×45×0.05	1.4	23.3	766.9	24.5
12×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×45×0.05	1.4	24.5	890.2	18.1
12×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×55×0.05	1.5	28.6	1202.6	12.1
12×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.6	32.3	1653.5	7.41
14×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×40×0.05	1.4	22.9	737.1	36
14×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×45×0.05	1.4	24.6	878	24.5
14×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×50×0.05	1.5	26	1032.5	18.1
14×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×55×0.05	1.6	30.4	1395.1	12.1
14×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.6	34.1	1902.2	7.41
16×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×45×0.05	1.4	24.2	829.7	36
16×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×50×0.05	1.5	26.2	1002	24.5
16×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×50×0.05	1.5	27.5	1164.8	18.1
16×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×60×0.05	1.6	32.1	1574.9	12.1
16×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.7	36.3	2169.7	7.41
18×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×45×0.05	1.4	25.6	923.1	36
18×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×50×0.05	1.5	27.6	1114.5	24.5
18×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×55×0.05	1.5	29.1	1297.9	18.1
18×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×60×0.05	1.6	34	1756.3	12.1
18×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.7	38.4	2421.8	7.41
19×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×45×0.05	1.4	25.6	964.8	36
19×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×50×0.05	1.5	27.6	1165.3	24.5
19×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×55×0.05	1.5	29.1	1358.3	18.1
19×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×60×0.05	1.6	34	1839.2	12.1
19×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.7	38.4	2538.9	7.41
20×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×50×0.05	1.5	26.5	1023.9	36
20×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×55×0.05	1.5	28.4	1222.3	24.5
20×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×55×0.05	1.6	30	1438.1	18.1
20×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×60×0.05	1.7	35.1	1946	12.1
20×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.8	39.7	2684	7.41
22×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×55×0.05	1.5	28.9	1125.6	36
22×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.6	31.3	1359.4	24.5
22×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.6	32.9	1582.5	18.1
22×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×60×0.05	1.7	38.4	2140.4	12.1
22×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.9	43.6	2972.2	7.41
24×3×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×55×0.05	1.5	30.3	1219.7	36
24×3×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×60×0.05	1.6	32.7	1472.5	24.5
24×3×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×60×0.05	1.6	34.4	1715.5	18.1
24×3×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×60×0.05	1.8	40.5	2341.7	12.1
24×3×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.9	45.7	3226.4	7.41
1×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×10×0.05	1	7.3	80.8	36
1×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×10×0.05	1	7.8	95.6	24.5
1×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×10×0.05	1	8.1	109.5	18.1
1×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×15×0.05	1.1	9.5	150.2	12.1
1×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×15×0.05	1.1	10.4	200.2	7.41
2×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×20×0.05	1.2	13.2	197.5	36
2×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×25×0.05	1.2	14.2	232.3	24.5
2×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×25×0.05	1.2	14.8	263.7	18.1
2×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×30×0.05	1.3	17.4	358.9	12.1
2×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×35×0.05	1.3	19.2	471.1	7.41
3×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×25×0.05	1.2	14	250.7	36
3×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×25×0.05	1.2	15.1	297.6	24.5
3×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×30×0.05	1.2	15.7	340.9	18.1
3×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×35×0.05	1.3	18.5	465.2	12.1
3×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×35×0.05	1.3	20.5	621.3	7.41
4×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×25×0.05	1.2	15.4	313.1	36
4×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×30×0.05	1.2	16.6	373.1	24.5
4×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×30×0.05	1.3	17.5	437.9	18.1
4×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×35×0.05	1.3	20.4	587.7	12.1
4×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×40×0.05	1.4	22.8	801.3	7.41
5×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×30×0.05	1.2	16.9	378.8	36
5×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×35×0.05	1.3	18.5	461.9	24.5
5×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×35×0.05	1.3	19.3	532.6	18.1
5×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×40×0.05	1.4	22.7	727.7	12.1
5×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×45×0.05	1.4	25.1	980.2	7.41
6×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×35×0.05	1.3	18.7	456.3	36
6×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×35×0.05	1.3	20.2	545.7	24.5
6×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×40×0.05	1.3	21.1	630.4	18.1
6×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×45×0.05	1.4	24.9	863.4	12.1
6×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×50×0.05	1.5	27.8	1179.4	7.41
7×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×35×0.05	1.3	18.7	495.2	36
7×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×35×0.05	1.3	20.2	594	24.5
7×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×40×0.05	1.3	21.1	689.4	18.1
7×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×45×0.05	1.4	24.9	943.8	12.1
7×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×50×0.05	1.5	27.8	1297.1	7.41
8×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×35×0.05	1.3	20.3	558.5	36
8×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×40×0.05	1.4	22.1	680.7	24.5
8×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×40×0.05	1.4	23.1	789.7	18.1
8×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×50×0.05	1.5	27.3	1080	12.1
8×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×55×0.05	1.6	30.5	1483	7.41
9×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×40×0.05	1.4	22.6	638.7	36
9×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×45×0.05	1.4	24.5	766.3	24.5
9×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×45×0.05	1.5	25.8	901.1	18.1
9×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×55×0.05	1.6	30.4	1229.8	12.1
9×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.7	33.9	1684.8	7.41
10×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×45×0.05	1.4	24.2	709.4	36
10×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×50×0.05	1.5	26.4	863.9	24.5
10×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×50×0.05	1.5	27.6	1001.3	18.1
10×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×60×0.05	1.6	32.6	1368.6	12.1
10×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.7	36.4	1876	7.41
12×4×0.5	1/0.80	0.8	0.6	10×0.05	10×0.05	2×45×0.05	1.4	25	790.3	36
12×4×0.75	1/0.97	0.97	0.6	10×0.05	10×0.05	2×50×0.05	1.5	27.3	964	24.5
12×4×1.0	1/1.13	1.13	0.6	10×0.05	10×0.05	2×55×0.05	1.5	28.5	1122.3	18.1
12×4×1.5	1/1.38	1.38	0.7	15×0.05	15×0.05	2×60×0.05	1.6	33.7	1532.7	12.1
12×4×2.5	1/1.78	1.78	0.7	15×0.05	15×0.05	2×60×0.05	1.7	37.7	2115.2	7.41

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
