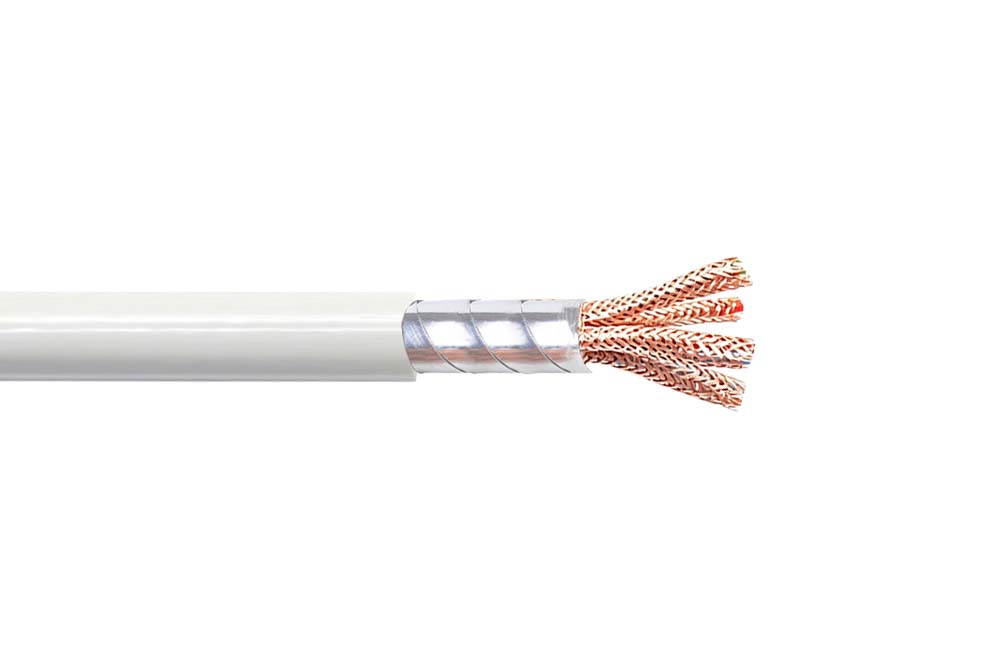

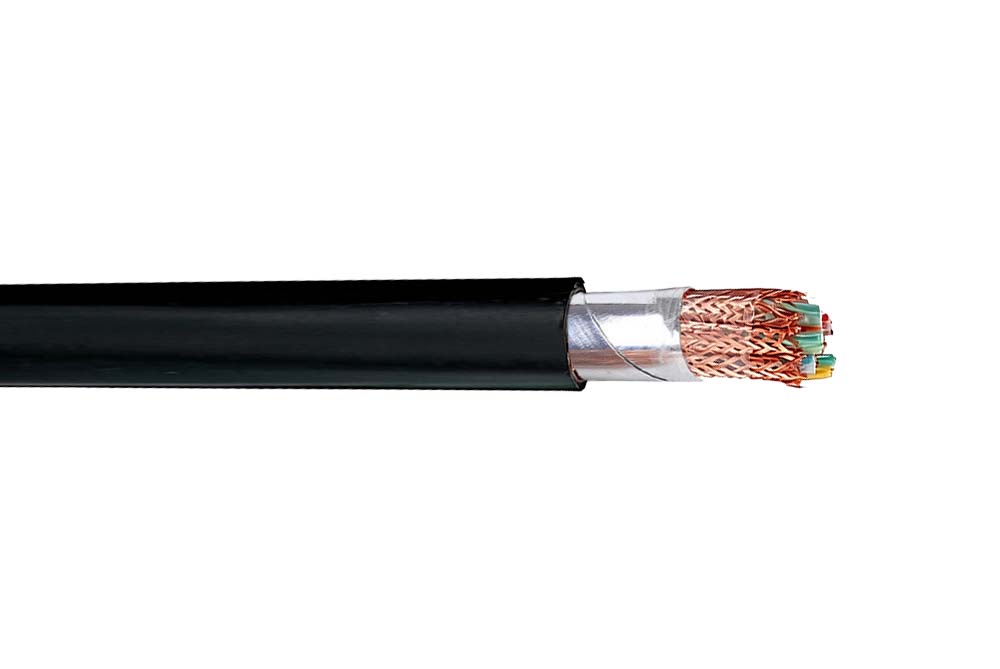

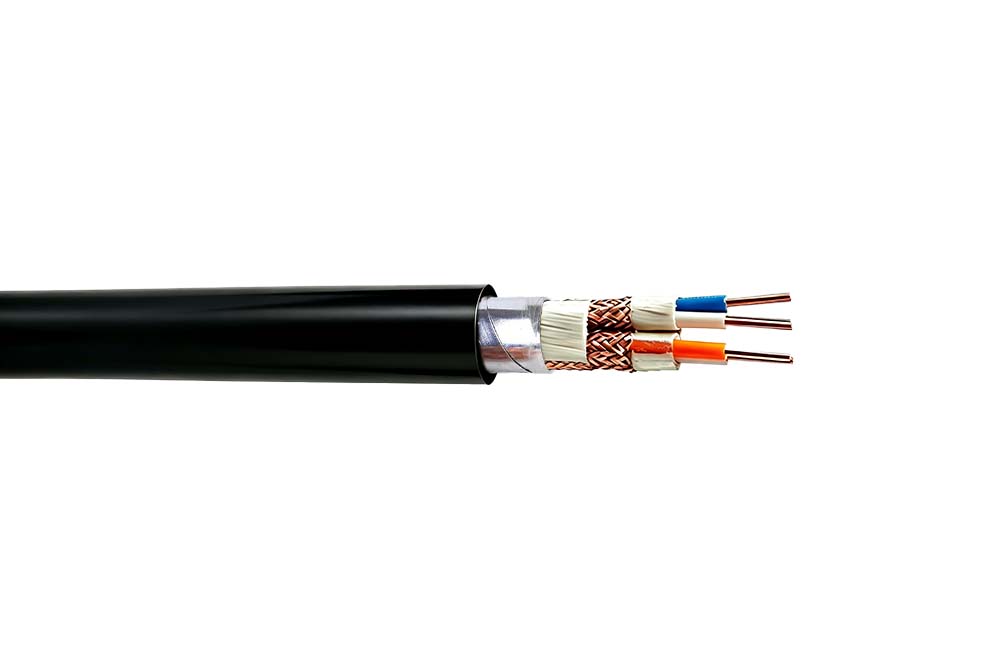

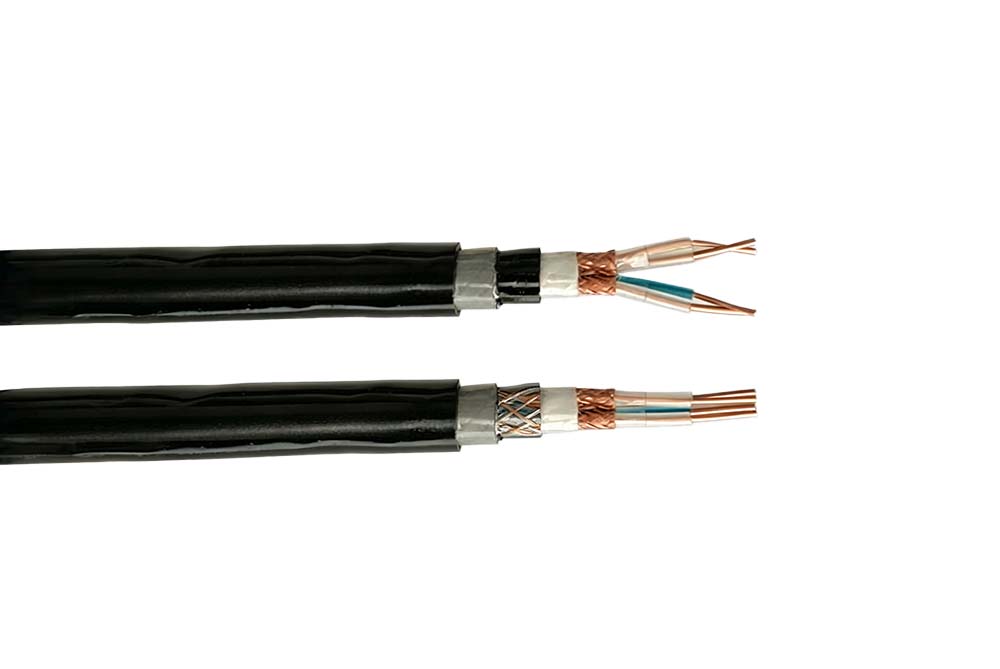

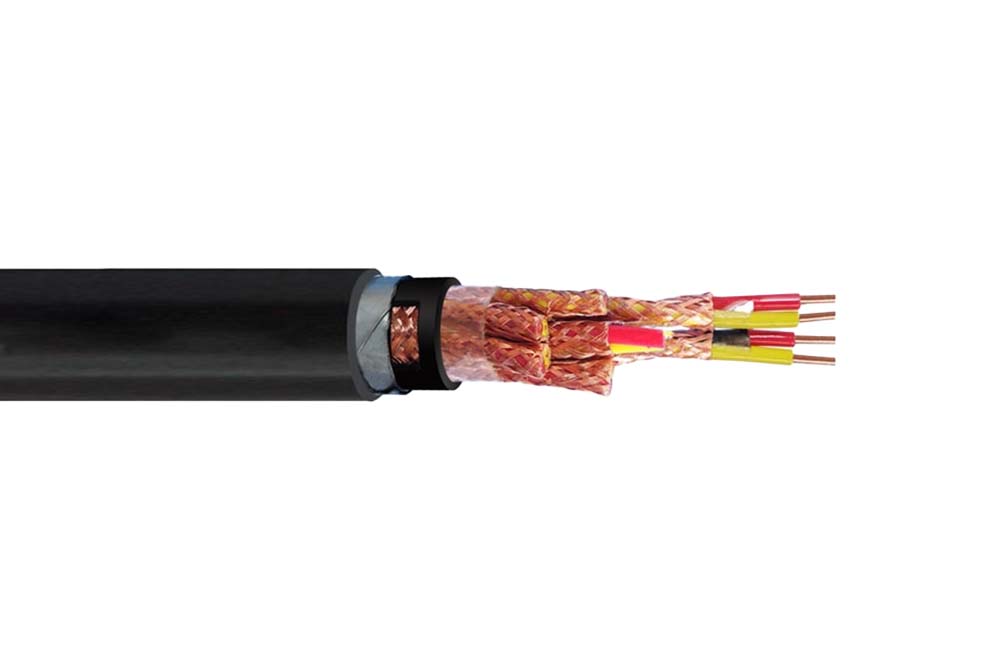

CU PVC CWB STA Instrument Cable
Voltage:	300/500V
Structure:	Conductor	Copper conductor
	Insulation	PVC (Polyvinyl Chloride)
	Individual Shied	Copper Wire Shied
	Inner Sheath	PVC (Polyvinyl Chloride)
	Armored	STA (Steel Tape Armour)
	Outer Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, Customization available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

This product is suitable for signal transmission of electronic computer systems, monitoring loops, and automated control systems in lines with AC 50Hz and rated voltage 0.3/0.5kV, as well as connecting wires for testing instruments and meters.It can be widely used in computer systems or automation devices for detection and control in power generation, metallurgy, petroleum, chemical industry, textile and other departments, as well as general industrial computers.

Voltage Rating Uo/U

300/500V

Temperature Rating

-10°C to +70°C

STANDARDS

IEC 60227, IEC 60228, IEC 60811, IEC 60332-1-2

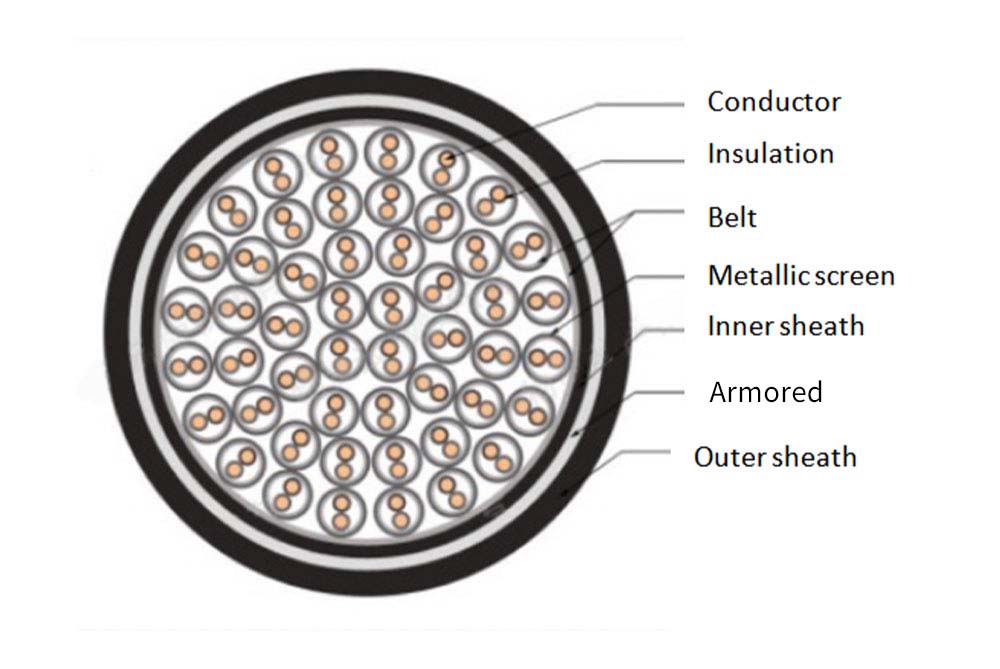

CONSTRUCTION

Conductor

Copper conductor

Insulation

PVC (Polyvinyl Chloride)

Individual Shied

Copper Wire Shied

Inner Sheath

PVC (Polyvinyl Chloride)

Armored

STA (Steel Tape Armour)

Outer Sheath

PVC (Polyvinyl Chloride)

Core Identification

2 core cabling components: blue white

3 core cabling components: blue white red

4 core cabling components: Blue white green red

Sheath Colour

Black, Customization available

Pair	No. Of Cores	Specification	Conductor Structure	Outer Diameter Of Conductor	Insulation Thickness	Packing Strap	Split Screen	Strap	Inner Sheath	Overall Screen Specifications	Outer Sheath Thickness	Reference Outer Diameter	Reference Weight	DC Resistance	Minimum Insulation Resistance At Operating Temperature	Test Voltage	Maximum Working Capacitance	Maximum Capacitance Unbalance	Maximum L/R Ratio	Maximum Allowable Pulling Force Of Conductor
Pair	No. Of Cores	Specification	Conductor Structure	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	ohm/km	ohm/km	kV/min	Pf/m	Pf/250m	Maximum L/R Ratio	n
1	2	1×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	15×0.05	1	15×0.2	1.1	9.7	160	36	25	1/1	280	500	25	70
1	2	1×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	15×0.05	1	15×0.2	1.1	10.1	175	24.5	25	1/1	280	500	25	105
1	2	1×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	20×0.05	1	15×0.2	1.1	10.5	189.9	18.1	25	1/1	280	500	25	140
1	2	1×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	20×0.05	1	20×0.2	1.1	11.5	225.7	12.1	25	1/1	280	500	40	210
1	2	1×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	25×0.05	1	20×0.2	1.1	12.3	267.3	7.41	25	1/1	280	500	65	350
2	2	2×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	30×0.05	1	20×0.2	1.2	13.8	283.8	36	25	1/1	280	500	25	140
2	2	2×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	30×0.05	1	25×0.2	1.2	14.5	314.4	24.5	25	1/1	280	500	25	210
2	2	2×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	30×0.05	1	25×0.2	1.2	15.2	345.2	18.1	25	1/1	280	500	25	280
2	2	2×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	40×0.05	1	30×0.2	1.2	17	420.1	12.1	25	1/1	280	500	40	420
2	2	2×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	45×0.05	1	30×0.2	1.3	18.6	515.1	7.41	25	1/1	280	500	65	700
3	2	3×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	30×0.05	1	25×0.2	1.2	14.4	325.7	36	25	1/1	280	500	25	210
3	2	3×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	35×0.05	1	25×0.2	1.2	15.2	365	24.5	25	1/1	280	500	25	315
3	2	3×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	35×0.05	1	25×0.2	1.2	15.9	402.5	18.1	25	1/1	280	500	25	420
3	2	3×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	40×0.05	1	30×0.2	1.3	18.1	504.3	12.1	25	1/1	280	500	40	630
3	2	3×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	45×0.05	1	35×0.2	1.3	19.6	617.5	7.41	25	1/1	280	500	65	1050
4	2	4×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	35×0.05	1	25×0.2	1.2	15.5	380.9	36	25	1/1	280	500	25	280
4	2	4×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	35×0.05	1	30×0.2	1.2	16.4	429.6	24.5	25	1/1	280	500	25	420
4	2	4×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	40×0.05	1	30×0.2	1.2	17.2	476.6	18.1	25	1/1	280	500	25	560
4	2	4×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	45×0.05	1	35×0.2	1.3	19.6	600.1	12.1	25	1/1	280	500	40	840
4	2	4×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	50×0.05	1	40×0.2	1.3	21.3	743.8	7.41	25	1/1	280	500	65	1400
5	2	5×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	40×0.05	1	30×0.2	1.2	16.7	439.9	36	25	1/1	280	500	25	350
5	2	5×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	40×0.05	1	30×0.2	1.3	17.9	507	24.5	25	1/1	280	500	25	525
5	2	5×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	45×0.05	1	30×0.2	1.3	18.8	564.4	18.1	25	1/1	280	500	25	700
5	2	5×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	50×0.05	1	35×0.2	1.3	21.2	702	12.1	25	1/1	280	500	40	1050
5	2	5×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1	40×0.2	1.4	23.3	888.4	7.41	25	1/1	280	500	65	1750
6	2	6×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	40×0.05	1	30×0.2	1.3	18.1	509.2	36	25	1/1	280	500	25	420
6	2	6×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	45×0.05	1	35×0.2	1.3	19.2	578.7	24.5	25	1/1	280	500	25	630
6	2	6×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	50×0.05	1	35×0.2	1.3	20.3	648.3	18.1	25	1/1	280	500	25	840
6	2	6×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	55×0.05	1	40×0.2	1.4	23.2	822.1	12.1	25	1/1	280	500	40	1260
6	2	6×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1	45×0.2	1.4	25.3	1031.4	7.41	25	1/1	280	500	65	2100
7	2	7×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	40×0.05	1	30×0.2	1.3	18.1	533.1	36	25	1/1	280	500	25	490
7	2	7×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	45×0.05	1	35×0.2	1.3	19.2	608	24.5	25	1/1	280	500	25	735
7	2	7×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	50×0.05	1	35×0.2	1.3	20.3	682.9	18.1	25	1/1	280	500	25	980
7	2	7×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	55×0.05	1	40×0.2	1.4	23.2	866.9	12.1	25	1/1	280	500	40	1470
7	2	7×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1	45×0.2	1.4	25.3	1096.6	7.41	25	1/1	280	500	65	2450
8	2	8×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	45×0.05	1	35×0.2	1.3	19.4	591.7	36	25	1/1	280	500	25	560
8	2	8×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	50×0.05	1	35×0.2	1.3	20.6	676	24.5	25	1/1	280	500	25	840
8	2	8×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	55×0.05	1	40×0.2	1.4	22	770.5	18.1	25	1/1	280	500	25	1120
8	2	8×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1	45×0.2	1.4	24.9	965.6	12.1	25	1/1	280	500	40	1680
8	2	8×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1	50×0.2	1.5	27.4	1238.3	7.41	25	1/1	280	500	65	2800
9	2	9×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	50×0.05	1	35×0.2	1.4	21.3	669.9	36	25	1/1	280	500	25	630
9	2	9×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	55×0.05	1	40×0.2	1.4	22.6	764.6	24.5	25	1/1	280	500	25	945
9	2	9×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1	40×0.2	1.4	23.9	859.3	18.1	25	1/1	280	500	25	1260
9	2	9×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1	50×0.2	1.5	27.4	1093	12.1	25	1/1	280	500	40	1890
9	2	9×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.1	55×0.5	1.6	31.6	1728.8	7.41	25	1/1	280	500	65	3150
10	2	10×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	55×0.05	1	40×0.2	1.4	22.5	732.3	36	25	1/1	280	500	25	700
10	2	10×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	24	839.4	24.5	25	1/1	280	500	25	1050
10	2	10×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	25.4	944.6	18.1	25	1/1	280	500	25	1400
10	2	10×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1	50×0.2	1.5	29.1	1202.8	12.1	25	1/1	280	500	40	2100
10	2	10×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.1	60×0.5	1.6	33.6	1897.5	7.41	25	1/1	280	500	65	3500
12	2	12×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	55×0.05	1	40×0.2	1.4	23.2	791.3	36	25	1/1	280	500	25	840
12	2	12×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	24.7	908.9	24.5	25	1/1	280	500	25	1260
12	2	12×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	26.1	1024	18.1	25	1/1	280	500	25	1680
12	2	12×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.1	55×0.2	1.5	30.2	1321.1	12.1	25	1/1	280	500	40	2520
12	2	12×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.1	60×0.5	1.6	34.6	2053.7	7.41	25	1/1	280	500	65	4200
14	2	14×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	24.3	879.7	36	25	1/1	280	500	25	980
14	2	14×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.5	26	1024.4	24.5	25	1/1	280	500	25	1470
14	2	14×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	27.6	1158.8	18.1	25	1/1	280	500	25	1960
14	2	14×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.1	55×0.5	1.6	33.1	1824.1	12.1	25	1/1	280	500	40	2940
14	2	14×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.1	60×0.5	1.7	36.5	2306	7.41	25	1/1	280	500	65	4900
16	2	16×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	25.5	970.1	36	25	1/1	280	500	25	1120
16	2	16×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	27.3	1132.1	24.5	25	1/1	280	500	25	1680
16	2	16×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	29	1283.1	18.1	25	1/1	280	500	25	2240
16	2	16×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.1	60×0.5	1.6	34.8	2007.2	12.1	25	1/1	280	500	40	3360
16	2	16×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.2	60×0.5	1.7	38.5	2566	7.41	25	1/1	280	500	65	5600
18	2	18×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	26.9	1073	36	25	1/1	280	500	25	1260
18	2	18×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	28.7	1241.7	24.5	25	1/1	280	500	25	1890
18	2	18×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.2	1.5	30.7	1424.9	18.1	25	1/1	280	500	25	2520
18	2	18×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.1	60×0.5	1.7	36.7	2207.6	12.1	25	1/1	280	500	40	3780
18	2	18×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.2	60×0.5	1.8	40.7	2831.6	7.41	25	1/1	280	500	65	6300
19	2	19×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	26.9	1106.7	36	25	1/1	280	500	25	1330
19	2	19×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	28.7	1282.8	24.5	25	1/1	280	500	25	1995
19	2	19×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.2	1.5	30.7	1473.4	18.1	25	1/1	280	500	25	2660
19	2	19×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.1	60×0.5	1.7	36.7	2272.5	12.1	25	1/1	280	500	40	3990
19	2	19×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.2	60×0.5	1.8	40.7	2922.5	7.41	25	1/1	280	500	65	6650
20	2	20×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	27.6	1154.1	36	25	1/1	280	500	25	1400
20	2	20×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.5	1.6	31	1671.8	24.5	25	1/1	280	500	25	2100
20	2	20×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.5	1.6	32.8	1875.6	18.1	25	1/1	280	500	25	2800
20	2	20×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.2	60×0.5	1.7	37.8	2386.5	12.1	25	1/1	280	500	40	4200
20	2	20×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.3	60×0.5	1.8	41.9	3068.6	7.41	25	1/1	280	500	65	7000
22	2	22×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.2	1.5	30	1279.8	36	25	1/1	280	500	25	1540
22	2	22×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.6	33.5	1832.7	24.5	25	1/1	280	500	25	2310
22	2	22×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.6	35.5	2057.5	18.1	25	1/1	280	500	25	3080
22	2	22×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.2	60×0.5	1.8	41.2	2639.3	12.1	25	1/1	280	500	40	4620
22	2	22×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	45.6	3388.5	7.41	25	1/1	280	500	65	7700
24	2	24×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.5	1.6	32.7	1711.9	36	25	1/1	280	500	25	1680
24	2	24×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.7	35	1972.2	24.5	25	1/1	280	500	25	2520
24	2	24×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.7	37.2	2219	18.1	25	1/1	280	500	25	3360
24	2	24×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.3	60×0.5	1.8	43.1	2847.8	12.1	25	1/1	280	500	40	5040
24	2	24×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	47.6	3637.8	7.41	25	1/1	280	500	65	8400
26	2	26×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.6	33.3	1798.1	36	25	1/1	280	500	25	1820
26	2	26×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.7	35.7	2076.7	24.5	25	1/1	280	500	25	2730
26	2	26×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.7	37.9	2338.2	18.1	25	1/1	280	500	25	3640
26	2	26×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.3	60×0.5	1.8	44	3007.5	12.1	25	1/1	280	500	40	5460
26	2	26×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	48.6	3853.3	7.41	25	1/1	280	500	65	9100
28	2	28×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.6	34.4	1900.1	36	25	1/1	280	500	25	1960
28	2	28×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	37.1	2217.3	24.5	25	1/1	280	500	25	2940
28	2	28×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	39.4	2497.8	18.1	25	1/1	280	500	25	3920
28	2	28×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	45.7	3208.7	12.1	25	1/1	280	500	40	5880
28	2	28×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.4	60×0.5	2	50.7	4142.8	7.41	25	1/1	280	500	65	9800
32	2	32×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.7	35.8	2089.4	36	25	1/1	280	500	25	2240
32	2	32×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	38.4	2423.7	24.5	25	1/1	280	500	25	3360
32	2	32×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	41	2756.2	18.1	25	1/1	280	500	25	4480
32	2	32×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	47.4	3525.5	12.1	25	1/1	280	500	40	6720
32	2	32×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.4	60×0.5	2	52.5	4568.6	7.41	25	1/1	280	500	65	11200
34	2	34×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	37.3	2218.4	36	25	1/1	280	500	25	2380
34	2	34×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	40	2570.1	24.5	25	1/1	280	500	25	3570
34	2	34×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	42.5	2902.4	18.1	25	1/1	280	500	25	4760
34	2	34×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.4	60×0.5	2	49.5	3761.8	12.1	25	1/1	280	500	40	7140
34	2	34×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.5	60×0.5	2.1	54.9	4874.1	7.41	25	1/1	280	500	65	11900
36	2	36×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	37.3	2285.7	36	25	1/1	280	500	25	2520
36	2	36×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	40	2652.2	24.5	25	1/1	280	500	25	3780
36	2	36×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	42.5	2999.2	18.1	25	1/1	280	500	25	5040
36	2	36×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.4	60×0.5	2	49.5	3891.4	12.1	25	1/1	280	500	40	7560
36	2	36×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.5	60×0.5	2.1	54.9	5055.8	7.41	25	1/1	280	500	65	12600
38	2	38×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	38.5	2392	36	25	1/1	280	500	25	2660
38	2	38×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	41.3	2777.1	24.5	25	1/1	280	500	25	3990
38	2	38×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.8	44.1	3165.5	18.1	25	1/1	280	500	25	5320
38	2	38×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.4	60×0.5	2	51.2	4080.2	12.1	25	1/1	280	500	40	7980
38	2	38×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.5	60×0.5	2.2	57	5332.1	7.41	25	1/1	280	500	65	13300
40	2	40×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	41.5	2556.6	36	25	1/1	280	500	25	2800
40	2	40×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	44.5	2964.5	24.5	25	1/1	280	500	25	4200
40	2	40×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.8	47.6	3379.2	18.1	25	1/1	280	500	25	5600
40	2	40×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.4	60×0.5	2	55.3	4352.5	12.1	25	1/1	280	500	40	8400
40	2	40×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.5	60×0.5	2.2	61.6	5680.3	7.41	25	1/1	280	500	65	14000
42	2	42×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	41.7	2643.5	36	25	1/1	280	500	25	2940
42	2	42×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	44.9	3091.5	24.5	25	1/1	280	500	25	4410
42	2	42×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	47.8	3498.5	18.1	25	1/1	280	500	25	5880
42	2	42×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.4	60×0.5	2.1	55.5	4508.2	12.1	25	1/1	280	500	40	8820
42	2	42×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.5	60×0.5	2.2	61.6	5861.9	7.41	25	1/1	280	500	65	14700
44	2	44×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	41.7	2710.9	36	25	1/1	280	500	25	3080
44	2	44×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	44.9	3173.6	24.5	25	1/1	280	500	25	4620
44	2	44×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	47.8	3595.4	18.1	25	1/1	280	500	25	6160
44	2	44×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.5	60×0.5	2.1	55.7	4666.8	12.1	25	1/1	280	500	40	9240
44	2	44×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.6	60×0.5	2.3	62	6104.5	7.41	25	1/1	280	500	65	15400
46	2	46×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	42.3	2797.9	36	25	1/1	280	500	25	3220
46	2	46×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	45.6	3279.5	24.5	25	1/1	280	500	25	4830
46	2	46×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	48.5	3715.9	18.1	25	1/1	280	500	25	6440
46	2	46×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.5	60×0.5	2.1	56.6	4828.5	12.1	25	1/1	280	500	40	9660
46	2	46×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.6	60×0.5	2.3	63	6323.3	7.41	25	1/1	280	500	65	16100
48	2	48×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.8	42.5	2887.9	36	25	1/1	280	500	25	3360
48	2	48×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	45.6	3361.6	24.5	25	1/1	280	500	25	5040
48	2	48×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	48.5	3812.7	18.1	25	1/1	280	500	25	6720
48	2	48×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.5	60×0.5	2.1	56.6	4958.2	12.1	25	1/1	280	500	40	10080
48	2	48×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.6	60×0.5	2.3	63	6505	7.41	25	1/1	280	500	65	16800
50	2	50×2×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	43.8	3012.6	36	25	1/1	280	500	25	3500
50	2	50×2×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.3	60×0.5	1.9	46.8	3484.3	24.5	25	1/1	280	500	25	5250
50	2	50×2×1.0	7/0.43	1.29	0.6	15×0.05	10×0.05	60×0.05	1.4	60×0.5	2	50.2	4003.4	18.1	25	1/1	280	500	25	7000
50	2	50×2×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.5	60×0.5	2.2	58.3	5168.8	12.1	25	1/1	280	500	40	10500
50	2	50×2×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.6	60×0.5	2.3	64.7	6749.8	7.41	25	1/1	280	500	65	17500
1	3	1×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	15×0.05	1	15×0.2	1.1	10	174.3	36	25	1/1	280	500	25	105
1	3	1×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	20×0.05	1	15×0.2	1.1	10.5	194.2	24.5	25	1/1	280	500	25	158
1	3	1×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	20×0.05	1	15×0.2	1.1	10.9	212	18.1	25	1/1	280	500	25	210
1	3	1×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	25×0.05	1	20×0.2	1.1	12	255.9	12.1	25	1/1	280	500	40	315
1	3	1×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	25×0.05	1	20×0.2	1.2	13	314.9	7.41	25	1/1	280	500	65	525
2	3	2×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	30×0.05	1	25×0.2	1.2	14.8	324.2	36	25	1/1	280	500	25	210
2	3	2×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	35×0.05	1	25×0.2	1.2	15.7	366.2	24.5	25	1/1	280	500	25	315
2	3	2×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	35×0.05	1	30×0.2	1.2	16.5	405.1	18.1	25	1/1	280	500	25	420
2	3	2×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	40×0.05	1	30×0.2	1.3	18.8	510.1	12.1	25	1/1	280	500	40	630
2	3	2×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	50×0.05	1	35×0.2	1.3	20.3	623	7.41	25	1/1	280	500	65	1050
3	3	3×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	35×0.05	1	25×0.2	1.2	15.5	377.4	36	25	1/1	280	500	25	315
3	3	3×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	35×0.05	1	30×0.2	1.2	16.5	431.3	24.5	25	1/1	280	500	25	473
3	3	3×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	40×0.05	1	30×0.2	1.3	17.5	488.2	18.1	25	1/1	280	500	25	630
3	3	3×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	45×0.05	1	35×0.2	1.3	19.8	610.4	12.1	25	1/1	280	500	40	945
3	3	3×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	55×0.05	1	40×0.2	1.3	21.4	761.3	7.41	25	1/1	280	500	65	1575
4	3	4×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	40×0.05	1	30×0.2	1.2	16.7	444.5	36	25	1/1	280	500	25	420
4	3	4×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	40×0.05	1	30×0.2	1.3	18.1	521.7	24.5	25	1/1	280	500	25	630
4	3	4×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	45×0.05	1	30×0.2	1.3	19	583.4	18.1	25	1/1	280	500	25	840
4	3	4×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	50×0.05	1	35×0.2	1.3	21.5	733.7	12.1	25	1/1	280	500	40	1260
4	3	4×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1	40×0.2	1.4	23.5	938	7.41	25	1/1	280	500	65	2100
5	3	5×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	40×0.05	1	30×0.2	1.3	18.3	526.2	36	25	1/1	280	500	25	525
5	3	5×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	45×0.05	1	35×0.2	1.3	19.6	609.2	24.5	25	1/1	280	500	25	788
5	3	5×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	50×0.05	1	35×0.2	1.3	20.6	683.9	18.1	25	1/1	280	500	25	1050
5	3	5×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	55×0.05	1	40×0.2	1.4	23.6	876.9	12.1	25	1/1	280	500	40	1575
5	3	5×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1	45×0.2	1.4	25.6	1114.8	7.41	25	1/1	280	500	65	2625
6	3	6×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	45×0.05	1	35×0.2	1.3	19.7	602.1	36	25	1/1	280	500	25	630
6	3	6×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	50×0.05	1	35×0.2	1.3	21.1	699.1	24.5	25	1/1	280	500	25	945
6	3	6×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	55×0.05	1	40×0.2	1.4	22.4	797.9	18.1	25	1/1	280	500	25	1260
6	3	6×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1	45×0.2	1.4	25.5	1014.1	12.1	25	1/1	280	500	40	1890
6	3	6×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1	50×0.2	1.5	28	1311.9	7.41	25	1/1	280	500	65	3150
7	3	7×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	45×0.05	1	35×0.2	1.3	19.7	634.4	36	25	1/1	280	500	25	735
7	3	7×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	50×0.05	1	35×0.2	1.3	21.1	739.6	24.5	25	1/1	280	500	25	1103
7	3	7×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	55×0.05	1	40×0.2	1.4	22.4	846.5	18.1	25	1/1	280	500	25	1470
7	3	7×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1	45×0.2	1.4	25.5	1078.8	12.1	25	1/1	280	500	40	2205
7	3	7×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1	50×0.2	1.5	28	1408.2	7.41	25	1/1	280	500	65	3675
8	3	8×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	50×0.05	1	35×0.2	1.4	21.3	714.9	36	25	1/1	280	500	25	840
8	3	8×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	55×0.05	1	40×0.2	1.4	22.9	835.5	24.5	25	1/1	280	500	25	1260
8	3	8×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1	45×0.2	1.4	24.1	944.9	18.1	25	1/1	280	500	25	1680
8	3	8×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1	50×0.2	1.5	27.7	1219.7	12.1	25	1/1	280	500	40	2520
8	3	8×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.1	55×0.5	1.6	31.8	1922.8	7.41	25	1/1	280	500	65	4200
9	3	9×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	55×0.05	1	40×0.2	1.4	23.2	798.1	36	25	1/1	280	500	25	945
9	3	9×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	24.9	932.1	24.5	25	1/1	280	500	25	1418
9	3	9×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1	45×0.2	1.5	26.5	1068.9	18.1	25	1/1	280	500	25	1890
9	3	9×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.1	55×0.5	1.6	31.9	1710.4	12.1	25	1/1	280	500	40	2835
9	3	9×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.1	60×0.5	1.7	34.9	2164.8	7.41	25	1/1	280	500	65	4725
10	3	10×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	24.6	875.1	36	25	1/1	280	500	25	1050
10	3	10×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.5	26.7	1037.8	24.5	25	1/1	280	500	25	1575
10	3	10×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1	50×0.2	1.5	28.2	1176.5	18.1	25	1/1	280	500	25	2100
10	3	10×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.1	60×0.5	1.6	33.9	1875.2	12.1	25	1/1	280	500	40	3150
10	3	10×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.2	60×0.5	1.7	37.3	2398.4	7.41	25	1/1	280	500	65	5250
12	3	12×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	25.3	950.7	36	25	1/1	280	500	25	1260
12	3	12×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	27.5	1131.5	24.5	25	1/1	280	500	25	1890
12	3	12×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1	50×0.2	1.5	29	1285.9	18.1	25	1/1	280	500	25	2520
12	3	12×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.1	60×0.5	1.7	35.1	2047.4	12.1	25	1/1	280	500	40	3780
12	3	12×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.2	60×0.5	1.7	38.5	2623.5	7.41	25	1/1	280	500	65	6300
14	3	14×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	26.7	1073.5	36	25	1/1	280	500	25	1470
14	3	14×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	28.8	1265.9	24.5	25	1/1	280	500	25	2205
14	3	14×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1.1	55×0.2	1.5	30.7	1460.4	18.1	25	1/1	280	500	25	2940
14	3	14×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.1	60×0.5	1.7	36.8	2278	12.1	25	1/1	280	500	40	4410
14	3	14×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.2	60×0.5	1.8	40.6	2955.9	7.41	25	1/1	280	500	65	7350
16	3	16×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	28.1	1188.2	36	25	1/1	280	500	25	1680
16	3	16×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.5	1.6	31.9	1749	24.5	25	1/1	280	500	25	2520
16	3	16×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1.1	60×0.5	1.6	33.7	1972.2	18.1	25	1/1	280	500	25	3360
16	3	16×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.2	60×0.5	1.7	38.9	2535.9	12.1	25	1/1	280	500	40	5040
16	3	16×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.3	60×0.5	1.8	42.9	3299.7	7.41	25	1/1	280	500	65	8400
18	3	18×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.2	1.5	29.7	1317.9	36	25	1/1	280	500	25	1890
18	3	18×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.5	1.6	33.5	1908.2	24.5	25	1/1	280	500	25	2835
18	3	18×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1.1	60×0.5	1.7	35.5	2168.8	18.1	25	1/1	280	500	25	3780
18	3	18×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.2	60×0.5	1.8	41.1	2796.4	12.1	25	1/1	280	500	40	5670
18	3	18×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	45.3	3646.2	7.41	25	1/1	280	500	65	9450
19	3	19×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.2	1.5	29.7	1361.5	36	25	1/1	280	500	25	1995
19	3	19×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.5	1.6	33.5	1962.6	24.5	25	1/1	280	500	25	2993
19	3	19×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1.1	60×0.5	1.7	35.5	2233.6	18.1	25	1/1	280	500	25	3990
19	3	19×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.2	60×0.5	1.8	41.1	2884.5	12.1	25	1/1	280	500	40	5985
19	3	19×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	45.3	3772.1	7.41	25	1/1	280	500	65	9975
20	3	20×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.5	1.6	31.8	1747.6	36	25	1/1	280	500	25	2100
20	3	20×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.7	34.4	2055.2	24.5	25	1/1	280	500	25	3150
20	3	20×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	36.6	2347.1	18.1	25	1/1	280	500	25	4200
20	3	20×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.3	60×0.5	1.8	42.3	3028.2	12.1	25	1/1	280	500	40	6300
20	3	20×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	46.4	3935.2	7.41	25	1/1	280	500	65	10500
22	3	22×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.6	34.4	1916.6	36	25	1/1	280	500	25	2310
22	3	22×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	37.5	2276.9	24.5	25	1/1	280	500	25	3465
22	3	22×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1.2	60×0.5	1.7	39.6	2573.9	18.1	25	1/1	280	500	25	4620
22	3	22×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	46.1	3346.2	12.1	25	1/1	280	500	40	6930
22	3	22×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.4	60×0.5	2	50.8	4372.7	7.41	25	1/1	280	500	65	11550
24	3	24×3×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	60×0.5	1.7	36	2064.8	36	25	1/1	280	500	25	2520
24	3	24×3×0.75	7/0.37	1.11	0.6	15×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	39.2	2452.8	24.5	25	1/1	280	500	25	3780
24	3	24×3×1.0	7/0.43	1.29	0.6	20×0.05	10×0.05	60×0.05	1.2	60×0.5	1.8	41.5	2778.2	18.1	25	1/1	280	500	25	5040
24	3	24×3×1.5	7/0.52	1.56	0.7	20×0.05	15×0.05	60×0.05	1.3	60×0.5	1.9	48.1	3590.2	12.1	25	1/1	280	500	40	7560
24	3	24×3×2.5	7/0.68	2.04	0.7	25×0.05	15×0.05	60×0.05	1.4	60×0.5	2.1	53.2	4726	7.41	25	1/1	280	500	65	12600
1	4	1×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	20×0.05	1	15×0.2	1.1	10.6	195.7	36	25	1/1	280	500	25	140
1	4	1×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	20×0.05	1	15×0.2	1.1	11.1	218.7	24.5	25	1/1	280	500	25	210
1	4	1×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	20×0.05	1	20×0.2	1.1	11.5	239.7	18.1	25	1/1	280	500	25	280
1	4	1×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	25×0.05	1	20×0.2	1.2	12.9	298.4	12.1	25	1/1	280	500	40	420
1	4	1×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	30×0.05	1	25×0.2	1.2	13.9	367.6	7.41	25	1/1	280	500	65	700
2	4	2×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	35×0.05	1	30×0.2	1.2	16.6	383.6	36	25	1/1	280	500	25	280
2	4	2×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	40×0.05	1	30×0.2	1.3	17.8	442.5	24.5	25	1/1	280	500	25	420
2	4	2×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	45×0.05	1	30×0.2	1.3	18.6	488.3	18.1	25	1/1	280	500	25	560
2	4	2×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	50×0.05	1	35×0.2	1.3	21	607.2	12.1	25	1/1	280	500	40	840
2	4	2×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1	40×0.2	1.4	23.2	768.9	7.41	25	1/1	280	500	65	1400
3	4	3×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	40×0.05	1	30×0.2	1.3	17.7	458.8	36	25	1/1	280	500	25	420
3	4	3×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	45×0.05	1	30×0.2	1.3	18.7	522.9	24.5	25	1/1	280	500	25	630
3	4	3×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	45×0.05	1	35×0.2	1.3	19.6	583.3	18.1	25	1/1	280	500	25	840
3	4	3×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	55×0.05	1	40×0.2	1.4	22.4	744.3	12.1	25	1/1	280	500	40	1260
3	4	3×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1	45×0.2	1.4	24.5	945.7	7.41	25	1/1	280	500	65	2100
4	4	4×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	45×0.05	1	35×0.2	1.3	19.1	541.5	36	25	1/1	280	500	25	560
4	4	4×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	50×0.05	1	35×0.2	1.3	20.3	623.6	24.5	25	1/1	280	500	25	840
4	4	4×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	50×0.05	1	35×0.2	1.3	21.3	699.8	18.1	25	1/1	280	500	25	1120
4	4	4×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	60×0.05	1	45×0.2	1.4	24.4	898.9	12.1	25	1/1	280	500	40	1680
4	4	4×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1	50×0.2	1.5	27	1170.1	7.41	25	1/1	280	500	65	2800
5	4	5×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	50×0.05	1	35×0.2	1.3	20.7	631.1	36	25	1/1	280	500	25	700
5	4	5×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	55×0.05	1	40×0.2	1.4	22.3	742.3	24.5	25	1/1	280	500	25	1050
5	4	5×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	55×0.05	1	40×0.2	1.4	23.4	835.2	18.1	25	1/1	280	500	25	1400
5	4	5×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	60×0.05	1	45×0.2	1.5	26.8	1076	12.1	25	1/1	280	500	40	2100
5	4	5×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1	55×0.2	1.5	29.5	1394.8	7.41	25	1/1	280	500	65	3500
6	4	6×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	55×0.05	1	40×0.2	1.4	22.6	735.7	36	25	1/1	280	500	25	840
6	4	6×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	60×0.05	1	40×0.2	1.4	24.1	854.6	24.5	25	1/1	280	500	25	1260
6	4	6×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	60×0.05	1	45×0.2	1.4	25.3	964.2	18.1	25	1/1	280	500	25	1680
6	4	6×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	60×0.05	1	50×0.2	1.5	29.1	1248.8	12.1	25	1/1	280	500	40	2520
6	4	6×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1.1	60×0.5	1.6	33.7	1994.3	7.41	25	1/1	280	500	65	4200
7	4	7×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	55×0.05	1	40×0.2	1.4	22.6	775.8	36	25	1/1	280	500	25	980
7	4	7×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	60×0.05	1	40×0.2	1.4	24.1	905.5	24.5	25	1/1	280	500	25	1470
7	4	7×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	60×0.05	1	45×0.2	1.4	25.3	1026	18.1	25	1/1	280	500	25	1960
7	4	7×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	60×0.05	1	50×0.2	1.5	29.1	1332.2	12.1	25	1/1	280	500	40	2940
7	4	7×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1.1	60×0.5	1.6	33.7	2119.3	7.41	25	1/1	280	500	65	4900
8	4	8×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	45×0.2	1.4	24.3	863.7	36	25	1/1	280	500	25	1120
8	4	8×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	60×0.05	1	45×0.2	1.5	26.1	1021.6	24.5	25	1/1	280	500	25	1680
8	4	8×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	60×0.05	1	50×0.2	1.5	27.5	1160.3	18.1	25	1/1	280	500	25	2240
8	4	8×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	60×0.05	1.1	55×0.5	1.6	33	1849.1	12.1	25	1/1	280	500	40	3360
8	4	8×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1.2	60×0.5	1.7	36.7	2402.6	7.41	25	1/1	280	500	65	5600
9	4	9×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	26.7	977	36	25	1/1	280	500	25	1260
9	4	9×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	60×0.05	1	50×0.2	1.5	28.6	1144	24.5	25	1/1	280	500	25	1890
9	4	9×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	60×0.05	1.1	55×0.5	1.6	31.7	1641.3	18.1	25	1/1	280	500	25	2520
9	4	9×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	60×0.05	1.2	60×0.5	1.7	36.5	2103.7	12.1	25	1/1	280	500	40	3780
9	4	9×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1.2	60×0.5	1.8	40.4	2707.8	7.41	25	1/1	280	500	65	6300
10	4	10×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1	50×0.2	1.5	28.4	1073.2	36	25	1/1	280	500	25	1400
10	4	10×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	60×0.05	1.1	55×0.5	1.6	32	1603.9	24.5	25	1/1	280	500	25	2100
10	4	10×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	60×0.05	1.1	60×0.5	1.6	33.6	1794.5	18.1	25	1/1	280	500	25	2800
10	4	10×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	60×0.05	1.2	60×0.5	1.7	38.8	2307.1	12.1	25	1/1	280	500	40	4200
10	4	10×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1.3	60×0.5	1.8	43.2	3000.3	7.41	25	1/1	280	500	65	7000
12	4	12×4×0.5	7/0.30	0.9	0.6	15×0.05	10×0.05	60×0.05	1.1	55×0.2	1.5	29.5	1182.8	36	25	1/1	280	500	25	1680
12	4	12×4×0.75	7/0.37	1.11	0.6	20×0.05	10×0.05	60×0.05	1.1	55×0.5	1.6	32.9	1730.3	24.5	25	1/1	280	500	25	2520
12	4	12×4×1.0	7/0.43	1.29	0.6	20×0.05	15×0.05	60×0.05	1.1	60×0.5	1.6	34.6	1945.3	18.1	25	1/1	280	500	25	3360
12	4	12×4×1.5	7/0.52	1.56	0.7	25×0.05	15×0.05	60×0.05	1.2	60×0.5	1.8	40.2	2525.3	12.1	25	1/1	280	500	40	5040
12	4	12×4×2.5	7/0.68	2.04	0.7	25×0.05	20×0.05	60×0.05	1.3	60×0.5	1.9	44.7	3306.3	7.41	25	1/1	280	500	65	8400

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
