TUV PV1-F Solar Cable DC 1.8kV
Voltage:	AC:1000/1000V DC:1500/1500V
Structure:	Conductor	Class 5 flexible tinned copper conductor
	Insulation	Halogen-free cross-linked compound
	Sheath	Halogen-free cross-linked, flame retardant compound
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

PV1-F solar cable is specially designed for photovoltaic power generation systems. It features high temperature resistance, UV resistance, ozone resistance and excellent weatherproof performance. With flexible tinned copper conductor and double-layer cross-linked polyolefin insulation & sheath, the cable owns outstanding anti-aging, oil resistant and flame retardant properties. It is widely applied in solar panel connection, photovoltaic power station wiring, rooftop solar projects and outdoor solar power transmission, suitable for long-term outdoor harsh working conditions.

Voltage Rating Uo/U

AC:1000/1000V

DC:1500/1500V

Maximum Voltage (Umax)

1800V

Test Voltage

6.5kV AC

Temperature Rating

-40°C to 90°C

Minimum Bending Radius

5 x overall diameter

Maximum Conductor Temperature

+120°C (for 20000h)

STANDARDS

IEC 62930-2017

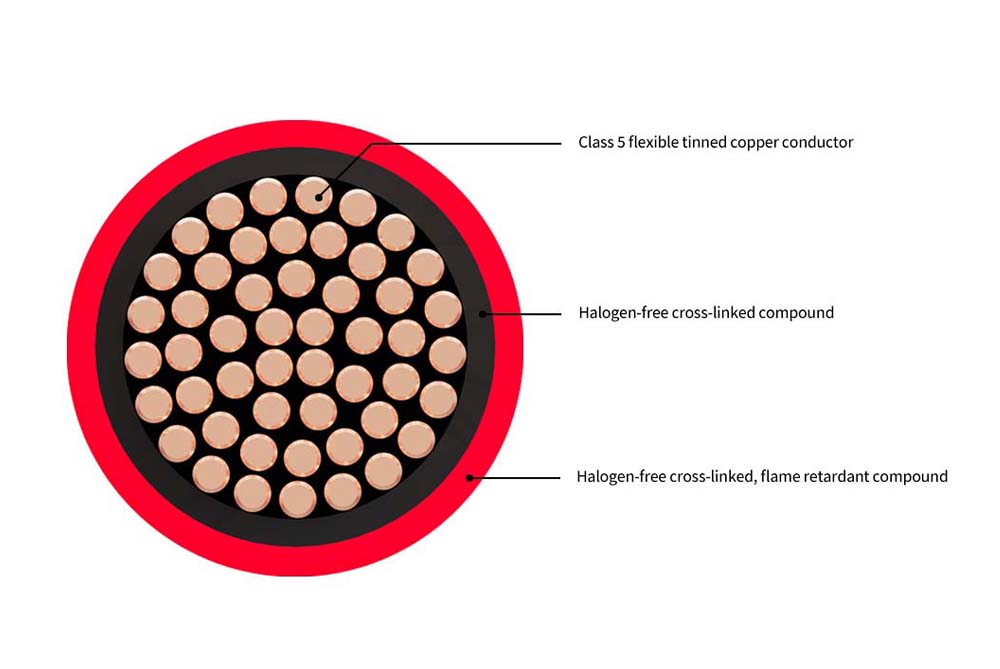

CONSTRUCTION

Conductor

Class 5 flexible tinned copper conductor

Insulation

Halogen-free cross-linked compound

Sheath

Halogen-free cross-linked, flame retardant compound

Sheath Colour

Black, Other colours available on request

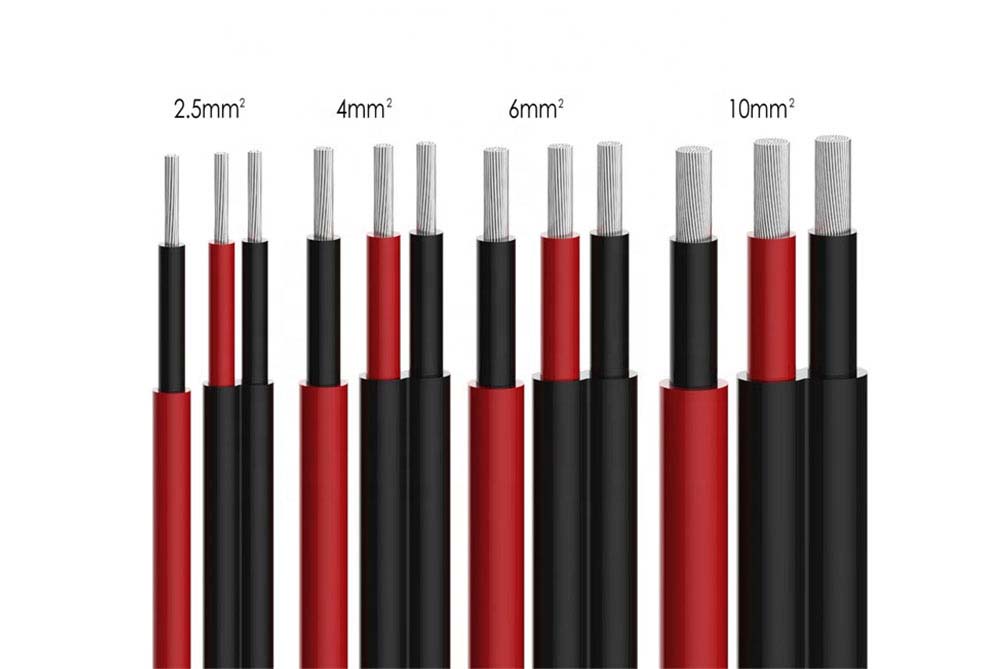

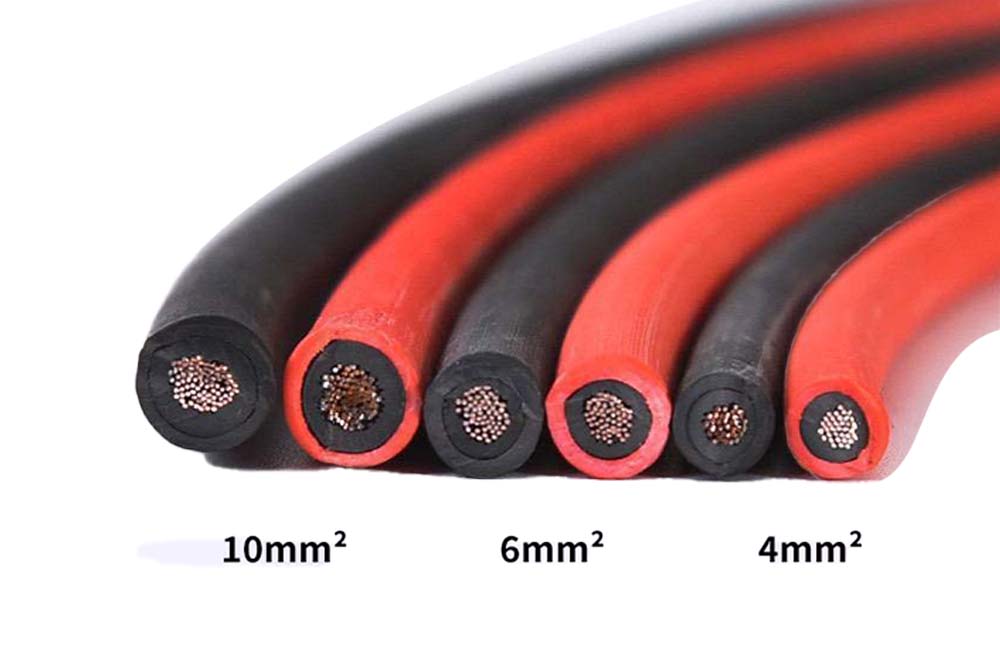

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL OVERALL DIAMETER (mm)	NOMINAL WEIGHT (kg/km)	TENSILE STRENGTH IN OPERATION (N)
1	1.5	4.6	36	22
1	2.5	5	46	37
1	4	5.6	62	60
1	6	6.1	82	90
1	10	7.1	125	150
1	16	8.5	190	240
1	25	10.4	285	375
1	35	11.5	385	525
1	50	13.7	540	750
1	70	15.8	740	1050
1	95	17.3	965	1350
1	120	19.1	1210	1800
1	150	21.4	1495	2250
1	185	24.9	1885	2775
1	240	27.3	2395	3600

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
