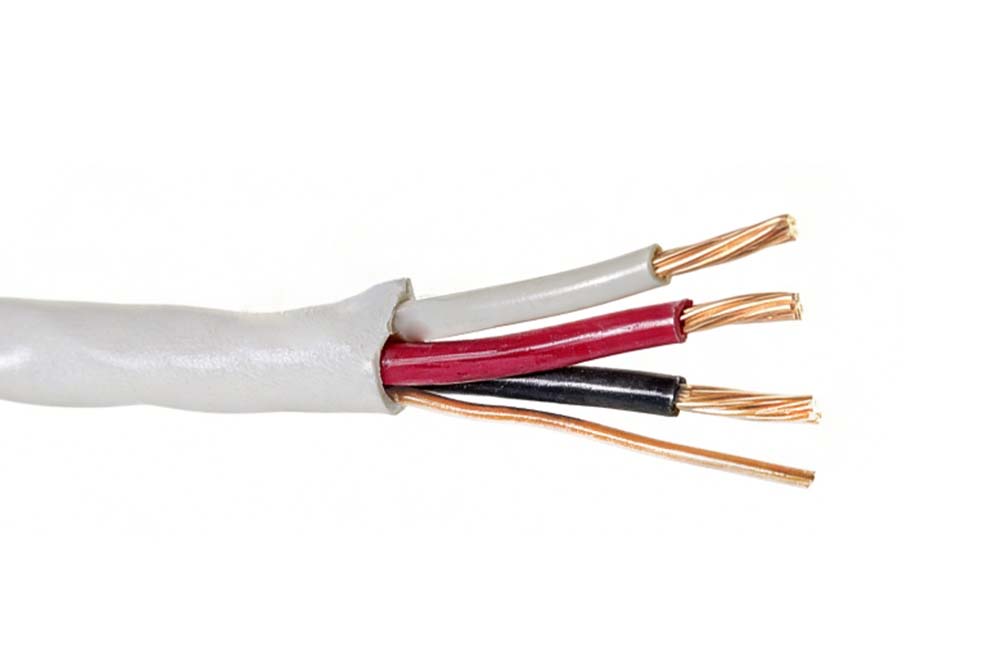

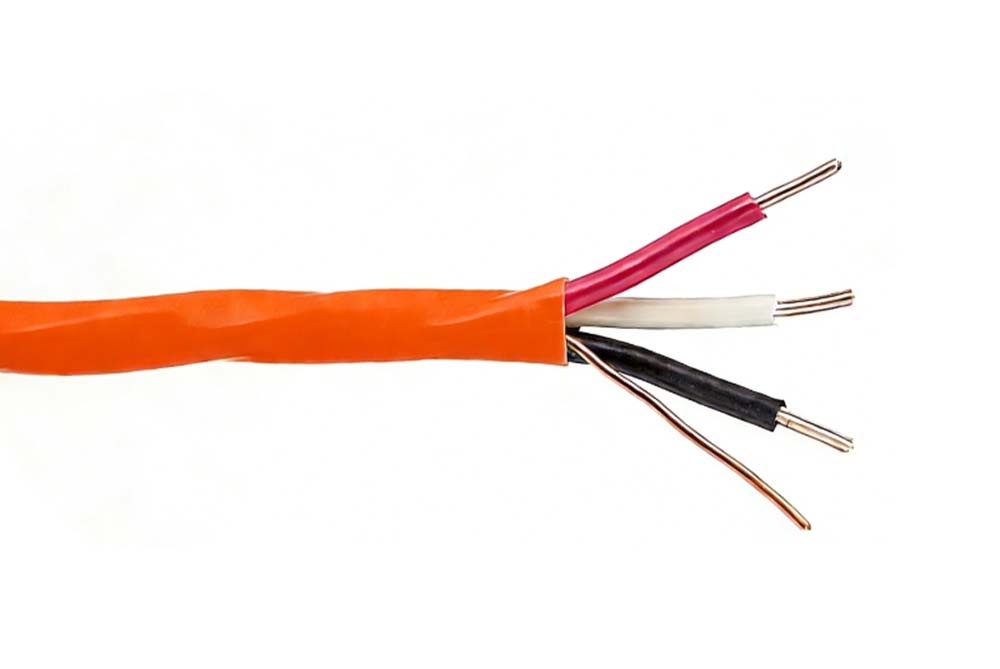

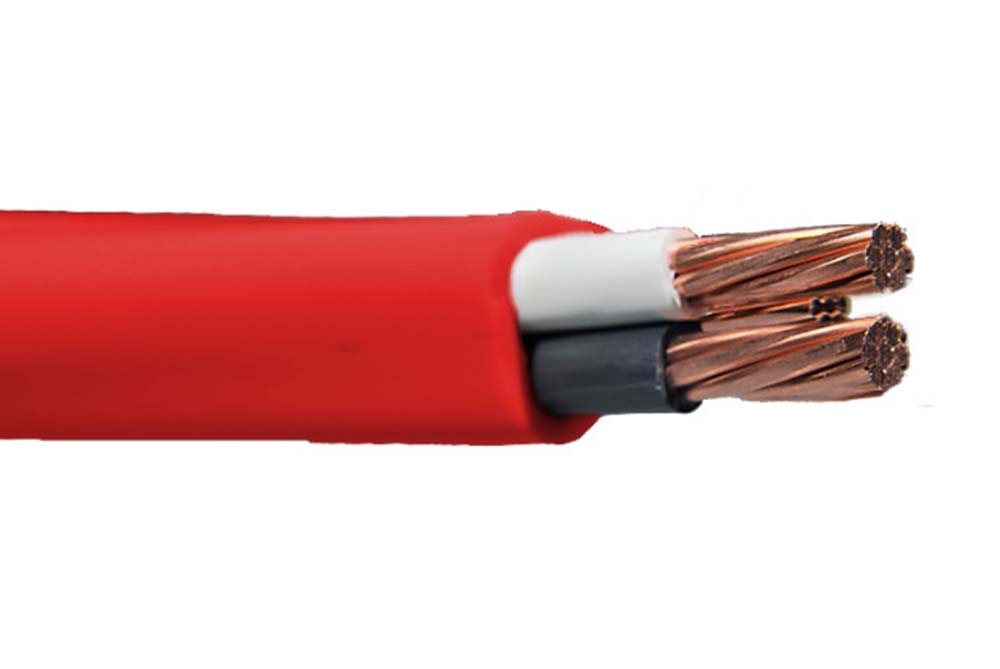

CSA NMD90 Copper Building Electrical Cable
Voltage:	300V
Structure:	Conductor	Stranded Bare Soft Copper, ASTM B8
	Insulation	Cross-linked Polyethylene (XLPE)
	Bonding Conductor	Stranded Bare Soft Copper, ASTM B8
	Cable Assembly	All conductors are cabled together
	Jacket	Polyvinyl Chloride (PVC)
	Sheath Colour	3Core: Black, White, Red

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

For exposed and concealed wiring in dry or damp locations.

Voltage Rating Uo/U

300V

Temperature Rating

-25°C to 90°C

STANDARDS

CSA C22.2 No. 48, Nonmetallic sheathed cable

CSA C22.2 No. 38, Thermoset-insulated wires and cables

CSA C22.2 No. 2556, FT1 Vertical Propagation Flame Test

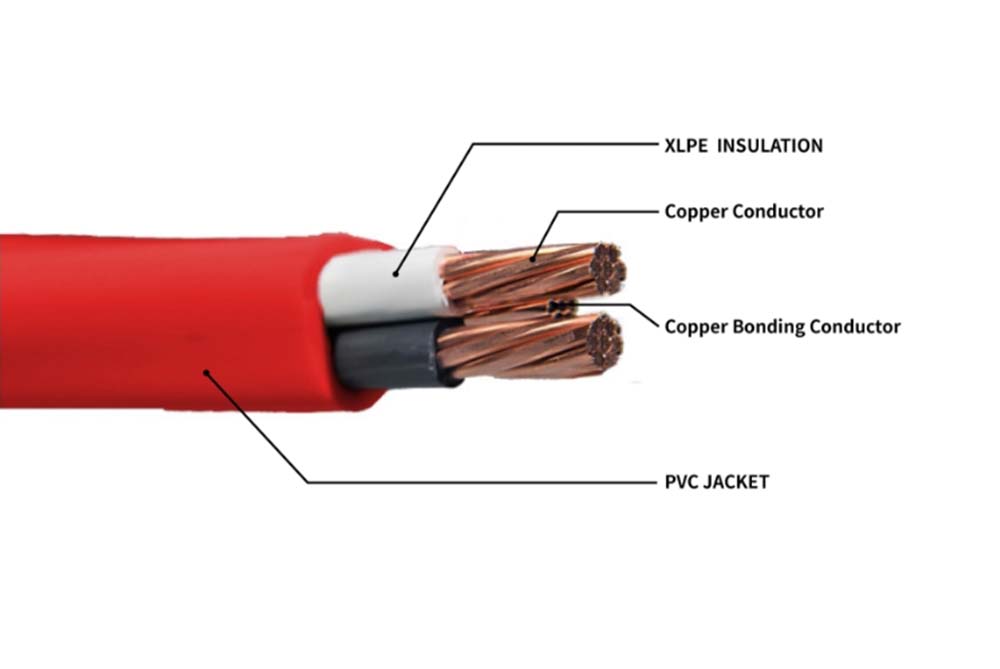

CONSTRUCTION

Conductor

Stranded Bare Soft Copper, ASTM B8

Insulation

Cross-linked Polyethylene (XLPE)

Bonding Conductor

Stranded Bare Soft Copper, ASTM B8

Cable Assembly

All conductors are cabled together

Jacket

Polyvinyl Chloride (PVC)

Sheath Colour

3Core: Black, White, Red

Power Conductor		Bonding Conductor	Insulation Thickness		Jacket Thickness		Cable Overall Diameter		Cable Weight		Ampacity
Conductor Count	AWG	AWG	in	mm	in	mm	in	mm	lbs	kg	A
2	8/7	10/1	0.045	1.14	0.045	1.1	0.498	12.6	193	287	55
2	6/7	10/1	0.045	1.14	0.045	1.1	0.608	15.4	287	426	75
2	4/7	8/7	0.045	1.14	0.060	1.5	0.750	19.1	431	641	95
2	3/7	8/7	0.045	1.14	0.080	2.0	0.844	21.4	558	831	115
2	2/7	8/7	0.045	1.14	0.080	2.0	0.906	23.0	662	985	130
3	8/7	10/1	0.045	1.14	0.045	1.1	0.529	13.4	256	381	55
3	6/7	10/1	0.045	1.14	0.045	1.1	0.647	16.4	383	570	75
3	4/7	8/7	0.045	1.14	0.060	1.5	0.797	20.3	586	873	95
3	3/7	8/7	0.045	1.14	0.080	2.0	0.895	22.7	747	1112	115
3	2/7	8/7	0.045	1.14	0.080	2.0	0.962	24.4	899	1338	130

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
