CSA Certified Canadian NMD90 Electrical Wire
Voltage:	300V
Structure:	Conductor	Bare copper per ASTM B3. Sizes #14 AWG - #10 AWG are solid. Sizes #8 AWG - #2 AWG are Class B compressed stranded per ASTM B8
	Insulation	All phases are insulated with Polyvinyl Chloride (PVC) with Nylon Sheath
	Jacket	Polyvinyl Chloride (PVC)
	Sheath Colour	2/C: Black, White 3/C: Black, White, Red

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C fortwo-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be properlystored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code for further information related to applications

Voltage Rating Uo/U

300V

Temperature Rating

-25°C to 90°C

STANDARDS

ASTM B3 Soft or Annealed Copper Wire

ASTM B8 Concentric-Lay-Stranded Copper Conductors

CSA C22.2 No. 48 non-metallic sheathed cable

ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy

FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)

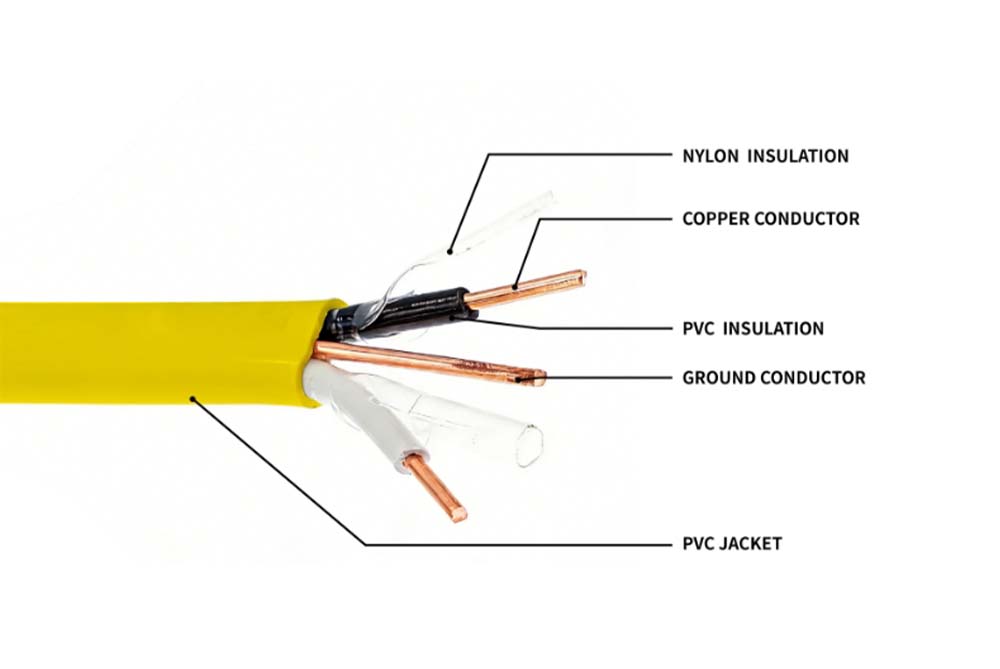

CONSTRUCTION

Conductor

Bare copper per ASTM B3.

Sizes #14 AWG - #10 AWG are solid.

Sizes #8 AWG - #2 AWG are Class B

compressed stranded per ASTM B8

Insulation

All phases are insulated with Polyvinyl Chloride (PVC) with Nylon Sheath

Jacket

Polyvinyl Chloride (PVC)

Sheath Colour

2/C: Black, White

3/C: Black, White, Red

Cond. Size AWG/ Kcmil	Conductor Number	Diameter Over Conductor (inch)	Conductor Stranding	Thickness Insulation (mils)	Ground Size (No.xAWG)	Thickness Jacket (mil)	Approx. OD (inch)	Weight (lbs/1000ft)	Copper Weight Overall (lbs/1000ft)
14	2	0.064	Solid	35	1x14	30	0.196x0.396	37	69
14	2	0.064	Solid	35	1x14	30	0.196x0.396	37	69
14	2	0.064	Solid	35	1x14	30	0.196x0.396	37	69
14	3	0.064	Solid	35	1x14	30	0.388	50	90
12	2	0.08	Solid	35	1x14	30	0.213x0.430	51	88
12	2	0.08	Solid	35	1x14	30	0.213x0.430	51	88
12	3	0.08	Solid	35	1x14	30	0.428	72	118
10	2	0.101	Solid	35	1x12	30	0.234x0.488	82	124
10	2	0.101	Solid	35	1x12	30	0.234x0.488	82	124
10	3	0.101	Solid	35	1x12	30	0.479	115	168
8	2	0.141	7	40	1x10	45	0.316x0.694	133	210
8	3	0.141	7	40	1x10	45	0.635	186	283
6	2	0.177	7	50	1x8	45	0.374x0.800	213	339
6	3	0.177	7	50	1x8	45	0.775	297	433
4	2	0.225	7	50	1x8	60	0.839	311	463
3	2	0.252	7	50	1x6	80	0.937	410	610
3	3	0.252	7	50	1x6	80	1.029	574	822
2	3	0.282	7	50	1x6	80	0.991	702	862

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
