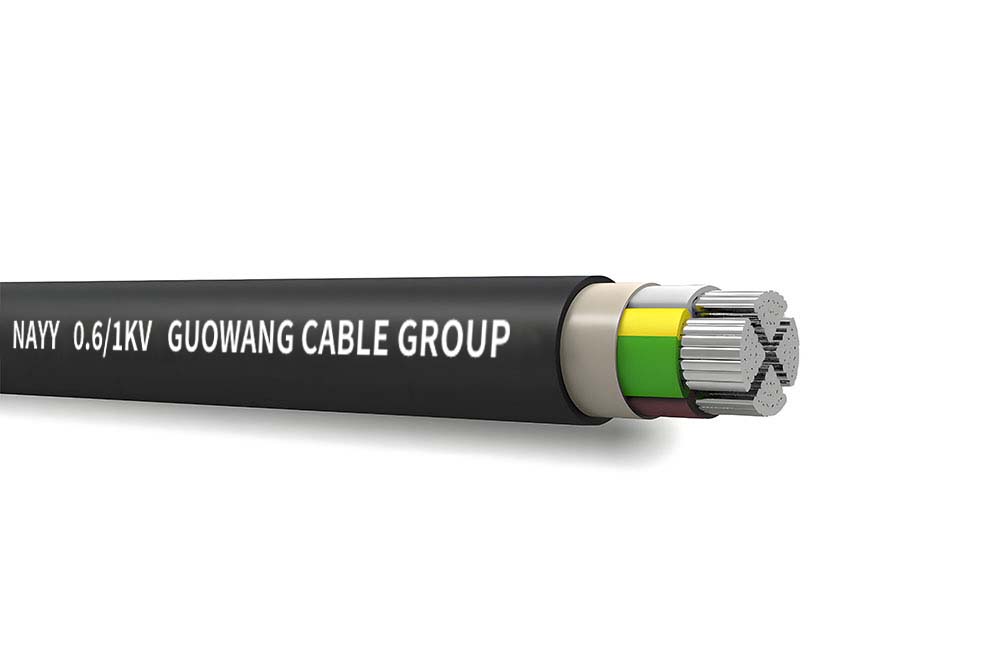

NAYY-J / NAYY-O Cable Aluminium Conductor PVC PVC 0.6/1kV Cable-NAYY Aluminium Conductor PVC PVC 0.6/1kV Cable-Medium Voltage Cable Manufacturers

NAYY-J / NAYY-O Cable Aluminium Conductor PVC PVC 0.6/1kV Cable
Voltage:	0.6/1kV
Structure:	Conductor	RE: Class 1 solid aluminium – circular or circular compacted RM: Class 2 stranded SM: Class 2 sectorshaped SE: Class 1 solid sectorshaped or stranded (available upon request)
	Insulation	PVC (Polyvinyl Chloride)
	Sheath	PVC (Polyvinyl Chloride)
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

For fixed installation in buildings, in free air, in ground and in water.

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Operating Temperature: -5°C to +70°C

STANDARDS

IEC 60502-1, VDE 0276-603, HD 603, IEC 60228

Flame retardant according to IEC/EN 60332-1-2

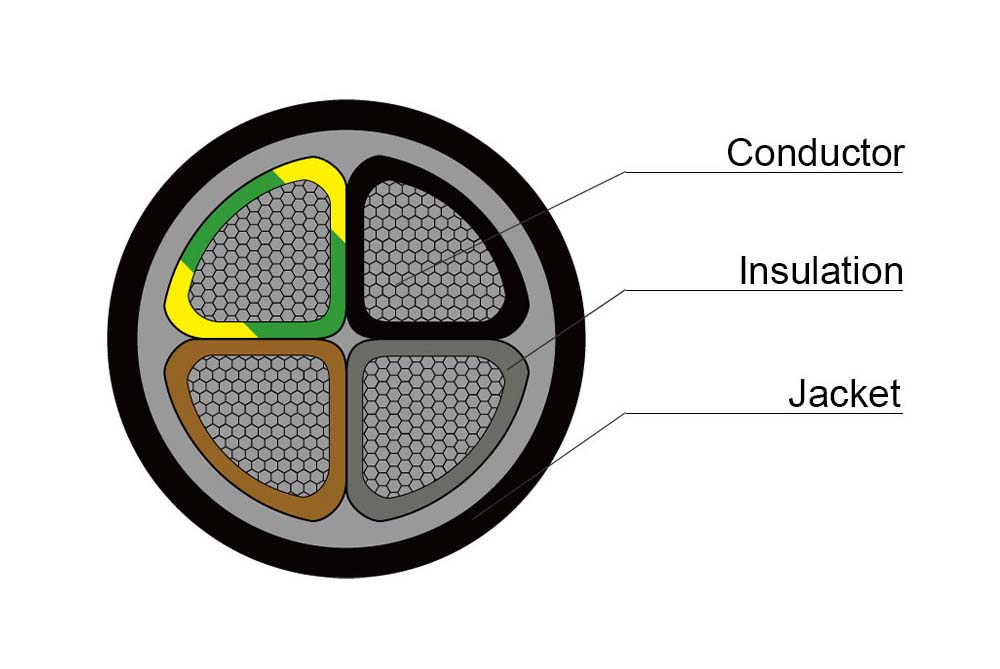

CONSTRUCTION

Conductor

RE: Class 1 solid aluminium – circular or circular compacted

RM: Class 2 stranded

SM: Class 2 sectorshaped

SE: Class 1 solid sectorshaped or stranded (available upon request)

Insulation

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Black, Other colours available on request

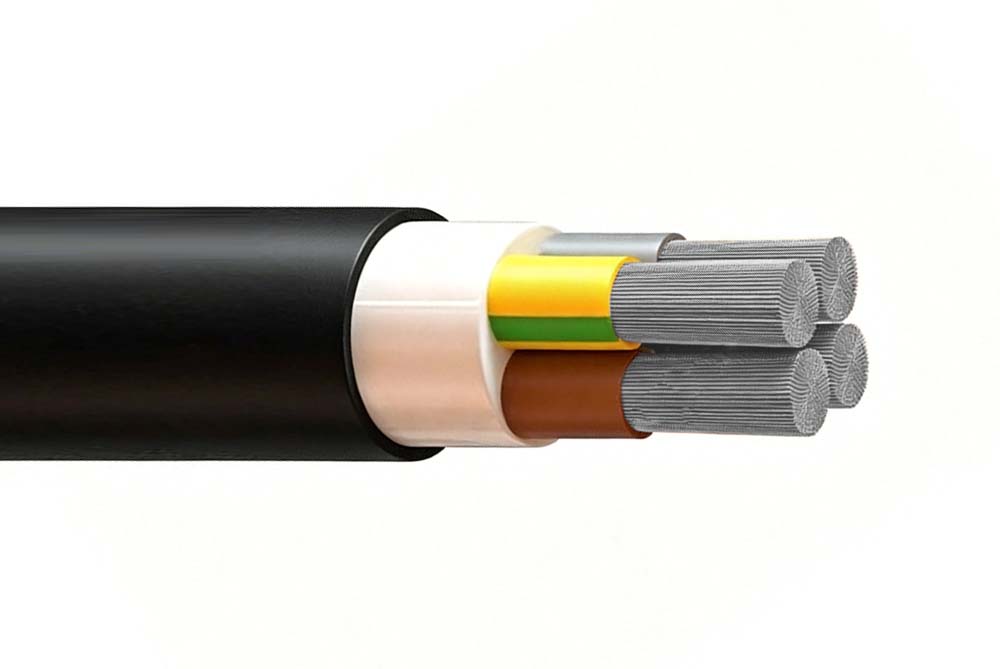

Core Identification

NAYY-J

1 core: Green/Yellow

3 core: Green/Yellow, Blue, Brown

4 core: Green/Yellow, Brown, Black, Grey

5 core: Green/Yellow, Blue, Brown, Black, Grey

7 cores and above: Black with White numbers

NAYY-O

1 core: Black

3 core: Black, Brown, Grey

4 core: Blue, Brown, Black, Grey

5 core: Blue, Brown, Black, Grey, Black

7 cores and above: Black with White numbers

NAYY-J
NO. OF CORES	CONDUCTOR TYPE	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL THICKNESS OF INSULATION (mm)	FIXED INSTALLATION BENDING RADIUS (mm)	NOMINAL THICKNESS OF SHEATH (mm)	NOMINAL DIAMETER (mm)	NOMINAL WEIGHT (kg/km)
1	RE	16	1	158	1.8	10.5	145
1	RE	25	1.2	180	1.8	12	195
1	RE	35	1.2	203	1.8	13.5	255
1	RM	50	1.4	231	1.8	15.4	298
1	RM	70	1.4	255	1.8	17	383
1	RM	95	1.6	285	1.8	19	490
1	RM	120	1.6	300	1.8	20	575
1	RM	150	1.8	330	1.8	22	695
1	RM	185	2	375	1.8	25	845
1	RM	240	2.2	420	1.8	28	1100
1	RM	300	2.4	450	1.9	30	1379
1	RM	400	2.6	510	2	34	1615
1	RM	500	2.8	555	2.1	37	2015
1	RM	630	2.8	645	2.2	43	2472
3	SM	300	2.4	708	3	59	4500
4	RE	6	1	204	1.8	17	377
4	RE	10	1	285	1.8	19	470
4	RE	16	1.2	288	1.8	24	750
4	RE	25	1.2	300	1.8	25	950
4	RE	35	1.2	354	1.8	28.1	1120
4	SM	50	1.4	354	1.9	29.5	1151
4	SM	70	1.4	420	2.1	33.4	1549
4	SM	95	1.6	468	2.2	39	2030
4	SM	120	1.6	516	2.4	43	2400
4	SM	150	1.8	552	2.5	46	3030
4	SM	185	2	612	2.7	51	3650
4	SM	240	2.2	696	2.9	58	4800
4	SM	300	2.4	786	3	65.5	5685
5	RE	10	1	232	1.8	19.3	585
5	RE	16	1	262	1.8	21.8	938
5	RE	25	1.2	325	1.8	27.1	1188
5	RE	35	1.2	362	1.8	30.2	1375
5	RM	50	1.4	432	1.8	36.2	1720
5	RM	70	1.4	492	2.1	44	2240
5	RM	95	1.4	564	2.1	47	3060
5	RM	120	1.6	612	2.4	53	3580
5	RM	150	1.8	672	2.5	56	4400
5	RM	185	2	804	2.7	59	5481
5	RM	240	2.2	852	2.9	71	7000

NAYY-O
NO. OF CORES	CONDUCTOR TYPE	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL THICKNESS OF INSULATION (mm)	FIXED INSTALLATION BENDING RADIUS (mm)	NOMINAL THICKNESS OF SHEATH (mm)	NOMINAL DIAMETER (mm)	NOMINAL WEIGHT (kg/km)
1	RE	16	1	157	1.8	10.5	145
1	RE	25	1.2	180	1.8	12	195
1	RE	35	1.2	203	1.8	13.5	255
1	RM	50	1.4	225	1.8	15	298
1	RM	70	1.4	204	1.8	17	383
1	RM	95	1.6	285	1.8	19	490
1	RM	120	1.6	300	1.8	20	575
1	RM	150	1.8	330	1.8	22	695
1	RM	185	2	375	1.8	25	845
1	RM	240	2.2	420	1.8	28	1100
1	RM	300	2.4	450	1.9	30	1379
1	RM	400	2.6	510	2	34	1615
1	RM	500	2.8	555	2.1	37	2015
1	RM	630	2.8	645	2.2	43	2472
1	RM	800	2.9	675	2.4	45	3120
3	SE	300	2.4	708	3	59	4500
4	RE	16	1	288	1.8	24	750
4	RE	25	1.2	300	1.8	25	950
4	SE	35	1.2	338	1.8	28.1	1120
4	SE	50	1.4	360	1.9	30	1151
4	SE	70	1.4	420	2.1	35	1549
4	SE	95	1.6	468	2.2	39	2030
4	SE	120	1.6	516	2.4	43	2400
4	SE	150	1.8	552	2.5	46	3030
4	SE	185	2	612	2.7	51	3650
4	SE	240	2.2	672	2.9	56	4800

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
