| NA2XSY Aluminium Conductor XLPE PVC - 18/30 (36)kV Cable | ||
| Voltage: | 18/30 (36)kV | |

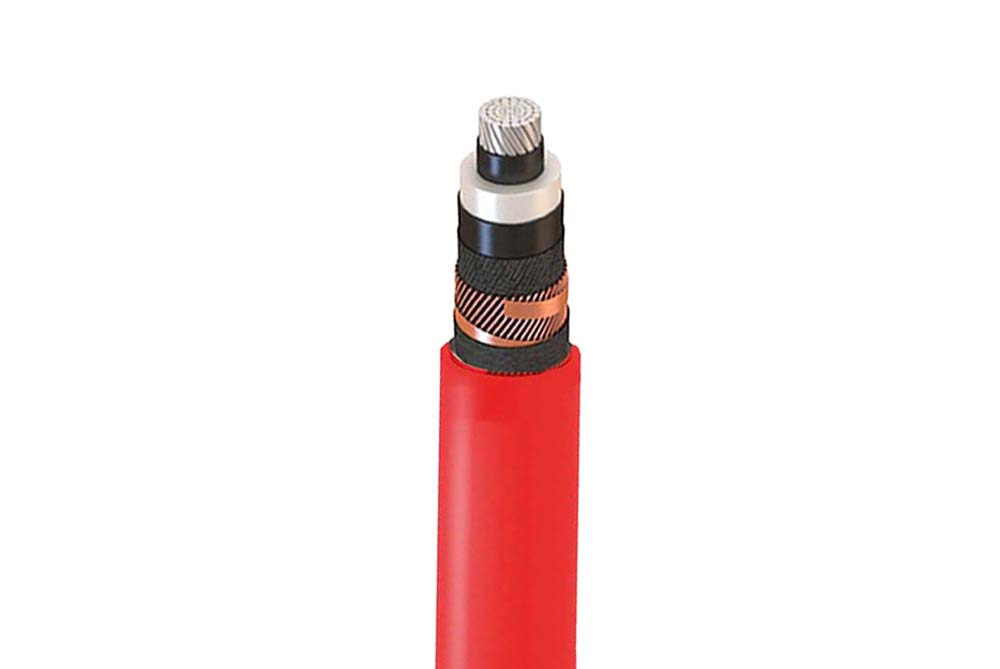

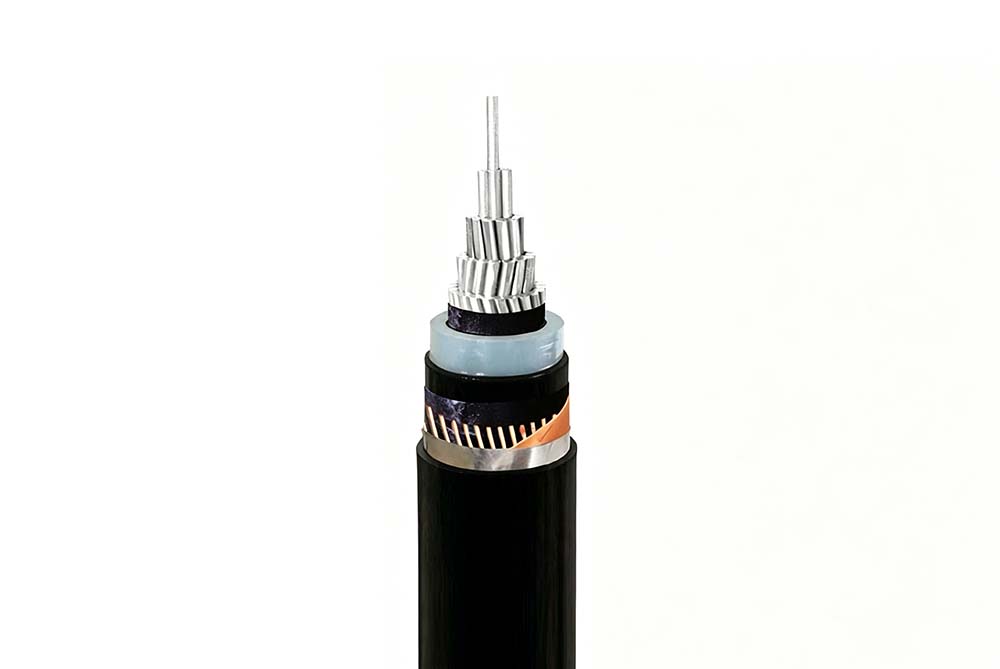

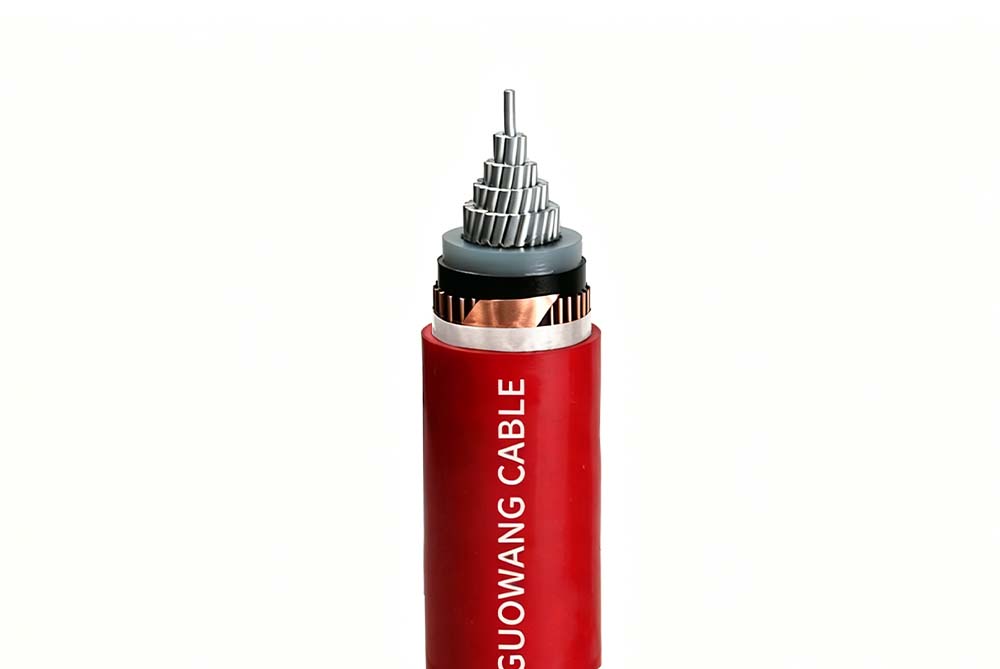

| Structure: | Conductor | Class 2 stranded aluminium conductor |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Screen | Copper wires | |
| Jacket | PVC (Polyvinyl Chloride) | |
Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.
18/30 (36)kV
Fixed: -20°C to +90°C
15 x overall diameter
IEC 60502-2, EN 60228,
Flame Retardant according to IEC/EN 60332-1-2
Class 2 stranded aluminium conductor
Semi-conductive material
XLPE (Cross-Linked Polyethylene)
Semi-conductive material
Copper wires
PVC (Polyvinyl Chloride)
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | |
| Conductor | Copper Wire Screen | mm | kg/km | |
| 1 | 50 | 16 | 41 | 1190 |
| 1 | 70 | 16 | 42 | 1315 |
| 1 | 95 | 16 | 43 | 1450 |
| 1 | 120 | 16 | 45 | 1580 |
| 1 | 150 | 25 | 47 | 1800 |
| 1 | 185 | 25 | 49 | 1965 |
| 1 | 240 | 25 | 51 | 2230 |
| 1 | 300 | 25 | 53 | 2470 |
| 1 | 400 | 35 | 56 | 2920 |
