NA2XSY Aluminium Conductor XLPE PVC - 12/20 (24)kV Cable
Voltage:	12/20 (24)kV
Structure:	Conductor	Class 2 stranded aluminium conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires
	Jacket	PVC (Polyvinyl Chloride)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

12/20 (24)kV

Temperature Rating

Fixed: -20°C to +70°C

Flexed: -5°C to +70°C

Minimum Bending Radius

15 x overall diameter

STANDARDS

EN 60228, IEC 60502-2

Flame Retardant according to IEC/EN 60332-1-2

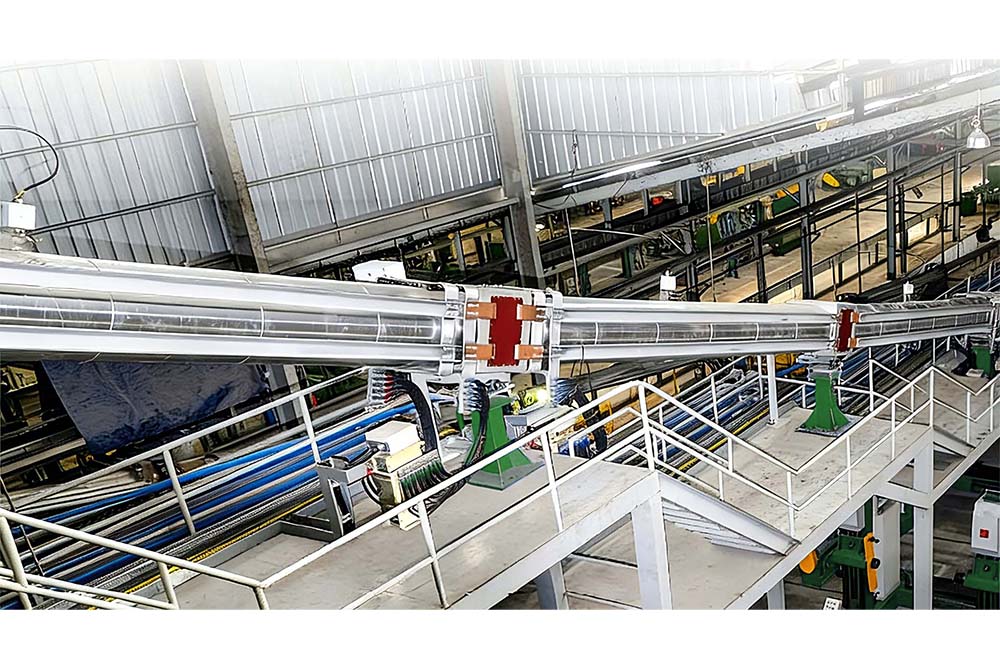

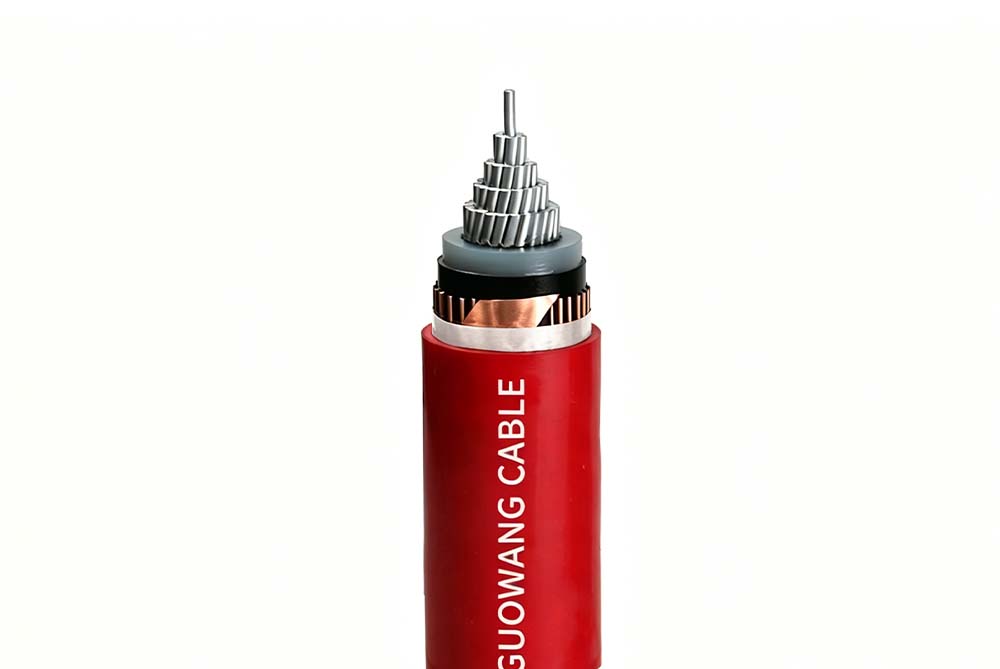

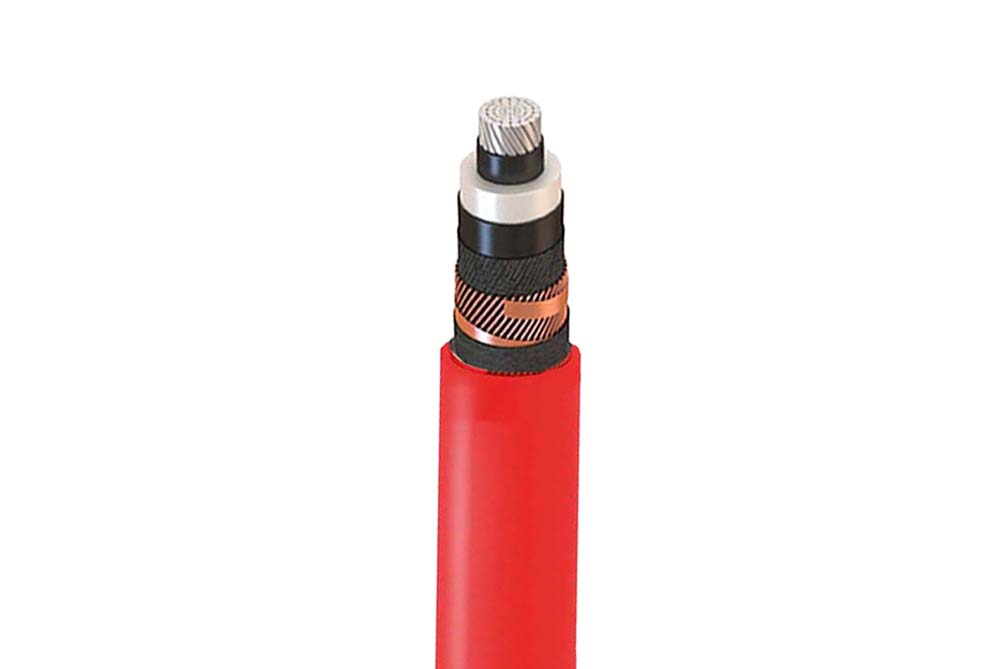

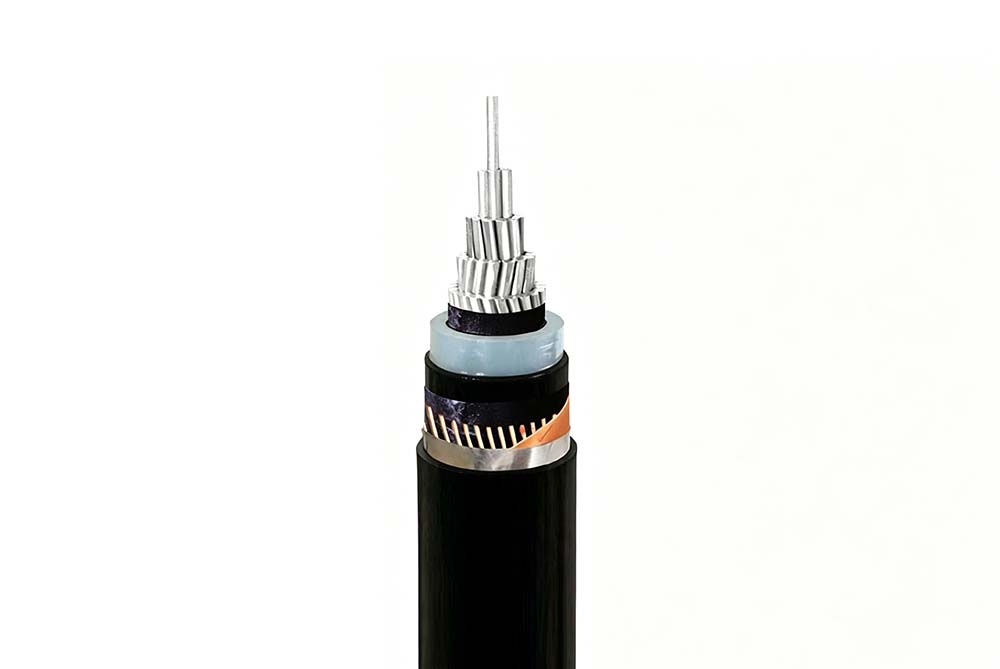

CONSTRUCTION

Conductor

Class 2 stranded aluminium conductor

Inner Semi-Conductive Layer

Semi-conductive material

Insulation

XLPE (Cross-Linked Polyethylene)

Outer Semi-Conductive Layer

Semi-conductive material

Screen

Copper wires

Sheath

PVC (Polyvinyl Chloride)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2		NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES	Conductor	Copper Wire Screen	mm	kg/km
1	50	16	33	950
1	70	16	35	1050
1	95	16	36	1150
1	120	16	38	1300
1	150	25	39	1500
1	185	25	41	1650
1	240	25	44	1850
1	300	25	46	2100
1	400	35	49	2550

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
