NA2XSH 18/30 (36)kV Cable
Voltage:	18/30 (36)kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires and copper tape
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

UV resistant Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. LSZH outer sheath allows internal and external installation including directly in ground and in cable ducts.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

18/30 (36)kV

Temperature Rating

Permissible operating temperature of conductor: +90°C

Permissible short-circuit temperature up to 5 sec: +250°C

Minimum Bending Radius

15 x overall diameter

STANDARDS

IEC 60502-2,

Flame Retardant according to IEC/EN 60332-1-2

Low Smoke Zero Halogen according to IEC/EN 61034-1/2,

IEC/EN 60754-1/2

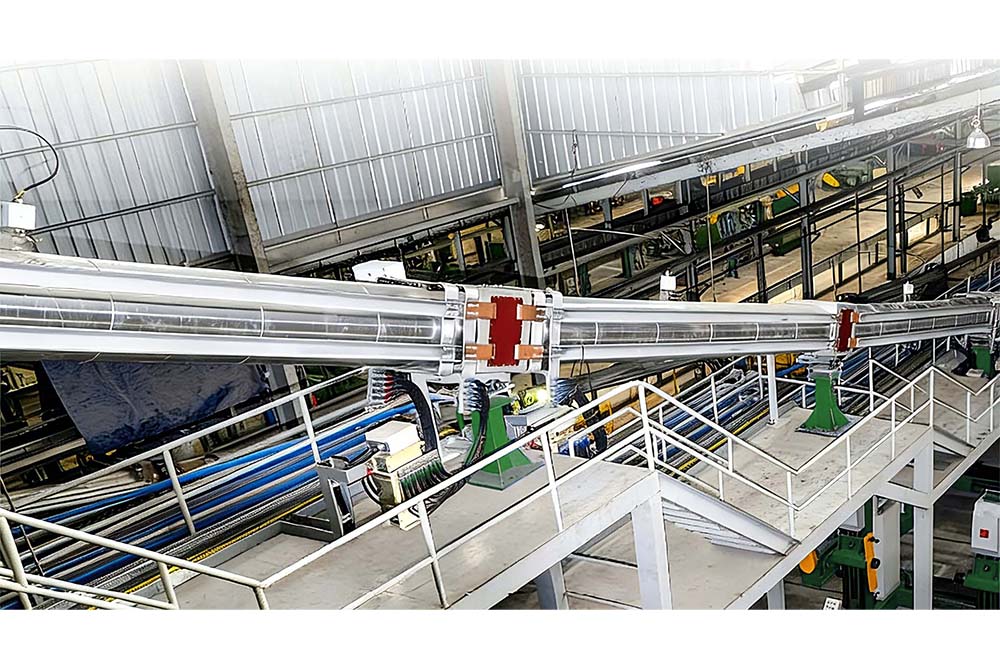

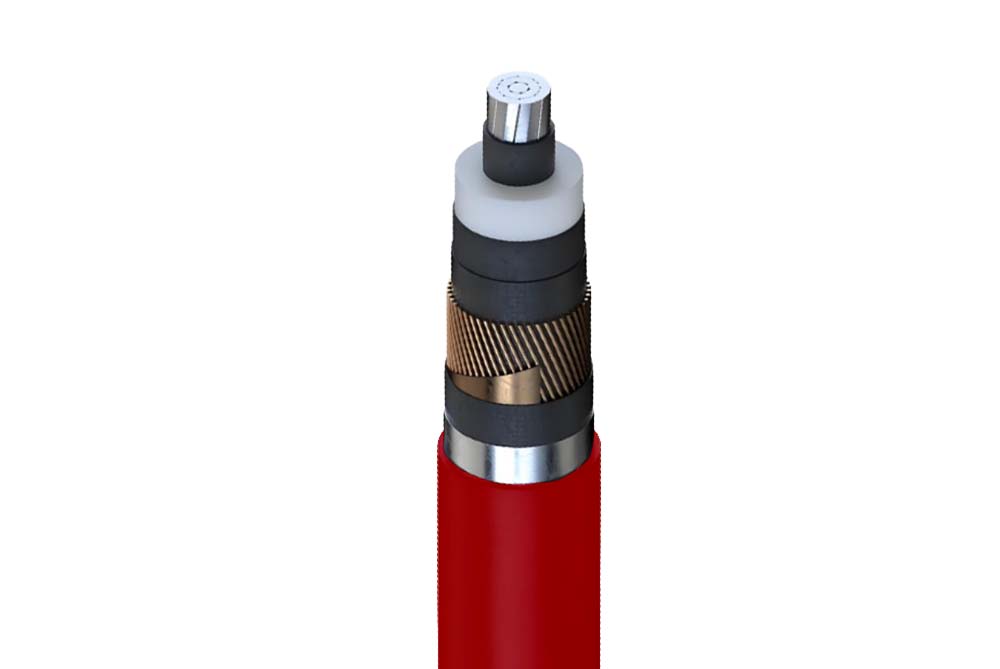

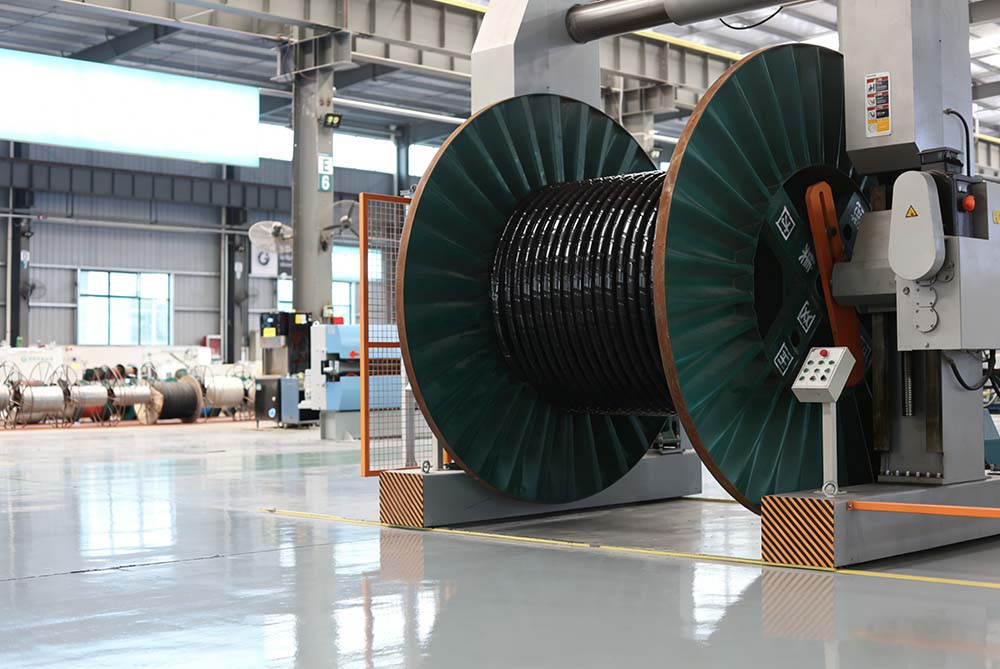

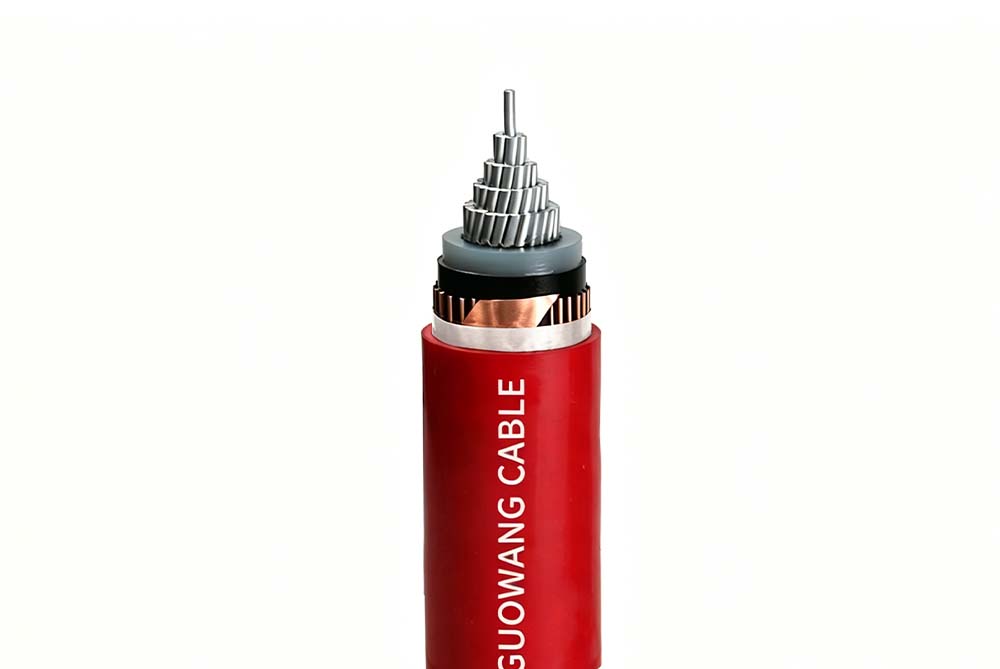

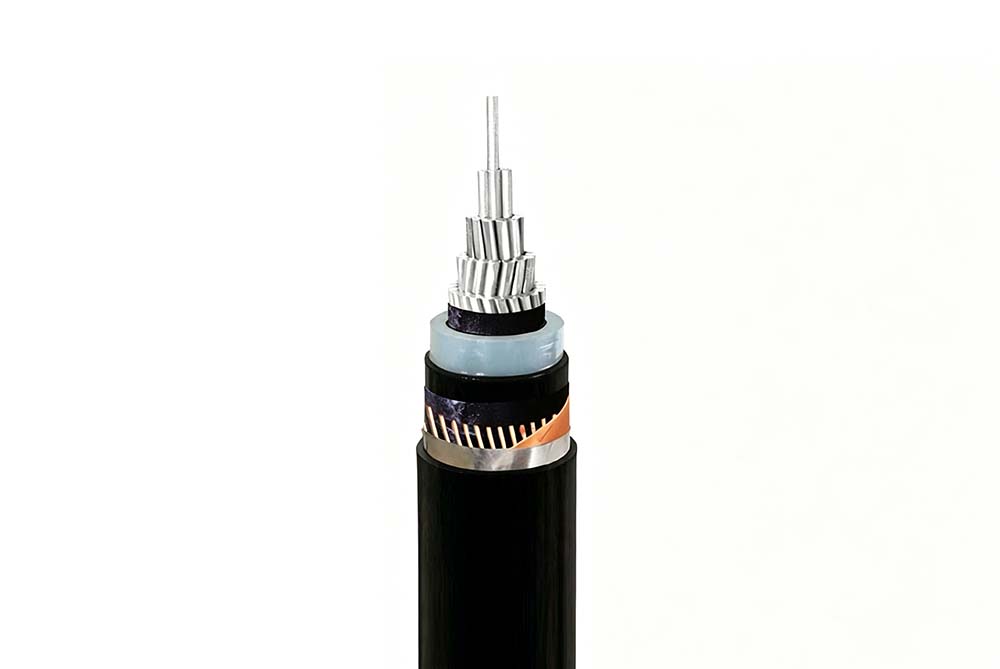

CONSTRUCTION

Conductor

Class 2 Stranded Aluminium

Conductor Screen

Semi-Conductive material

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-Conductive material

Filler

LSZH (Low Smoke Zero Halogen)

Screen

Copper Wires and Copper Tape

Sheath

LSZH (Low Smoke Zero Halogen) - UV Resistant

Sheath Colour

Red

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2		NOMINAL Conductor DIAMETER	NUMBER WIRES CONDUCTOR	NOMINAL THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS	MINIMUM INSULATION THICKNESS	NOMINAL DIAMETER OVER INSULATIOIN
NO. OF CORES	Conductor	Screen	mm	mm	INNER mm	OUTER mm	mm	mm	mm
1	50	16	8.20	7*2.90	0.50	0.40	8.00	7.10	25.2
1	70	16	9.70	19*2.18	0.50	0.40	8.00	7.10	26.7
1	95	16	11.40	19*2.55	0.50	0.40	8.00	7.10	28.4
1	120	16	12.65	19*2.90	0.50	0.40	8.00	7.10	29.7
1	150	25	14.4	19*3.16	0.50	0.40	8.00	7.10	31.4
1	185	25	15.75	37*2.55	0.50	0.40	8.00	7.10	33.2
1	240	25	18.2	37*2.90	0.50	0.40	8.00	7.10	35.7
1	300	25	20.5	61*2.55	0.50	0.40	8.00	7.10	38.0
1	400	35	23.0	61*2.90	0.50	0.40	8.00	7.10	40.5
1	500	35	26.0	61*3.20	0.50	0.40	8.00	7.10	43.5
1	630	35	30.2	61*3.65	0.50	0.40	8.00	7.10	47.7
