NA2XSH / NA2XSEH 12/20 (24)kV Cable
Voltage:	12/20 (24)kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires and copper tape
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

UV resistant Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. LSZH outer sheath allows internal and external installation including directly in ground and in cable ducts.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

12/20 (24)kV

Temperature Rating

Permissible operating temperature of conductor: +90°C

Permissible short-circuit temperature up to 5 sec: +250°C

Minimum Bending Radius

15 x overall diameter

STANDARDS

IEC 60502-2,

Flame Retardant according to IEC/EN 60332-1-2

Low Smoke Zero Halogen according to IEC/EN 61034-1/2,

IEC/EN 60754-1/2

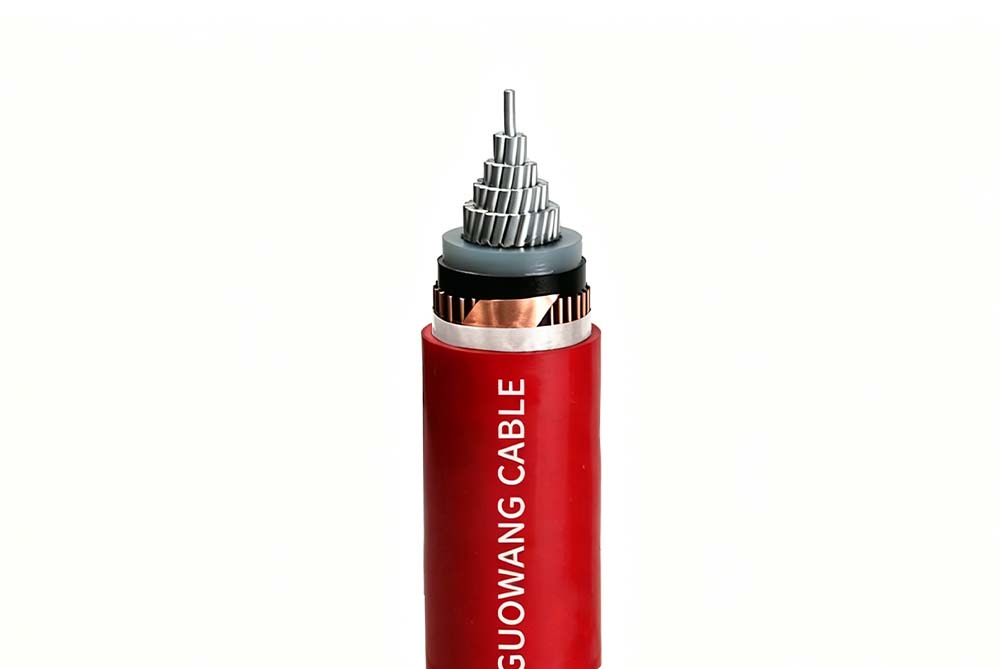

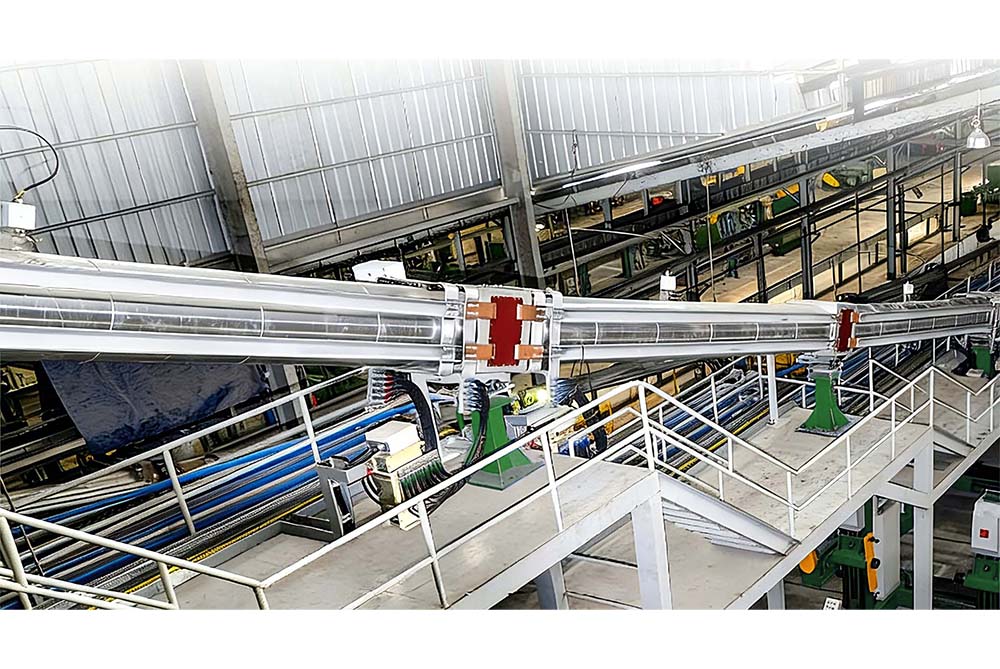

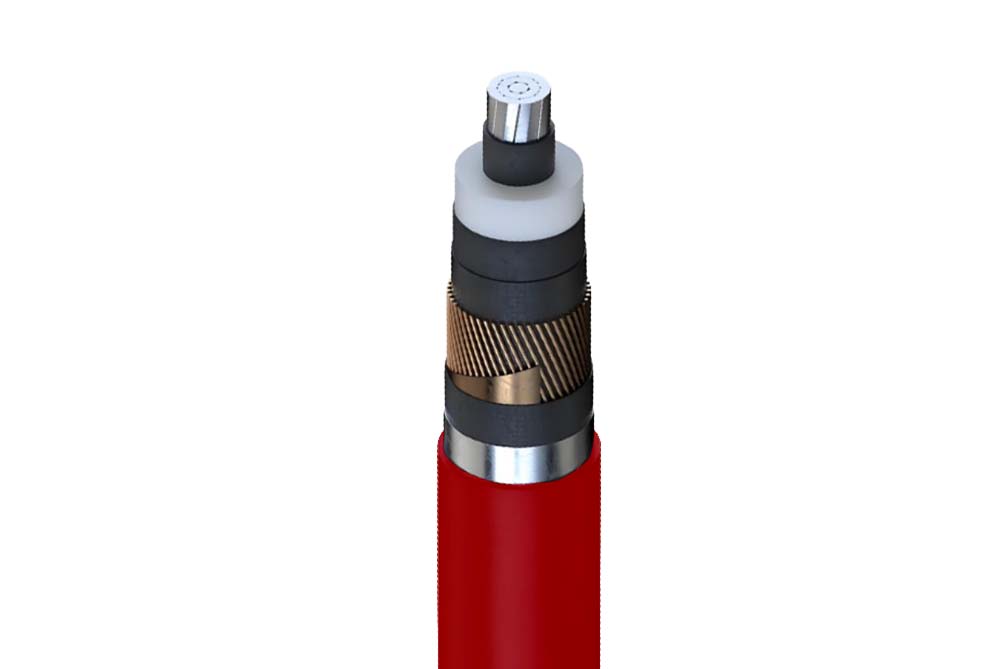

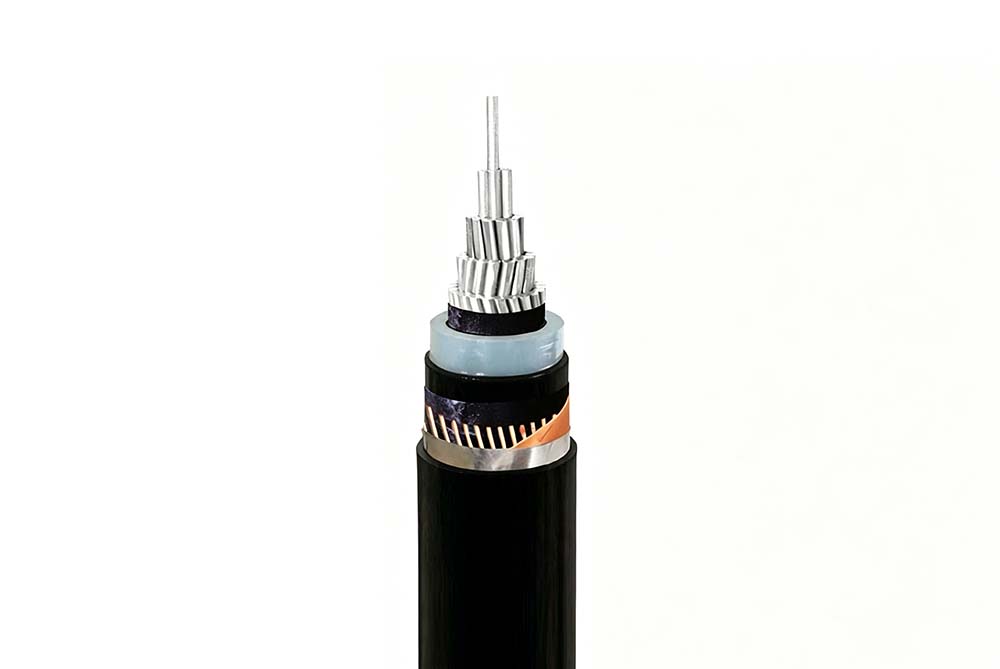

CONSTRUCTION

Conductor

Class 2 Stranded Aluminium

Conductor Screen

Semi-Conductive material

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-Conductive material

Filler

LSZH (Low Smoke Zero Halogen)

Screen

Copper Wires and Copper Tape

Sheath

LSZH (Low Smoke Zero Halogen) - UV Resistant

Sheath Colour

Red

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA		NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORE	Conductor	Copper Wire Screen	mm	KG/KM
1	35	16	27	800
1	50	16	28	850.0
1	70	16	30	950.0
1	95	16	32	1100.0
1	120	16	33	1200.0
1	150	25	34	1400.0
1	185	25	36	1600.0
1	240	25	38	1800.0
1	300	25	38	2000.0
1	400	35	43	2500.0
1	500	35	46	2900.0
1	630	35	50	3500.0
3	35	16	52	2750.0
3	50	16	55	3000
3	70	16	60	3500
3	95	16	63	4200
3	120	16	66	4500
3	150	25	70	5250
3	185	25	73	5800
3	240	25	79	6800
3	300	25	84	7800
3	400	25	90	9400
