NA2XS(FL)2Y 6/10 (12)kV Cable
Voltage:	6/10 (12)kV
Structure:	Conductor	Class 2 Stranded Aluminium
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper Wires and Tape
	Jacket	MDPE (Medium Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage power cables with additional waterblocking properties for distribution networks and generation units, suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

6/10 (12)kV

Test Voltage

21 kV AC 50Hz (15 mins)

Temperature Rating

-20°C to +60°C

Permissible Conductor Operating Temperature: +90°C

Permissible Short Circuit Temperature up to 5 sec: 250°C

Minimum Bending Radius

15 x overall diameter

STANDARDS

IEC 60502-2, IEC 60228,

UV Resistant to: ISO 4892-3

Abrasion and Tear Resistance to: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.51

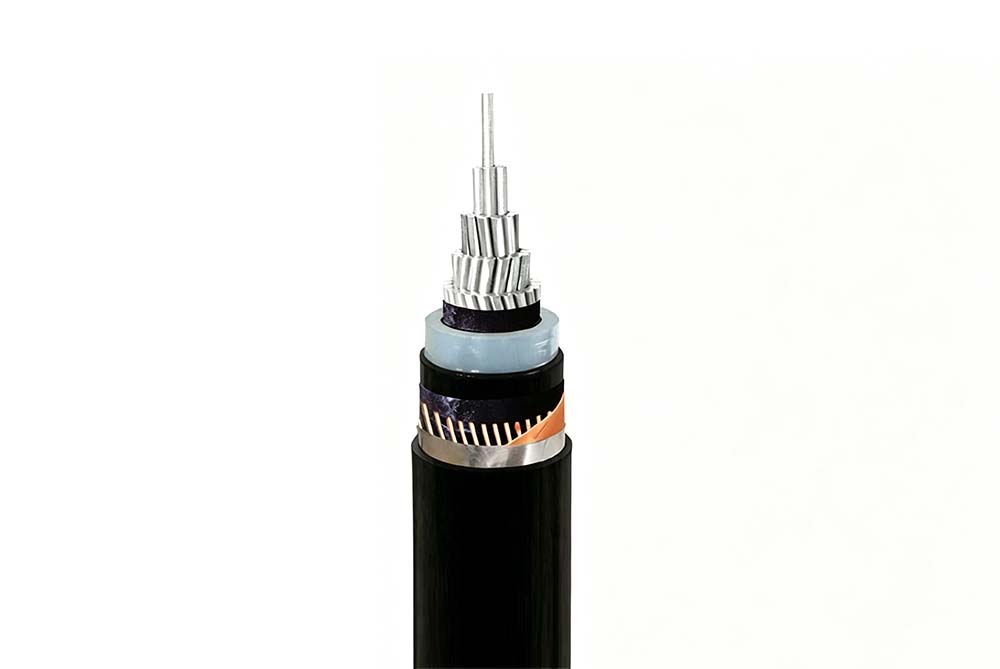

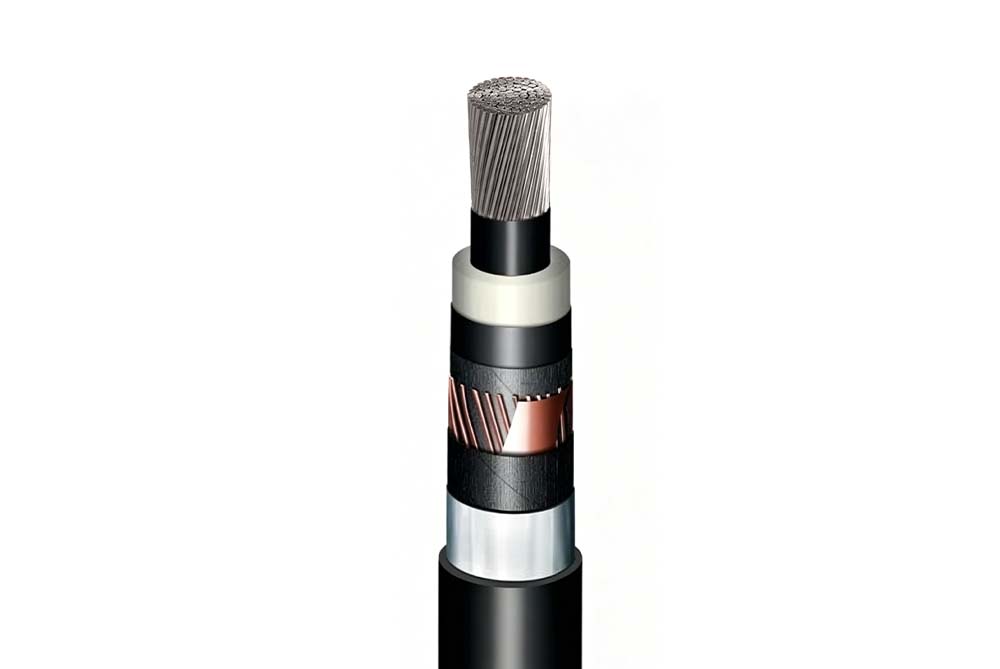

CONSTRUCTION

Conductor

Class 2 Stranded Aluminium

Conductor Screen

Semi-conductive material

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (bonded)

Longitudinal Waterblocking

Semi-conductive swellable tape

Screen

Copper wires and copper tape

Longitudinal Waterblocking

Swellable Tapes

Radial Waterblocking

Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath

Outer Sheath

MDPE (Medium Density Polyethylene)

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL SCREEN CROSS SECTIONAL AREA mm2	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	MINIMUM INSULATION THICKNESS mm	NOM. THICKNESS SEMI-CON. LAYER INNER mm	NOM. THICKNESS SEMI-CON. LAYER OUTER mm
1	50	16	8.2	7 x 2.90	3.40	16.4	2.96	0.50	0.40
1	70	16	9.7	19 x 2.18	3.40	17.9	2.96	0.50	0.40
1	95	16	11.4	19 x 2.55	3.40	19.6	2.96	0.50	0.40
1	120	16	12.65	19 x 2.90	3.40	20.9	2.96	0.50	0.40
1	150	25	14.4	19 x 3.16	3.40	22.6	2.96	0.50	0.40
1	185	25	15.8	37 x 2.55	3.40	24.4	2.96	0.50	0.40
1	240	25	18.2	37 x 2.90	3.40	26.9	2.96	0.50	0.40
1	300	25	20.5	61 x 2.55	3.40	29.2	2.96	0.50	0.40
1	400	35	23.0	61 x 2.90	3.40	31.7	2.96	0.50	0.40
1	500	35	26.0	61 x 3.20	3.40	34.7	2.96	0.50	0.40
1	630	35	30.2	61 x 3.65	3.40	38.9	2.96	0.50	0.40
