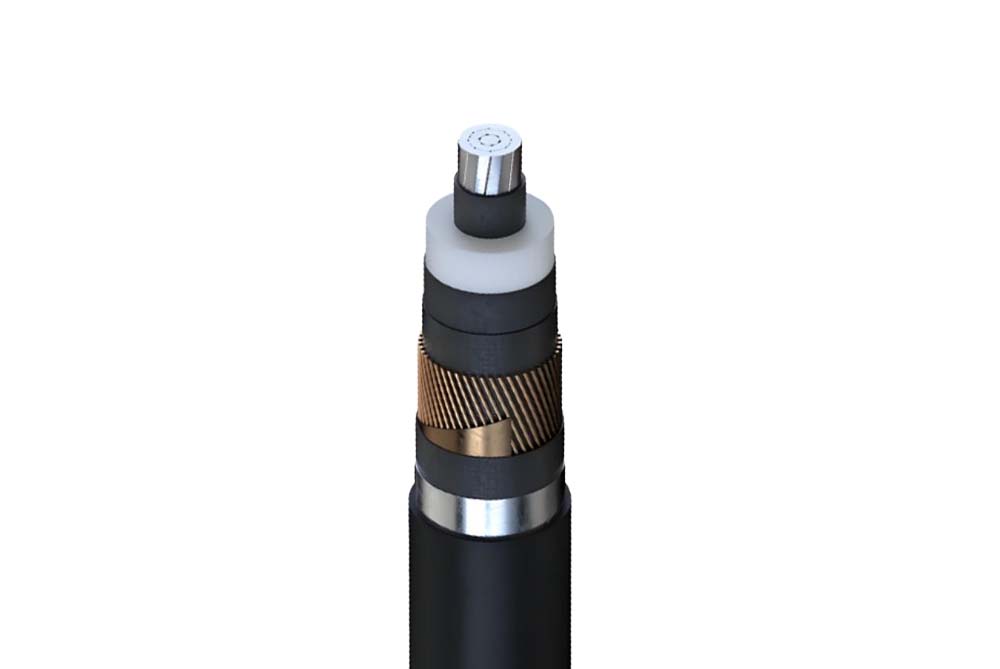

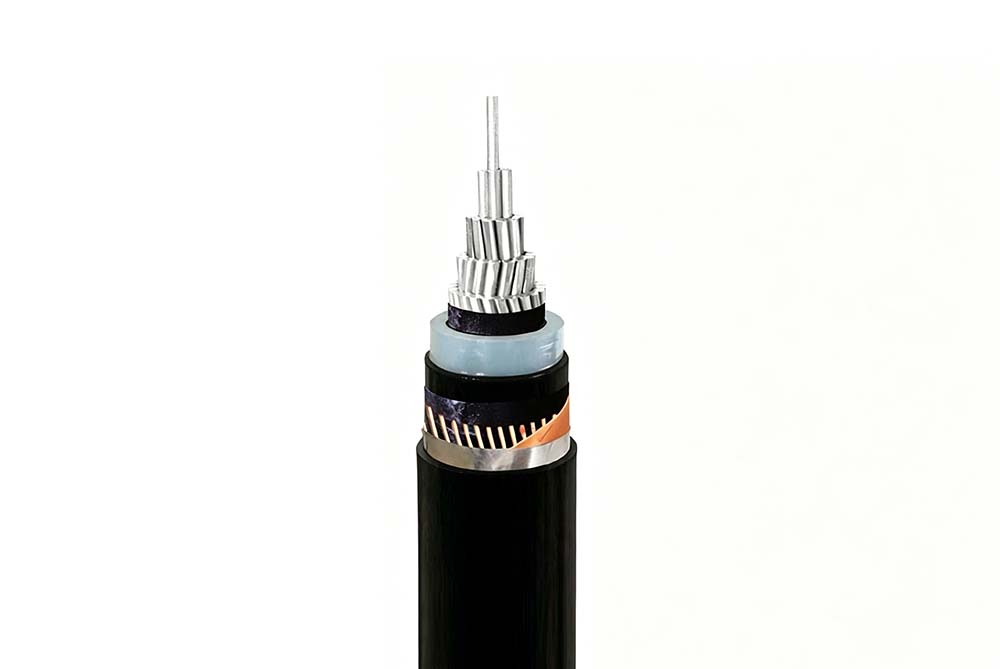

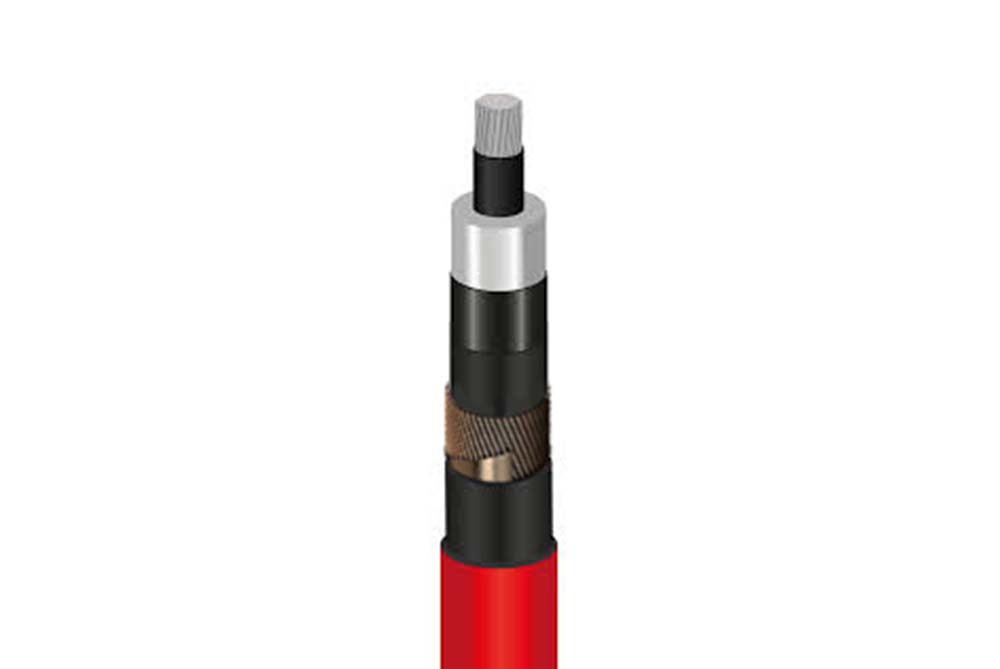

| NA2XSH / NA2XSEH 12/20 (24)kV Cable | ||
| Voltage: | 12/20 (24)kV | |

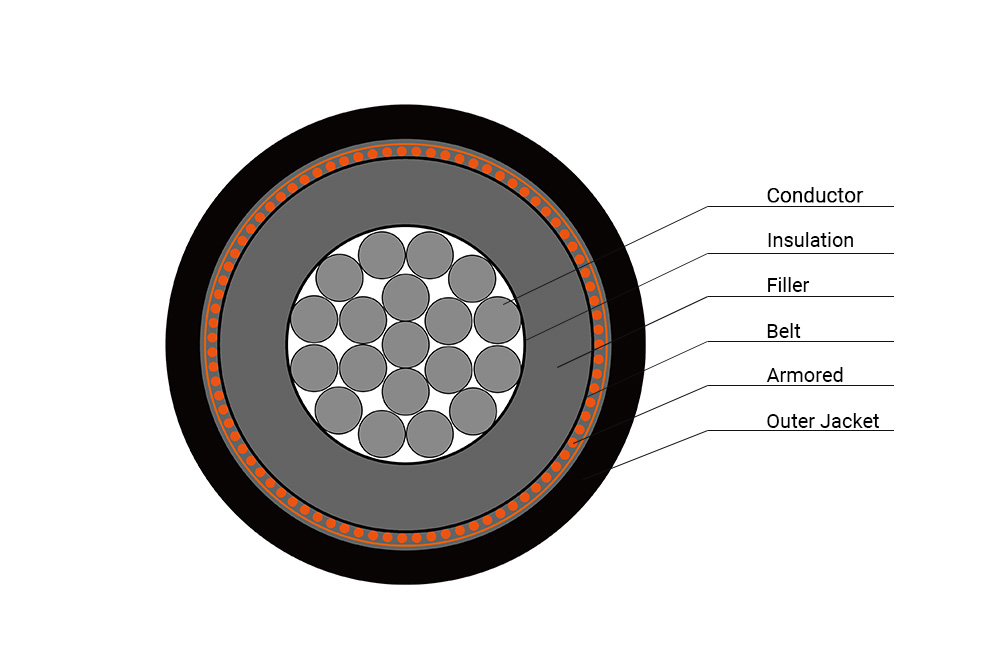

| Structure: | Conductor | Class 2 Stranded Aluminium |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Screen | Copper Wires and Tape | |
| Jacket | LSZH (Low Smoke Zero Halogen) - UV Resistant | |
UV resistant Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. LSZH outer sheath allows internal and external installation including directly in ground and in cable ducts.
12/20 (24)kV
Permissible operating temperature of conductor: +90°C
Permissible short-circuit temperature up to 5 sec: +250°C
15 x overall diameter
IEC 60502-2,
Flame Retardant according to IEC/EN 60332-1-2
Low Smoke Zero Halogen according to IEC/EN 61034-1/2,
IEC/EN 60754-1/2

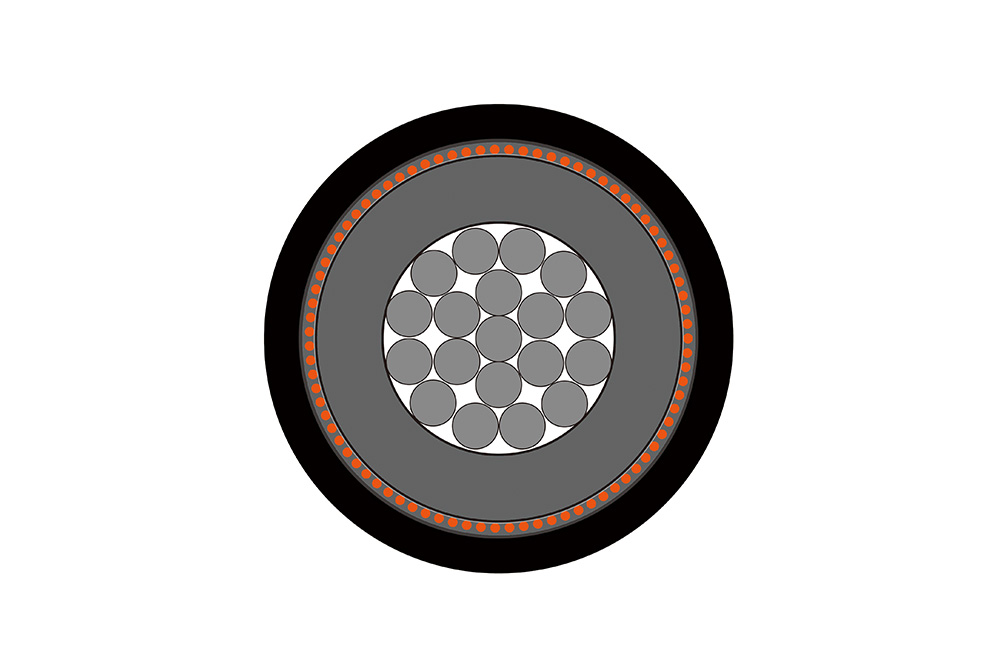

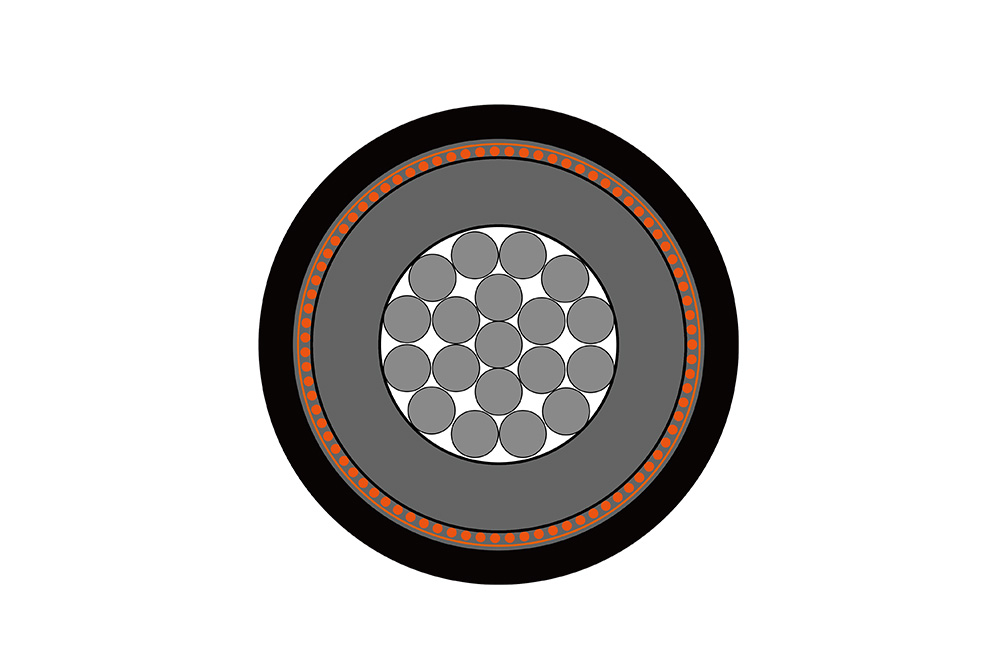

Class 2 Stranded Aluminium
Semi-Conductive material
XLPE (Cross-Linked Polyethylene)
Semi-Conductive material
LSZH (Low Smoke Zero Halogen)
Copper Wires and Copper Tape
LSZH (Low Smoke Zero Halogen) - UV Resistant
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 Conductor | NOMINAL CROSS SECTIONAL AREA mm2 Copper Wire Screen | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 1 | 35 | 16 | 27.0 | 800.0 |
| 1 | 50 | 16 | 28.0 | 850.0 |
| 1 | 70 | 16 | 30.0 | 950.0 |
| 1 | 95 | 16 | 32.00 | 1100.0 |
| 1 | 120 | 16 | 33.0 | 1200.0 |
| 1 | 150 | 25 | 34.0 | 1400.0 |
| 1 | 185 | 25 | 36.0 | 1600.0 |
| 1 | 240 | 25 | 38.0 | 1800.0 |
| 1 | 300 | 25 | 38.0 | 2000.0 |
| 1 | 400 | 35 | 43.0 | 2500.0 |
| 1 | 500 | 35 | 46.0 | 2900.0 |
| 1 | 630 | 35 | 50.0 | 3500.0 |
| 3 | 35 | 16 | 52.0 | 2750.0 |
| 3 | 50 | 16 | 55.0 | 3000.0 |
| 3 | 70 | 16 | 60.0 | 3500.0 |
| 3 | 95 | 16 | 63.0 | 4200.0 |
| 3 | 120 | 16 | 66.0 | 4500.0 |
| 3 | 150 | 25 | 70.0 | 5250.0 |
| 3 | 185 | 25 | 73.0 | 5800.0 |
| 3 | 240 | 25 | 79.0 | 6800.0 |
| 3 | 300 | 25 | 84.0 | 7800.0 |
| 3 | 400 | 25 | 90.0 | 9400.0 |
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
Generally, we can deliver regular machines to customers immediately within 7-30 days.
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；The sheathed average thickness and thinnest point
Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
