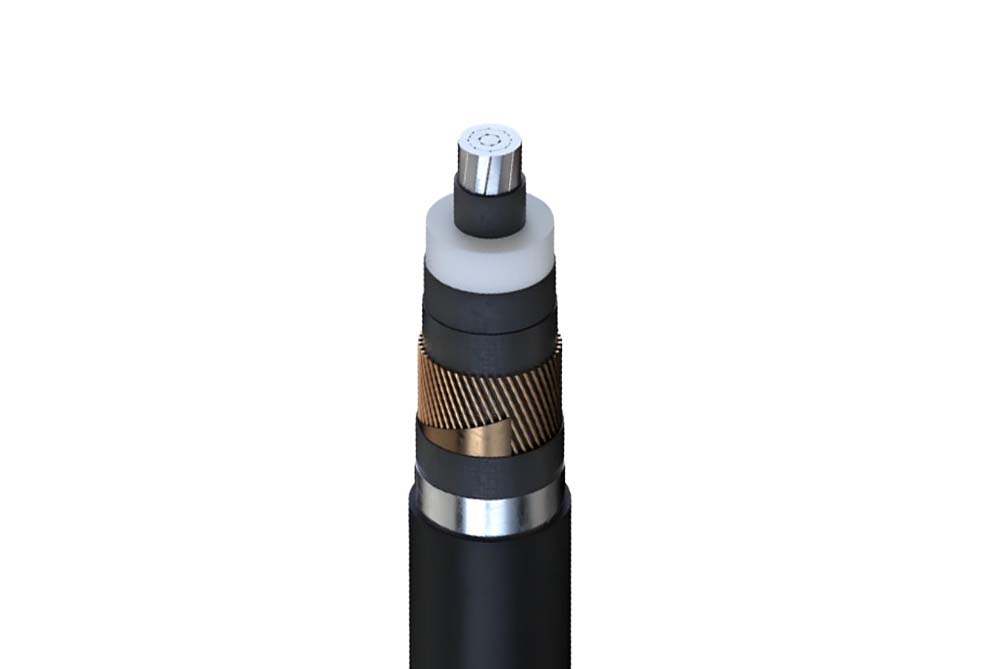

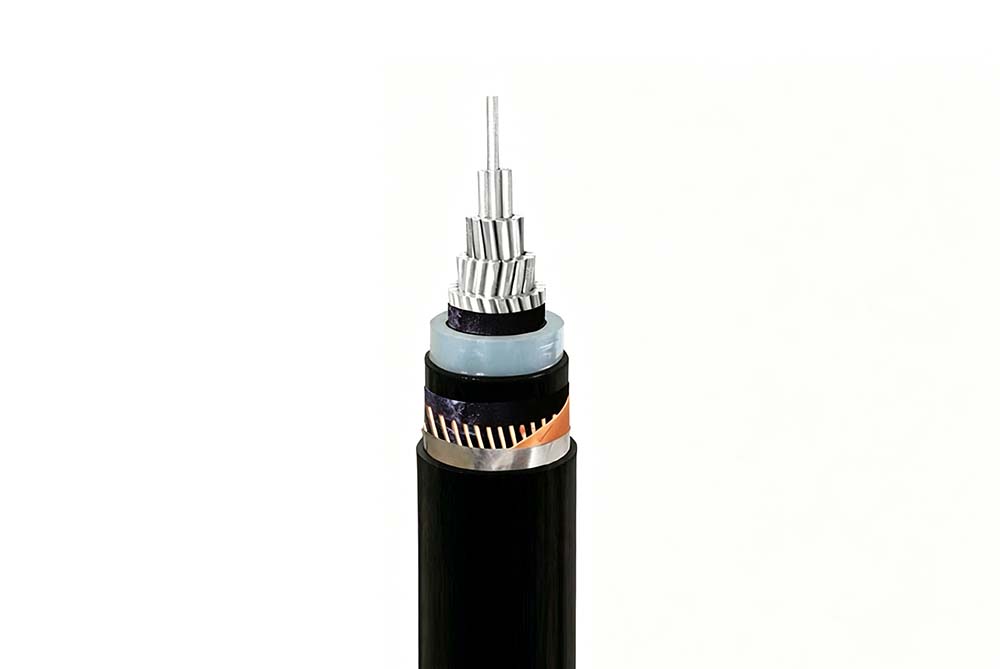

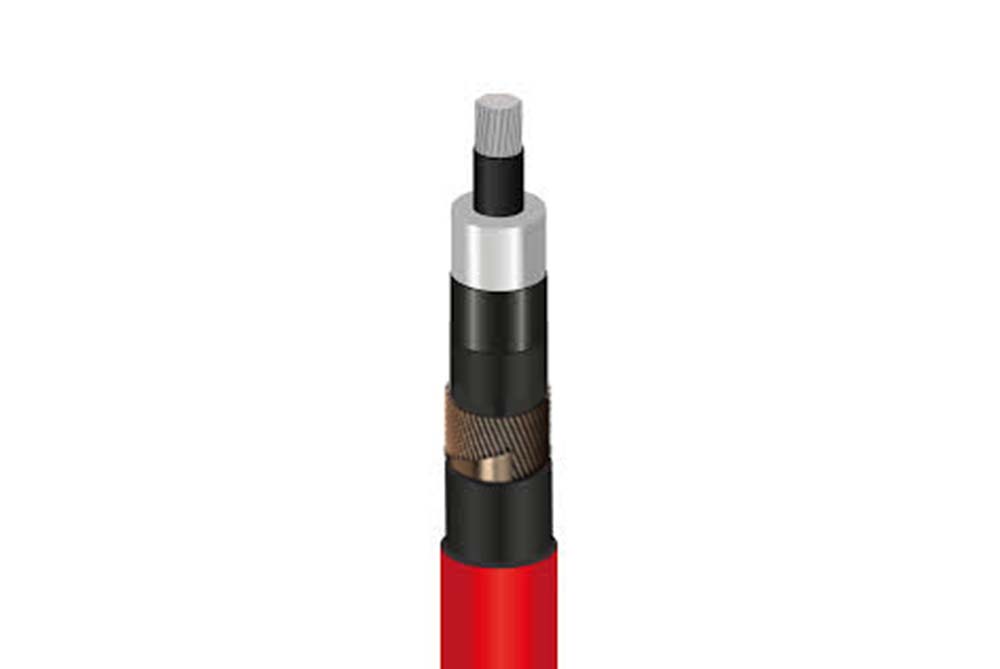

NA2XS(F)H XLPE LSZH 8.7/15 (17.5) kV Cable
Voltage:	8.7/15 (17.5) kV
Structure:	Conductor	Class 2 stranded Aluminium
	Insulation	XLPE (Cross-linked Polyethylene)
	Metallic Screen	Copper Wires and Tape
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

UV resistant Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. LSZH outer sheath allows internal and external installation including directly in ground and in cable ducts.

CHARACTERISTICS

Voltage Rating Uo/U

8.7/15 (17.5) kV

STANDARDS

IEC 60502-2, EN 60228

Low Smoke Zero Halogen to: IEC 60754-1/2, IEC 61034-2

Flame Retardant: IEC 60332-1-2

UV Resistant: ISO 4892-3

Abrasion and Tear Resistant: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.51

CONSTRUCTION

Conductor

Class 2 stranded Aluminium

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Longitudinal Waterblock

Semi-conductive water swelling tape

Metallic Screen

Copper Wires and Tape

Longitudinal Waterblock

Non-conductive water swelling tape

Sheath

LSZH (Low Smoke Zero Halogen)

Sheath Colour

Black

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	NOMINAL CONDUCTOR DIAMETER	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
NO. OF CORE	Conductor	mm	Nominal Diameter Over	Nominal Thickness	Nominal Cross Section mm2	Nominal diameter Over mm	mm	KG/KM	KN	m
1	50	8.25	18.50	4.50	16	22.6	28.10	720	1.5	0.42
1	70	9.5	19.70	4.50	25	23.8	29.40	590	2.1	0.44
1	95	11.3	21.50	4.50	35	25.6	31.20	1100	2.85	0.47
1	120	125	22.70	4.50	50	26.8	32.40	1330	3.6	0.49
1	150	14.2	24.40	4.50	50	28.5	34.10	1440	4.5	0.51
1	185	15.8	26.00	4.50	50	30.1	35.70	1580	5.55	0.54
1	240	17.9	28.10	4.50	50	32.2	37.80	1780	7.2	0.57
1	300	20.0	30.20	4.50	50	34.3	39.90	1990	9	0.60
1	400	22.9	33.10	4.50	50	37.2	42.80	2300	12	0.64
1	500	25.7	36.40	4.50	50	40.7	46.30	2710	15	0.69
1	630	29.3	40.30	4.50	50	44.6	50.30	3190	18.9	0.75
1	800	33.0	44.4	4.5	50	48.7	54.6	3780	24	0.82
1	1000	38.0	49.4	4.5	50	53.7	60	4510	30	0.90

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
