NA2XS(F)H 6/10 (12)kV Cable
Voltage:	6/10 (12)kV
Structure:	Conductor	Class 2 Stranded Aluminum
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires and copper tape
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage power cables for distribution networks and generation units. LSZH outer sheathing makes the cable suitable for internal installation as well as directly in ground, outdoors, and in cable ducts. UV Resistant.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

6/10 (12)kV

Test Voltage

21 kV AC 50Hz (15 mins)

Temperature Rating

-20°C to +60°C

Permissible Conductor Operating Temperature

+90°C

Permissible Short Circuit Temperature up to 5 sec

250°C

Minimum Bending Radius

15 x overall diameter

STANDARDS

IEC 60502-2, IEC 60228,

Low Smoke Zero Halogen: IEC 60754-1/2, IEC 61034-2

Flame Retardant: EN 60332-3-24 Cat C, IEC 60332-1-2

UV Resistant: EN 50396

Abrasion and Tear Resistant to: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.51

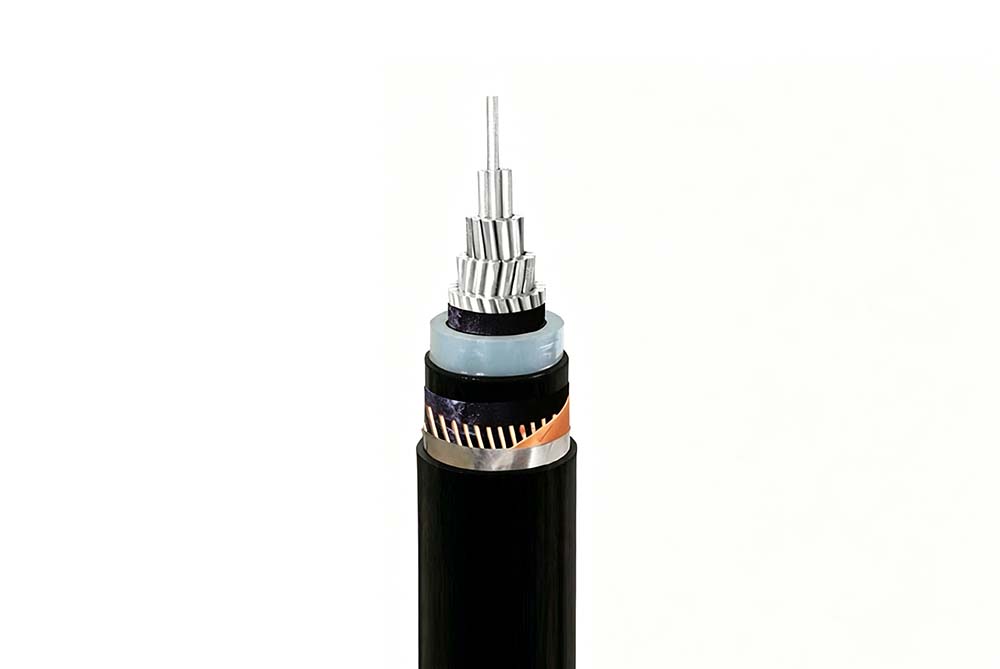

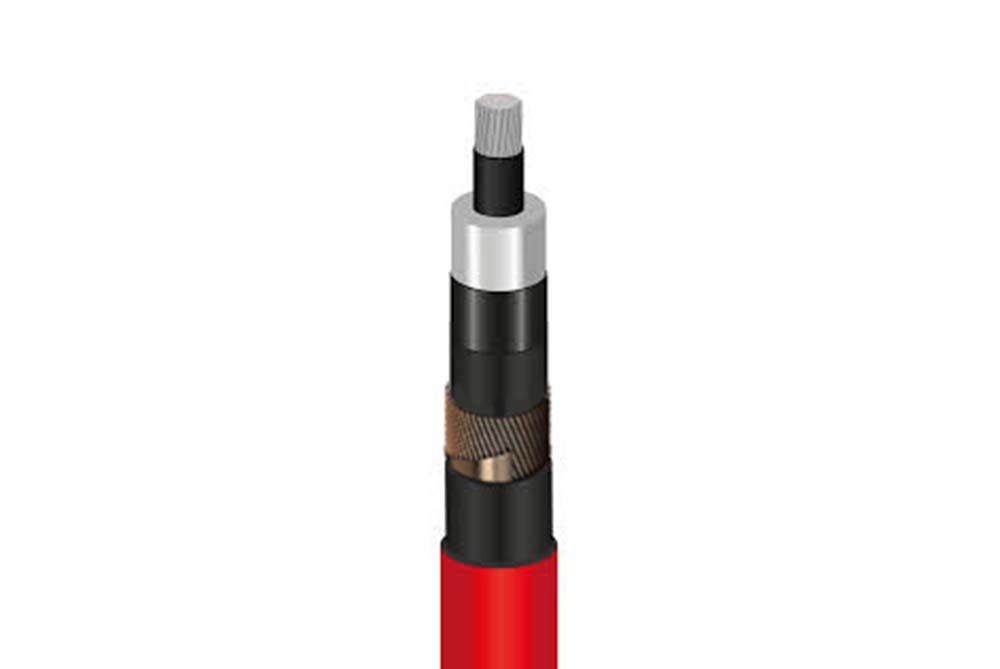

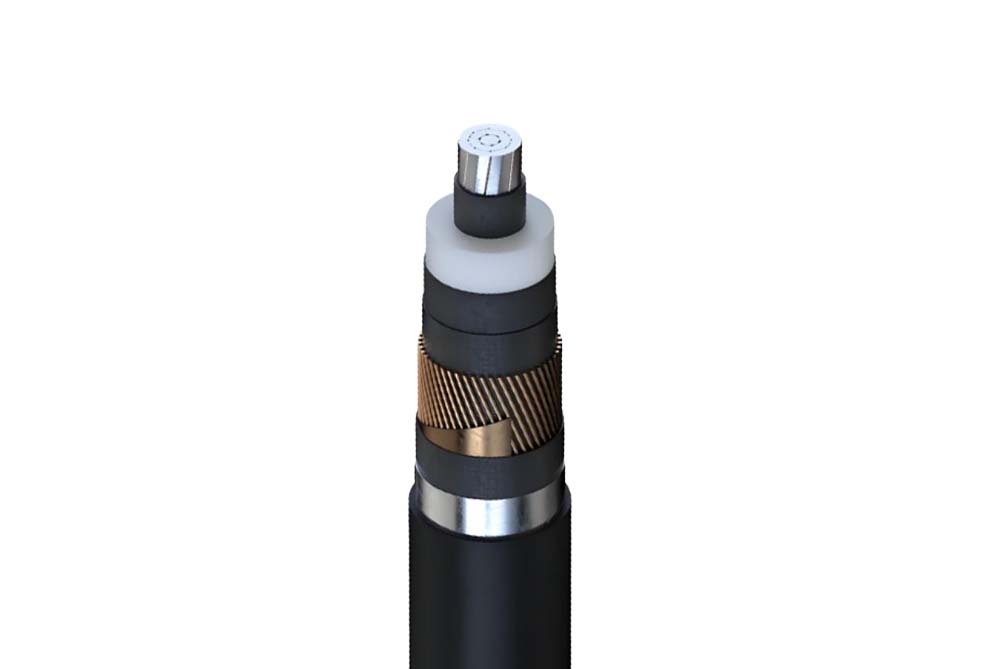

CONSTRUCTION

Conductor

Class 2 Stranded Aluminium

Conductor Screen

Semi-conductive material

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (bonded)

Longitudinal Waterblocking

Semi-conductive swellable tape

Screen

Copper wires and copper tape

Longitudinal Waterblocking

Swellable Tapes

Outer Sheath

LSZH (Low Smoke Zero Halogen) - UV Resistant

Sheath Colour

Red Black

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2		NOMINAL Conductor DIAMETER	NUMBER WIRES CONDUCTOR	NOMINAL THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS	MINIMUM INSULATION THICKNESS	NOMINAL DIAMETER OVER INSULATIOIN
NO. OF CORES	Conductor	Screen	mm	mm	INNER mm	OUTER mm	mm	mm	mm
1	50	16	8.20	7*2.90	0.50	0.40	3.4	2.96	16.4
1	70	16	9.70	19*2.18	0.50	0.40	3.4	2.96	17.9
1	95	16	11.4	19*2.55	0.50	0.40	3.4	2.96	19.6
1	120	16	12.65	19*2.90	0.50	0.40	3.4	2.96	20.9
1	150	25	14.4	19*3.16	0.50	0.40	3.4	2.96	22.6
1	185	25	15.75	37*2.55	0.50	0.40	3.4	2.96	24.4
1	240	25	18.2	37*2.90	0.50	0.40	3.4	2.96	26.9
1	300	25	20.5	61*2.55	0.50	0.40	3.4	2.96	29.2
1	400	35	23.0	61*2.90	0.50	0.40	3.4	2.96	31.7
1	500	35	26.0	61*3.20	0.50	0.40	3.4	2.96	34.7
1	630	35	30.2	61*3.65	0.50	0.40	3.4	2.96	38.9

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
