NA2XS(F)2Y XLPE HDPE 8.7/15 (17.5)kV Cable-NA2XS(F)2Y-Medium Voltage Cable Manufacturers

NA2XS(F)2Y XLPE HDPE 8.7/15 (17.5)kV Cable
Voltage:	8.7/15 (17.5) kV
Structure:	Conductor	Class 2 stranded Aluminium
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper Wires and Tape
	Jacket	HDPE (High Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage Aluminium HDPE power distribution cable with particular application in wind energy installations. Longitudinally sealed cables for aid protection against water ingress.

CHARACTERISTICS

Voltage Rating Uo/U

8.7/15 (17.5) kV

STANDARDS

IEC 60502-2, EN 60228

UV Resistant: ISO 4892-3

Abrasion and Tear Resistant: EN 60229-4. 1

Impact rated to: AG2 EN 60364-5.5 1

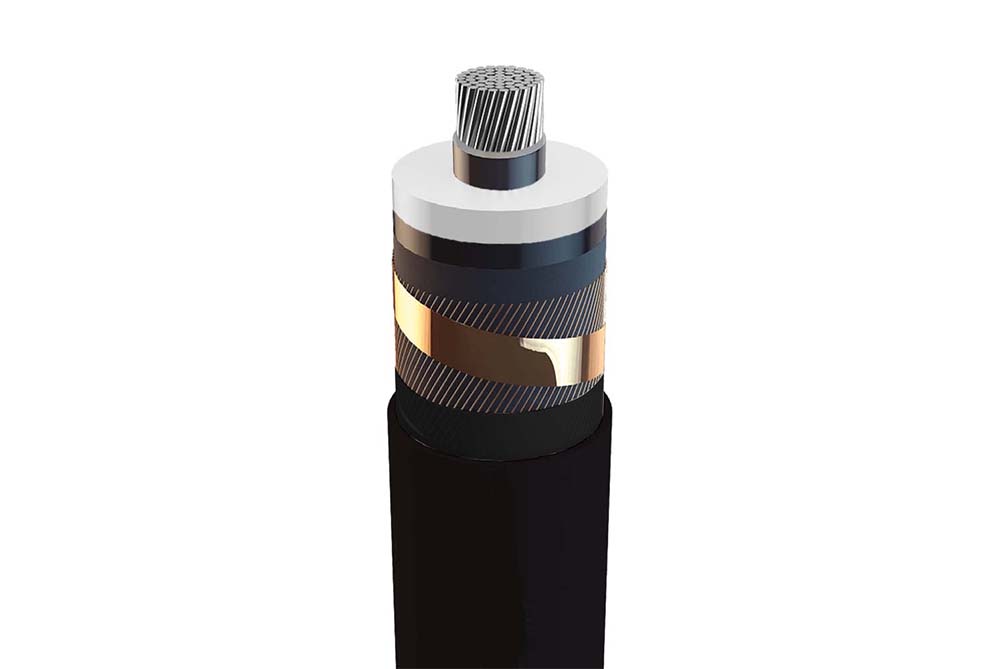

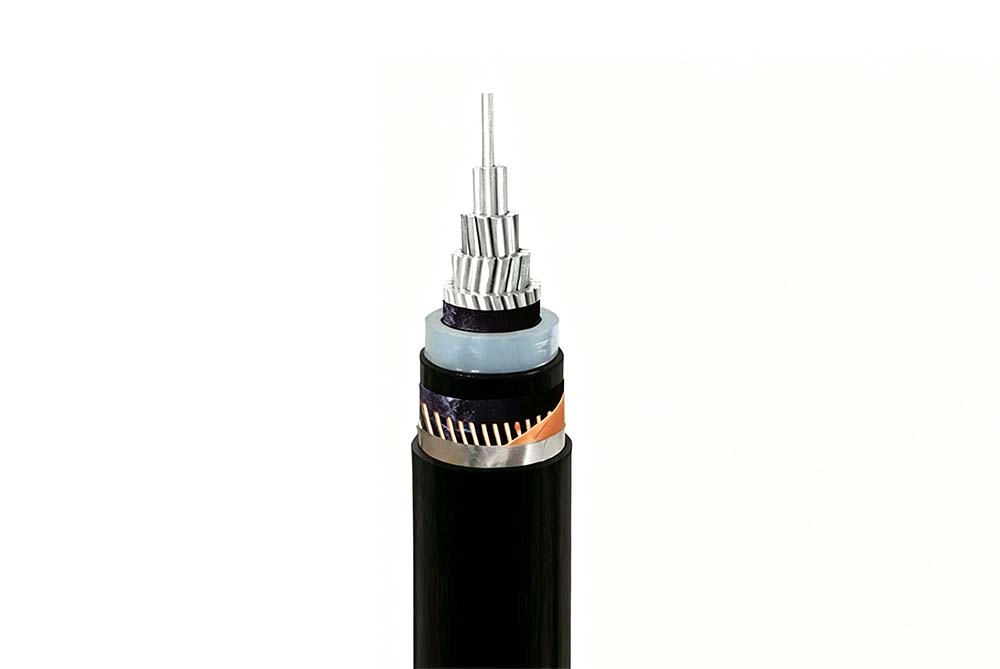

CONSTRUCTION

Conductor

Class 2 stranded Aluminium

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Longitudinal Waterblock

Semi-conductive water swelling tape

Metallic Screen

Copper Wires and Tape

Longitudinal Waterblock

Non-conductive water swelling tape

Sheath

HDPE (High Density Polyethylene)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
NO. OF CORES	mm2	mm	NOMINAL THICKNESS	Nominal Diameter Over	Nominal Cross Section mm2	Nominal diameter Over mm	mm	KG/KM	KN	m
1	50	8.25	4.5	18.5	16	22.6	28.1	720	1.5	0.42
1	70	9.5	4.5	19.7	25	23.8	29.4	890	2.1	0.44
1	95	11.3	4.5	21.5	35	25.6	31.2	1100	2.85	0.47
1	120	12.5	4.5	22.7	50	26.8	32.4	1330	3.6	0.49
1	150	14.2	4.5	24.4	50	28.5	34.1	1440	4.5	0.51
1	185	15.8	4.5	26.0	50	30.1	35.7	1580	5.55	0.54
1	240	17.9	4.5	28.1	50	32.2	37.8	1780	7.2	0.57
1	300	20.0	4.5	30.2	50	34.3	39.9	1990	9	0.60
1	400	22.9	4.5	33.1	50	37.2	42.8	2300	12	0.64
1	500	25.7	4.5	36.4	50	40.7	46.3	2710	15	0.69
1	630	29.3	4.5	40.3	50	44.6	50.3	3190	18.9	0.75
1	800	33.0	4.5	44.4	50	48.7	54.6	3780	24	0.82
1	1000	38.0	4.5	49.4	50	53.7	60.0	4510	30	0.90

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
