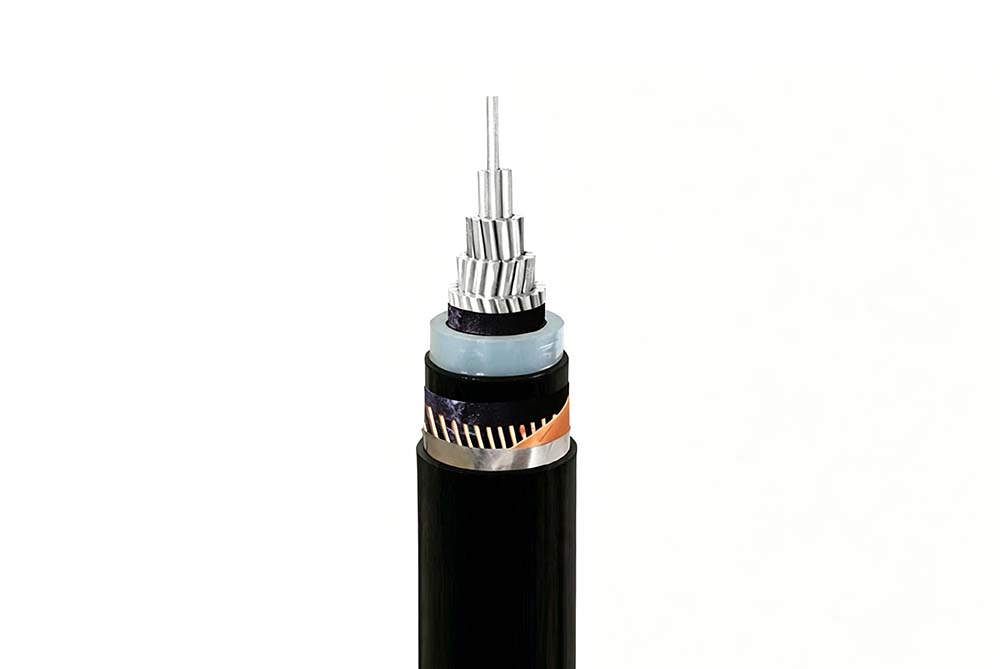

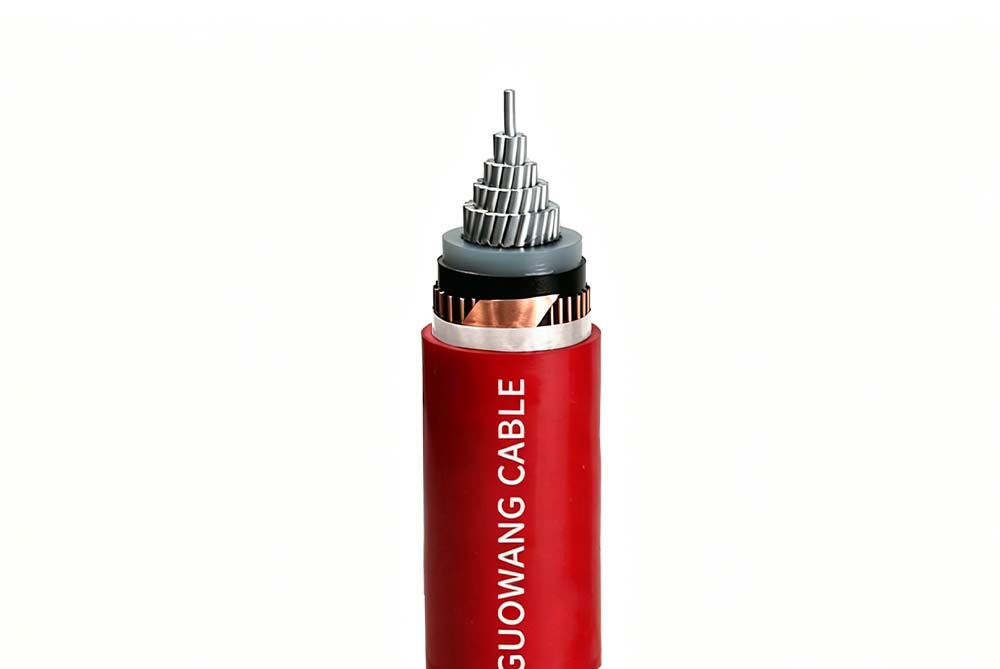

NA2XS2Y 12/20 (24)kV Cable | ||
Voltage: | 12/20 (24)kV | |
Structure: | Conductor | Class 2 stranded compacted aluminium |
Insulation | XLPE (Cross-Linked Polyethylene) | |
Screen | Copper Wires and Tape | |
Jacket | MDPE (Medium Density Polyethylene) |
Medium voltage power cables for distribution networks and generation units, suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant.
12/20 (24)kV
42kV AC 50Hz (5 mins)
-20°C to +60°C
Permissible Conductor Operating Temperature: +90°C
Permissible Short Circuit Temperature up to 5 sec: 250°C
15 x overall diameter
IEC 60502-2, IEC 60228,
UV Resistant: ISO 4892-3
Abrasion and Tear Resistant: EN 60229-4.1
Impact rated to: AG2 EN 60364-5.51
Class 2 Stranded Aluminium
Semi-conductive material
XLPE (Cross-Linked Polyethylene)
Semi-conductive material (bonded)
Copper wires and copper tape
MDPE (Medium Density Polyethylene)
NO. OF CORE | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL CONDUCTOR DIAMETER | NUMBER WIRES CONDUCTOR | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS | MINIMUM INSULATION THICKNESS | NOMINAL DIAMETER OVER INSULATION | ||
Conductor | Screen | mm | mm | INNER mm | OUTER mm | mm | mm | mm | |
1 | 50 | 16 | 8.20 | 7*2.90 | 0.50 | 0.40 | 5.50 | 4.85 | 20.4 |
1 | 70 | 16 | 9.70 | 19*2.18 | 0.50 | 0.40 | 5.50 | 4.85 | 21.9 |
1 | 95 | 16 | 11.4 | 19*2.55 | 0.50 | 0.40 | 5.50 | 4.85 | 23.6 |
1 | 120 | 16 | 12.65 | 19*2.90 | 0.50 | 0.40 | 5.50 | 4.85 | 24.9 |
1 | 150 | 25 | 14.4 | 19*3.16 | 0.50 | 0.40 | 5.50 | 4.85 | 26.6 |
1 | 185 | 25 | 15.75 | 37*2.55 | 0.50 | 0.40 | 5.50 | 4.85 | 28.4 |
1 | 240 | 25 | 18.2 | 37*2.90 | 0.50 | 0.40 | 5.50 | 4.85 | 30.9 |
1 | 300 | 25 | 20.5 | 61*2.55 | 0.50 | 0.40 | 5.50 | 4.85 | 33.2 |
1 | 400 | 35 | 23.0 | 61*2.90 | 0.50 | 0.40 | 5.50 | 4.85 | 35.7 |
1 | 500 | 35 | 26.0 | 61*3.20 | 0.50 | 0.40 | 5.50 | 4.85 | 38.7 |
1 | 630 | 35 | 30.2 | 61*3.65 | 0.50 | 0.40 | 5.50 | 4.85 | 42.9 |
