NA2XS2Y XLPE MDPE 8.7/15 (17.5) kV Cable
Voltage:	8.7/15 (17.5)kV
Structure:	Conductor	Class 2 stranded compacted aluminium
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper Wires and Tape
	Jacket	MDPE (Medium Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage Aluminium MDPE power distribution cable with particular application in wind energy installations.

CHARACTERISTICS

Voltage Rating Uo/U

8.7/15 (17.5) kV

STANDARDS

IEC 60502-2

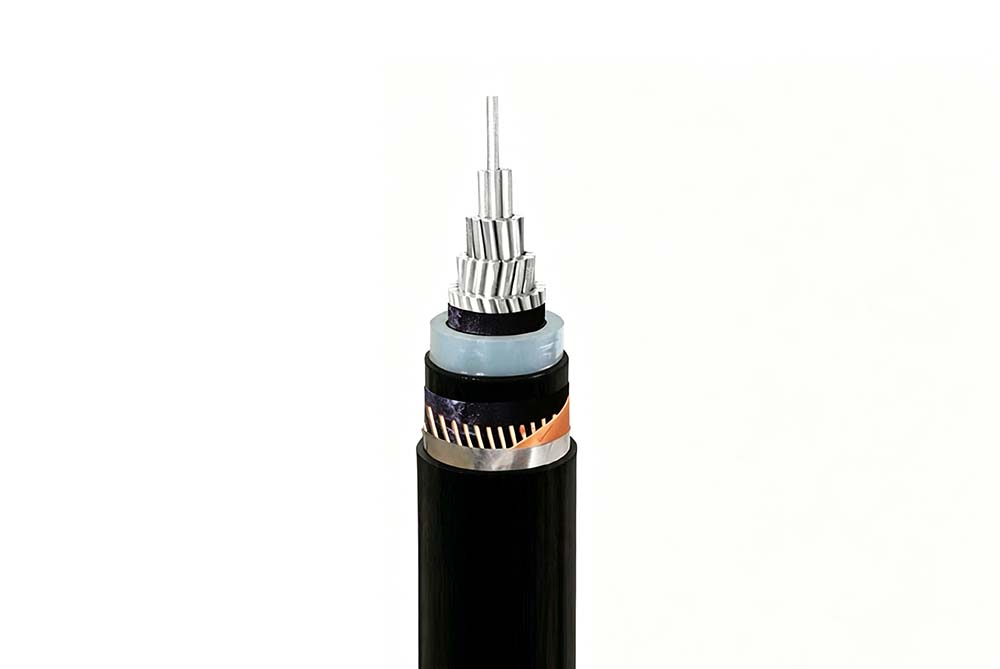

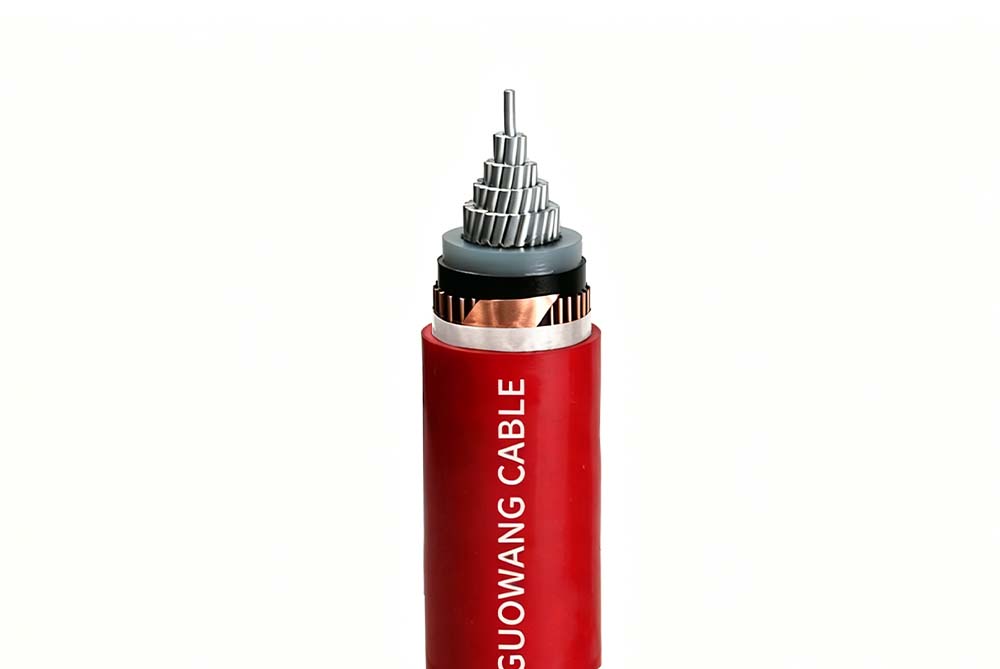

CONSTRUCTION

Conductor

Class 2 stranded compacted aluminium

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Wrapping

Non swelling semi conductive tape

Metallic Screen

Copper Wires and Tape

Wrapping

Polyester tape

Sheath

MDPE (Medium Density Polyethylene)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
NO. OF CORES	mm2	mm	NOMINAL THICKNESS	Nominal Diameter Over	Nominal Cross Section mm2	Nominal diameter Over mm	mm	KG/KM	KN	m
1	50	8.25	4.5	18.5	16	22.4	27.1	780	1.5	0.41
1	70	9.5	4.5	19.7	25	23.6	28.4	950	2.1	0.43
1	95	11.3	4.5	21.5	35	25.4	30.2	1160	2.85	0.45
1	120	12.5	4.5	22.7	50	26.6	31.4	1400	3.6	0.47
1	150	14.2	4.5	24.4	50	18.3	33.1	1520	4.5	0.50
1	185	15.8	4.5	26.0	50	29.9	34.7	1660	5.55	0.52
1	240	17.9	4.5	28.1	50	32.0	36.8	1870	7.2	0.55
1	300	20.0	4.5	30.2	50	34.1	38.9	2080	9	0.58
1	400	22.9	4.5	33.1	50	37.0	41.8	2390	12	0.63
1	500	25.7	4.5	36.4	50	40.5	45.3	2810	15	0.68
1	630	29.3	4.5	40.3	50	44.4	49.3	3310	18.9	0.74
1	800	33.0	4.5	44.4	50	48.5	53.6	3920	24	0.80
1	1000	38.0	4.5	49.4	50	53.5	59.0	4680	30	0.89
