N2XSY XLPE PVC - 12/20 (24)kV Cable
Voltage:	12/20 (24)kV
Structure:	Conductor	Class 2 Stranded copper conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires with Open Helix Copper Tape Screen
	Jacket	PVC (Polyvinyl Chloride)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

12/20 (24)kV

Temperature Rating

Maximum conductor operating temperature: 90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

15 x overall diameter

STANDARDS

IEC 60502-2, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

UV Resistant

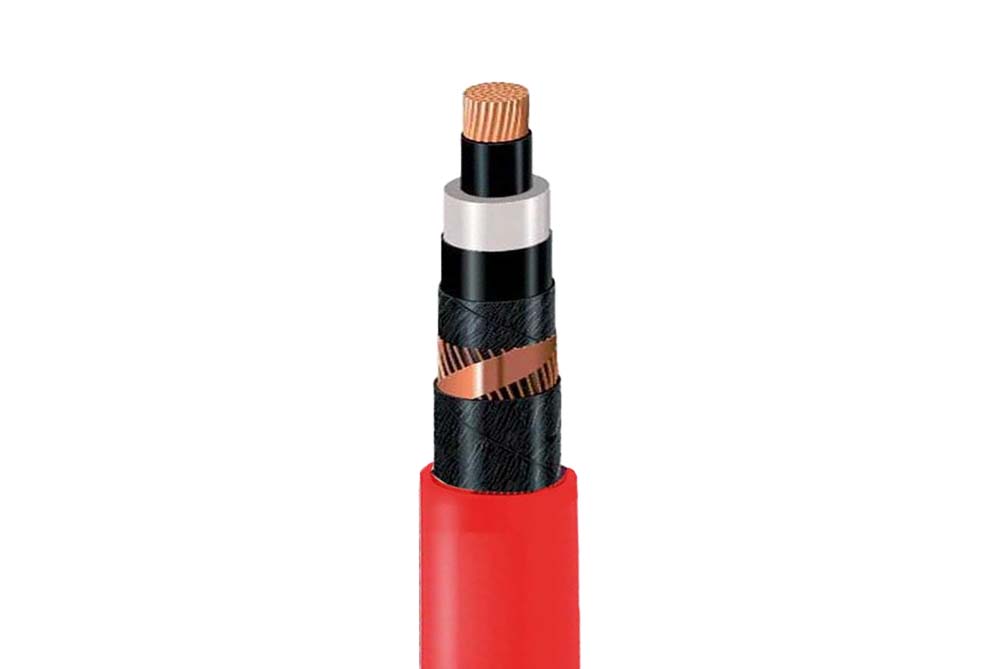

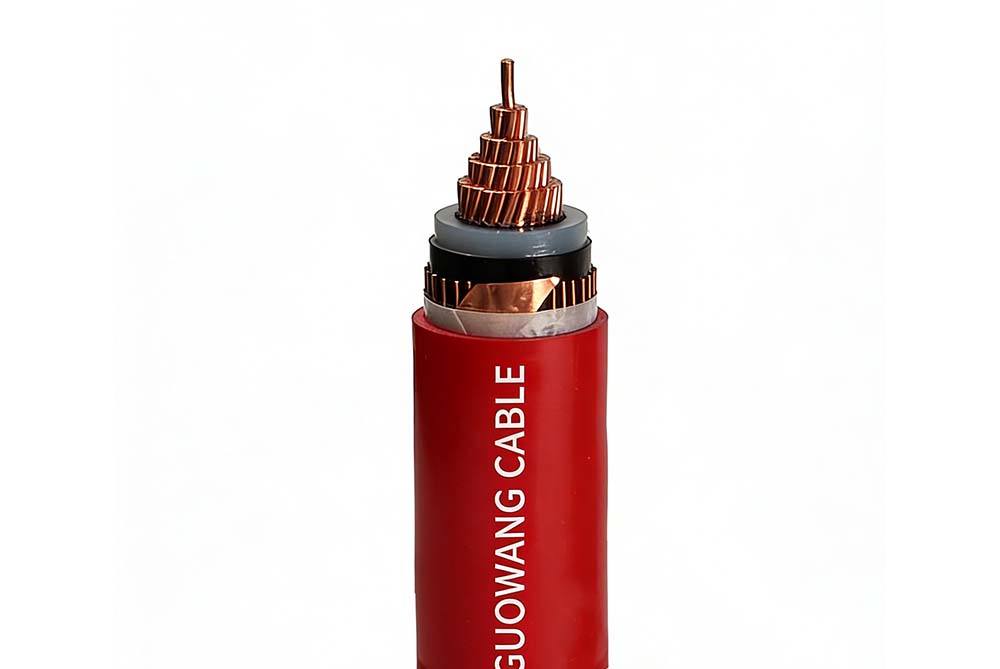

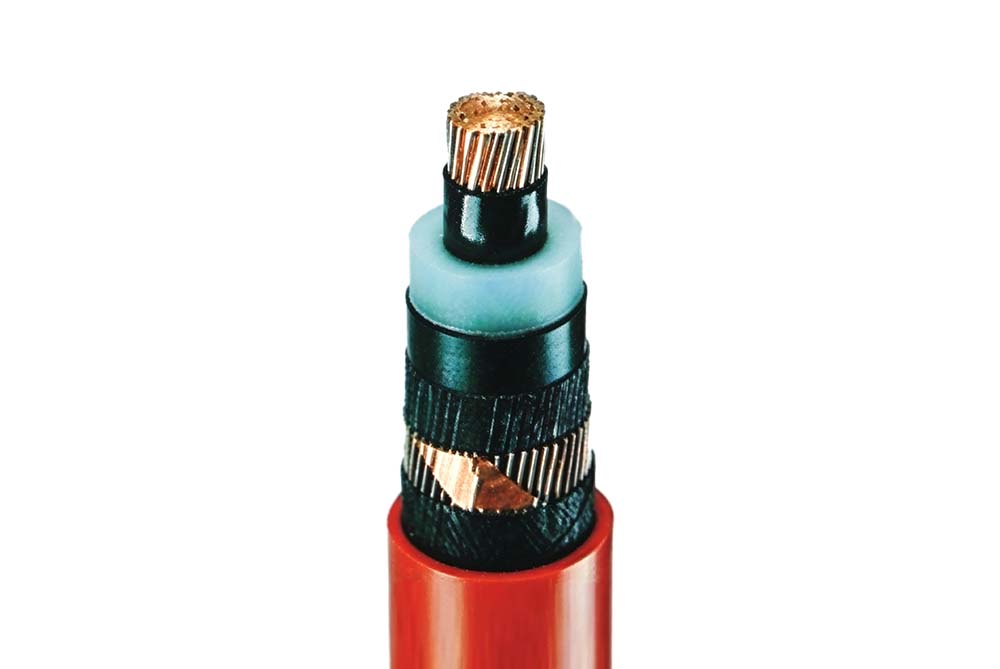

CONSTRUCTION

Conductor

Class 2 Stranded copper conductor

Inner Semi-Conductive Layer

Semi-conductive material (Bonded Type)

Insulation

XLPE (Cross-Linked Polyethylene)

Outer Semi-Conductive Layer

Semi-conductive material (Strippable Type)

Screen

Copper wires with Open Helix Copper Tape Screen

Sheath

PVC (Polyvinyl Chloride)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL SCREEN CROSS SECTIONAL AREA	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES	mm2	mm2	mm	mm	mm	kg/km
1	50	16	5.5	1.8	26.0	1056
1	70	16	5.5	1.9	28.0	1301
1	95	16	5.5	1.9	29.3	1567
1	120	16	5.5	2	30.9	1840
1	150	25	5.5	2	32.7	2221
1	185	25	5.5	2.1	34.2	2572
1	240	25	5.5	2.2	36.8	3182
1	300	25	5.5	2.2	39.2	3764
1	400	35	5.5	2.3	42.2	4715
1	500	35	5.5	2.4	45.8	5748
1	630	35	5.5	2.5	50.7	7215
1	800	35	5.5	2.7	55.2	9072
