| N2XS(FL)H 6/10 (12)kV Cable | ||
| Voltage: | 6/10 (12)kV | |
| Structure: | Conductor | Class 2 Stranded Copper |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Screen | Copper wires and copper tape | |
| Jacket | LSZH (Low Smoke Zero Halogen) | |
Medium voltage power cables for distribution networks and generation units. LSZH outer sheathing makes the cable suitable for internal installation as well as directly in ground, outdoors, and in cable ducts. UV Resistant.
6/10 (12)kV
21kV AC 50Hz (15 mins)
-20°C to +60°C
+90°C
250°C
15 x overall diameter
IEC 60502-2, IEC 60228,
Low Smoke Zero Halogen: IEC 60754-1/2, IEC 61034-2
Flame Retardant: EN 60332-3-24 Cat C, IEC 60332-1-2
UV Resistant: EN 50396
Abrasion and Tear Resistant: EN 60229-4.1
Impact rated to: AG2 EN 60364-5.51

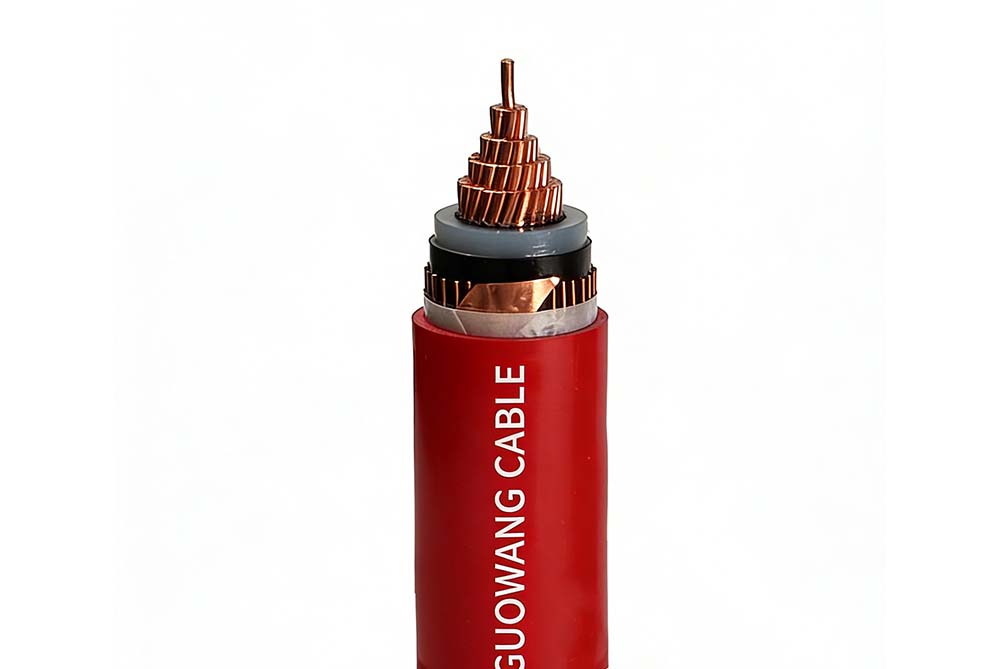

Class 2 Stranded Copper
Semi-conductive material
XLPE (Cross-Linked Polyethylene)
Semi-conductive material (bonded)
Semi-conductive swellable tape
Copper wires and copper tape
Swellable Tapes
Al/PET (Aluminium/Polyester) tape tightly bonded to sheath
LSZH (Low Smoke Zero Halogen)
Red Black
| NO. OF CORE | NOMINAL CROSS SECTIONAL AREA | NOMINAL Conductor DIAMETER | NUMBER WIRES CONDUCTOR | NOMINAL THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS | MINIMUM INSULATION THICKNESS | NOMINAL DIAMETER OVER INSULATIOIN | ||
| Conductor | Screen | mm | mm | INNER mm | OUTER mm | mm | mm | mm | |
| 1 | 50 | 16 | 8.1 | 10*2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 16.3 |
| 1 | 70 | 16 | 9.7 | 14*2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19*2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 19.6 |
| 1 | 120 | 16 | 12.7 | 19*2.97 | 0.50 | 0.40 | 3.40 | 2.96 | 20.9 |
| 1 | 150 | 25 | 14.5 | 19*3.20 | 0.50 | 0.40 | 3.40 | 2.96 | 22.7 |
| 1 | 185 | 25 | 15.9 | 37*2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 24.1 |
| 1 | 240 | 25 | 18.6 | 37*2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 26.8 |
| 1 | 300 | 25 | 20.7 | 61*2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 28.9 |
| 1 | 400 | 35 | 23.5 | 61*2.97 | 0.50 | 0.40 | 3.40 | 2.96 | 31.7 |
| 1 | 500 | 35 | 26.5 | 61*3.29 | 0.50 | 0.40 | 3.40 | 2.96 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61*3.80 | 0.50 | 0.40 | 3.40 | 2.96 | 38.9 |
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
Generally, we can deliver regular machines to customers immediately within 7-30 days.
Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

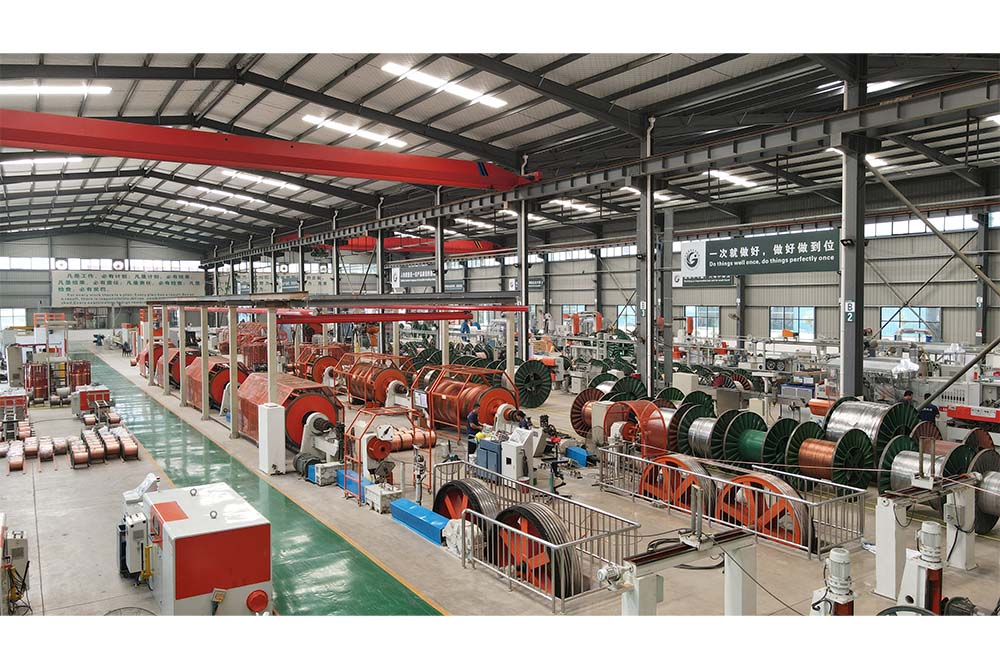

We have world-class testing facility, and made rigorous testing regime, every meter of cable before leaving the factory must go through strict testing, testing qualified products will be shipped to customers, effectively ensure product quality and meet customer requirements.
