N2XS(FL)2Y 18/30 (36)kV Cable-N2XS(FL)2Y-Medium Voltage Cable Manufacturers

N2XS(FL)2Y 18/30 (36)kV Cable
Voltage:	18/30 (36)kV
Structure:	Conductor	Class 2 Stranded Circular Compacted Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper Wires and Open Helix Copper Tape
	Jacket	MDPE (Medium Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct in ground and in buried cable ducts. UV Resistant.

CHARACTERISTICS

Voltage Rating Uo/U

18/30 (36)kV

Temperature Rating

Maximum Conductor Operating Temperature: 90°C

Maximum Screen Operating Temperature: 80°C

Maximum Conductor Temperature During S.C.: 250°C

Minimum Bending Radius

20 x Outer Diameter

STANDARDS

IEC 60502-2, IEC 60228

UV Resistant

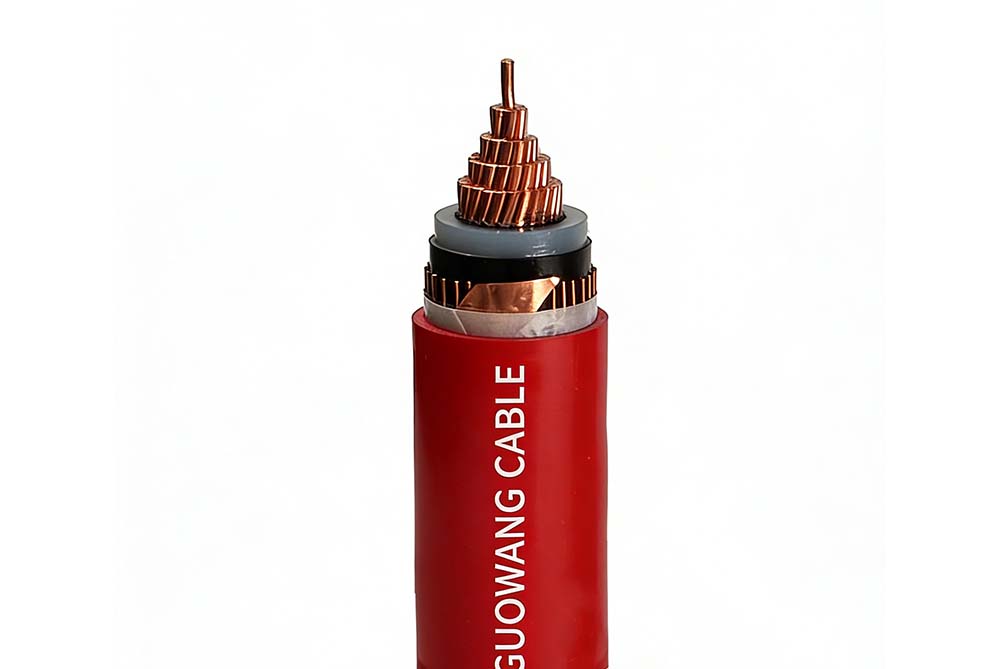

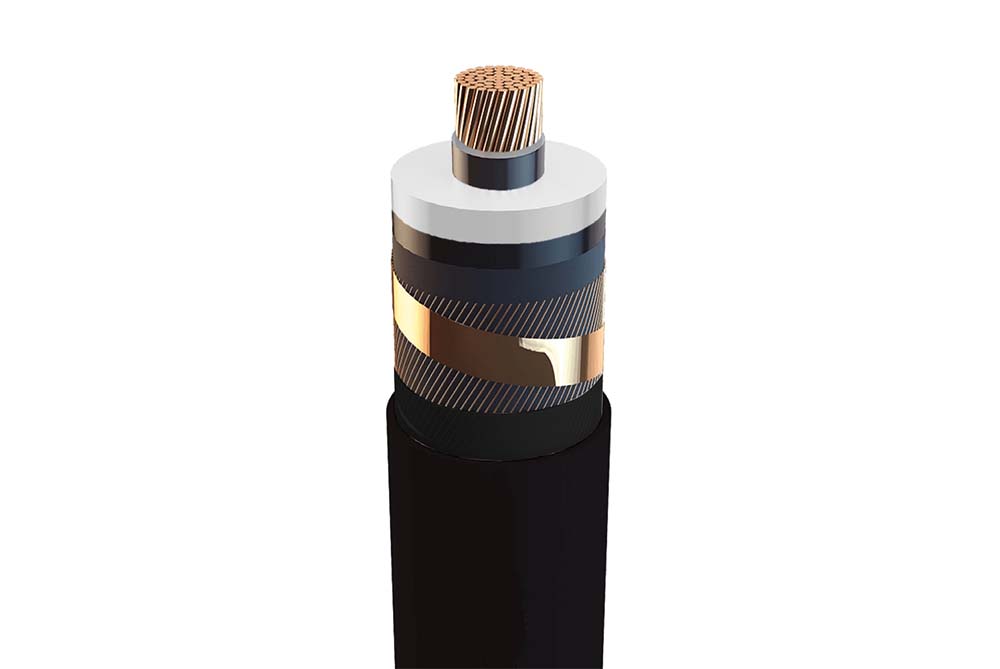

CONSTRUCTION

Conductor

Class 2 Stranded Circular Compacted Copper

Inner Semi Conductor

Extruded Inner Semi Conductor (Bonded Type)

Insulation

XLPE (Cross-Linked Polyethylene) 90°C

Outer Semi Conductor

Extruded Outer Semi Conductor (Strippable Type)

Semi Conductive Water Blocking Tape

Screen

Copper Wires and Open Helix Copper Tape

Non-Conductive Water Blocking Tape

Tape

Aluminium Tape

Outer Sheath

MDPE (Medium Density Polyethylene)

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	NOMINAL SCREEN CROSS SECTIONAL AREA	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMTER	NOMINAL WEIGHT
NO. OF CORE	mm2	mm2	mm	mm	mm	kg/km
1	50	16	8	2	34.2	1335
1	70	16	8	2	36.0	1581
1	95	16	8	2.1	37.3	1858
1	120	16	8	2.1	38.7	2126
1	150	25	8	2.2	40.7	2530
1	185	25	8	2.2	42.2	2895
1	240	25	8	2.3	44.8	3519
1	300	25	8	2.4	47.4	4134
1	400	35	8	2.5	50.4	5104
1	500	35	8	2.6	54.0	6157
1	630	35	8	2.7	58.9	7652
1	800	35	8	2.8	63.2	9502

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

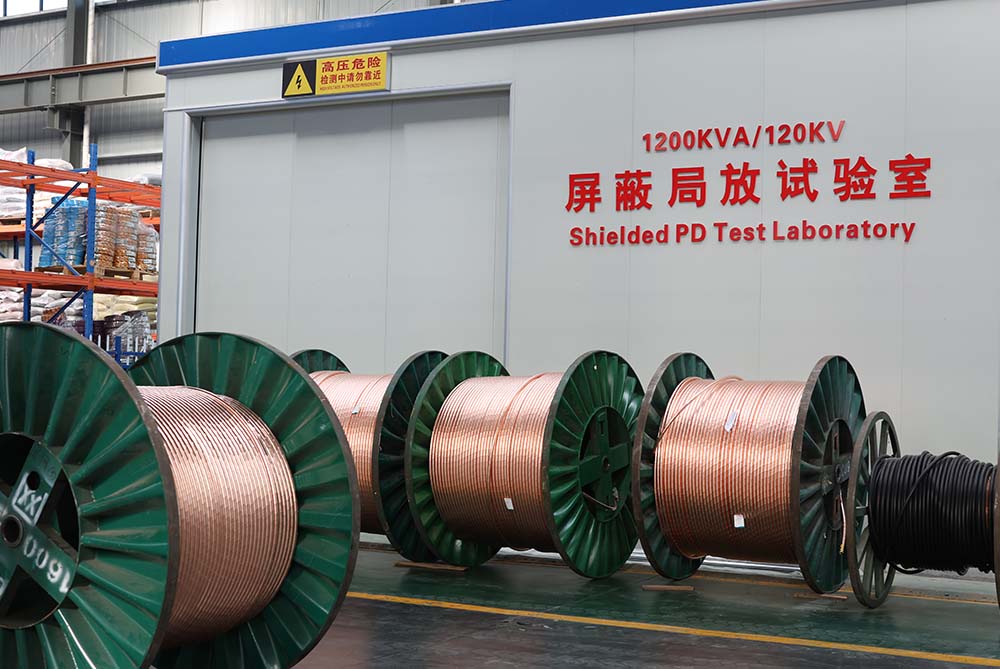

THE CABLE TEST

We have world-class testing facility, and made rigorous testing regime, every meter of cable before leaving the factory must go through strict testing, testing qualified products will be shipped to customers, effectively ensure product quality and meet customer requirements.
