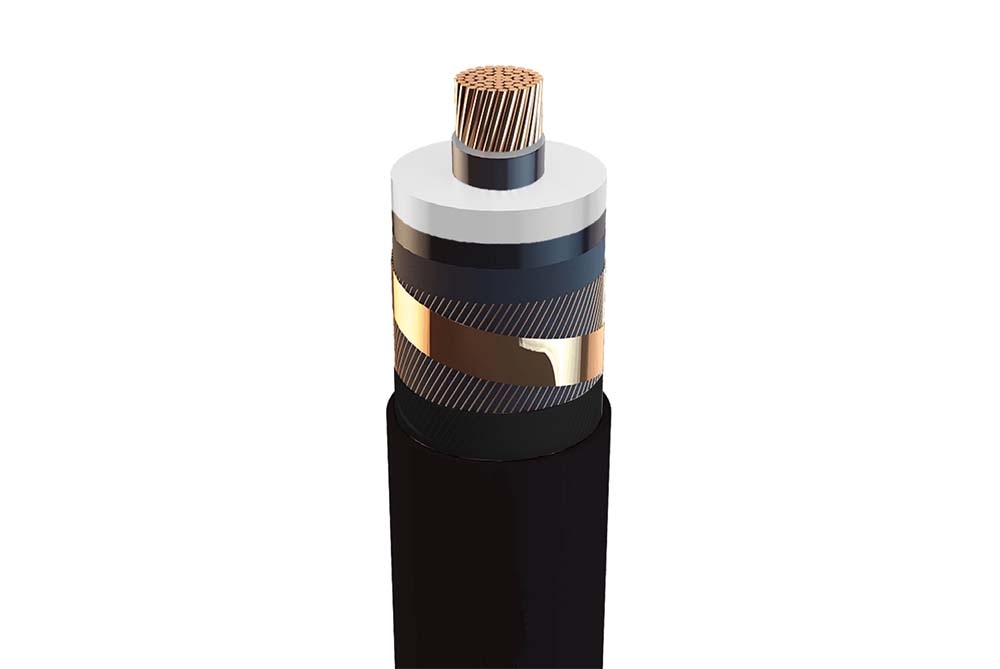

N2XS(FL)2Y XLPE HDPE 8.7/15 (17.5)kV Cable
Voltage:	8.7/15 (17.5)kV
Structure:	Conductor	Class 2 stranded compacted copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires and copper tape
	Jacket	HDPE (High Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage HDPE power distribution cable with particular application in wind energy installations. Longitudinally and radially sealed cables for aid protection against water ingress.

CHARACTERISTICS

Voltage Rating Uo/U

8.7/15 (17.5) kV

STANDARDS

IEC 60502-2, EN 60228

UV Resistant: ISO 4892-3

Abrasion and Tear Resistant: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.5 1

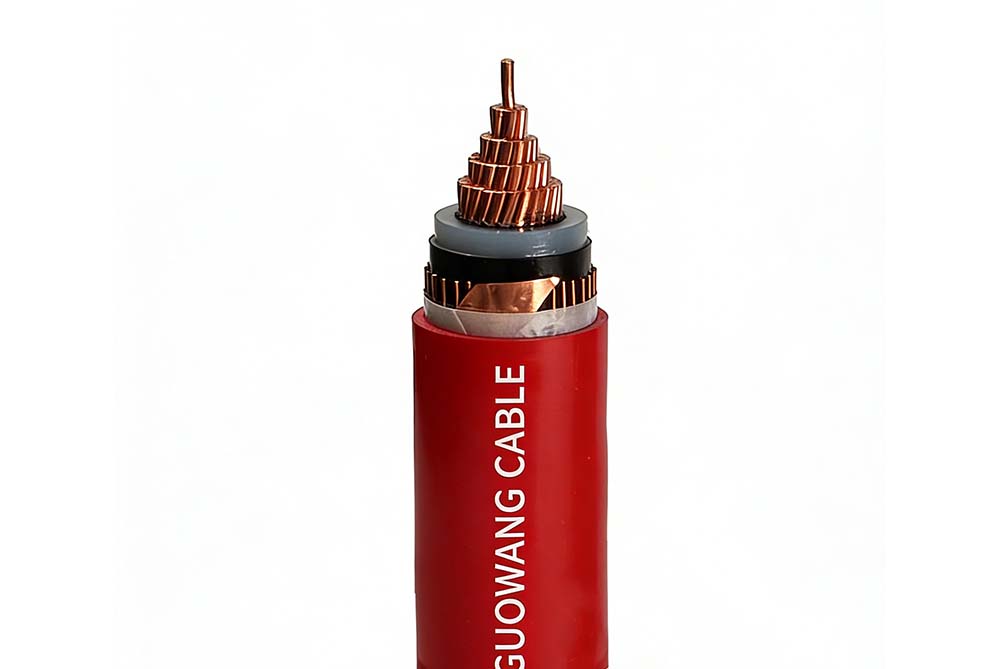

CONSTRUCTION

Conductor

Class 2 stranded compacted copper

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Longitudinal Waterblock

Semi-conductive water swelling tape

Metallic Screen

Copper Wires and Tape

Longitudinal Waterblock

Non-conductive water swelling tape

Radial Waterblock

Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath

Sheath

HDPE (High Density Polyethylene)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
NO. OF CORES	mm2	mm	NOMINAL THICKNESS	Nominal Diameter Over	Nominal Cross Section mm2	Nominal diameter Over mm	mm	KG/KM	KN	m
1	35	7.0	4.5	17.2	16	21.3	27.3	920	1.75	0.57
1	50	8.25	4.5	18.5	16	22.5	28.6	1060	2.5	0.60
1	70	9.6	4.5	19.8	25	23.9	29.9	1370	3.5	0.63
1	95	11.5	4.5	21.7	35	25.8	31.8	1740	4.75	0.68
1	120	12.9	4.5	23.1	50	27.2	33.2	2140	6	0.72
1	150	14.5	4.5	24.7	50	28.8	34.8	2420	7.5	0.76
1	185	16.0	4.5	26.2	50	30.3	36.3	2780	9.25	0.79
1	240	18.5	4.5	28.7	50	32.8	38.8	3340	12	0.86
1	300	20.5	4.5	30.7	50	34.8	40.8	3930	15	0.91
1	400	23.5	4.5	33.7	50	37.8	43.8	4800	20	0.98
1	500	26.5	4.5	37.2	50	41.5	47.5	5910	25	1.07
1	630	30.3	4.5	41.3	50	45.5	51.8	7270	31.5	1.18
1	800	34.6	4.5	46.0	50	50.2	56.9	8970	40	1.30
1	1000	38.2	4.5	49.6	50	53.8	60.7	10880	50	1.38
