N2XS(F)H XLPE LSZH 8.7/15 (17.5) kV Cable
Voltage:	8.7/15 (17.5) kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires and copper tape
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage LSZH power distribution cable with particular application in wind energy installations. Longitudinally sealed cables for aid protection against water ingress.

CHARACTERISTICS

Voltage Rating Uo/U

8.7/15 (17.5) kV

STANDARDS

IEC 60502-2, EN 60228

Low Smoke Zero Halogen to: IEC 60754-1/2, IEC 61034-2

Flame Retardant: IEC 60332-1-2

UV Resistant: ISO 4892-3

Abrasion and Tear Resistant: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.51

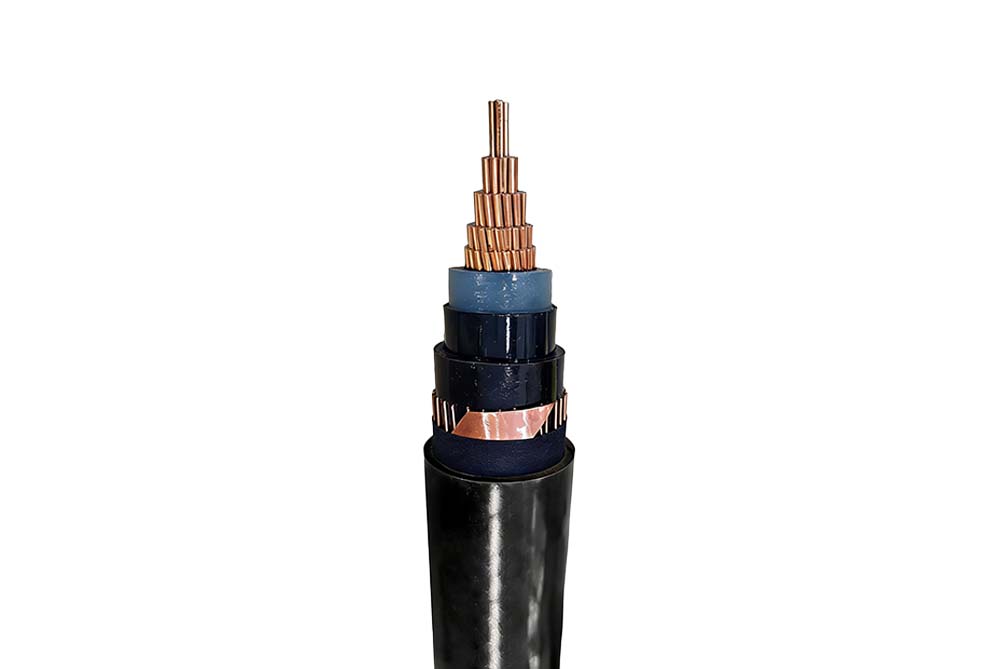

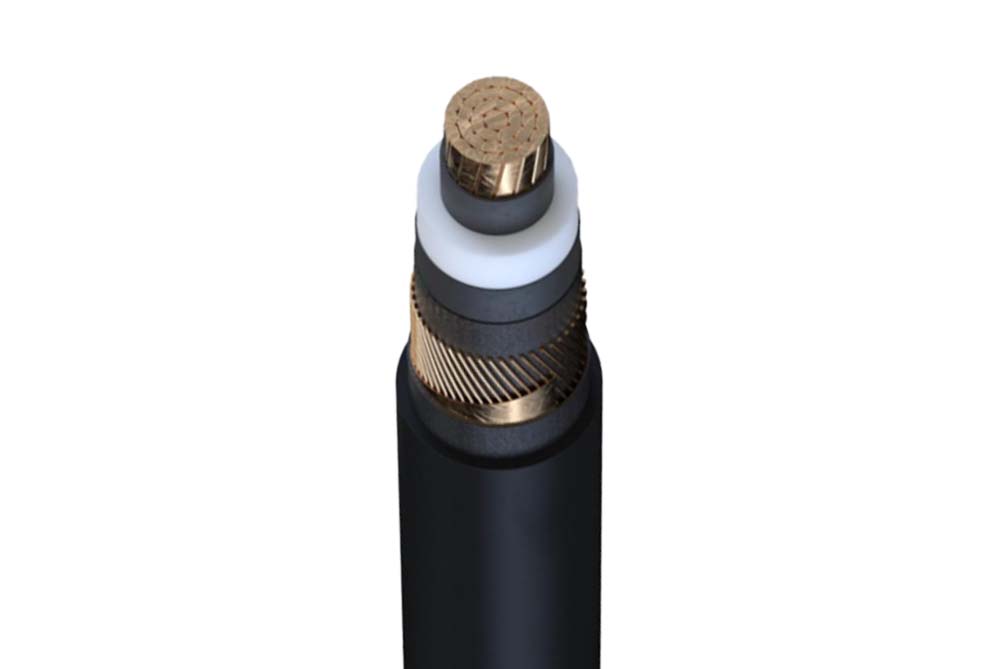

CONSTRUCTION

Conductor

Class 2 stranded compacted copper

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Longitudinal Waterblock

Semi-conductive water swelling tape

Metallic Screen

Copper Wires and Tape

Longitudinal Waterblock

Non-conductive water swelling tape

Sheath

LSZH (Low Smoke Zero Halogen)

Sheath Colour

Black

NO.OF CORE	NOMINAL CROSS SECTIONAL AREA	NOMINAL CONDUCTOR DIAMETER	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
NO.OF CORE	Conductor	mm	Nominal Diameter Over	Nominal Thickness	Nominal Cross Section mm2	Nominal diameter Over mm	mm	KG/KM	KN	m
1	35	7.0	17.2	4.5	16	21.3	26.9	860	1.75	0.40
1	50	8.25	18.5	4.5	16	22.6	28.1	1000	2.5	0.42
1	70	9.6	19.8	4.5	25	23.9	29.5	1300	3.5	0.44
1	95	11.5	21.7	4.5	35	25.8	31.4	1670	4.75	0.47
1	120	12.9	23.1	4.5	50	27.2	32.8	2070	6	0.49
1	150	14.5	27.7	4.5	50	28.8	34.4	2350	7.5	0.52
1	185	16.0	26.2	4.5	50	30.3	35.9	2710	9.25	0.54
1	240	18.5	28.7	4.5	50	32.8	38.4	3260	12	0.58
1	300	20.5	30.7	4.5	50	34.8	40.4	3850	15	0.61
1	400	23.5	33.7	4.5	50	37.8	43.4	4720	20	0.65
1	500	26.5	37.2	4.5	50	41.5	47.1	5810	25	0.71
1	630	30.3	41.3	4.5	50	45.6	51.3	7160	31.5	0.77
1	800	34.6	46.0	4.5	50	50.3	56.4	8860	40	0.85
1	1000	38.2	49.6	4.5	50	53.9	60.2	10760	50	0.90

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
