N2XS(F)H 6/10 (12)kV Cable
Voltage:	6/10 (12)kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper Wires and Tape
	Jacket	LSZH (Low Smoke Zero Halogen)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage power cables for distribution networks and generation units. LSZH outer sheathing makes the cable suitable for internal installation as well as directly in ground, outdoors, and in cable ducts. UV Resistant.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

6/10(12)kV

Test Voltage:

21kV AC 50Hz (5 mins)

Temperature Rating

-20°C to +60°C

Permissible Conductor Operating Temperature: +90°C

Permissible Short Circuit Temperature up to 5 sec: 250°C

Minimum Bending Radius

15 x overall diameter

STANDARDS

IEC 60502-2, IEC 60228,

Low Smoke Zero Halogen: IEC 60754-1/2, IEC 61034-2

Flame Retardant: IEC 60332-3-24 Cat C, IEC 60332-1-2

UV Resistant: ISO 4892-3

Abrasion and Tear Resistant: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.51

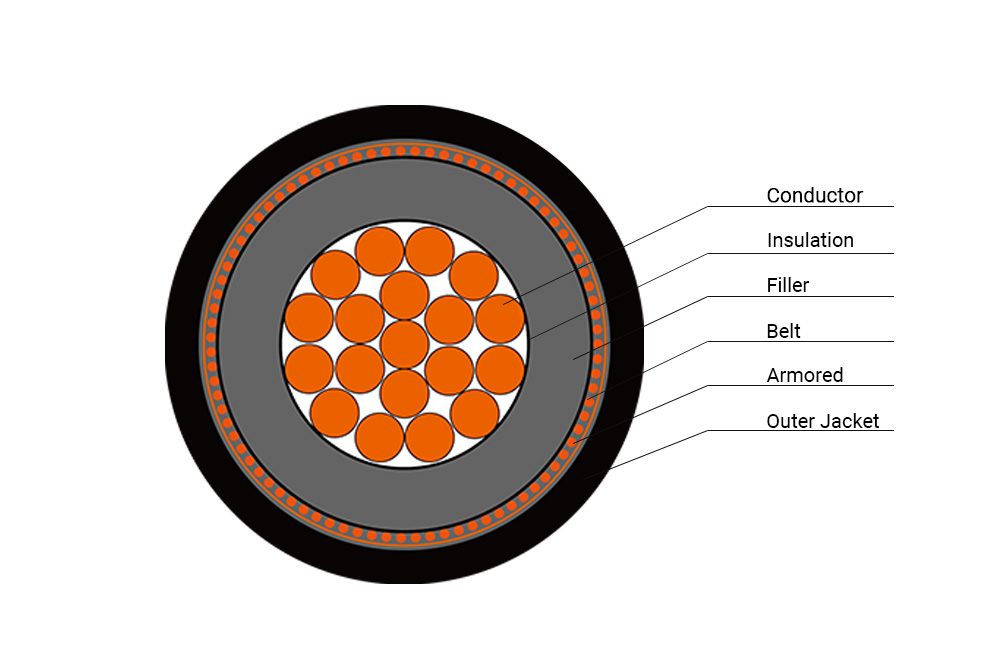

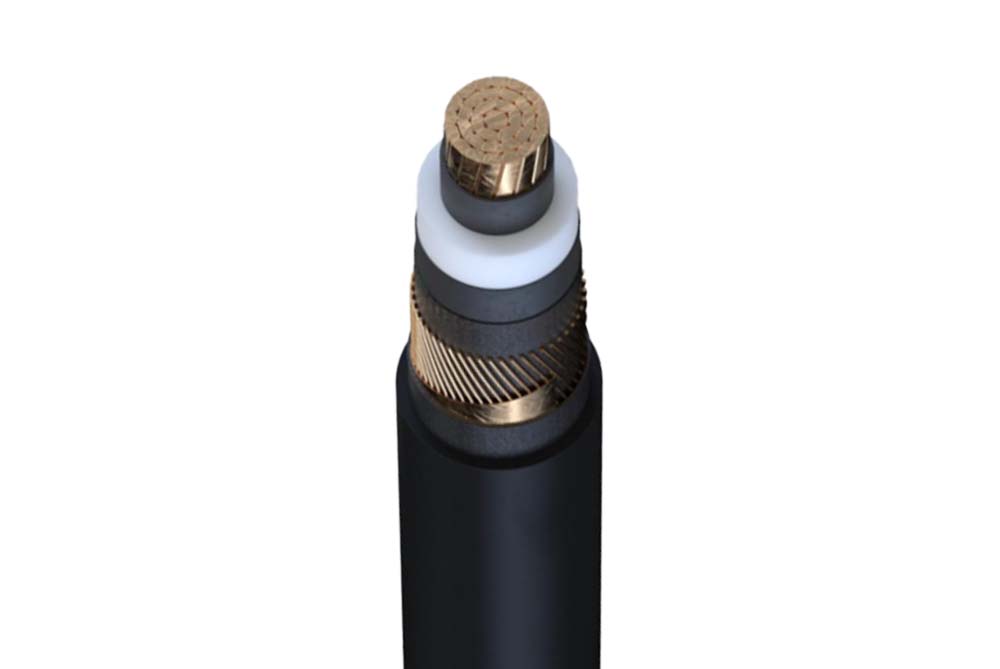

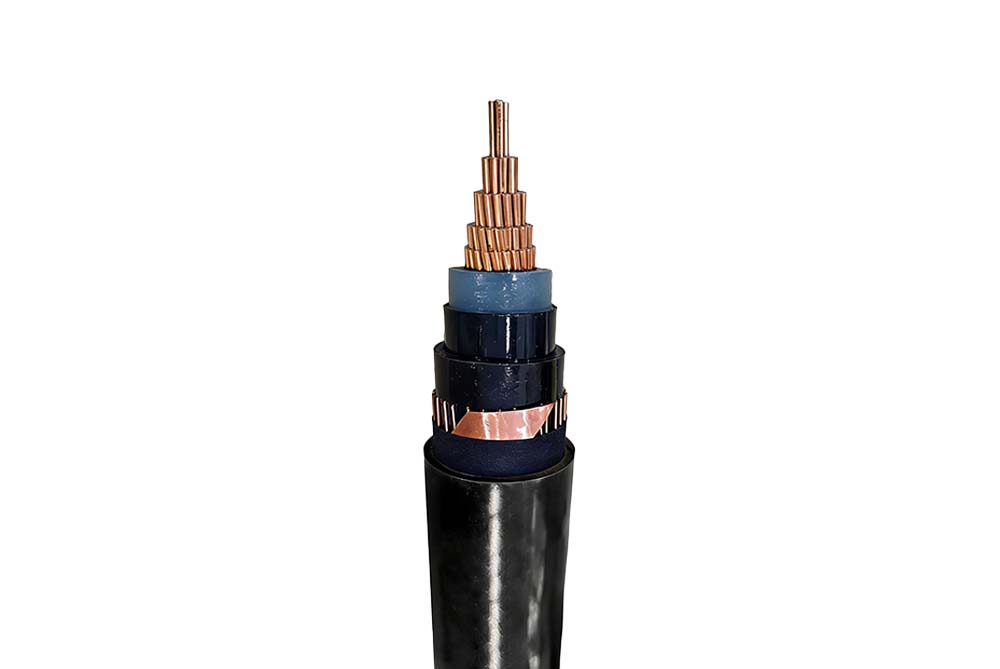

CONSTRUCTION

Conductor

Class 2 Stranded Copper

Conductor Screen

Semi-conductive material

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (bonded)

Longitudinal Waterblocking

Semi-conductive swellable tape

Screen

Copper wires and copper tape

Longitudinal Waterblocking

Swellable Tapes

Outer Sheath

LSZH (Low Smoke Zero Halogen)

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL SCREEN CROSS SECTIONAL AREA mm2	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	MINIMUM INSULATION THICKNESS mm
1	50	16	8.1	10 x 2.62	3.40	16.3	2.96
1	70	16	9.7	14 x 2.62	3.40	17.9	2.96
1	95	16	11.4	19 x 2.62	3.40	19.6	2.96
1	120	16	12.7	19 x 2.97	3.40	20.9	2.96
1	150	25	14.5	19 x 3.20	3.40	22.7	2.96
1	185	25	15.9	27 x 2.62	3.40	24.1	2.96
1	240	25	18.6	48 x 2.62	3.40	26.8	2.96
1	300	25	20.7	61 x 2.62	3.40	28.9	2.96
1	400	35	23.5	61 x 2.97	3.40	31.7	2.96
1	500	35	26.5	61 x 3.29	3.40	34.7	2.96
1	630	35	30.2	61 x 3.80	3.40	38.9	2.96
