N2XS(F)2Y 12/20 (24)kV Cable
Voltage:	12/20 (24)kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires with Open Helix Copper Tape Screen
	Jacket	MDPE (Medium Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct buried and in buried cable ducts. UV Resistant.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

12/20 (24)kV

Temperature Rating

Maximum conductor operating temperature: 90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

20 x overall diameter

STANDARDS

IEC 60502-2, IEC 60228,

UV Resistant

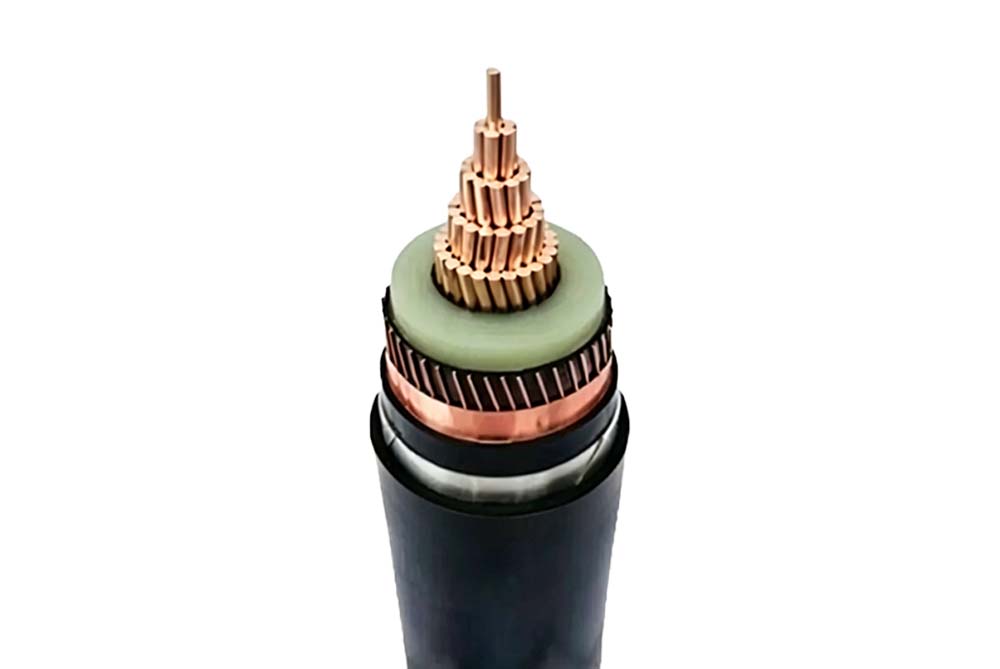

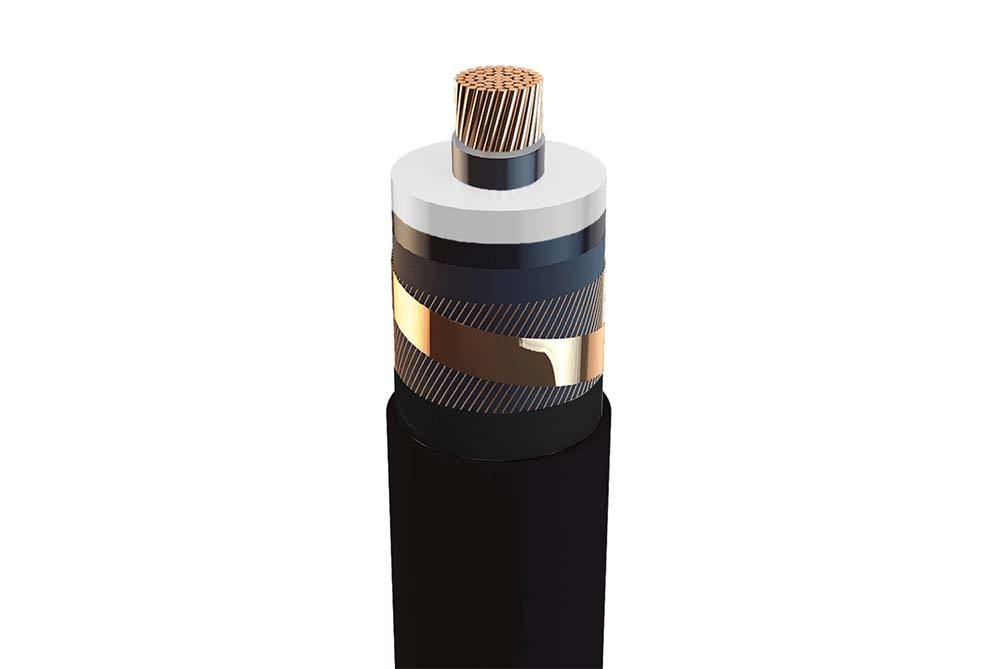

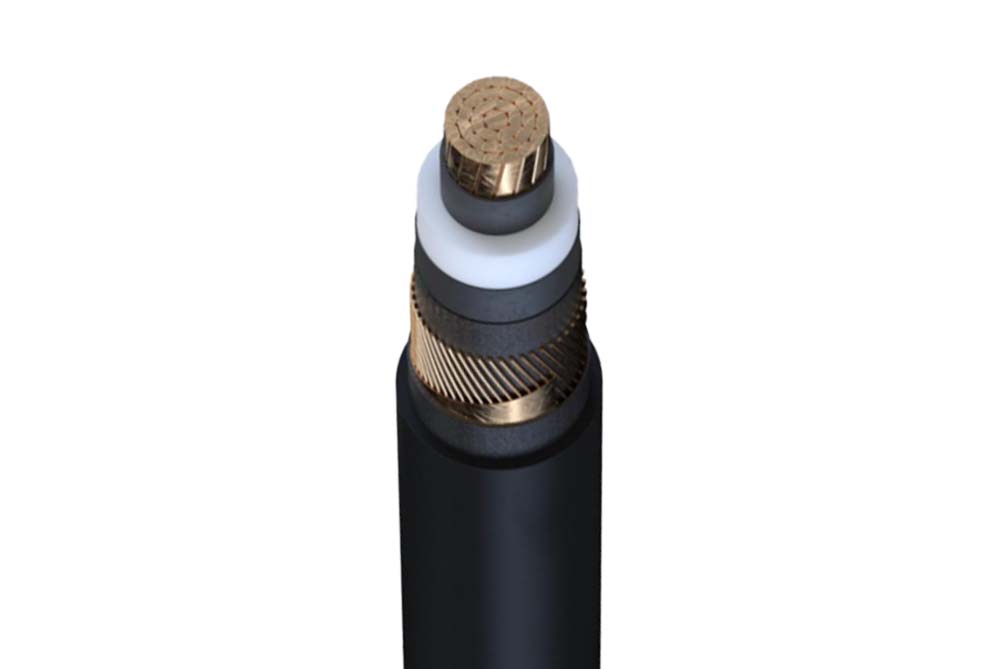

CONSTRUCTION

Conductor

Class 2 Stranded Copper

Conductor Screen

Semi-conductive material (Bonded type)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (Strippable type)

Longitudinal Waterblocking

Semi-conductive swellable tape

Screen

Copper wires with Open Helix Copper Tape Screen

Longitudinal Waterblocking

Swellable Tapes

Outer Sheath

MDPE (Medium Density Polyethylene)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL SCREEN CROSS SECTIONAL AREA	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMTER	NOMINAL WEIGHT
NO. OF CORES	mm2	mm2	mm	mm	mm	kg/km
1	50	16	5.5	1.8	28.0	1020
1	70	16	5.5	1.9	30.0	1258
1	95	16	5.5	1.9	31.3	1521
1	120	16	5.5	2	32.9	1786
1	150	25	5.5	2	34.7	2162
1	185	25	5.5	2.1	36.2	2512
1	240	25	5.5	2.2	38.8	3109
1	300	25	5.5	2.2	41.2	3686
1	400	35	5.5	2.3	44.2	4624
1	500	35	5.5	2.4	47.8	5637
1	630	35	5.5	2.5	52.7	7083
1	800	35	5.5	2.7	57.2	8905

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
