N2XS(F)2Y XLPE HDPE 8.7/15 (17.5) kV Cable-N2XS(F)2Y-Medium Voltage Cable Manufacturers

N2XS(F)2Y XLPE HDPE 8.7/15 (17.5) kV Cable
Voltage:	8.7/15 (17.5)
Structure:	Conductor	Class 2 stranded compacted copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper Wires and Tape
	Jacket	HOPE (High Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage HOPE power distribution cable with particular application in wind energy installations. Longitudinally sealed cables for aid protection against water ingress.

CHARACTERISTICS

Voltage Rating Uo/U

8.7/15 (17.5) kV

STANDARDS

IEC 60502-2, EN 60228

UV Resistant: ISO 4892-3

Abrasion and Tear Resistant: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.5 1

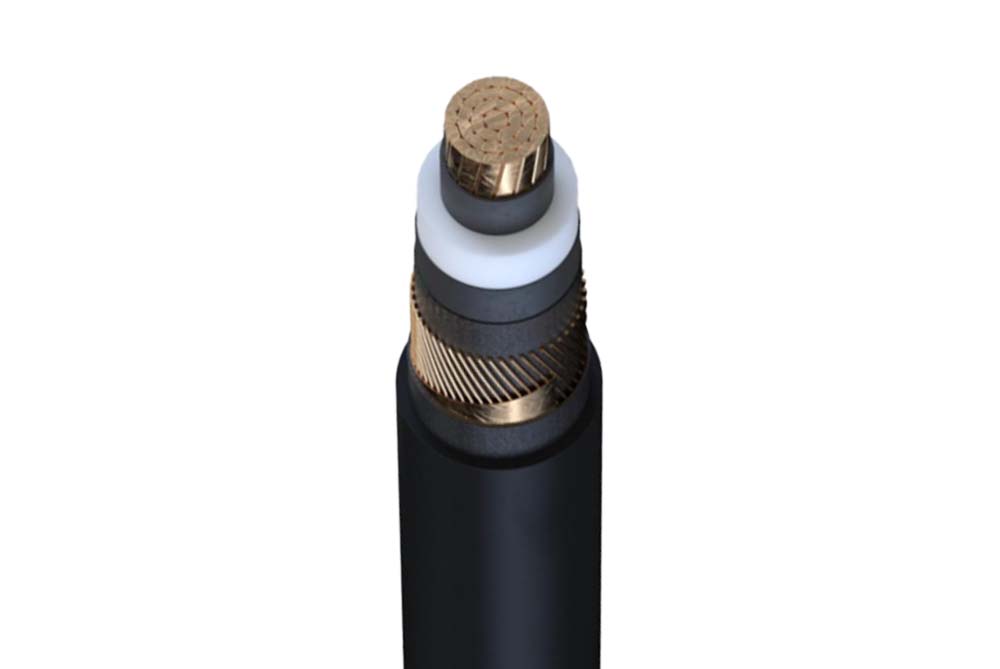

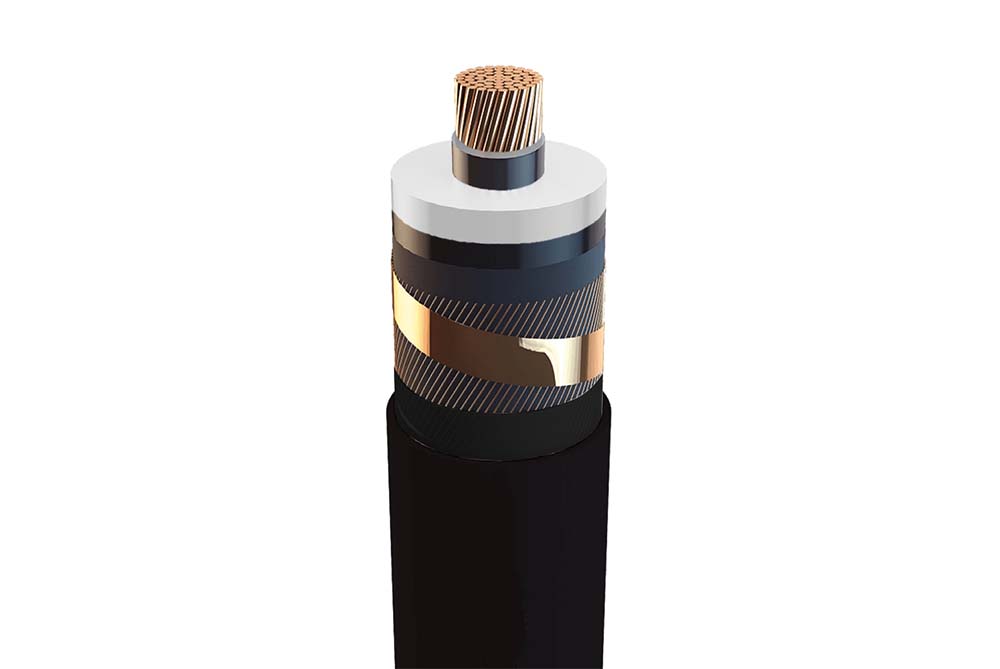

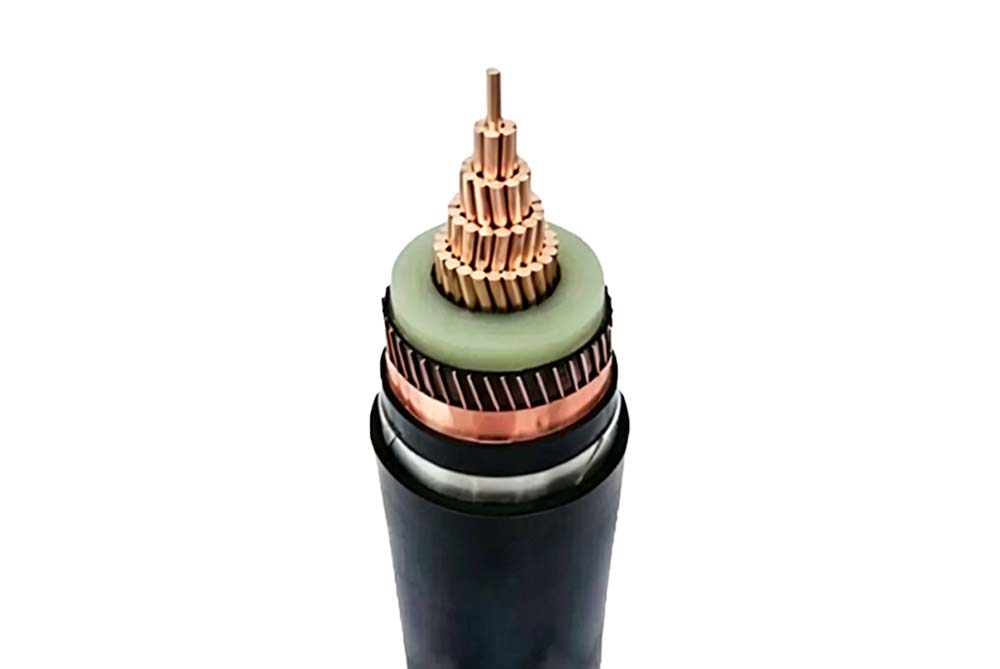

CONSTRUCTION

Conductor

Class 2 stranded compacted copper

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Longitudinal Waterblock

Semi-conductive water swelling tape

Metallic Screen

Copper Wires and Tape

Longitudinal Waterblock

Non-conductive water swelling tape

Sheath

HOPE (High Density Polyethylene)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
NO. OF CORES	mm2	mm	NOMINAL THICKNESS	Nominal Diameter Over	Nominal Cross Section mm2	Nominal diameter Over mm	mm	KG/KM	KN	m
1	35	7.0	4.5	17.2	16	21.3	26.9	860	1.75	0.40
1	50	8.25	4.5	18.5	16	22.6	28.1	1000	2.5	0.42
1	70	9.6	4.5	19.8	25	23.9	29.5	1300	3.5	0.44
1	95	11.5	4.5	21.7	35	25.8	31.4	1670	4.75	0.47
1	120	12.9	4.5	23.1	50	27.2	32.8	2070	6	0.49
1	150	14.5	4.5	24.7	50	28.8	34.4	2350	7.5	0.52
1	185	16.0	4.5	26.2	50	30.3	35.9	2710	9.25	0.54
1	240	18.5	4.5	28.7	50	32.8	38.4	3260	12	0.58
1	300	20.5	4.5	30.7	50	34.8	40.4	3850	15	0.61
1	400	23.5	4.5	33.7	50	37.8	43.4	4720	20	0.65
1	500	26.5	4.5	37.2	50	41.5	47.1	5810	25	0.71
1	630	30.3	4.5	41.3	50	45.6	51.3	7160	31.5	0.77
1	800	34.6	4.5	46.0	50	50.3	56.4	8860	40	0.85
1	1000	38.2	4.5	49.6	50	53.9	60.2	10760	50	0.90

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

THE CABLE TEST

We have world-class testing facility, and made rigorous testing regime, every meter of cable before leaving the factory must go through strict testing, testing qualified products will be shipped to customers, effectively ensure product quality and meet customer requirements.
