N2XS2Y XLPE HDPE 8.7/15 (17.5) kV Cable
Voltage:	8.7/15 (17.5)
Structure:	Conductor	Class 2 stranded compacted copper conductor
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper Wires and Tape
	Jacket	HDPE (High Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium Voltage HDPE sheathed power distribution cables particularly noted for applications in wind energy installations.

CHARACTERISTICS

Voltage Rating Uo/U

8.7/15 (17.5) kV

STANDARDS

IEC 60502-2, EN 60228

UV Resistant: ISO 4892-3

Abrasion and Tear Resistant: EN 60229-4.1

Impact rated to: AG2 EN 60364-5.5 1

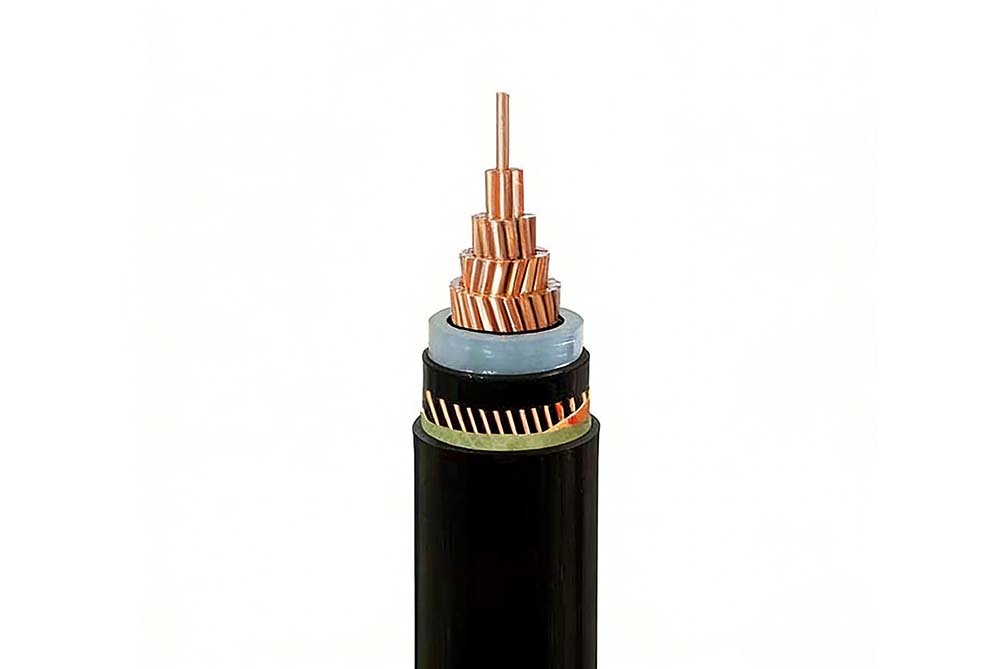

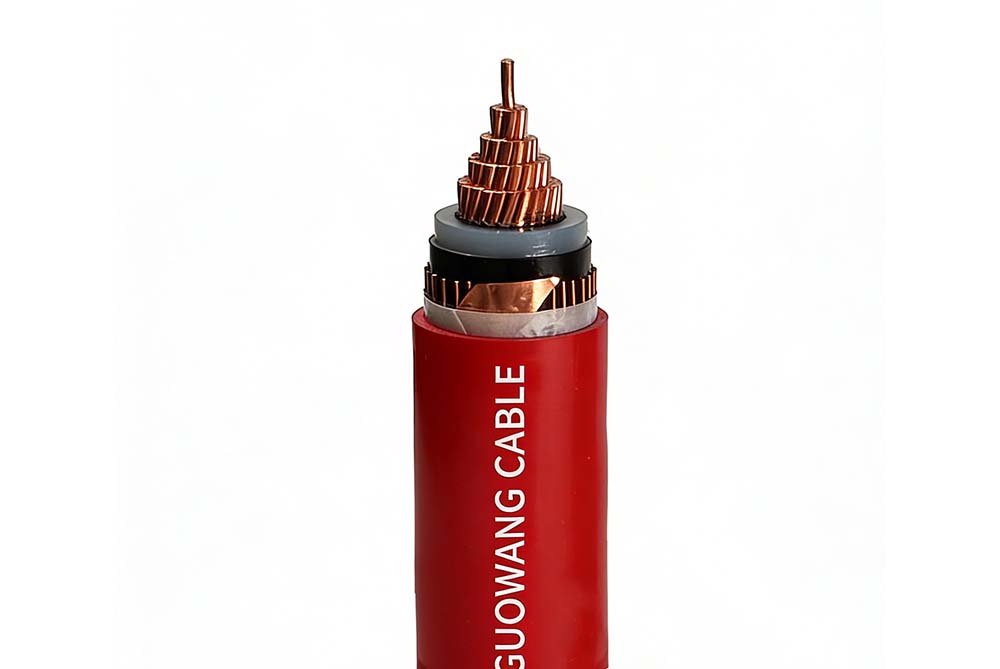

CONSTRUCTION

Conductor

Class 2 stranded compacted copper conductor

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Insulation

XLPE (Cross-linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene)

Wrapping

Non swelling semi conductive tape

Metallic Screen

Copper Wires and Tape

Wrapping

Polyester tape

Sheath

HDPE (High Density Polyethylene)

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
NO. OF CORES	mm2	mm	NOMINAL THICKNESS	Nominal Diameter Over	Nominal Cross Section mm2	Nominal diameter Over mm	mm	KG/KM	KN	m
1	35	7.0	4.5	17.2	16	21.1	25.9	920	1.75	0.39
1	50	8.25	4.5	18.5	16	22.4	27.1	1060	2.5	0.41
1	70	9.6	4.5	19.8	25	23.7	28.5	1370	3.5	0.43
1	95	11.5	4.5	21.7	35	25.6	30.4	1740	4.75	0.46
1	120	12.9	4.5	23.1	50	27.0	31.8	2140	6	0.48
1	150	14.5	4.5	27.7	50	28.6	33.4	2430	7.5	0.50
1	185	16.0	4.5	26.2	50	30.1	34.9	2790	9.25	0.52
1	240	18.5	4.5	28.7	50	32.6	37.4	3350	12	0.56
1	300	20.5	4.5	30.7	50	34.6	39.4	3940	15	0.59
1	400	23.5	4.5	33.7	50	37.6	42.4	4810	20	0.64
1	500	26.5	4.5	37.2	50	41.3	46.1	5920	25	0.69
1	630	30.3	4.5	41.3	50	45.4	50.3	7290	31.5	0.75
1	800	34.6	4.5	46.0	50	50.1	55.4	9010	40	0.83
1	1000	38.2	4.5	49.6	50	53.7	59.2	10930	50	0.89

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
