N2XS2Y 6/10 (12)kV Cable-N2XS2Y-Medium Voltage Cable Manufacturers

N2XS2Y 6/10 (12)kV Cable
Voltage:	6/10 (12)kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires and copper tape
	Jacket	MDPE (Medium Density Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct buried and in buried cable ducts. UV Resistant.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

6/10 (12)kV

Temperature Rating

Maximum conductor operating temperature:90°C

Initial temperature at S.C.C for metallic screen:80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

20 x overall diameter

STANDARDS

IEC 60502-2, IEC 60228,

UV Resistant

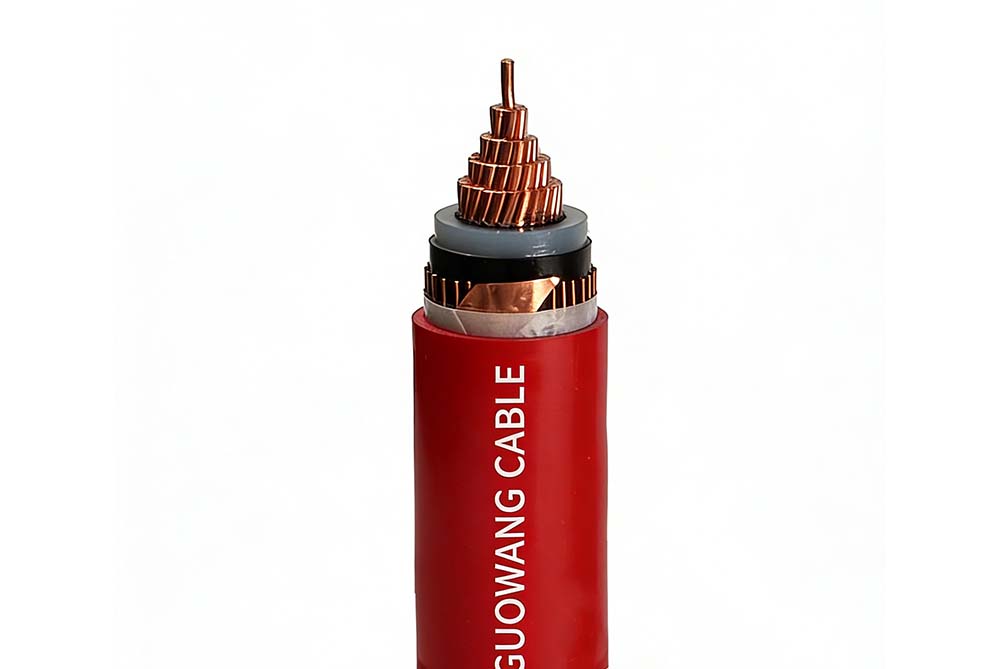

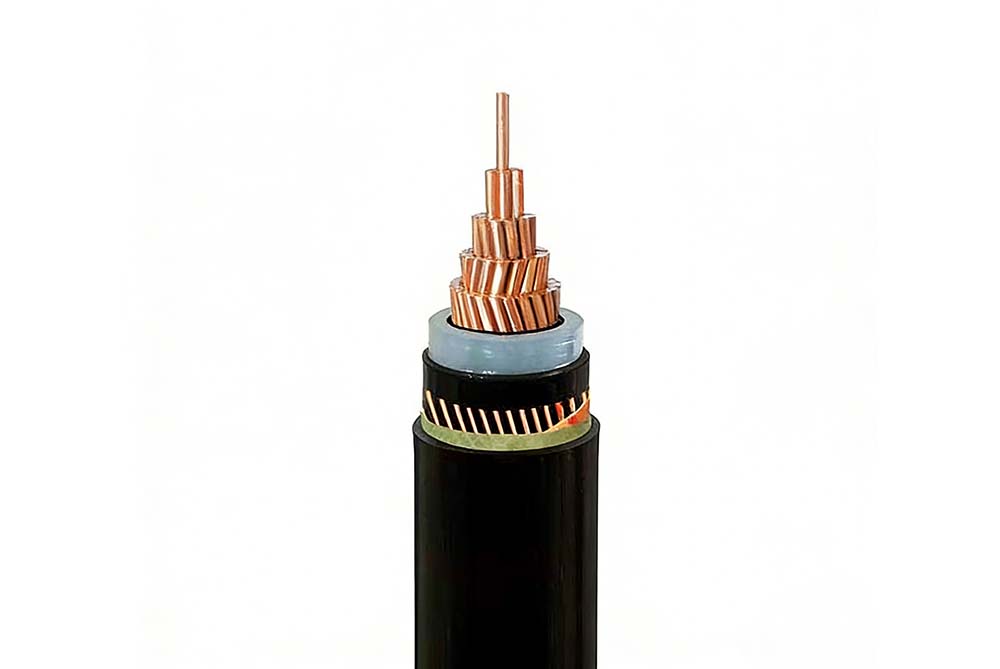

CONSTRUCTION

Conductor

Class 2 Stranded Copper

Conductor Screen

Semi-conductive material (Bonded type)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (Strippabe type)

Screen

Copper wires with Open Helix Copper Tape Screen

Outer Sheath

MDPE (Medium Density Polyethylene)

Sheath Colour

Red Black

NOMINAL SCREEN CROSS SECTIONAL AREA mm2	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
16	3.4	1.7	21.8	840
16.08	3.4	1.7	23.6	1055
16.08	3.4	1.8	25.1	1316
16.08	3.4	1.8	26.5	1561
25.37	3.4	1.9	28.5	1934
25.37	3.4	1.9	30	2270
25.37	3.4	2	32.6	2847
25.37	3.4	2.1	35	3408
35.47	3.4	2.2	38	4320
35.47	3.4	2.3	41.6	5307
35.47	3.4	2.4	46.5	6716
35.47	3.4	2.5	50.8	8490

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

THE CABLE TEST

We have world-class testing facility, and made rigorous testing regime, every meter of cable before leaving the factory must go through strict testing, testing qualified products will be shipped to customers, effectively ensure product quality and meet customer requirements.
