0.6/1kV 6/10kV multi-core ABC aerial bundled cable
Voltage:	0.6/1kV、6/10kV
Structure:	Conductor	Aluminium conductor
	Insulation	XLPE
	Insulation Colour	Black, customization is available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

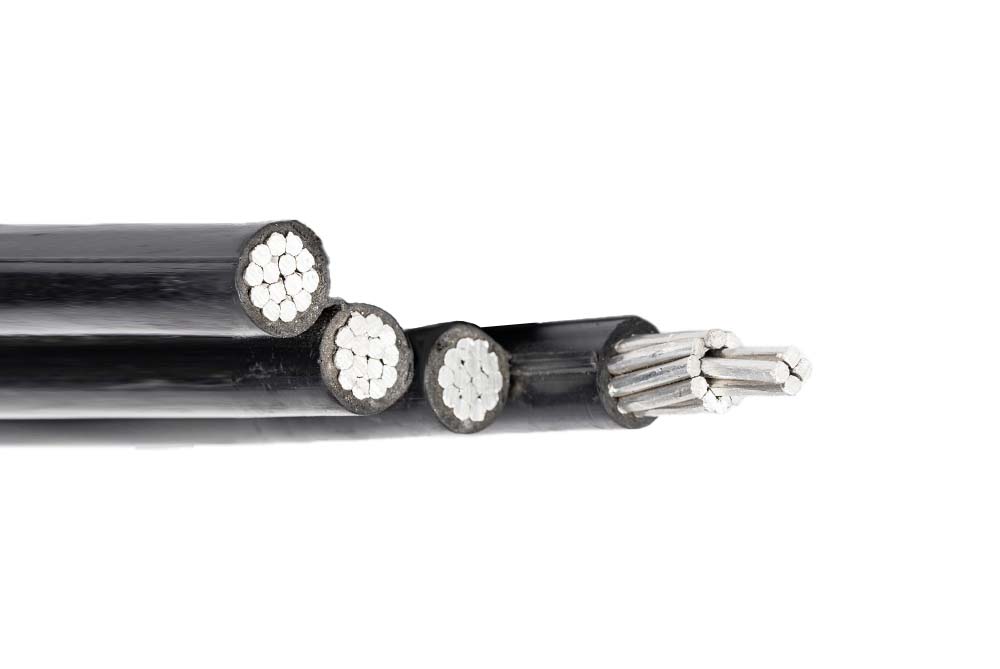

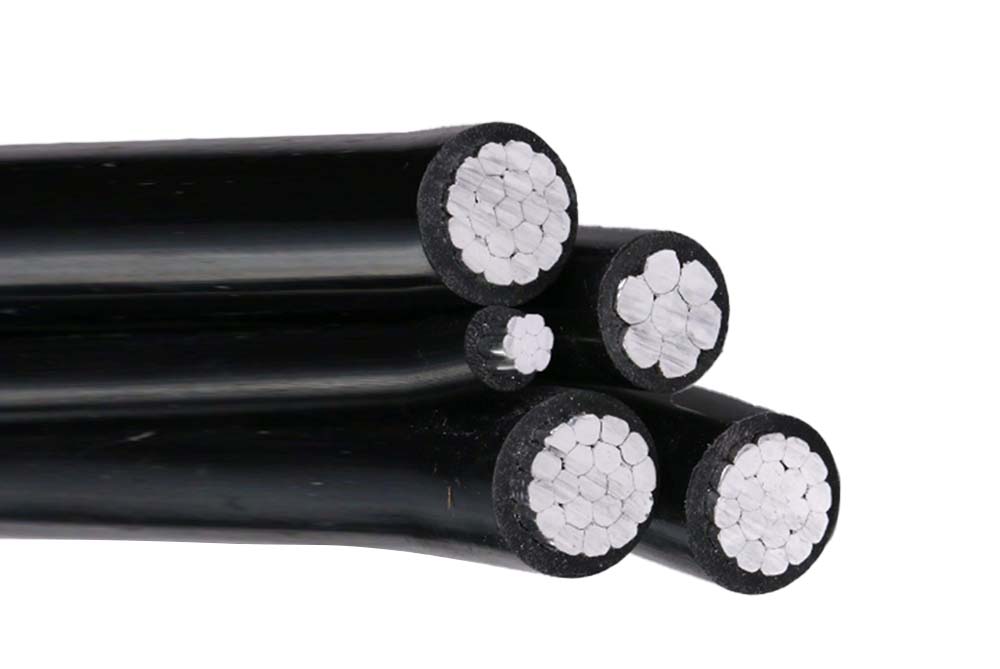

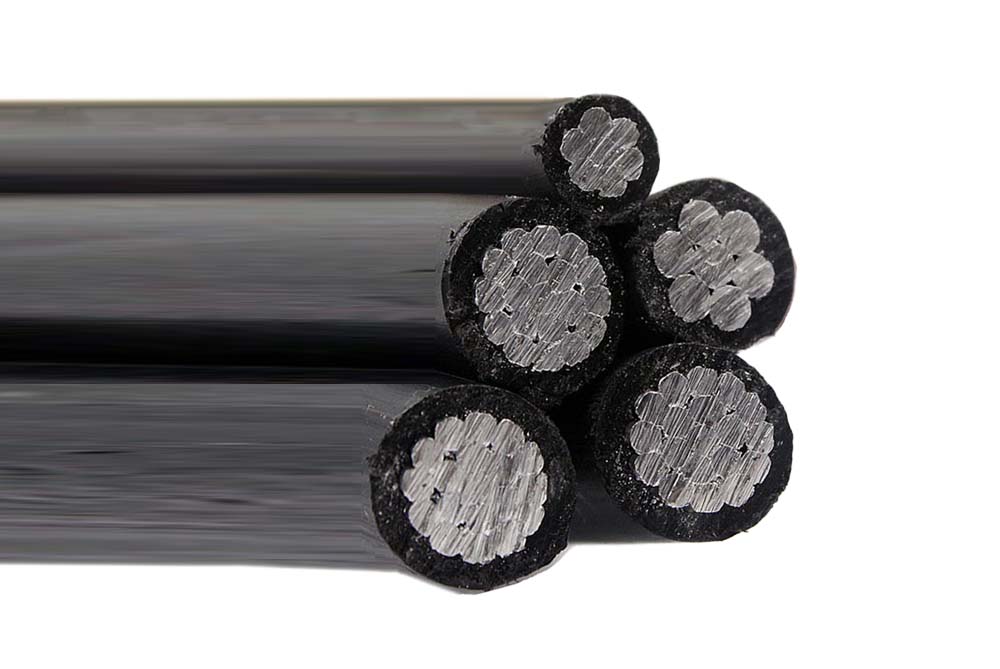

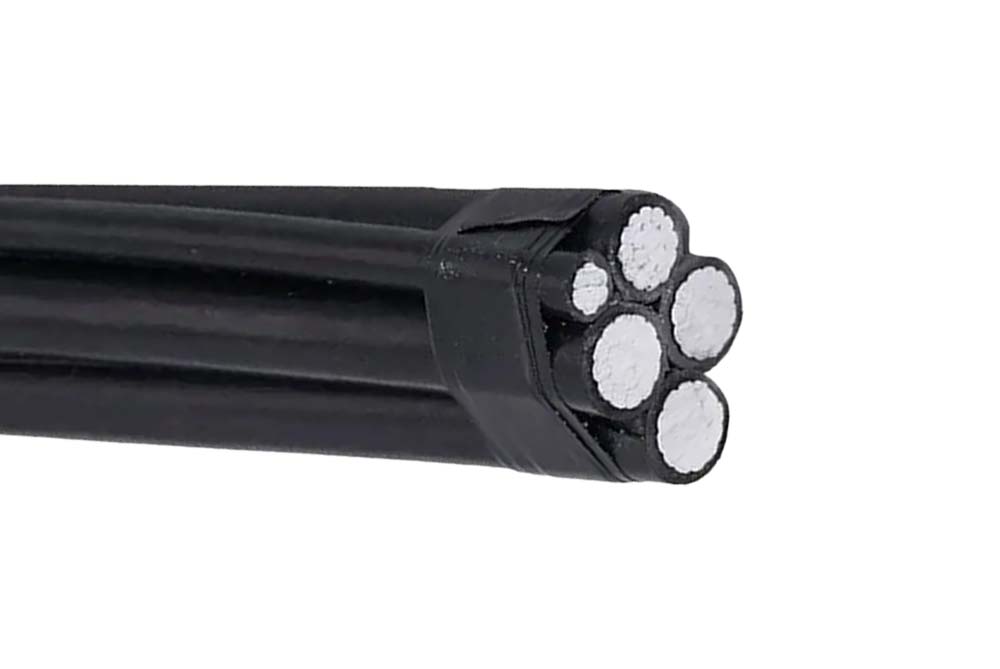

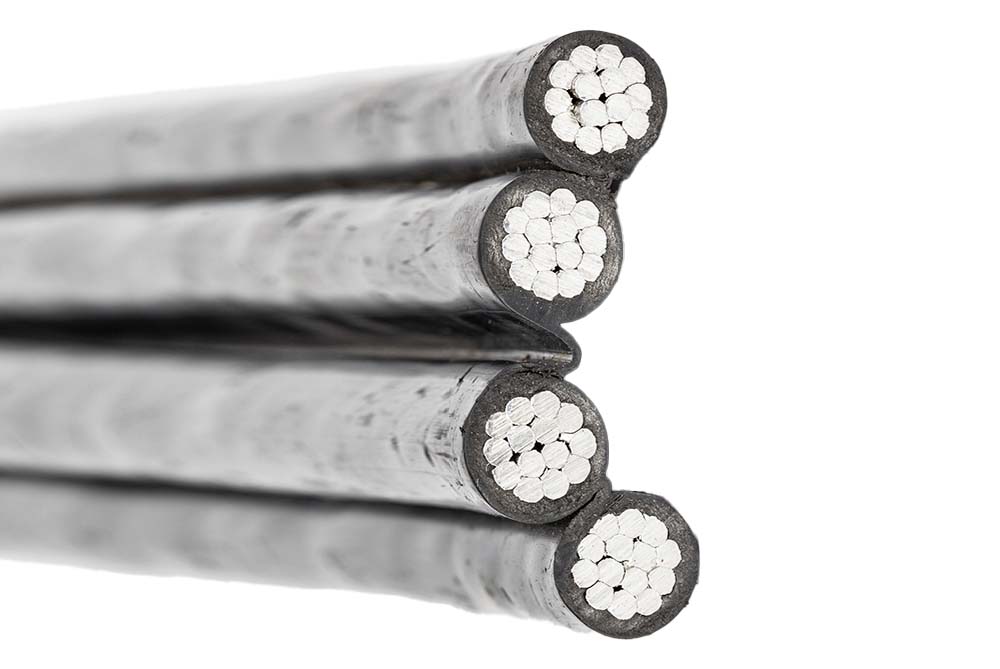

ABC cable, also known as overhead bundled cable, is available in 1-core, 2-core, 3-core and 4-core configurations, namely covered line wire, duplex service drop, triplex service drop and quadruple service drop. Its constructions include fully insulated conductors, two insulated cores paired with one bare neutral conductor, three insulated cores paired with one bare neutral conductor, as well as conductors made of pure aluminum or a mixture of pure aluminum and aluminum alloy strands.

Voltage Rating Uo/U

0.6/1kV、6/10kV

Temperature Rating

-40°C to +90°C

STANDARDS

BS 7870、IEC 60502、HD 626 S1、NFC 33-209、 AS/NZS 3560-1

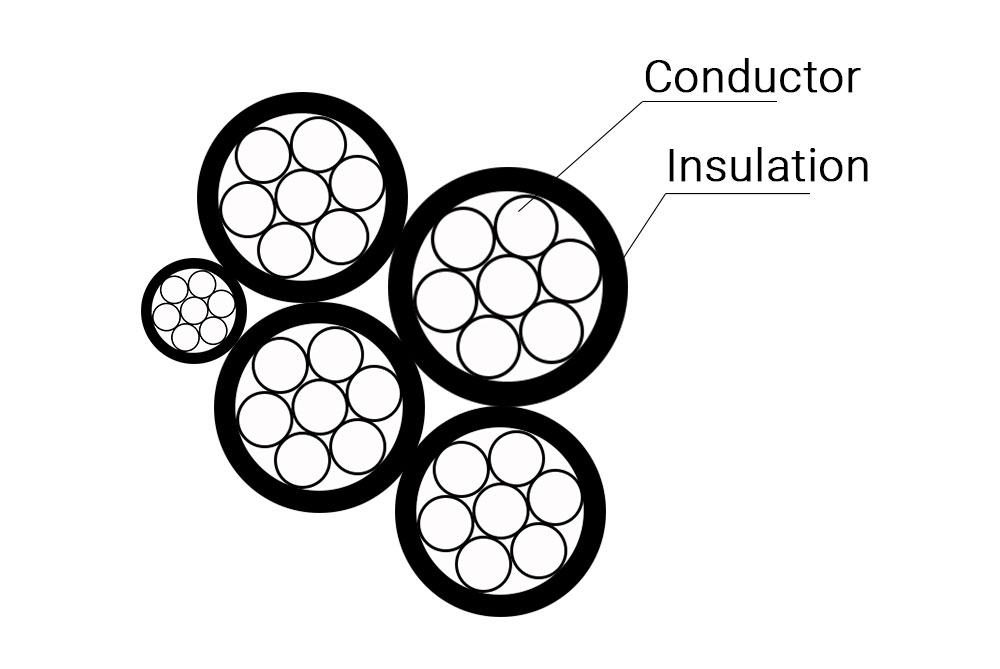

CONSTRUCTION

Conductor

Aluminium conductor

Insulation

XLPE

Insulation Colour

Black, customization is available

0.6/1kV
No.X No.CROSS SECTION OF CORES	OVERRALL DIAMETER	WEIGHT	MINIMUM BREAKING LOAD	MAXIMUM CONDUCTOR RESISTANCE	CURRENT RATING
No. X mm2	mm	kg/km	KN	Ω/Km	A
1x16+1x25 RM	15.3	160	2.5	1.91	72
3x16+1x25 RM	19	290	4	1.2	107
3x25+1x25 RM	23.2	400	5.5	0.868	132
3x35+1x25 RM	25.6	500	8	0.641	165
3x50+1x35 RM	30	680	10.7	0.443	205
3x70+1x50 RM	34.9	920	13.7	0.32	240
3x95+1x70 RM	40.6	1270	18.6	0.253	290
3x120+1x70 RM	44.1	1510	23.2	0.206	334
3x150+1x95 RM	49.2	1870	28.7	0.164	389
3x185+1x120 RM	54.9	2340	37.2	0.125	467
3x25+1x25+1x16 RM	23.2	470	2.5	1.91	72
3x35+1x25+1x16 RM	25.6	560	4	1.2	107
3x50+1x35+1x16 RM	30	740	5.5	0.868	132
3x70+1x50+1x16 RM	34.9	980	8	0.6	165
3x95+1x70+1x16 RM	40.6	1330	10.7	0.443	205
3x120+1x70+1x16 RM	44.1	1580	13.7	0.32	240
3x150+1x95+1x16 RM	49.2	1940	23.2	0.206	334
3x185+1x120+1x16 RM	54.9	2410	2.5	1.91	72

6/10kV
NUMBER OF CORES	NOMINAL SECTIONAL AREA	PHASE CONDUCTOR STRANDING	SUPPORT CONDUCTOR STRANDING	MAXIMUM CONDUCTOR RESISTANCE	BREAKING LOAD	CONTINUOUS CURRENT RATING AT 30℃ AMBIENT TEMP	NOMINAL CROSS SECTION
NUMBER OF CORES	mm²	NO.X mm²	NO.X mm²	Ω/Km	KN	A	mm2
3+1	50/25	19/1.78	7/3.0	0.641/0.868	60	116	50
3+1	70/50	19/2.14	7/3.15	0.443/0.641	62	210	70
3+1	95/50	19/2.52	7/3.0	0.253/0.641	60	173	95
3+1	150/50	37/2.25	7/3.15	0.206/0.641	62	365	120
3+1	185/120	37/2.52	7/4.67	0.164/0.206	150	259	150
3+1	240/50	61/2.25	7/3.15	0.125/0.641	62	500	185

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
