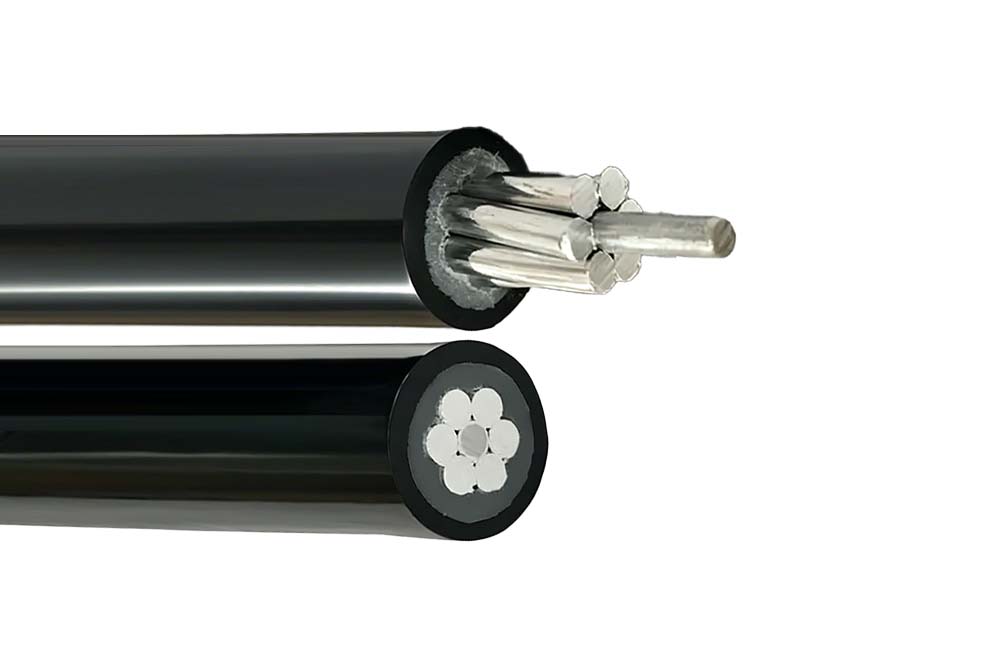

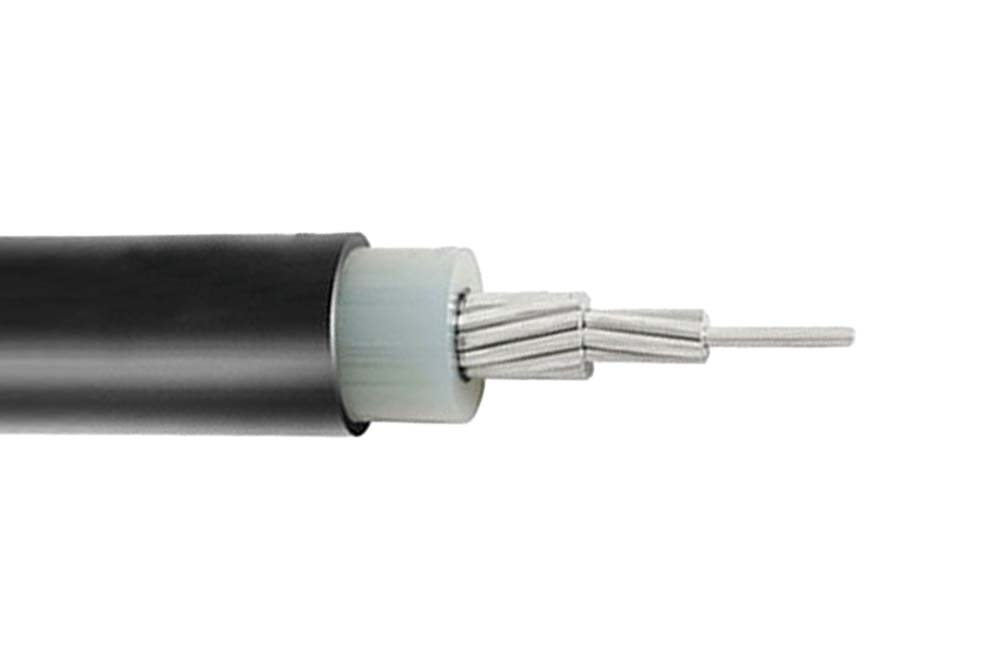

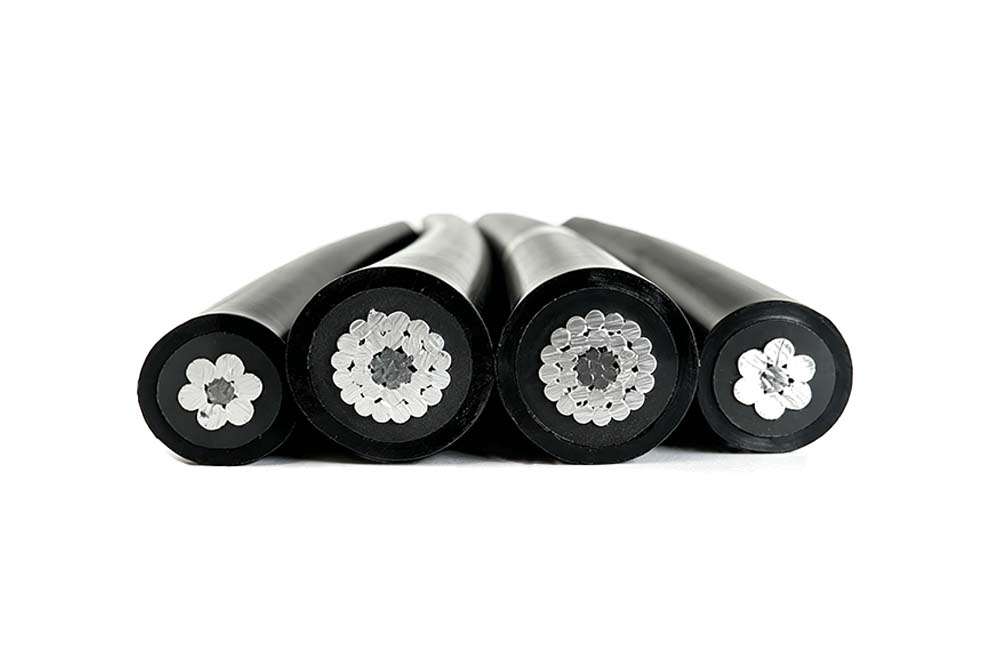

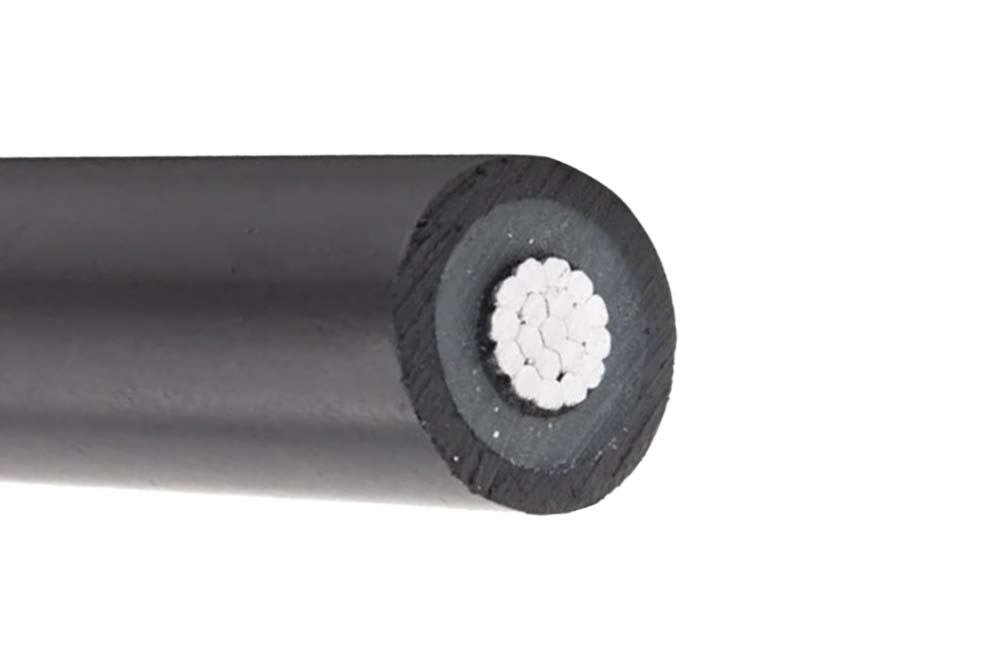

6/10kV Medium Voltage ABC aerial bundled cable
Voltage:	6/10kV
Structure:	Conductor	Aluminium conductor
	Insulation	XLPE
	Sheath	PVC
	Sheath Colour	Black, customization is available

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

ABC stands for Aerial Bundled Cable, also known as overhead bundled insulated cable. Its standard rated voltages are 6/10(12) kV and 6.35/11 kV. It is a self-supporting cable constructed by stranding three insulated phase cores together with an ACSR (Aluminum Conductor Steel Reinforced) messenger neutral wire that bears the mechanical tension. It replaces conventional bare overhead conductors and is applied to main and branch lines of medium-voltage overhead distribution networks.

Voltage Rating Uo/U

6/10 kV

Temperature Rating

-40°C to +90°C

STANDARDS

IEC 60502-2、BS 7870、AS/NZS 3599‌

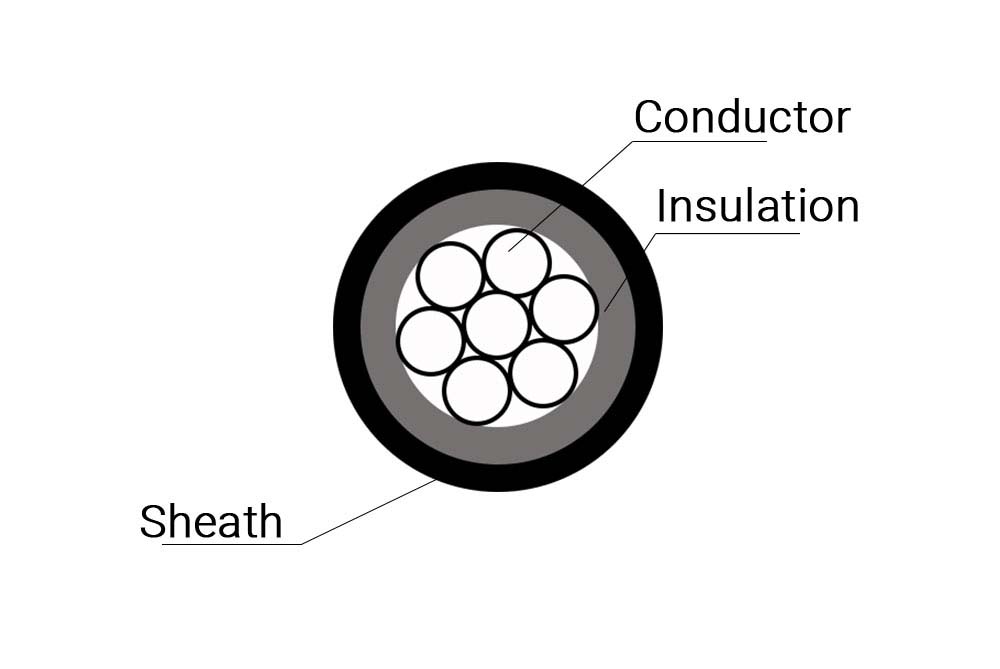

CONSTRUCTION

Conductor

Aluminium conductor

Insulation

XLPE

Sheath

PVC

Sheath Colour

Black, customization is available

Specification	Conductor	Outer Diameter Of Conductor	Insulation Thickness	Outer Diameter	Weight	Maximum Direct Current Resistance
		mm	mm	mm	kg/km	MΩ/km
10/2	6/1.47	4.1	3.4	12.1	138.6	3.08
	1/1.5
16/3	6/1.86	5.2	3.4	13.2	174.9	1.91
	1/1.85
25/4	6/2.35	6.5	3.4	14.5	228.7	1.2
	1/2.32
35/6	6/2.76	7.6	3.4	15.6	281.1	0.868
	1/2.72
50/8	6/3.22	8.9	3.4	16.9	347.3	0.641
	1/3.20
70/10	6/3.87	10.7	3.4	18.7	452.1	0.443
	1/3.80
95/15	26/2.19	12.8	3.4	21	586.9	0.32
	7/1.67
95/20	24/2.28	13	3.4	21.2	616.9	0.32
	7/1.85
120/20	26/2.46	14.3	3.4	22.5	701.5	0.253
	7/1.85
150/20	24/2.84	15.7	3.4	23.9	792.1	0.206
	7/1.85
185/25	24/3.18	17.6	3.4	25.8	960.3	0.164
	7/2.10
185/30	26/3.05	17.8	3.4	26	1005.2	0.164
	7/2.32
240/30	24/3.64	20.1	3.4	28.3	1206.2	0.125
	7/2.40
300/25	48/2.88	22.1	3.4	30.3	1358.2	0.1
	7/2.22

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
