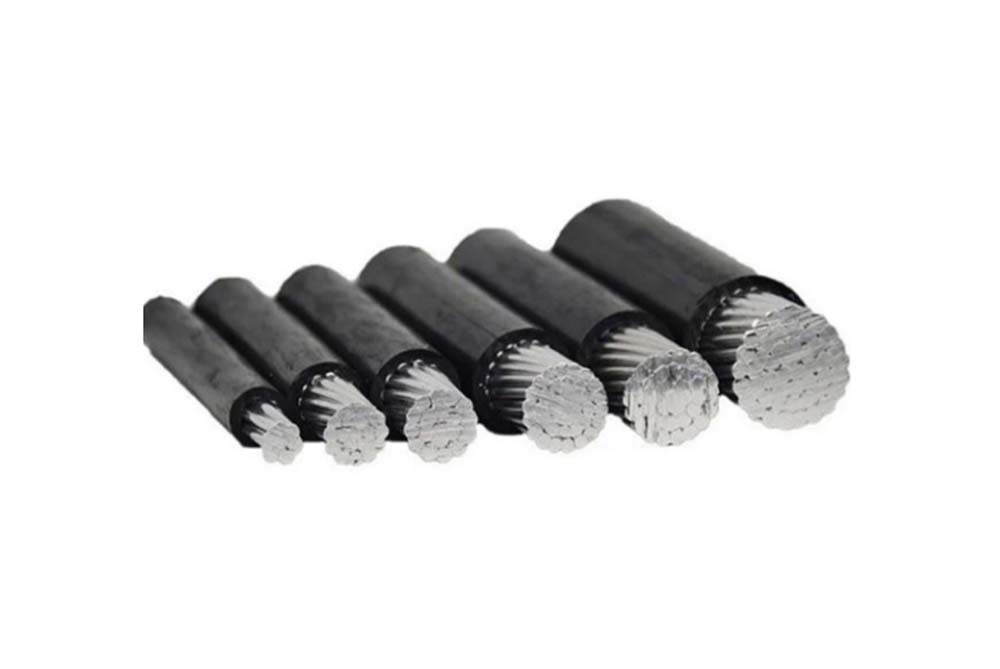

XHHW-2 Aluminum 600V Building Wire
Voltage:	600V
Structure:	Conductor	Class B stranded bare aluminum per ASTM B800 and ASTM B801
	Insulation	Heat and moisture resistant cross-linked polyethylene (XLPE) insulation in various colors
	Insulation Colour	Black, Customized as needed

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

XHHW-2 Wire can be used as a building line, widely used in highrise buildings, subways, commercial offices and other large public places, can also be used in photovoltaic power stations, mobile energy storage power stations, wind energy storage systems and other new energy fields.

Voltage Rating Uo/U

600V

Temperature Rating

-40°C to 90°C

STANDARDS

ASTM B800 8000 Series Aluminum Alloy Wire

ASTM B801 Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy

UL 44 - Thermoset-Insulated Wires and Cables

UL 1581 - Flame Exposure Test

National Electrical Code (NEC)

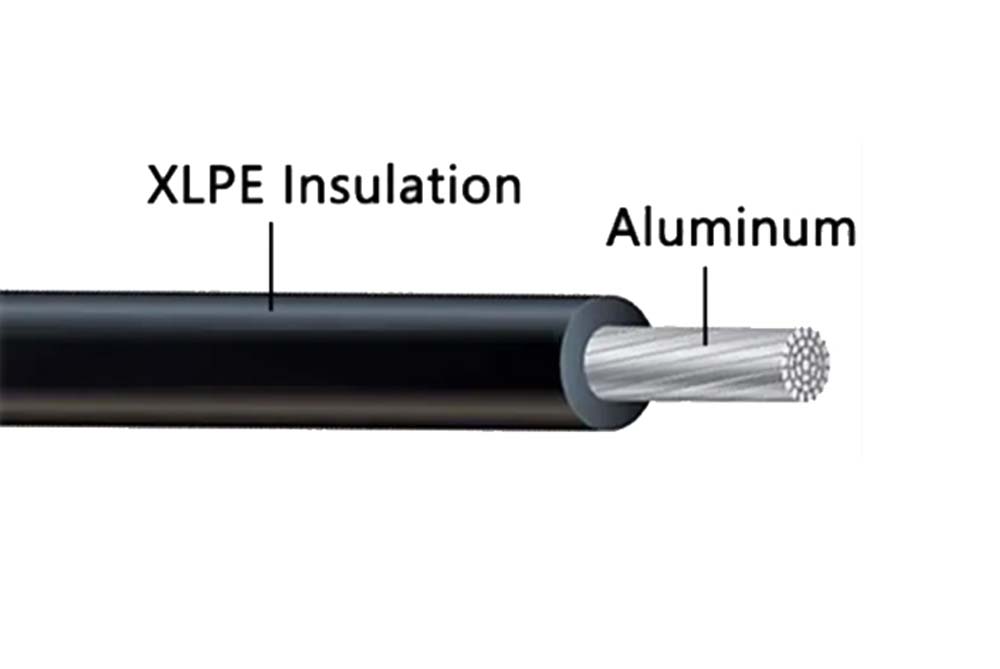

CONSTRUCTION

Conductor

Class B stranded bare aluminum per ASTM B800 and ASTM B801

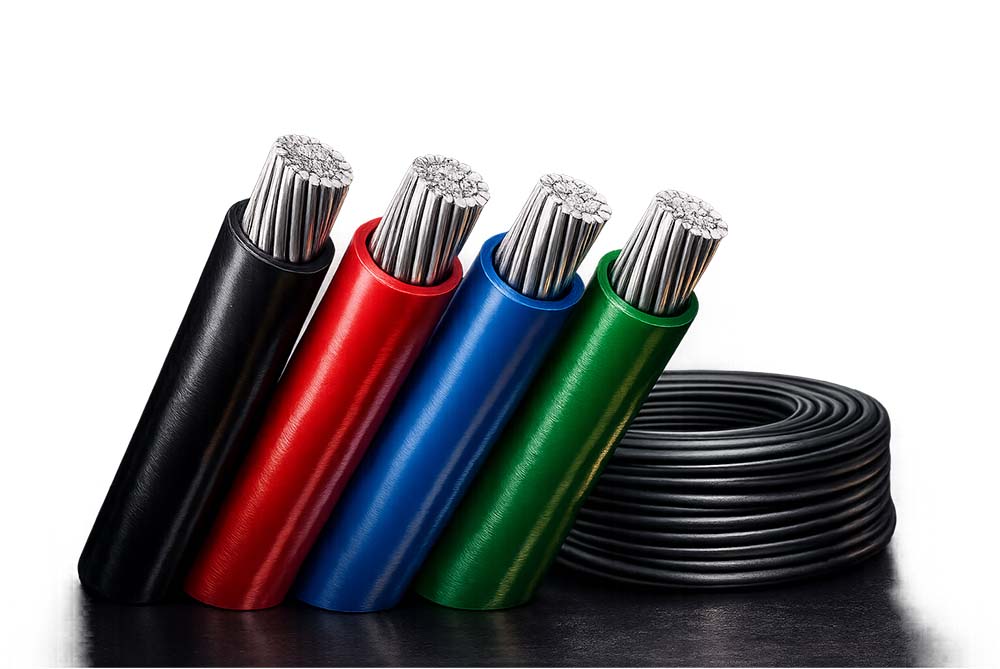

Insulation

Heat and moisture resistant cross-linked polyethylene (XLPE) insulation in various colors

Insulation Colour

Black, Customized as needed

SIZE (AWG OR KCMIL)	STRAND QTY.	Nominal Insulation Thickness		OUTSIDE DIAMETER		APPROX. NET WEIGHT		ALLOWABLE AMPACITY1 (AMPS)
SIZE (AWG OR KCMIL)	STRAND QTY.	MM	IN	MM	IN	KG/MIL	LBS/1000FT	75º C	90º C
8	7	1.14	0.045	5.99	0.236	42	28	40	45
6	7	1.14	0.045	6.96	0.274	60	40	50	55
4	7	1.14	0.045	8.18	0.322	86	58	65	75
2	7	1.14	0.045	9.70	0.382	128	86	90	100
1	19	1.40	0.055	10.60	0.417	164	110	100	115
1/0	19	1.40	0.055	11.50	0.453	200	134	120	135
2/0	19	1.40	0.055	12.60	0.496	243	163	135	150
3/0	19	1.40	0.055	13.80	0.543	299	201	155	175
4/0	19	1.40	0.055	15.10	0.594	368	247	180	205
250	37	1.65	0.065	16.70	0.657	442	297	205	230
300	37	1.65	0.065	18.00	0.709	523	351	230	260
350	37	1.65	0.065	19.20	0.756	599	402	250	280
400	37	1.65	0.065	20.20	0.795	676	454	270	305
500	37	1.65	0.065	22.20	0.874	830	557	310	350
600	61	2.03	0.08	24.90	0.98	1014	681	340	385
750	61	2.03	0.08	27.30	1.075	1244	835	385	435
1000	61	2.03	0.08	31.20	1.228	1627	1092	445	500

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
