THHN / THWN-2 Copper Electric Wire PNS35-1
Voltage:	600V
Structure:	Conductor	Annealed copper wire: Conforming to requirements of PNS 260 for solid conductor or PNS 1207 for stranded conductors. 14～500mm2 compact stranded.
	Insulation	PVC conforming to the requirements of PNS 661
	Sheath	Tough polyamide (Nylon)
	Insulation Colour	Available colors are red, white, blue, green, black, etc

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

General purpose building wire for services feeders and branch circuits. Also used for wiring of machine tools (stranded), appliances, and control circuits.

THHN

Thermoplastic PVC-insulated building wire, Nylon sheath, 90°C, 600 V, for dry and damp locations.

THWN

Thermoplastic PVC-insulated building wire, Heat resistant 75°C, for Wet and dry locations, flame retardant.

Voltage Rating Uo/U

600V

Temperature Rating

90℃ dry / 75℃ wet

STANDARDS

PNS35-1

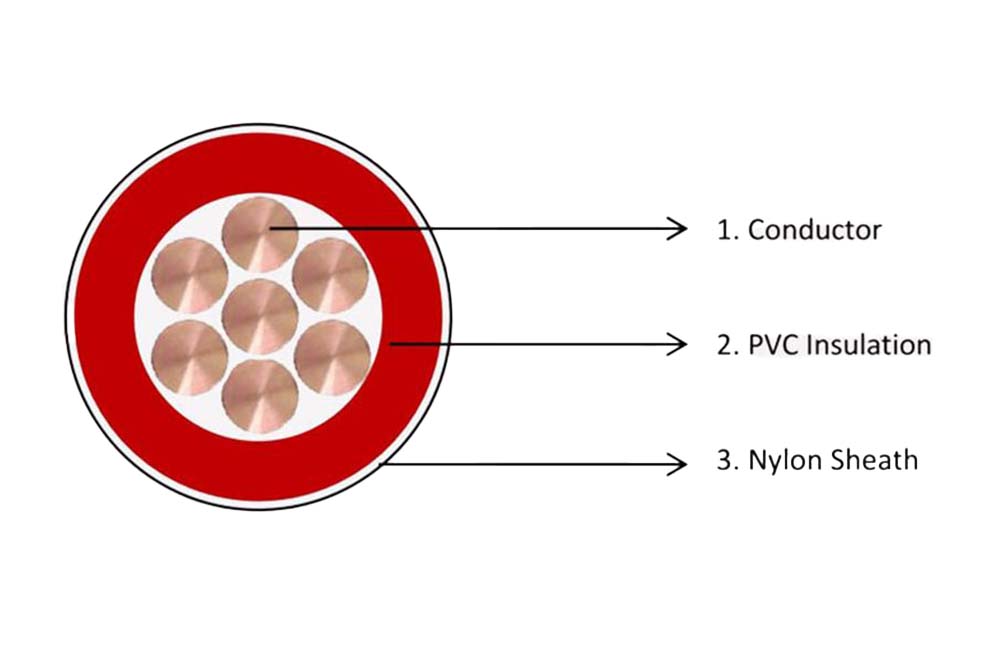

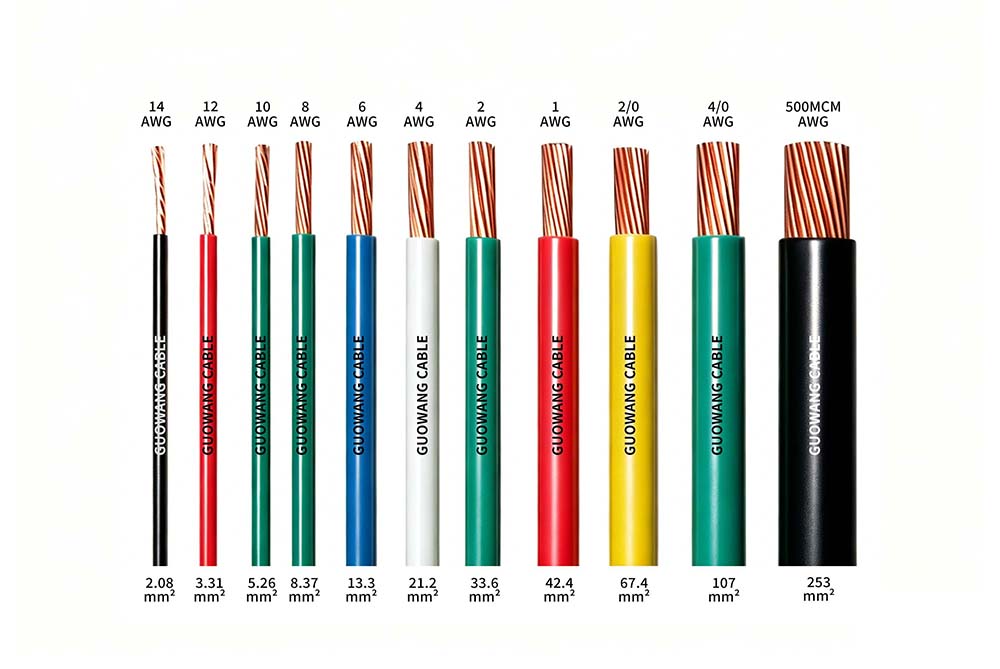

CONSTRUCTION

Conductor

Annealed copper wire:

Conforming to requirements of PNS 260 for solid conductor or PNS 1207 for stranded conductors.

14～500mm2 compact stranded.

Insulation

PVC conforming to the requirements of PNS 661

Sheath

Tough polyamide (Nylon)

Insulation Colour

Available colors are red, white, blue, green, black, etc

Conductor			Minimum insulation thickness(mm)		Minimum nylon thickness	Approx. overall diameter
Nominal sectional area	Composition	Approximate Outside diameter	Average	At any point	mm	mm
mm2	Number of wires	mm	Average	At any point	mm	mm
2	1	1.6	0.4	0.34	0.1	2.6
2	7	1.8	0.4	0.34	0.1	2.8
3.5	1	2	0.4	0.34	0.1	3
3.5	7	2.4	0.4	0.34	0.1	3.4
5.5	1	2.6	0.5	0.34	0.1	3.8
5.5	7	3	0.5	0.34	0.1	4.2
8	1	3.2	0.8	0.68	0.13	5.1
8	7	3.6	0.8	0.68	0.13	5.5
14	7	4.4	0.8	0.68	0.13	6.5
22	7	5.5	1	0.85	0.15	8.1
30	7	6.5	1	0.85	0.15	9.1
38	19	7.3	1.3	1.11	0.18	10.6
50	19	8	1.3	1.11	0.18	11.3
60	19	9.2	1.3	1.11	0.18	12.5
80	19	10.7	1.3	1.11	0.18	14
100	19	11.8	1.3	1.11	0.18	15.1
125	37	13.1	1.6	1.36	0.18	17
150	37	14.5	1.6	1.36	0.2	18.4
175	37	15.6	1.6	1.36	0.2	19.5
200	37	16.8	1.6	1.36	0.2	20.7
250	37	18.7	1.6	1.36	0.2	22.6
300	61	20.4	1.8	1.53	0.23	24.8
325	61	21.3	1.8	1.53	0.23	25.7
375	61	22.4	1.8	1.53	0.23	26.8
400	61	23.6	1.8	1.53	0.23	28
500	61	26.4	1.8	1.53	0.23	30.8

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
