N2XS2Y HD620 XLPE PE - 12/20 (24)kV Cable-HD620-Medium Voltage Cable Manufacturers

N2XS2Y HD620 XLPE PE - 12/20 (24)kV Cable
Voltage:	12/20 (24)kV
Structure:	Conductor	Class 2 Stranded Copper
	Insulation	XLPE (Cross-Linked Polyethylene)
	Screen	Copper wires
	Jacket	PE (Polyethylene)

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. For installation in ground, in water outdoors, indoors and in cable ducts for power stations, industry, and distribution networks.

CHARACTERISTICS

Voltage Rating (Uo/U)(Um)

12/20 (24)kV

Test Voltage

42kV

Temperature Rating

-20°C to +90°C

Minimum Bending Radius

15 x overall diameter

STANDARDS

IEC 60502-2, DIN VDE 0276-620, HD 620, IEC/EN 60228

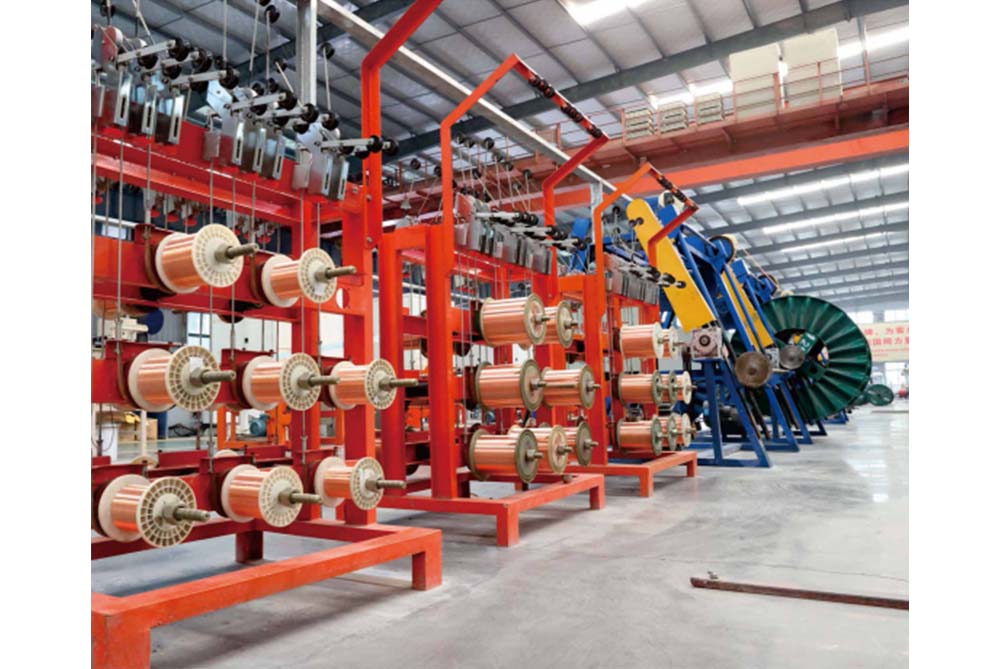

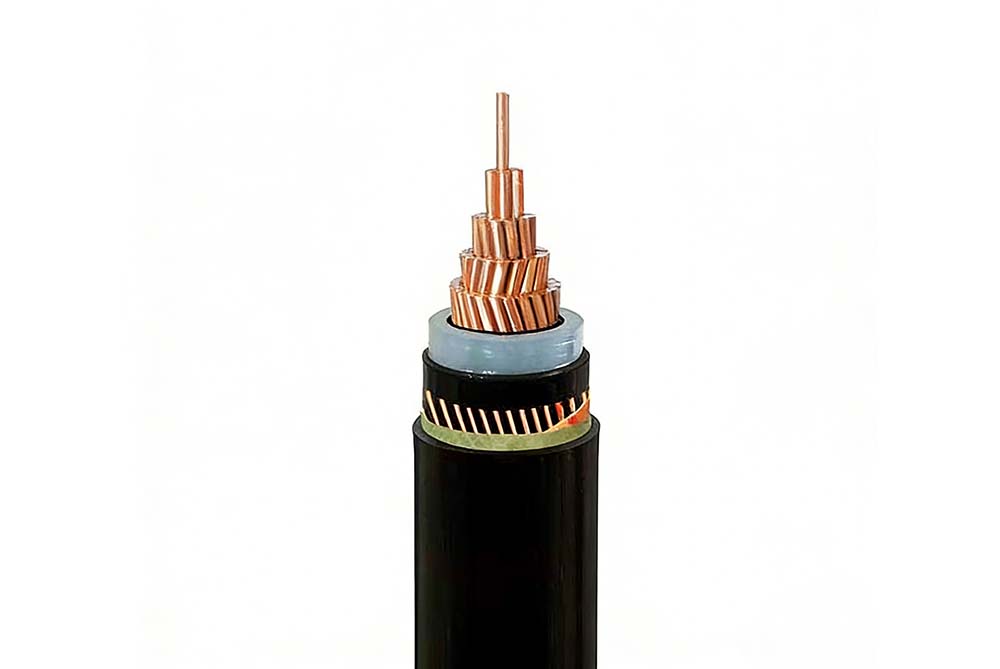

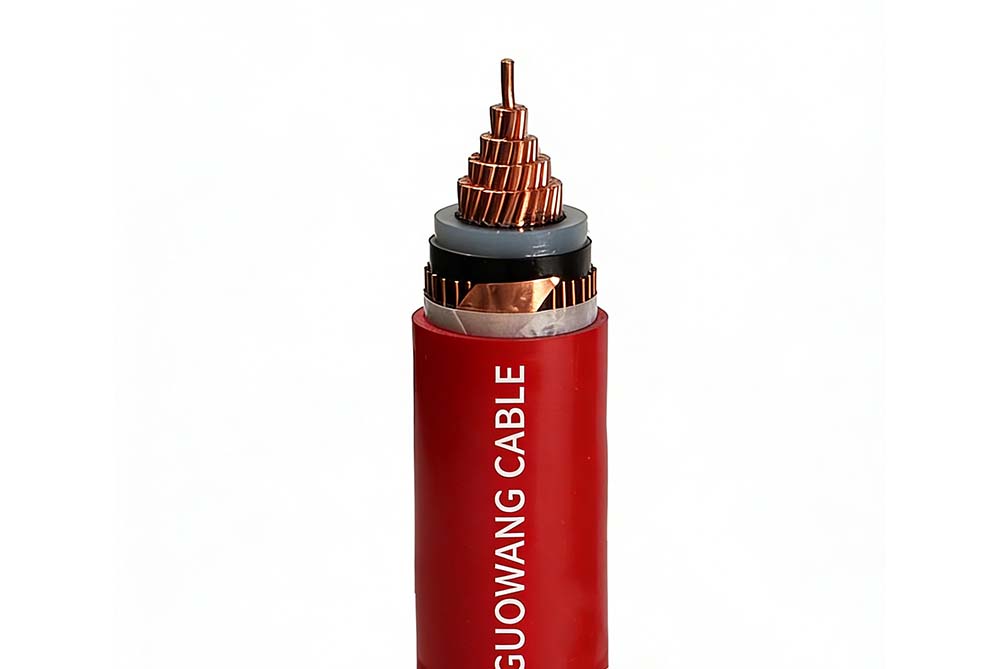

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Inner Semi-Conductive Layer

Semi-conductive material

Insulation

XLPE (Cross-Linked Polyethylene)

Outer Semi-Conductive Layer

Semi-conductive material

Screen

Copper wires

Sheath

PE (Polyethylene)

Sheath Color

Black

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
NO. OF CORES	Conductor	Copper Wire Screen	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	35	16	32	1000
1	50	16	33	1150
1	70	16	35	1350
1	95	16	36	1600
1	120	16	38	1850
1	150	25	39	2250
1	185	25	41	2600
1	240	25	44	3150
1	300	25	46	3800
1	400	35	49	4750
1	500	35	52	5800

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
