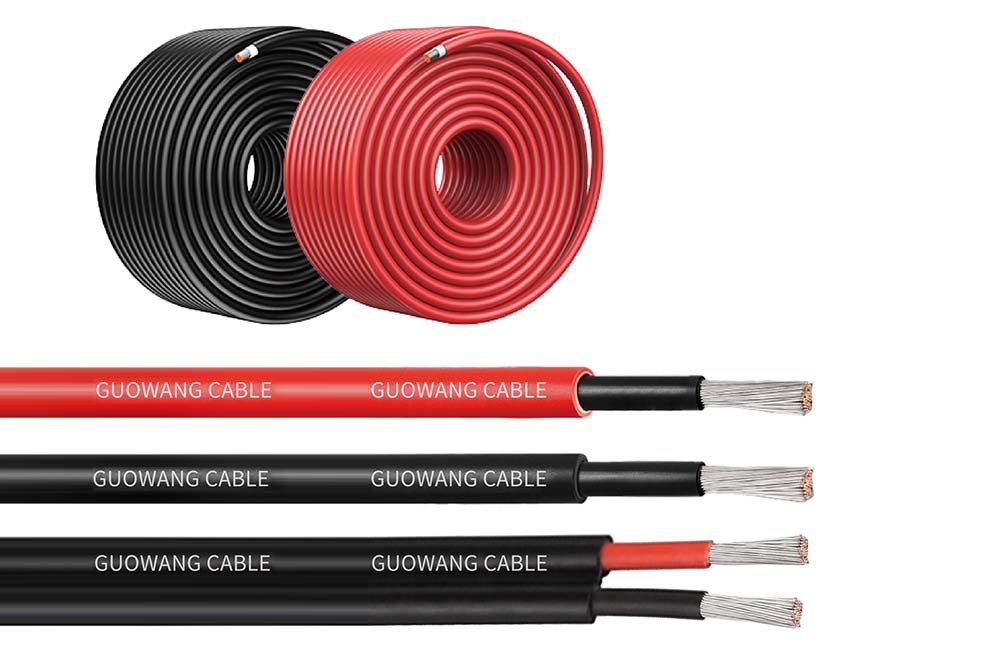

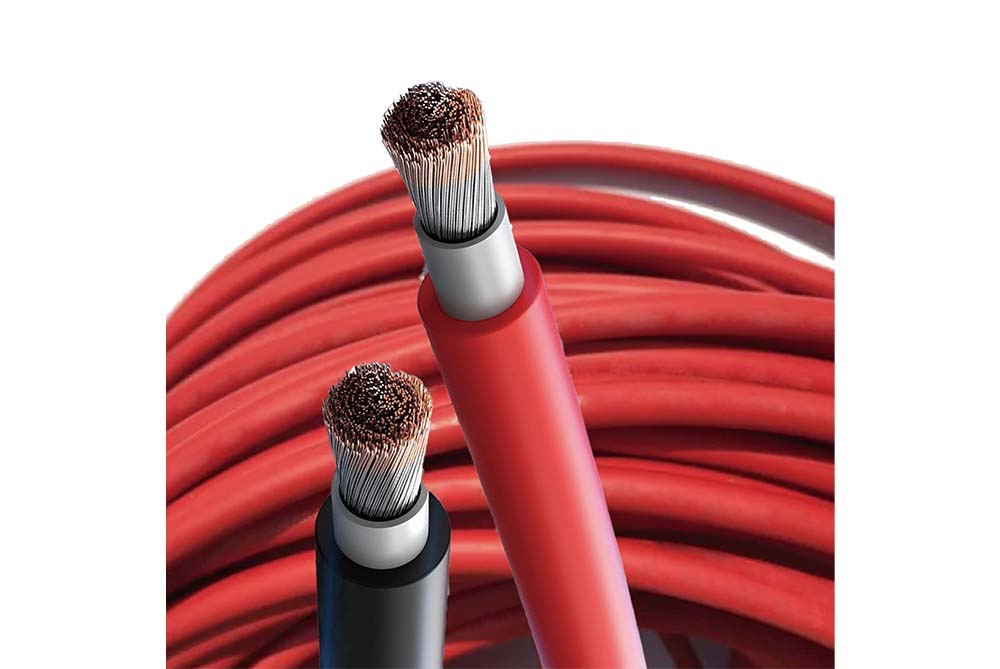

1500V DC H1Z2Z2-K Solar PV Cable
Voltage:	AC:1000/1000V DC:1500/1500V
Structure:	Conductor	Class 5 flexible tinned copper conductor
	Insulation	Halogen-free cross-linked compound
	Sheath	Halogen-free cross-linked, flame retardant compound
	Sheath Colour	Black, Other colours available on request

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

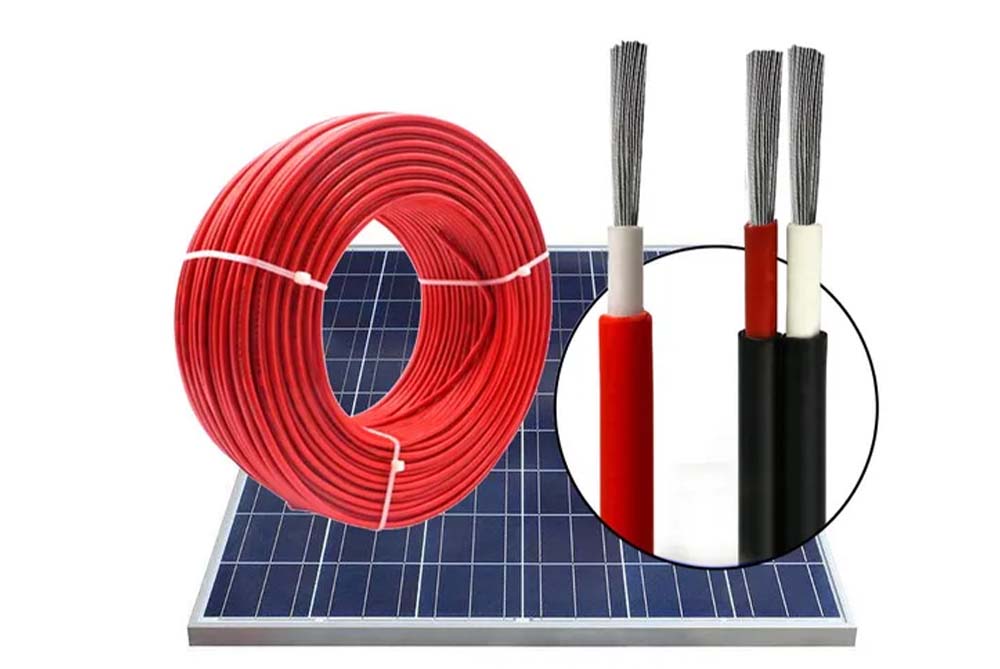

Updated harmonised (HZ2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.

Voltage Rating Uo/U

AC:1000/1000V

DC:1500/1500V

Maximum Voltage (Umax)

1800V

Test Voltage

6.5kV AC

Temperature Rating

-40°C to 90°C

Minimum Bending Radius

5 x overall diameter

Maximum Conductor Temperature

+120°C (for 20000h)

STANDARDS

EN 50618, TUV 2 PfG 1169/08.2007, EN 50288-3-7, EN 60068-2-78, EN 50395

Flame retardant to IEC/EN 60332-1-2

Low Smoke Zero Halogen to IEC/EN 60754-1/2,IEC/EN 61034-1/2, EN 50267-2-2

Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3

Water Resistant to AD8

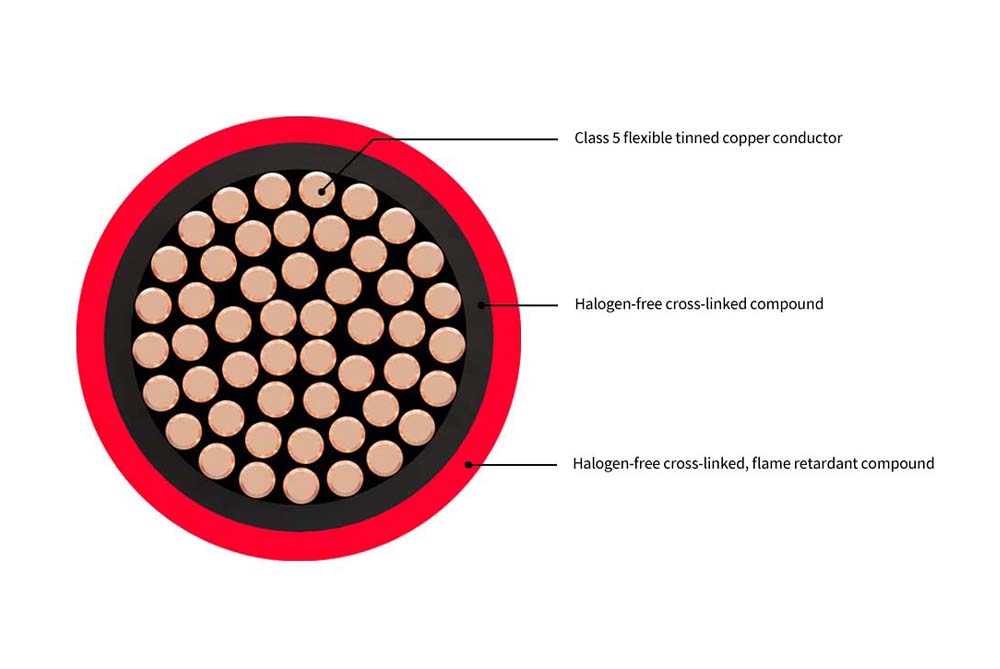

CONSTRUCTION

Conductor

Class 5 flexible tinned copper conductor

Insulation

Halogen-free cross-linked compound

Sheath

Halogen-free cross-linked, flame retardant compound

Sheath Colour

Black, Other colours available on request

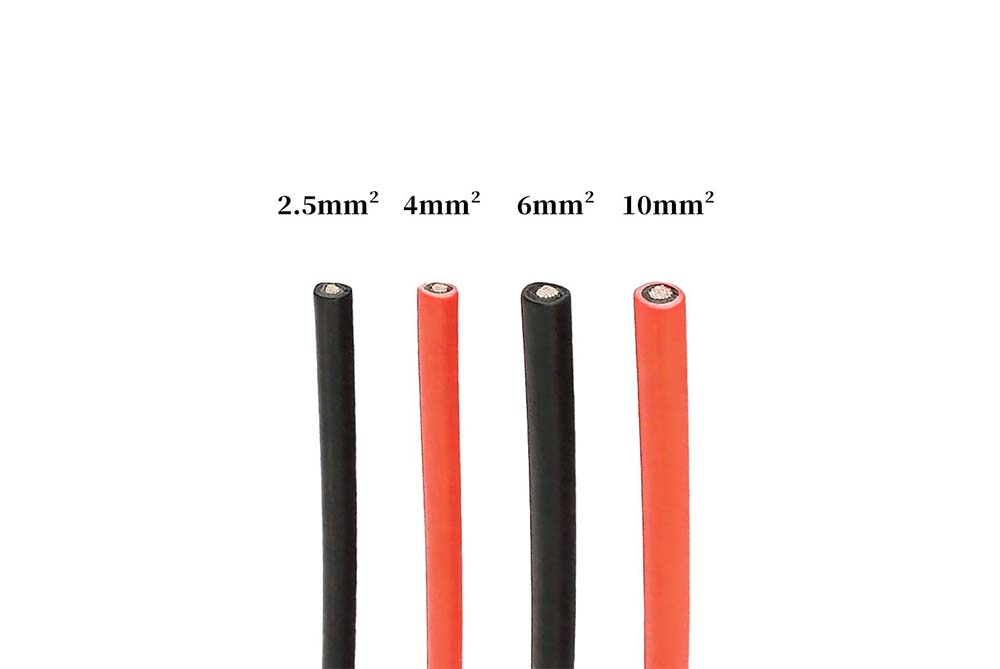

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL OVERALL DIAMETER (mm)	NOMINAL WEIGHT (kg/km)	TENSILE STRENGTH IN OPERATION (N)
1	1.5	4.6	36	22
1	2.5	5	46	37
1	4	5.6	62	60
1	6	6.1	82	90
1	10	7.1	125	150
1	16	8.5	190	240
1	25	10.4	285	375
1	35	11.5	385	525
1	50	13.7	540	750
1	70	15.8	740	1050
1	95	17.3	965	1350
1	120	19.1	1210	1800
1	150	21.4	1495	2250
1	185	24.9	1885	2775
1	240	27.3	2395	3600

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
