H07Z-R LSZH Cable
Voltage:	450/750V
Structure:	Conductor	Class 2 stranded copper conductor
	Insulation	LSZH (Low Smoke Zero Halogen)
	Insulation Colour	Red Black Blue Yellow Orange White Green/Yellow Grey Brown Violet Pink

Inquiry Now Send E-mail

Overview
Specifications
FAQ
Test&Acceptance
Contact Us

APPLICATION

CHARACTERISTICS

Suitable for use in conduit and for fixed, protected installation. For installations where fire, smoke emission and toxic fume create a potential risk to life and equipment.

Voltage Rating Uo/U

450/750V

Temperature Rating

Fixed: -20°C to +90°C

Minimum installation temperature: 0°C

Minimum Bending Radius

6 x overall diameter

STANDARDS

EN 50525-3-41, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

Halogen Free according to IEC/EN 61034-1/2, IEC/EN 60754-1/2

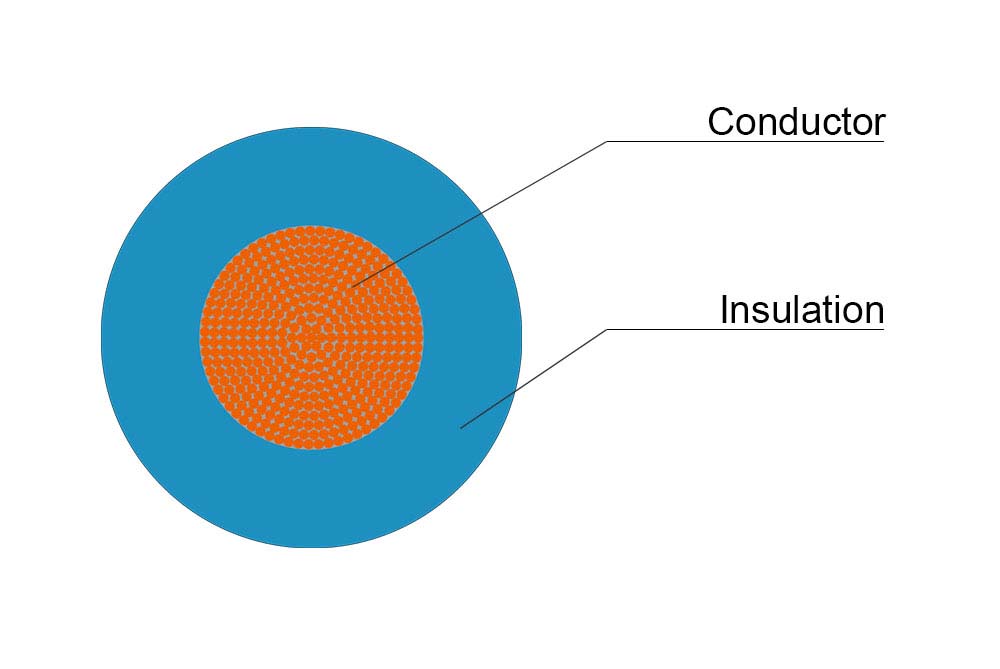

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Insulation

LSZH (Low Smoke Zero Halogen)

Insulation Colour

Red Black Blue Yellow Orange White Green/Yellow Grey Brown Violet Pink

NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
mm2	mm	mm	kg/km
1.5	0.7	3.4	22
2.5	0.8	4.1	35
4	0.8	4.7	50
6	0.8	5.4	72
10	1	6.8	121
16	1	8	182
25	1.2	9.8	285
35	1.2	11	390
50	1.4	13.2	510
70	1.4	15.1	710
95	1.6	17	980
120	1.6	19	1220
150	1.8	21	1500
185	2	23.5	1910
240	2.2	26.5	2490
300	2.4	29.5	3100
400	2.6	33.5	3950
500	2.8	37	5000
630	2.8	41	6350

HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.
HOW IS YOUR DELIVERY TIME?

Generally, we can deliver regular machines to customers immediately within 7-30 days.
HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?

Our team is available 24/7 to respond to customer inquiries and issues. Most issues can be resolved within 8 hours.

1.Sampling Tests

2.Type test items

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test；conductor single wire diameter and deviation；insulation average thickness, thinnest point；the sheathed average thickness and thinnest poin；change rate of tensile strength and elongation of insulation and sheath before and after aging；insulated wire core withstand voltage test；hot extension test；ozone resistance test；finished cable flexure test, etc.
